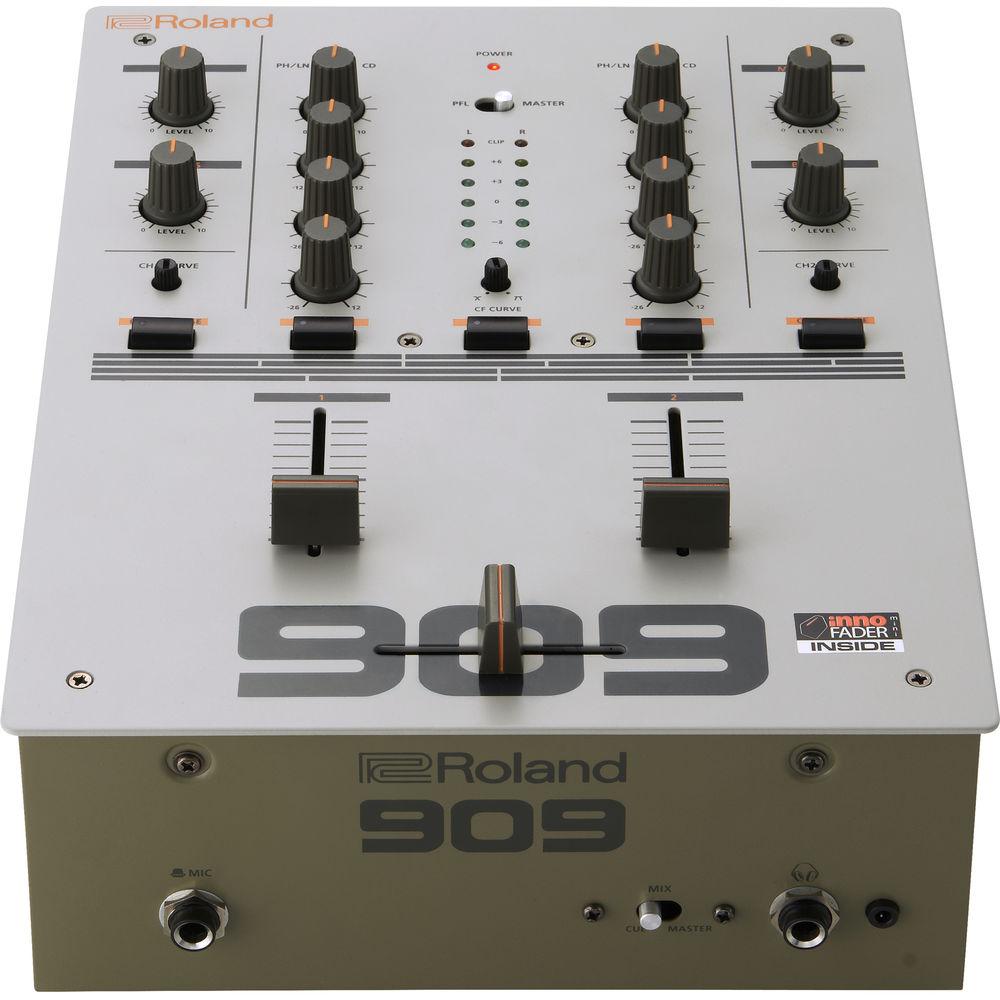

User Manual for Roland DJ-99 2-Channel DJ Mixer Click to enlarge the picture
Contents of the user manual for the Roland DJ-99 2-Channel DJ Mixer
- Product category: DJ Mixers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland DJ Mixers
 |
User manual for the Roland DJ-99 2-Channel DJ Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

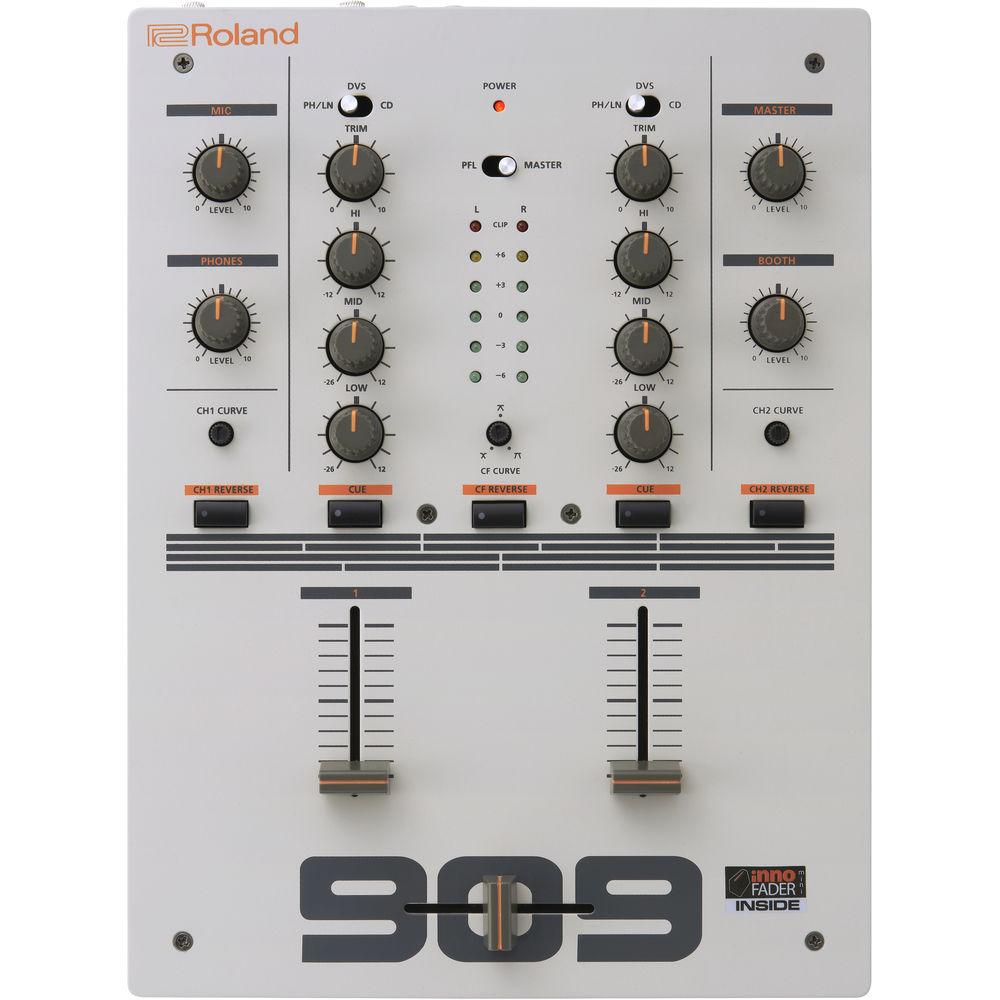

Product description Visually designed with a nod to the TR-909 drum machine, the DJ-99 2-Channel DJ Mixer from Roland features channel fader curve and reverse, cue mix functionality with setting for Cue/Mix/Master, and TRS balanced master outputs.

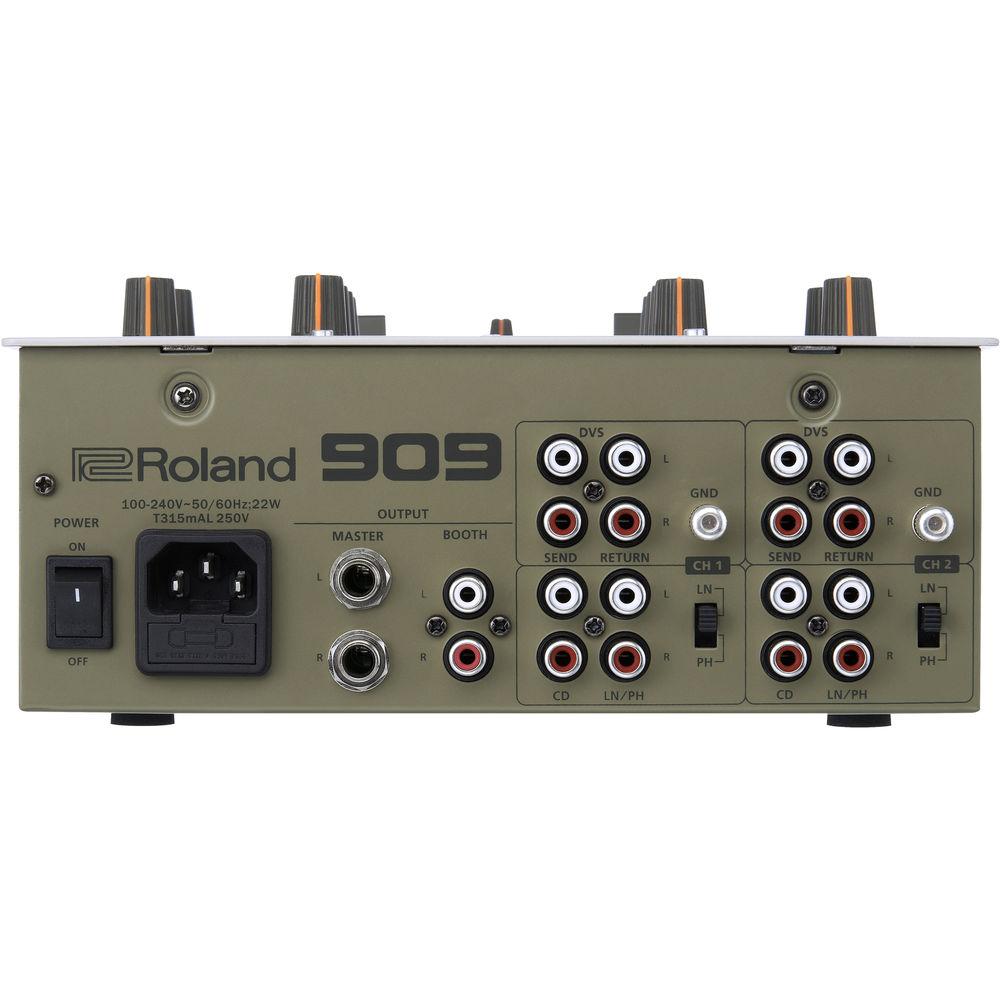

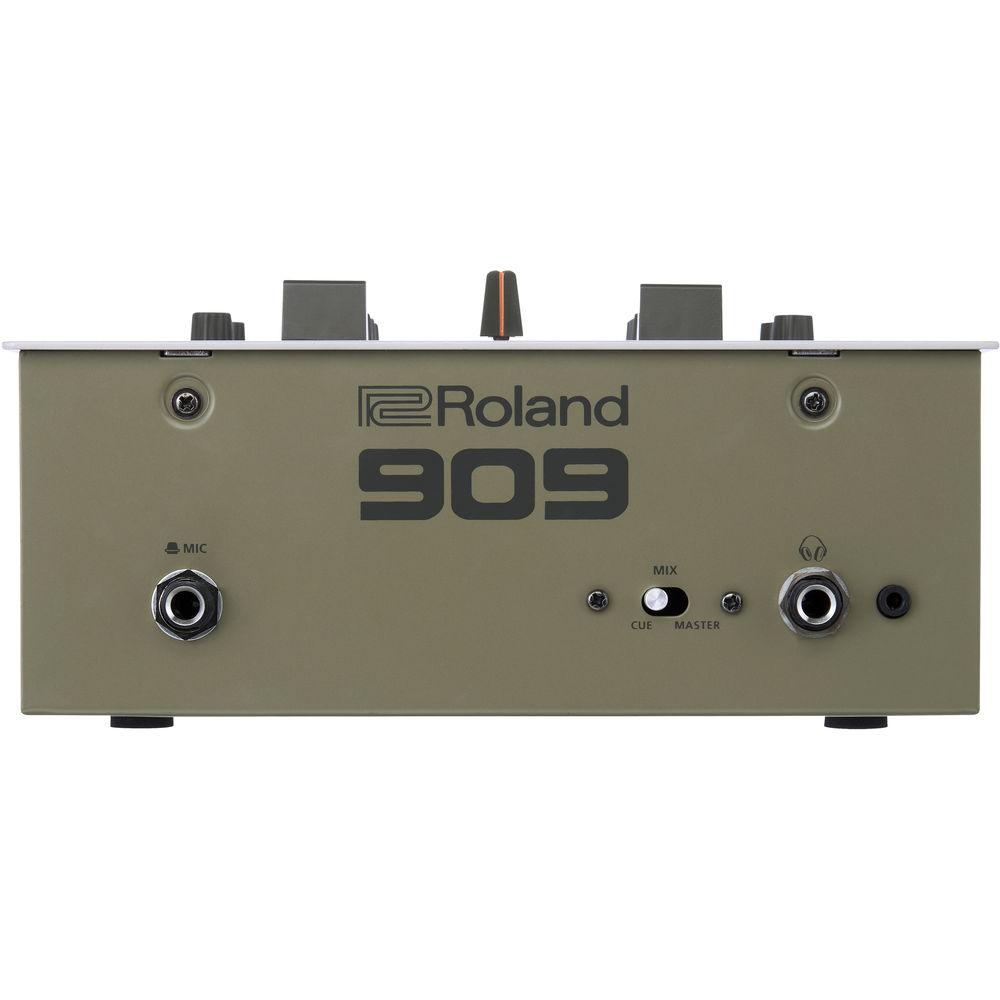

The DJ-99 is equipped with the Audio Innovate mini innoFADER as the crossfader, which provides a smooth yet robust feeling for scratch DJs. The contactless design gives a long life of over 4,000,000 cycles. The cut-in position is user adjustable with simple calibration steps, while the reverse switch allows DJs to perform a variety of scratch techniques. The DJ-99 is also compatible with the original innoFADER for future upgrades. The Timecode mode allows easy switching between ordinary turntable and DVS setup. At the rear of the DJ-99, the extra pairs of Timecode Send and Return RCA connectors allow DJs to connect to an audio interface such as the SL3 for Serato. By simply switching to the Timecode channel on the control panel, DJs can use the mixer as a DVS setup without changing any cables. The mixer features a 3-band equalizer per channel, a microphone input, both 1/4" (6.35mm) and 1/8" (3.5mm) headphones outputs, a master output and a booth output with a dedicated volume control. The DJ-99 ships with an IEC power cable. -
- High performance 2-channel DJ scratch mixer
- Audio Innovate "mini innoFADER" as crossfader
- Crossfader compatible with the original full-size innoFADER
- Curve adjust and reverse for both crossfader and channel faders
- DVS mode: Rapidly switch between traditional vinyl setup and DVS setup without reconnecting the cables
- Stereo 1/4" Master output and RCA booth output with dedicated volume control
- 1/4" and 1/8" headphones output with monitoring mode CUE/MIX/MASTER
UPC: 761294509852 In the Box Roland DJ-99 2-Channel DJ Mixer IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland DJ-99 2-Channel DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland DJ-99 Specs | Inputs | CD Input per Channel: 2 x RCA
Phono/Line per Channel: 2 x RCA (switchable between phono preamp and line source)
DVS Return per Channel: 2 x RCA
Microphone: 1 x 1/4" | | Outputs | Master Output: 2 x 1/4" / 6.35 mm TRS
Booth Output: 2 x RCA
DVS Send per Channel: 2 x RCA
Headphone Output: 1/4" / 6.35 mm
Headphone Output: 1/8" / 3.5 mm | | Nominal Input Level | Nominal Input Level (Output Master 0 dBu)
CH1, CH2 CD (L, R): -13 dBu
CH1, CH2 LN (L, R): -17 dBu
CH1, CH2 PH (L, R): -61 dBu
CH1, CH2 DVS RETURN (L, R): -13 dBu
MIC IN: -40 dBu | | Maximum Input Level | CH1, CH2 CD (L, R): 6 Vrms
CH1, CH2 LN (L, R): 6 Vrms
CH1, CH2 PH (L, R): 0.04 Vrms
CH1, CH2 DVS RETURN (L, R): 6 Vrms
MIC IN: 0.6 Vrms | | Maximum Output Level | Maximum Output Level (1 kHz, typ.)
Output Master (L, R): +15 dBu
Output Booth (L, R): +15 dBu
Phones: 31 mW | | Recommended Load Impedance | Phones: 32 Ohms | | Frequency Response | CH1, CH2 CD, LN, DVS Return: 20 Hz to 20 kHz (+1/-2 dB)
Mic In: 20 Hz to 20 kHz (+1/-3 dB) | | Noise | CH1, CH2 LN (L, R) --> Output Master: 0.6 mVrms or less
CH1, CH2 PH (L, R) --> Output Master: 6 mVrms or less
(TRIM level: center, 1 kOhm terminated, MASTER level: max, IHF-A, typ.) | | Distortion | CH1, CH2 CD (L, R): 0.2 % or less
CH1, CH2 LN (L, R): 0.2 % or less | | Channel EQ | Hi: 10 kHz ±12 dB
Mid: 980 Hz +12/-28 dB
Low: 100 Hz +12/-28 dB | | Controllers | CH1, CH2 Input selectors
CH1, CH2 Mic level knobs
CH1, CH2 Trim level knobs
CH1, CH2 Channel EQ knobs Hi
CH1, CH2 Channel EQ knobs Mid
CH1, CH2 Channel EQ knobs Low
CH1, CH2 Channel Fader curve adjustment knobs
CH1, CH2 Channel Fader reverse switches
CH1, CH2 Cue buttons
CH1, CH2 Channel Faders
CH1, CH2 LN/PH selectors
Crossfader
PFL/Master selector
Phones level knob
Master level knob
Booth level knob
Crossfader curve adjustment knob
Crossfader reverse switch
Headphones Monitoring selector | | Indicators | Power indicator
PFL/MASTER level meter
CH1, CH2 Channel Fader reverse indicators
CH1, CH2 CUE indicators
Crossfader reverse indicator | | Power Consumption | 22 W | | Fuse Rating | T315mAL 250 V (5 ⌀ x 20 mm) | | Dimension L x W x H | 8.8 x 12.0 x 4.1" / 224.0 x 306.0 x 104.0 mm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 9.95 lb | | Box Dimensions (LxWxH) | 16.6 x 11.0 x 5.8" |
