User Manual for Roland DP603-CB Digital Home Piano Click to enlarge the picture
Contents of the user manual for the Roland DP603-CB Digital Home Piano
- Product category: Digital Pianos Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Digital Pianos
 |
User manual for the Roland DP603-CB Digital Home Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

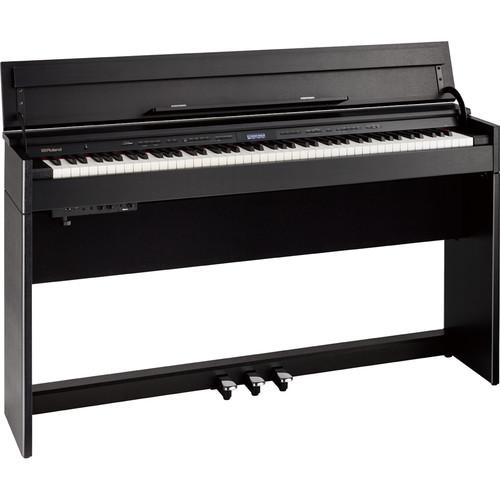

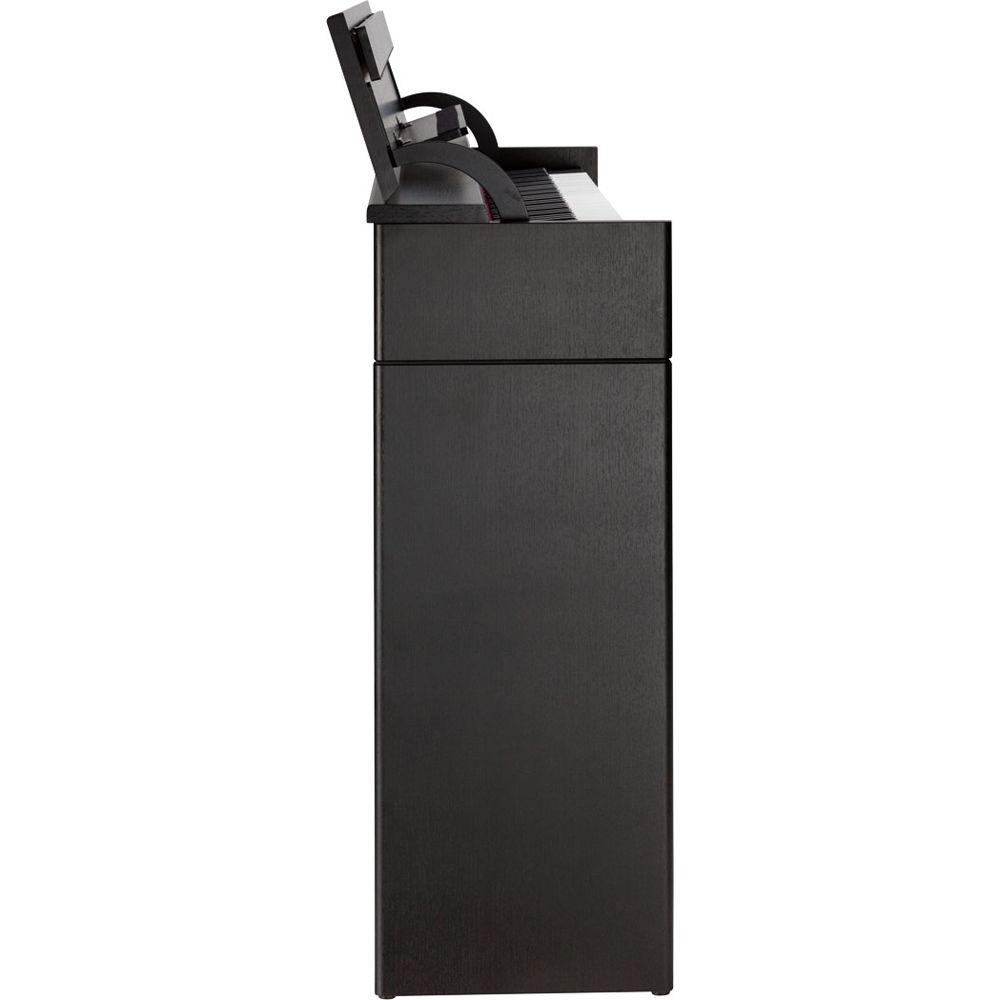

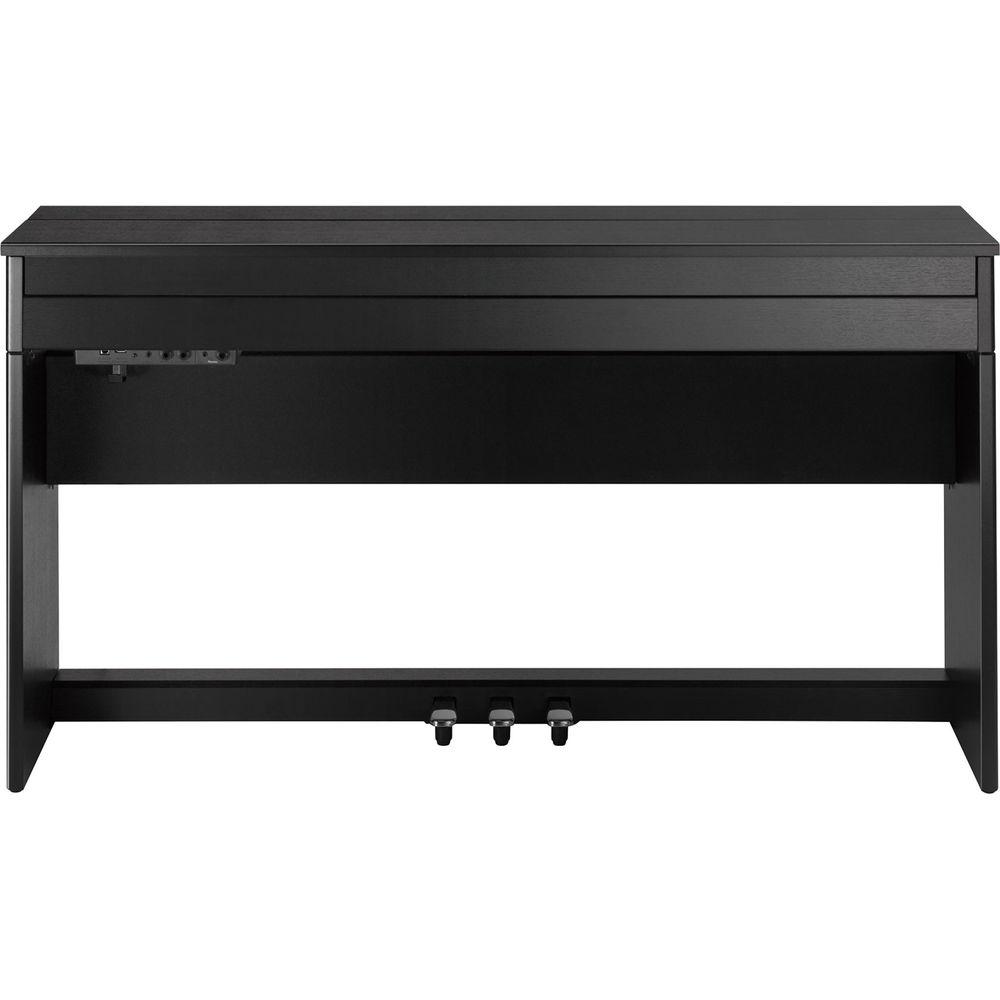

Product description The contemporary black DP603-CB from Roland is a stylish digital home piano which combines authentic piano sounds with a slim, minimalist design to complement modern living spaces.It delivers a rich, detailed sound with the company's SuperNATURAL Piano Modeling technology and a grand piano touch with the 88-key PHA-50 Progressive Hammer Action keyboard, which combines the look and feel of wood with the durability of modern materials.The onboard speaker system projects warm, enveloping sound with controllable volume. With Bluetooth enabled, it can be used to wirelessly stream songs from a smartphone or tablet, suitable for both play-along and background music when entertaining.Educational tools abound to help you learn piano. The built-in metronome promotes accurate timing while the onboard USB recorder captures your performances and lets you evaluate your progress. Twin Piano mode enables student and teacher to sit side by side and play in the same key range, or to play with a duet partner.Other features include unlimited polyphony and headphone 3D technology for natural, realistic sound when practicing privately with headphones.The DP603-CB is compatible with Roland's free Piano Partner 2 practice app for iOS/Android (available separately). It comes with 307 sounds and 363 onboard songs, ready for you to jam along. - Slim, stylish cabinet design complements modern living spaces
- Integrated keyboard lid opens to provide an elegant music rest, and closes discreetly with a safety-conscious soft-fall motion
- SuperNATURAL piano-modeling technology for richer, more detailed grand piano sounds – same sound engine as Roland's flagship LX/HP models
- Authentic grand piano touch from 88-key, PHA-50 Progressive Hammer Action keyboard with escapement – combines the look and feel of wood with the durability of modern materials
- Onboard speaker system with controllable volume
- Headphones 3D Ambience technology for natural, realistic sound when practicing privately with headphones
- Bluetooth lets you use apps and wirelessly stream songs from a smartphone or tablet through the speakers, suitable for both play-along and background music for entertaining
- Built-in metronome to promote accurate timing
- Twin Piano mode enables student and teacher to sit side by side and play in the same key range
- Onboard recorder to capture your performances and evaluate your progress
- 307 Sounds including Grand pianos
- 363 onboard songs including etudes and exercises
- Compatible with Roland's free Piano Partner 2 app for iOS/Android (available separately), which encourages daily piano learning and makes practicing fun
UPC: 761294509340 In the Box Roland DP603-CB Digital Home Piano (Contemporary Black) Roland Classical Piano Masterpieces Roland Piano Arrange Collections "Let's Enjoy Piano" Headphone Hook Stabilizer Cord Clamps AC Adapter Power Cord Limited 5-Year Warranty (Parts) Limited 2-Year Warranty (Labor) Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland DP603-CB Digital Home Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland DP-603 Specs | Piano Sound | SuperNATURAL piano modeling | | Maximum Polyphony | Piano: Limitless (solo playing using 'Piano' category tones)
Other: 384 | | Tones | 307 tones | | Keyboard | PHA-50 Keyboard: Wood and plastic hybrid structure, with escapement and ebony/ivory feel (88 keys) | | Pedals | Damper (capable of continuous detection)
Soft (capable of continuous detection)
Sostenuto (function assignable) | | Speaker System | Speakers: 2 x 4.72" /12 cm
Rated Power Output: 2 x 30 W
Volume Level (SPL): 108 dB (Roland technical standard) | | Headphones | Effect: 3D ambience | | Touch Sensitivity | Key Touch: 100 types, fixed touch | | Master Tuning | 415.3 to 466.2 Hz (adjustable in increments of 0.1 Hz) | | Temperament | 10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key | | Effects | Ambience, Brilliance | | Piano Designer | Lid
Key Off Noise
Hammer Noise
Duplex Scale
Full Scale String Resonance
Damper Resonance
Key Off Resonance
Cabinet Resonance
Soundboard Type
Damper Noise
Single Note Tuning
Single Note Volume
Single Note Character | | Internal Songs | Total 363 songs | | Data Playback | Standard MIDI files: Format 0, 1
Audio File: WAV, 44.1 kHz, 16-bit linear format (requires USB flash memory) | | Recording | Standard MIDI files: Format 0, 3 parts, approx. 70,000 notes memory
Audio File: WAV, 44.1 kHz, 16-bit linear format (requires USB flash memory) | | Bluetooth | Bluetooth V3.0 (supports SCMS-T content protection)
MIDI, Turning Music Sheet: Bluetooth V4.0 | | Other Functions | Metronome (adjustable Tempo/Beat/Down beat/Pattern/Volume/Tone)
Registration
TwinPiano (with Individual mode)
Transpose (in semitones)
Speaker volume and Headphones volume automatically select function
Volume limit function
Panel Lock
Auto Off | | Display | Graphic LCD, 132 x 32 dots | | Connectors | DC In jack
Input Jacks: Stereo-mini phone type
Output (L/Mono, R) Jacks: 1/4" phone type
USB Computer Port: USB Type-B
USB Memory Port: USB Type-A
Phones Jacks: 1 x stereo-mini phone type, 1 x stereo 1/4" phone type | | Power Supply | AC adaptor, 9 W | | Dimensions (W x D x H) | Including piano stand with lid closed:
55.04 x 12.24 x 30.83" / 1,398.00 x 311.00 x 783.00 mm Including piano stand with lid open:
55.04 x 14.84 x 38.39" / 1,398.00 x 377.00 x 975.00 mm | | Weight | 101.43 lb / 46.00 kg | | | | Package Weight | 130.0 lb | | Box Dimensions (LxWxH) | 59.0 x 25.5 x 14.25" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
