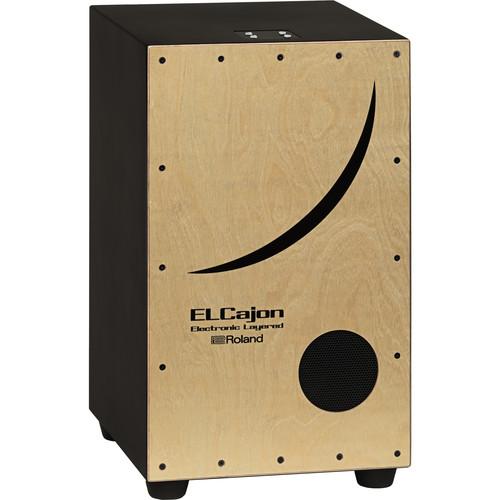

Product description Unveiled: Roland EC-10 Electronic Layered Cajon Read More The Roland EC-10 Electronic Layered Cajon is a unique, versatile instrument that combines an authentic acoustic cajon with electronic percussion technology, letting you blend a range of complementary electronic sounds with the cajon voice. From traditional percussion instruments like tambourine and shaker, to acoustic snare, electronic drums, sound effects, and more, the EC-10 allows cajon players to easily enhance their music with layered electronic sounds.
The EC-10 features a total of 30 built-in electronic kits. Great for spicing up singer/songwriter gigs with layered acoustic-type sounds like the djembe, it also allows you to add backing beats with an acoustic or TR-808 snare, or bring in some low-end thump with an electronic kick. Studio-optimized cajon sounds are also on hand to enhance the acoustic cajon voice for more depth, dimension, and punch.
Designed to be easy to use, the EC-10 also features intuitive panel controls for kit selection, level control, and head/edge balance, and is completely self-contained with battery power and onboard amplification. -

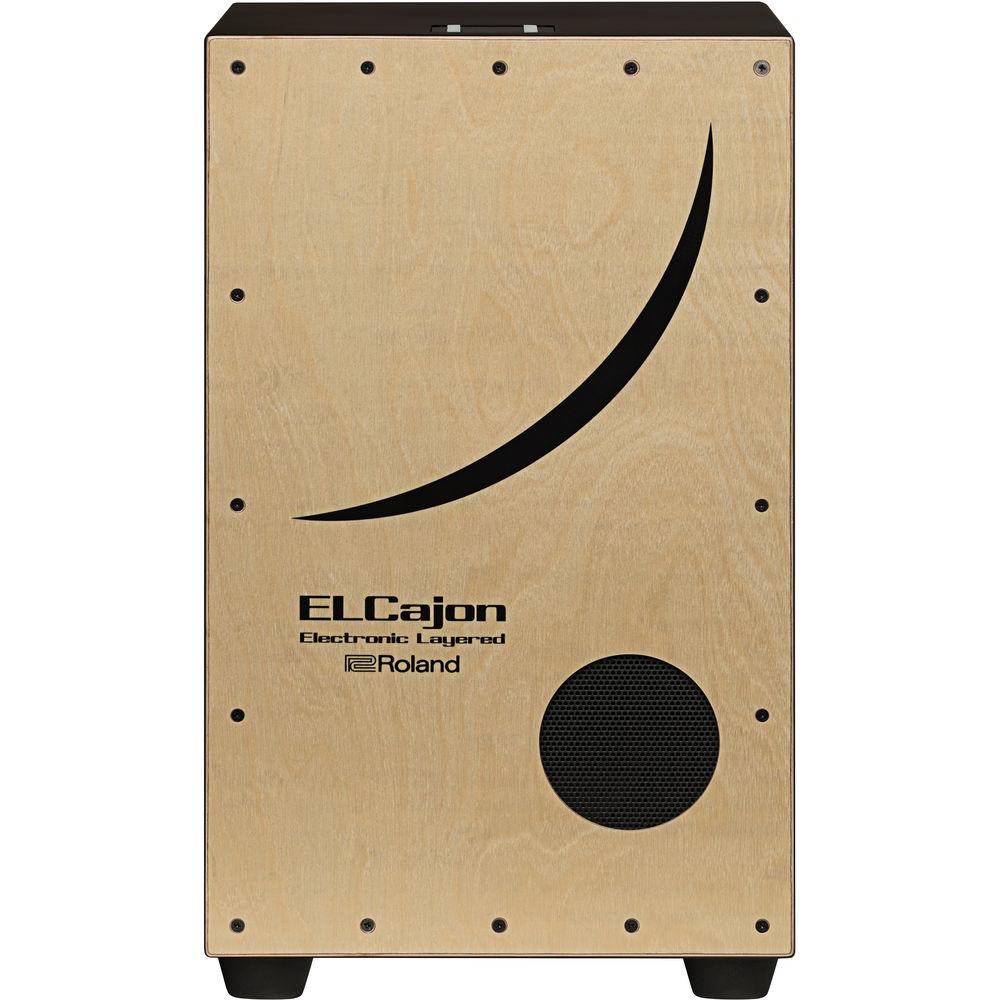

- Standard cajon size (50 x 30 x 30cm), with quality playing surface made of sapele wood
- 30 built-in electronic kits for layering with acoustic cajon sounds
- Each kit includes two independent sounds that can be triggered from the head and edge of the playing surface
- Versatile selection of acoustic and electronic percussion sounds to support a wide range of music styles
- Also includes studio-optimized cajon sounds to enhance the instrument’s acoustic sound, providing additional depth and punch while performing

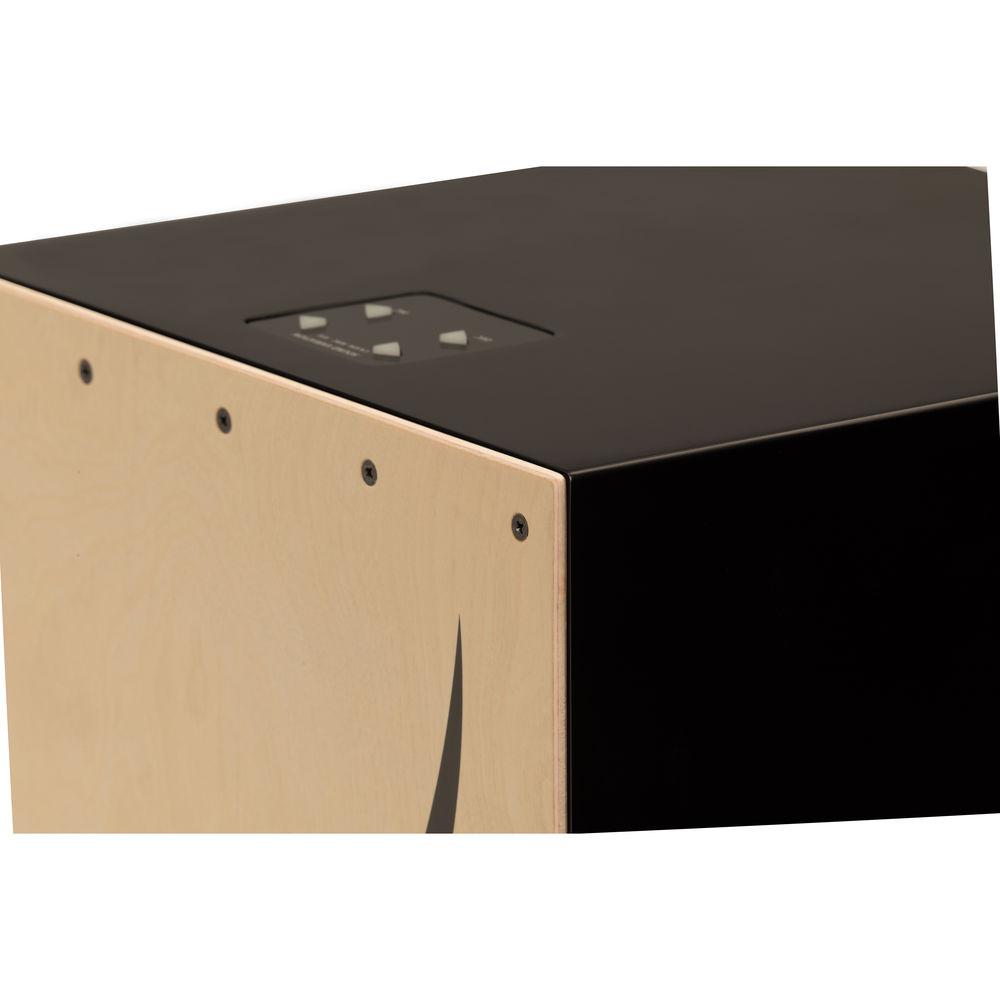

- Intuitive panel controls for kit selection, level control, head/edge balance, and more
- Integrated amplifier and coaxial speaker
- Up to 12 hours of continuous playing time with six AA-size batteries
UPC: 761294507667 In the Box Roland EC-10 Electronic Layered Cajon Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland EC-10 Electronic Layered Cajon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

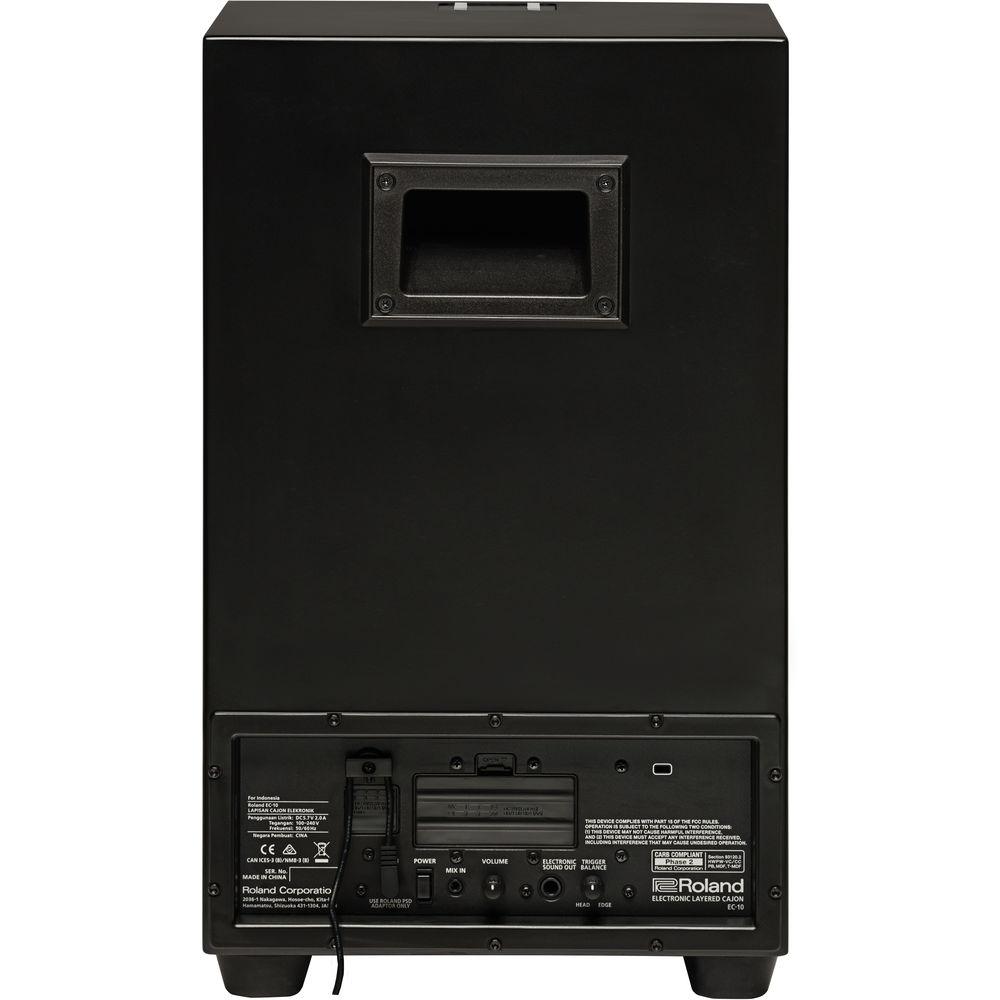

Technical parametersRoland EC-10 Specs | Playing Plate | Sapele plywood | | Resonance Box | MDF (medium density fiberboard) | | Speaker | Coaxial: 6.5" (16 cm) | | Rated Power Output | 3 W | | Nominal Input Level | MIX IN: -10 dBu | | Sound Banks | 30 (Cajon: 10, Percussion: 10, SFX: 10) | | Triggers | 2 (head, edge) | | Controls | Rear Panel:
POWER switch
VOLUME knob
TRIGGER BALANCE knob

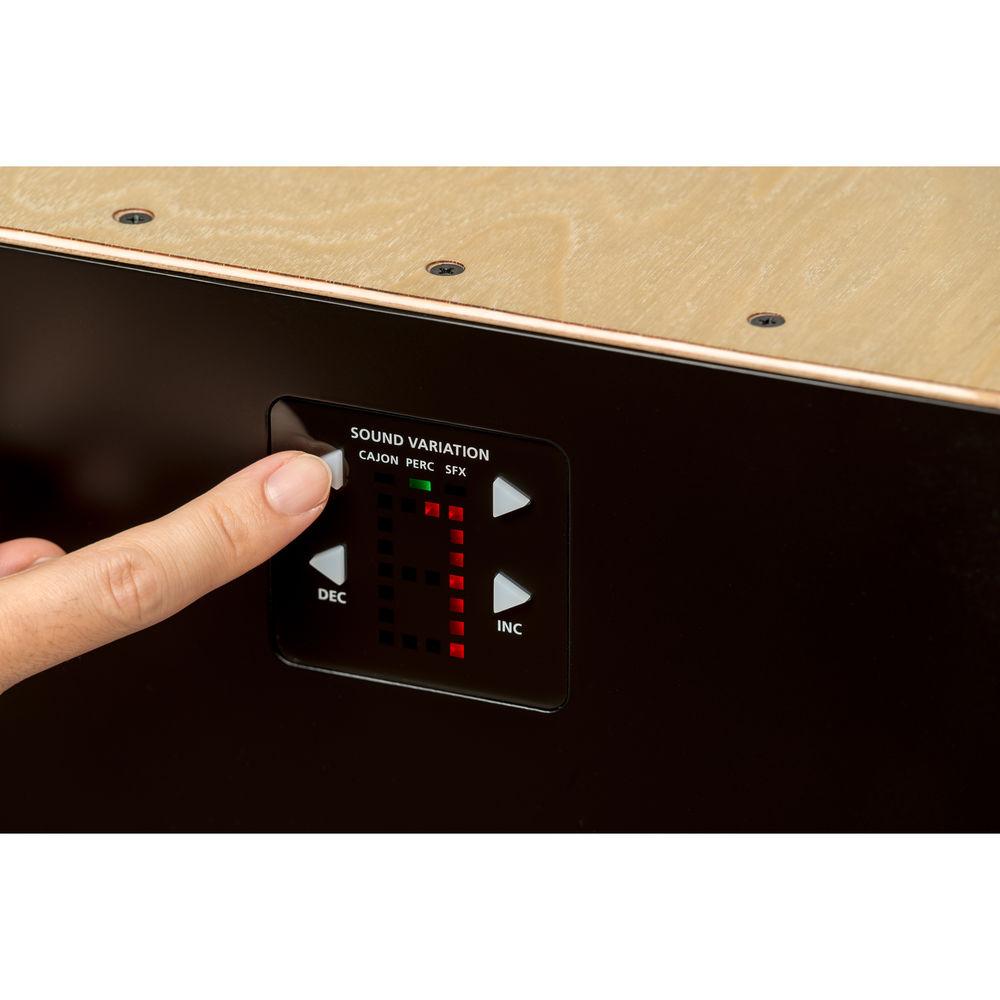

Top Panel:
Sound Group-Select button x 2
Kit Number-Select button x 2 | | Indicators | Sound Group, Kit Number | | Connectors | ELECTRONIC SOUND OUT 1/4" phone type
MIX-IN stereo miniature phone type
AC ADAPTER | | Power Supply | AC adapter (DC 5.7 V)

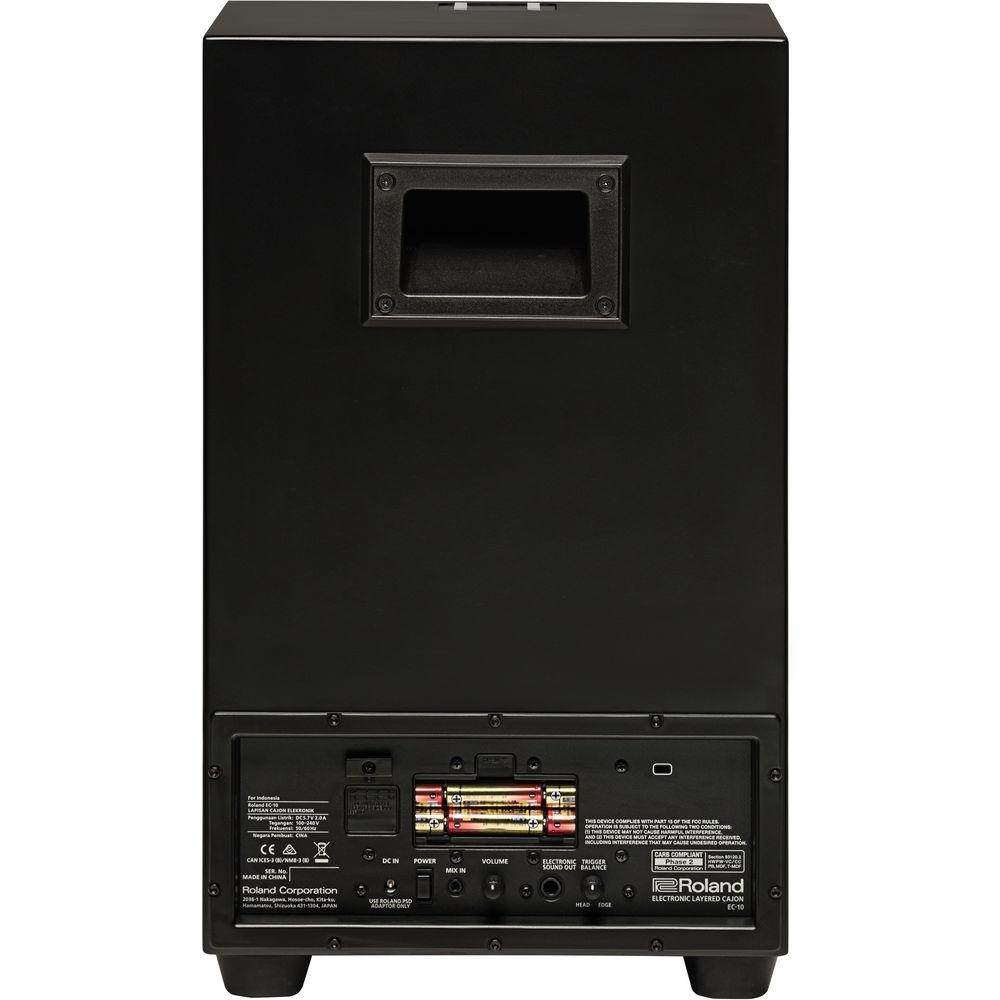

Alkaline battery (AA, LR6) x 6 | | Current Draw | 250 mA | | Expected Battery Life | Normal Use: Approx. 12 hours*
Maximum Load Use: Approx. 6 hours*
*These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. | | Dimensions | 11.6 x 11.7 x 19.5" / 295.0 x 298.0 x 495.0 mm | | | | Package Weight | 19.35 lb | | Box Dimensions (LxWxH) | 24.1 x 14.7 x 14.0" |
