User Manual for Roland FP-30 Digital Piano Click to enlarge the picture
Contents of the user manual for the Roland FP-30 Digital Piano
- Product category: Digital Pianos Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Digital Pianos
 |
User manual for the Roland FP-30 Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

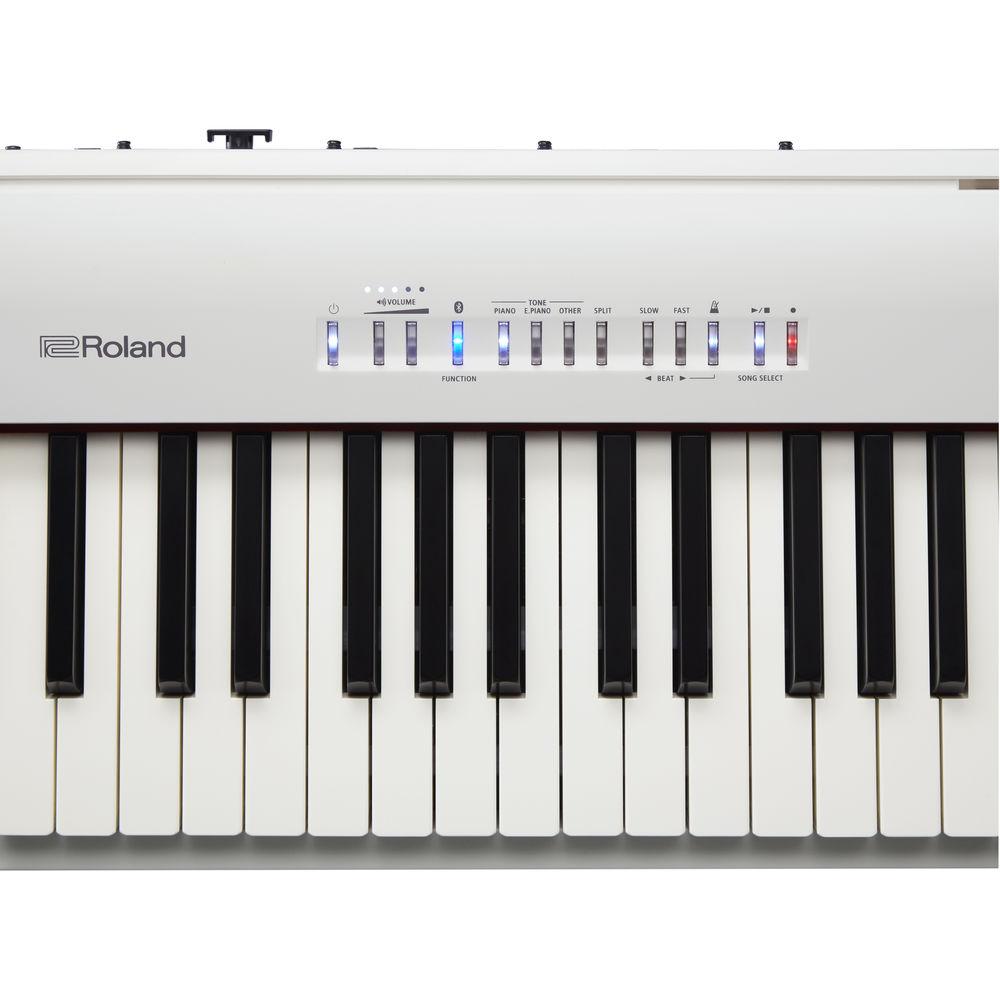

Product description The white FP-30 from Roland provides the opportunity for the budget- and space-constrained student/performer to have access to the sound of a real piano in a light and portable form factor. The 88-key instrument delivers an authentic piano experience, both from the SuperNATURAL Piano engine and the weighted keyboard that inherits the touch, escapement, and Ivory Feel keys found in the company's high-end home pianos.
Aside from the piano sounds, built-in practice and recording functions, and Bluetooth wireless support for working with popular music apps, the keyboard provides non-piano sounds like organs, strings, and voices. A variety of onboard drum patterns allow for enjoying all types of music styles, and USB support enables the performer to play along with favorite tunes and save SMF songs captured with the built-in recorder.
Twin Piano mode is perfect for private lessons, allowing student and teacher to play side by side in the same octave ranges. Dual amplifiers and speakers deliver an authentic tone, while plugging in headphones allows for embarking on musical journeys day or night without disturbing housemates or neighbors.

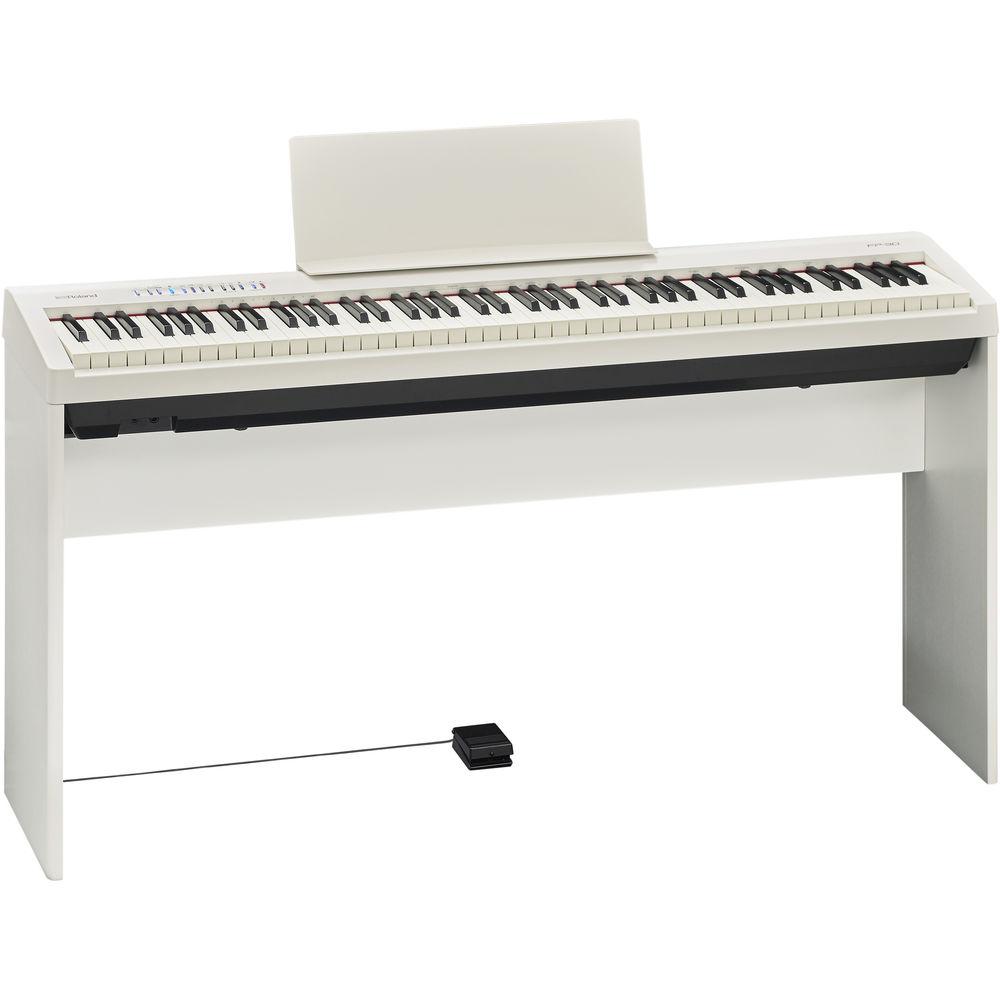

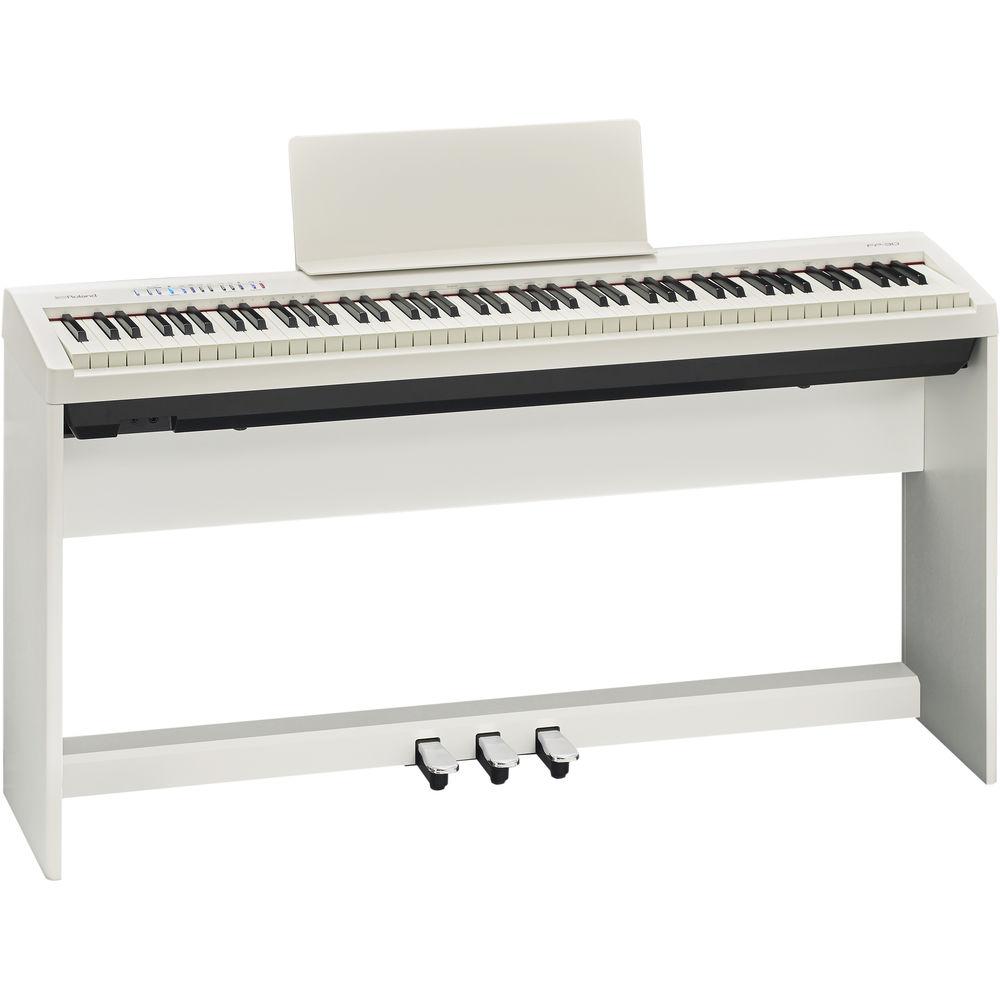

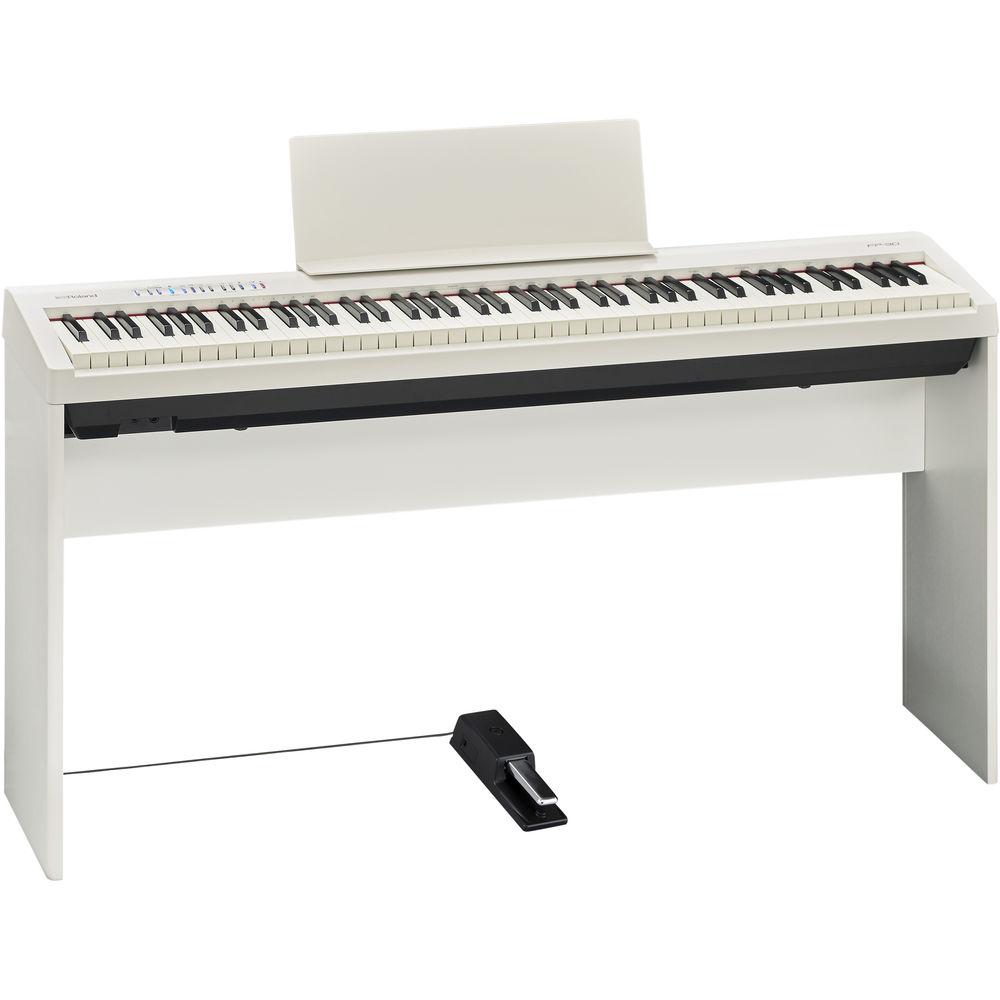

For a more traditional setup, the optional KSC-70 stand and KPD-70 three-pedal unit provide an integrated look and classic pedal configuration while maintaining a much smaller footprint than a typical upright piano. Another benefit of the KPD-70's foot pedals is the ability to use hands-free turning of onscreen music pages when using mobile apps such as piaScore and Sheet Music Direct. - SuperNATURAL Piano sounds deliver the rich tone of a real acoustic grand
- 88-note PHA-4 Standard keyboard provides authentic piano touch for maximum expression
- Built-in amplifier and stereo speakers
- Headphones output and quiet keyboard action allow for playing at any time without disturbing others
- Compact and lightweight body for easy mobility in and out of the home, studio, or classroom
- Built-in Bluetooth wireless connectivity for using the piano with popular apps on a smartphone or tablet—including GarageBand, piaScore, Sheet Music Direct, and others
- Broaden the musical experience with dual/split modes and a wide selection of non-piano sounds like organ, strings, voices, drums, and more
- Twin Piano mode is ideal for lessons, letting student and teacher play side by side in the same octave ranges
- Connect USB memory to save songs recorded with the onboard SMF recorder and play along with favorite WAV and SMF songs
- Optional matching stand and three-pedal unit provide a classic piano look and enhanced functionality, including hands-free page turning with some sheet music apps
UPC: 761294508602 In the Box Roland FP-30 Digital Piano (White) External Power Supply Power Cable Damper Pedal Music Rest Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland FP-30 Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland FP-30 Specs | | | Keyboard | 88 Keys, Graded/Scaled-Hammer Action | | Touch Response | 5 Levels of Sensitivity, Plus Fixed | | | | Number of Sound Presets | 35 | | Number of Song Presets | 1 x User
30 x Factory | | Effects | Brilliance, Damper Resonance, Key-Off Resonance, Reverb, String Resonance | | Maximum Polyphony | 128 Notes | | Performance Functions | Dual Zone, Duet Mode, Split/Layer, Transpose, Tuning Adjustment | | | | Number of Rhythm Presets | 8 | | Practice Features | Metronome, Auto Power Off | | | | Supported MIDI Standards | GM2, GS | | Standard MIDI File (SMF) Formats | Format 0, 1 (Playback)
Format 0 (Record) | | MIDI Note Memory and Resolution | 30,000 Notes, 120 Ticks per Quarter Note | | Audio Recording Formats | WAV, 44.1 kHz / 16-Bit | | | | I/O | 1 x 1/4" TRS Headphone Output
1 x 1/8" / 3.5 mm TRS Headphone Output | | Pedal Support | 1 x 1/4" TS Damper
1 x 8-Pin DIN Multi-Pedal | | Data Port | 1 x USB Type-B (Computer Transfer)
1 x USB Type-A (External Memory) | | Bluetooth | Yes, Bluetooth 4.0 (MIDI, Page Turn) | | | | Amplifiers | 2 x 11 W | | Round Speakers | 2 x 4.75" / 12 cm | | Maximum Sound Pressure Level (SPL) | 102 dB | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | AC/DC Power Adapter | 12 VDC (Included) | | Power Consumption | 22 W | | | | Dimensions | 51.2 x 12.8 x 5.9" / 1300.0 x 284.0 x 150.0 mm (without Music Rest) | | Weight | 31.1 lb / 14.1 kg (without Music Rest) | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 55.0 x 17.0 x 12.0" |
