User Manual for Roland FP-60-WH 88-Key Digital Piano Click to enlarge the picture
Contents of the user manual for the Roland FP-60-WH 88-Key Digital Piano
- Product category: Digital Pianos Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Digital Pianos
 |
User manual for the Roland FP-60-WH 88-Key Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

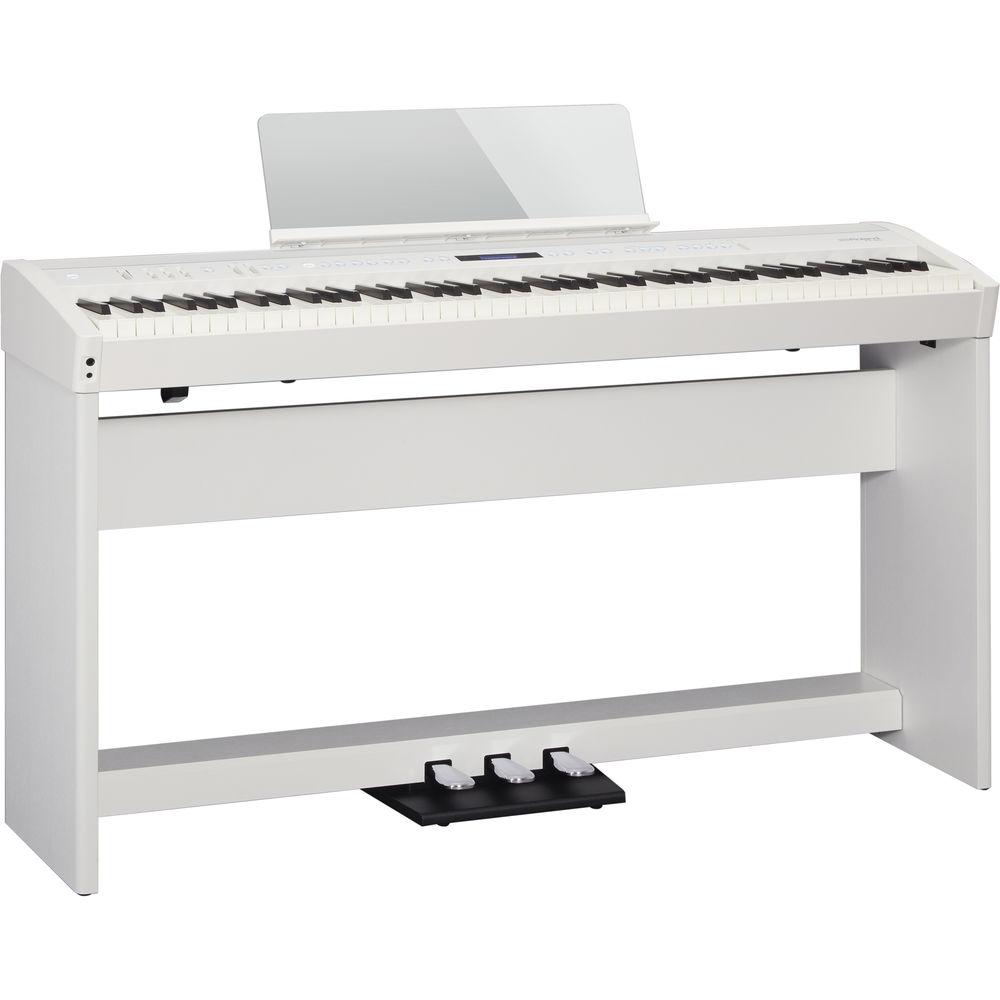

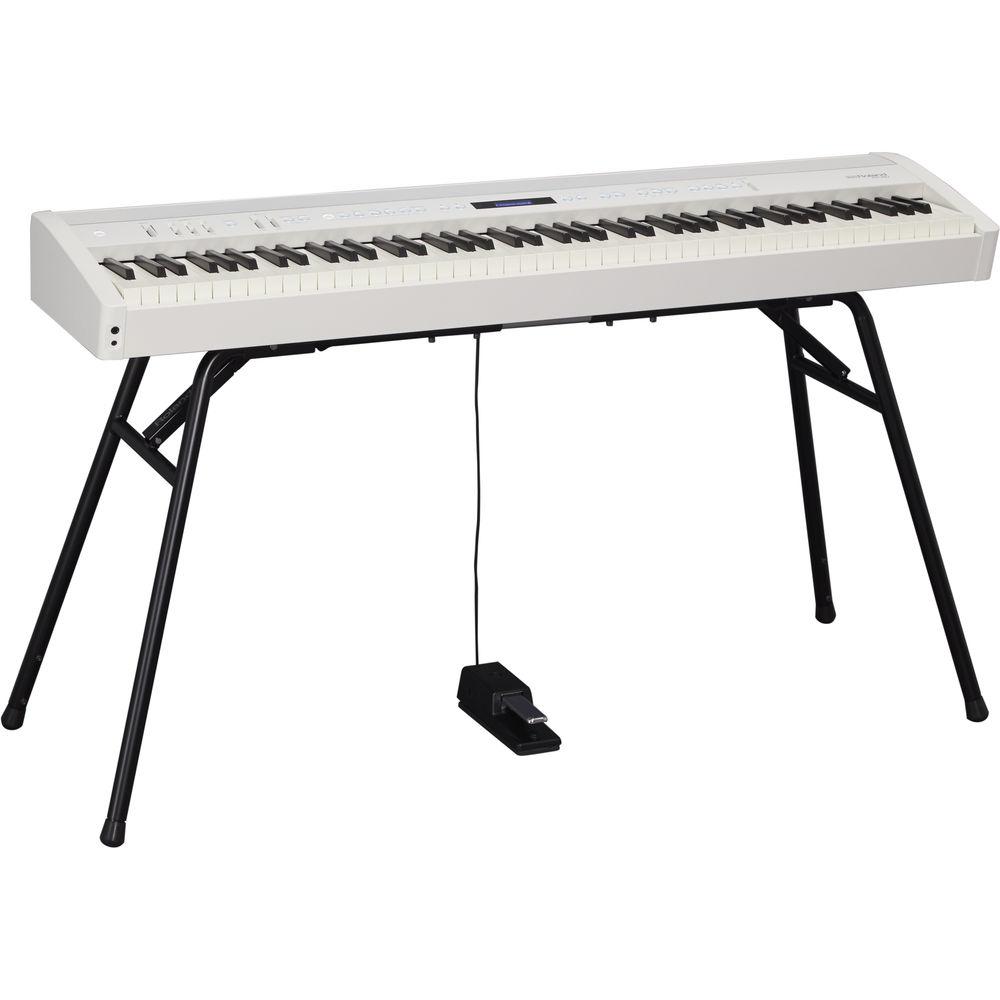

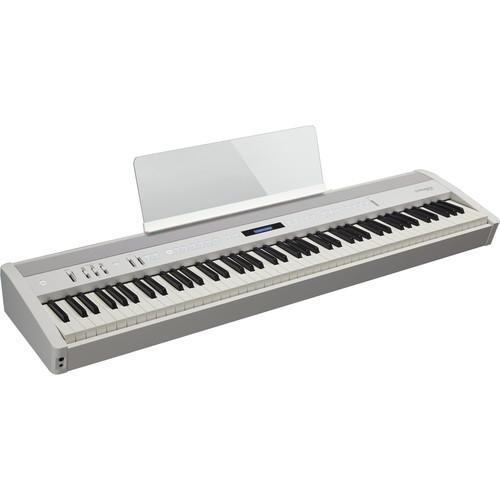

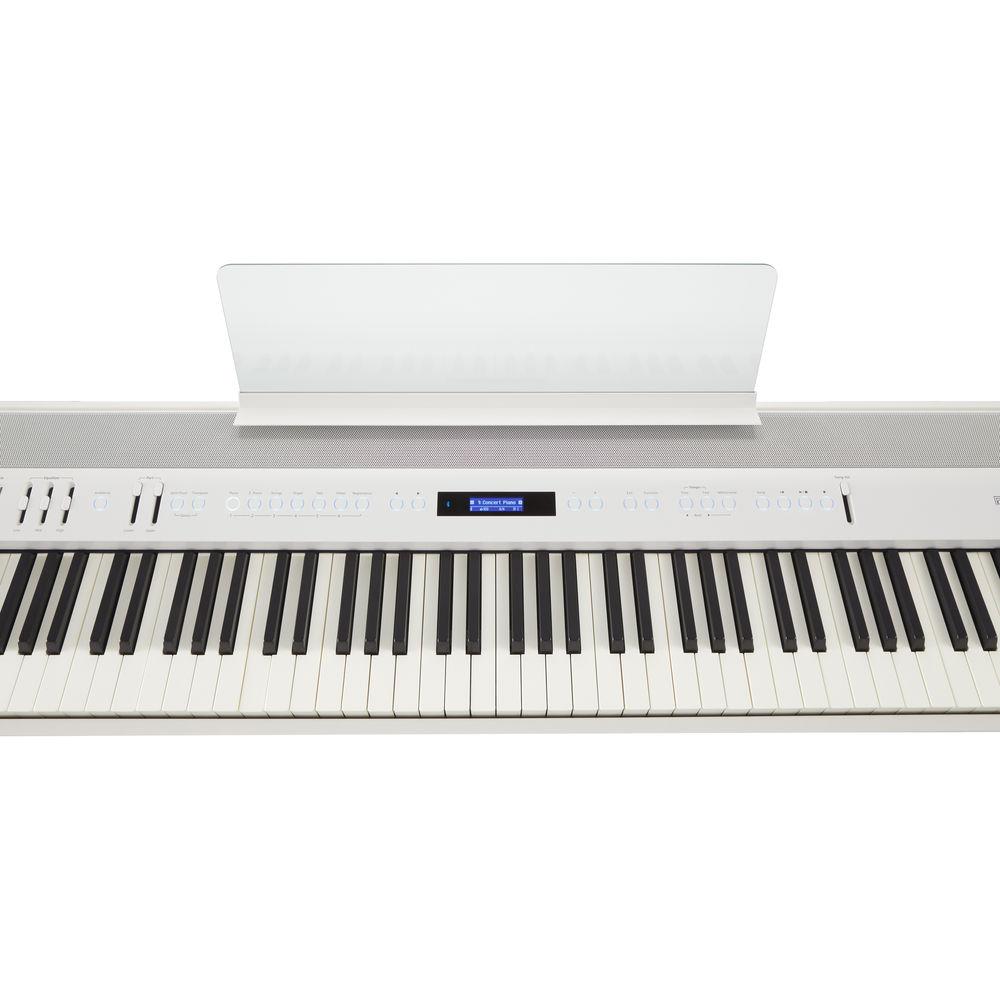

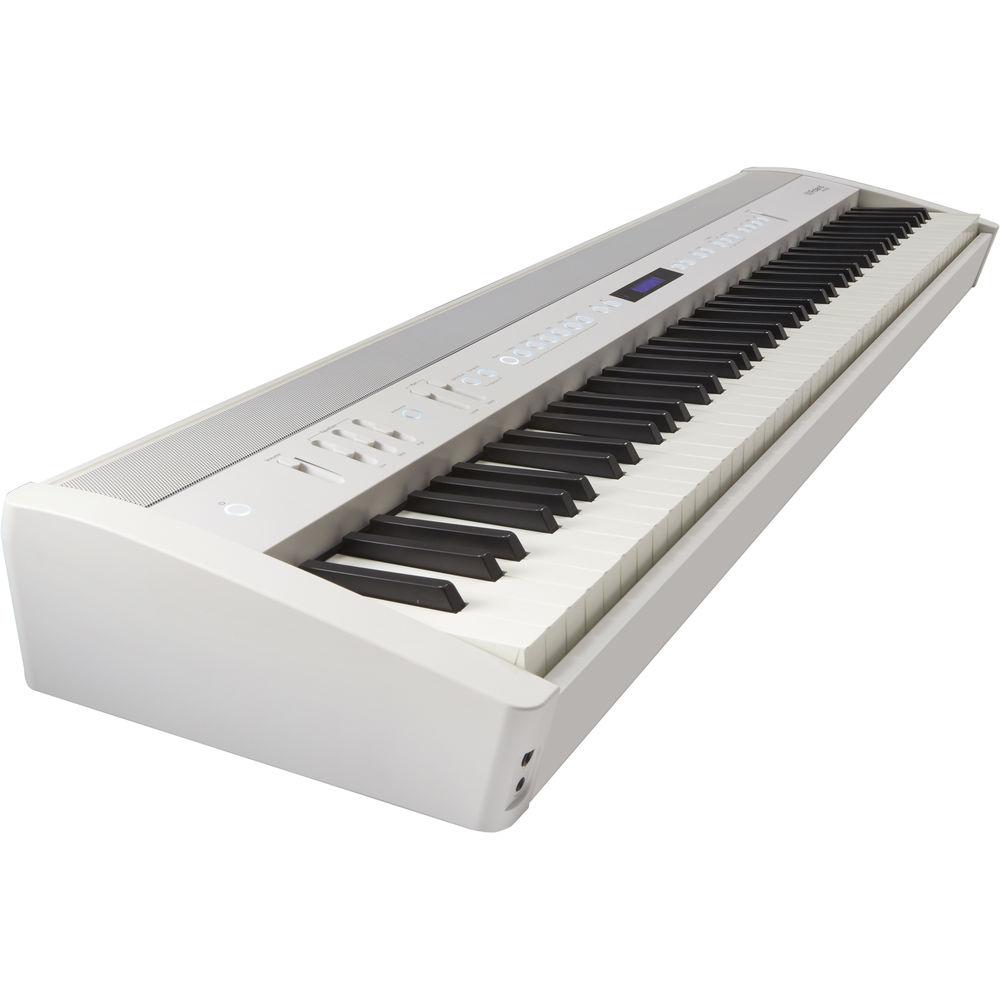

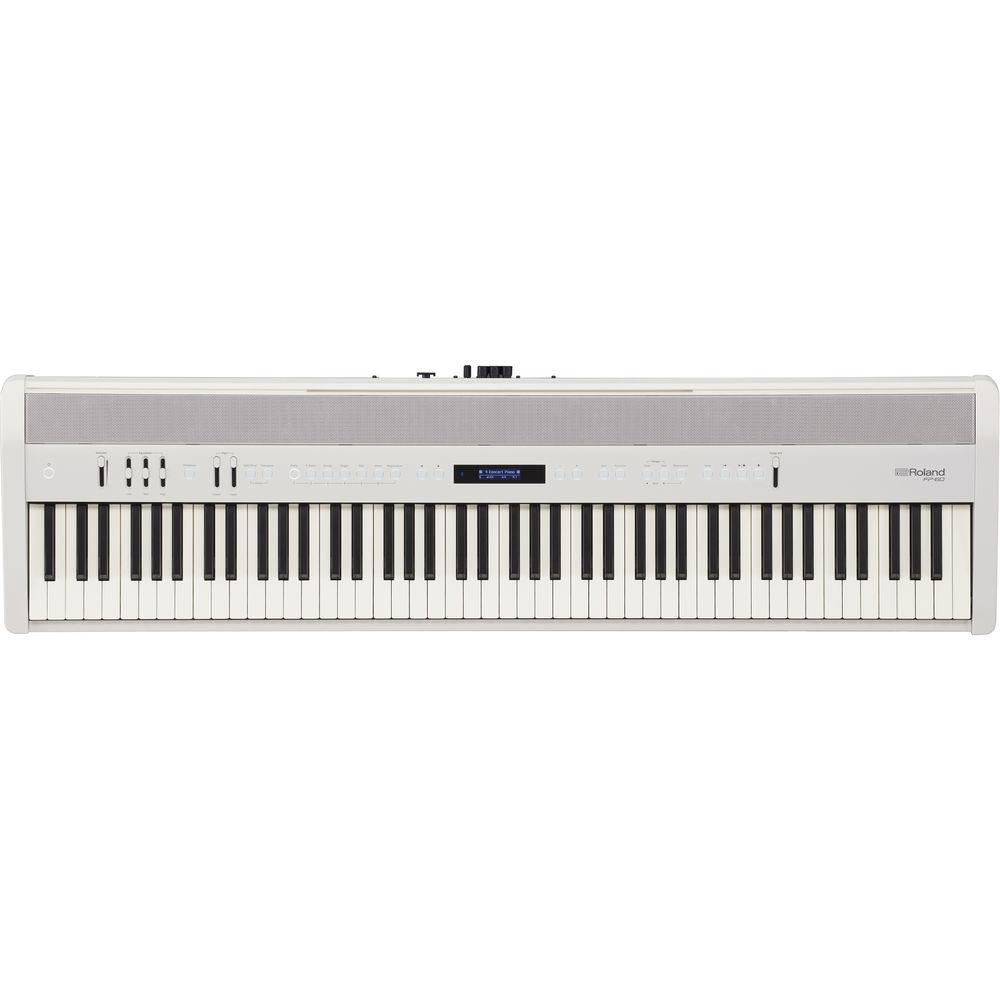

Product description The white FP-60-WH 88-Key Digital Piano from Roland is a high-quality piano with 88 touch-sensitive keys, built-in speakers, and an ergonomic and portable design. Equipped with Roland's SuperNATURAL sound engine, the FP-60 has modern Bluetooth wireless connectivity built-in and can be used in various environments—small venues, houses of worship, classrooms, and more—by musicians to cover a wide variety of musical styles.Featuring electric pianos, strings, organs, and synth sounds from Roland's flagship instruments, the FP-60's 288-voice polyphony and PHA-4 keyboard with escapement and ivory-feel keys incorporates the latest sensing technology to translate your playing naturally. Store your favorite sounds—plus other useful settings like layers and splits—in 30 user locations for quick recall.In addition, the onboard speaker system is not only suitable for home use, but projects in small performance venues, eliminating the need to carry an external sound system. There is a three-band equalizer on the front panel that allows you to shape the sound as needed to fit the venue. Furthermore, with Bluetooth connectivity, wirelessly pair with your smartphone or tablet and transform the way you perform and practice. Stream music through the FP-60's speakers and play along at home, or use the FP-60 to stream backing tracks at the gig.Finally, install Roland's free Piano Partner 2 app on your device and get access to rhythm accompaniments that follow the chords you play. MIDI over Bluetooth is also supported for connecting to GarageBand for iOS and other music creation apps. - Natural Sound and Keyboard Feel in a Go-Anywhere Design
- The SuperNATURAL Piano engine provides the dynamic, expressive sound of an acoustic grand, with rich, complex overtone changes that naturally follow your touch. With 288 notes of polyphony, you can use the damper pedal for authentic acoustic performances. The PHA-4 keyboard with escapement and ivory feel keys incorporates the latest sensing technology to accurately translate your playing nuances for natural expression.
- Cover Various Musical Styles with a Wide Selection of Sounds
- The FP-60 has a selection of pro-grade electric pianos, strings, organs, and synths, giving you sound options for nearly any musical genre. You can store your favorite sounds—plus other useful settings like layers and splits—in 30 user registrations for quick recall. Dedicated upper and lower volume sliders are within easy reach, allowing you to fine-tune the balance of your sound.
- Built-In Sound System, Ready for Gigging
- The FP-60's sound projects well in small performance venues, eliminating the need to carry an external sound system. The speakers and integrated amplifier have been tuned to produce every tonal detail, and the dedicated speaker boxes have been engineered into the keyboard cabinet to deliver rich sound with impressive dynamic range. With a three-band equalizer on the front panel, it's easy to shape the sound as needed to fit the venue.
- Connect Your Smartphone or Tablet via Bluetooth and Expand Your Creative Options
- With the FP-60's convenient Bluetooth connectivity, you can wirelessly pair with your smartphone or tablet and transform the way you perform and practice. You can stream music through the piano's onboard speakers for play-along fun at home or as a backing track at the gig. Installing Roland's free Piano Partner 2 app on your device provides access to all sorts of rhythm accompaniments that intelligently follow the chords you play. MIDI over Bluetooth is also supported, allowing you to use the FP-60 with GarageBand for iOS and a variety of other music creation apps.
In the Box Roland FP-60-WH 88-Key Digital Piano (White) DP-10 Damper Pedal Limited 1-Year Warranty for Parts Limited 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland FP-60-WH 88-Key Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland FP-60 Specs | | | Piano Sound | SuperNATURAL Piano | | Maximum Polyphony | 288 | | Tones | Piano: 15
E. Piano: 16
Strings: 11
Organ: 15
Pad: 15
Other: 279 (including 8 drum sets and 1 SFX set) | | | | Keyboard | 88-key PHA-4 standard keyboard with escapement and ivory feel | | Touch Sensitivity | Key Touch: 100 types, fixed touch | | Keyboard Modes | Whole
Dual
Split (split point adjustable) | | | | Speakers | Two: 3.1 x 4.7" (8 x 12 cm) speakers with speaker box | | Rated Power Output | 2 x 13 W | | Volume Level | SPL: 103 dB
This value was measured according to the method that is based on Roland's technical standard | | Headphones | Capable of 3D ambience | | | | Master Tuning | 415.3 to 466.2 Hz (adjustable in increments of 0.1 Hz) | | Temperament | 10 types (Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), and selectable temperament key | | Effects | Ambience
Equalizer (3-band digital equalizer)
Only for Organ Tones: Rotary speaker effect
Only for E. Piano Tones: Modulation speed | | Piano Designer | For Concert Piano, Ballad Piano, Mellow Piano, and Bright Piano tones
Lid
String Resonance
Damper Resonance
Key Off Resonance
Single Note Tuning: Stretch tuning
Single Note Volume
Single Note Character | | Bluetooth | Audio: Bluetooth 3.0 (supports SCMS-T content protection)
MIDI, Turning Music Sheet: Bluetooth 4.0 | | | | Supported Apps | Piano Partner 2
Piano Designer | | Data Playback | Playable Data: SMF (Format 0,1)
Audio File: (WAV, 16-bit/44.1 linear format), (MP3, 44.1 kHz, 64-320 kbps), requires USB flash memory | | Internal Songs | Total 10 songs | | | | Data | Standard MIDI Files: Format 0, approx. 70,000 notes memory
Audio File: (WAV, 44.1 kHz, 16-bit linear format), requires USB flash memory | | Other Functions | Metronome (Adjustable): Tempo/Beat/Downbeat/Pattern/Volume/Tone
Transpose Keyboard/Song: In semitones
Registration: 30 registrations, capable of pedal shift Registration Set
Tone Demo

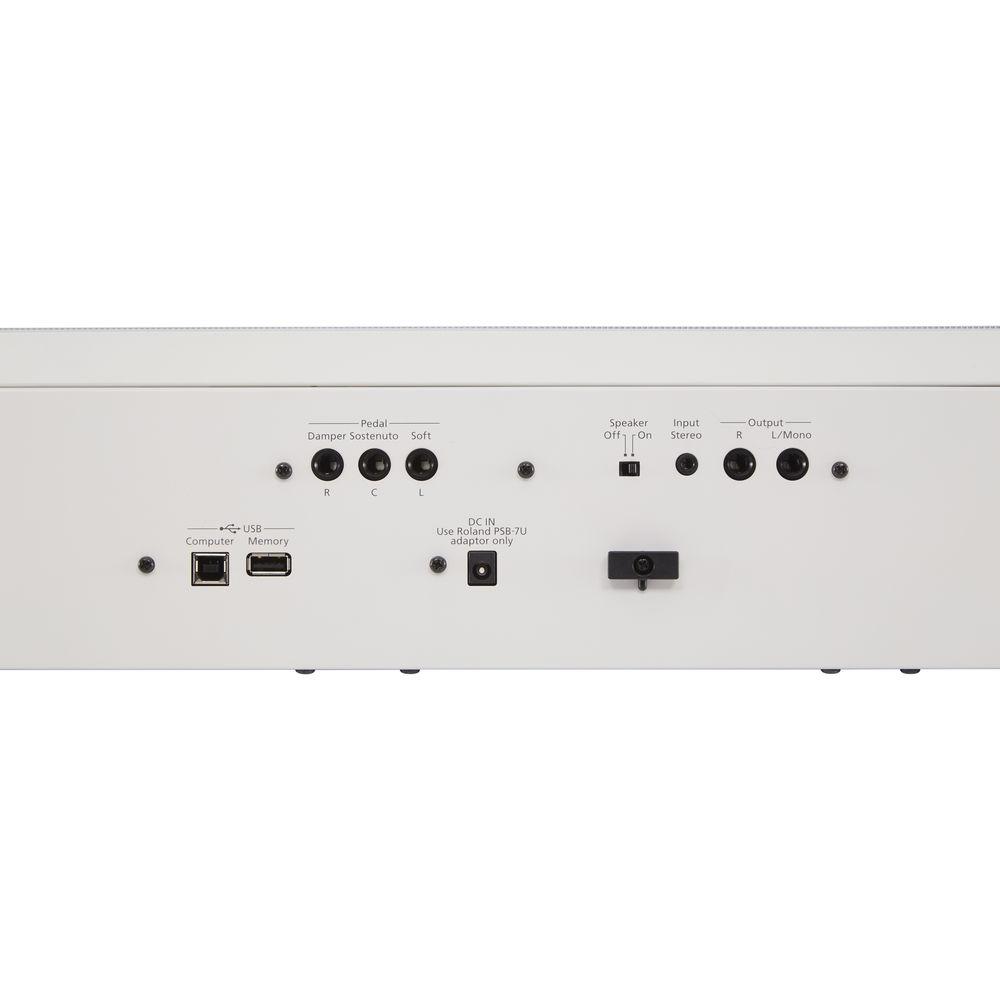

Auto Off | | Display | Graphic LCD 132 x 32 dots | | Connectors | DC In jack
Pedal (Damper/R, Sostenuto/C *1, Soft/L *1) Jacks: TRS 1/4" (6.3 mm) phone type
Input Stereo Jack: 1/8" (3.5 mm) stereo miniature phone type
Output (L/Mono, R) Jacks: 1/4" (6.3 mm) phone type
USB Computer Port: USB Type-B
USB Memory Port: USB Type-A
2 x Phones Jack: 1/8" (3.5 mm) stereo miniature phone type, stereo 1/4" (6.3 mm) phone type
*1: Assignable | | Power Supply | AC adapter | | Power Consumption | 5 W (4 to 22 W) | | Dimensions (W x D x H) | 51 x 14 x 4.9" (129.0 x 34.4 x 12.5 cm) | | Weight | 41.9 lb (19.0 kg) |
