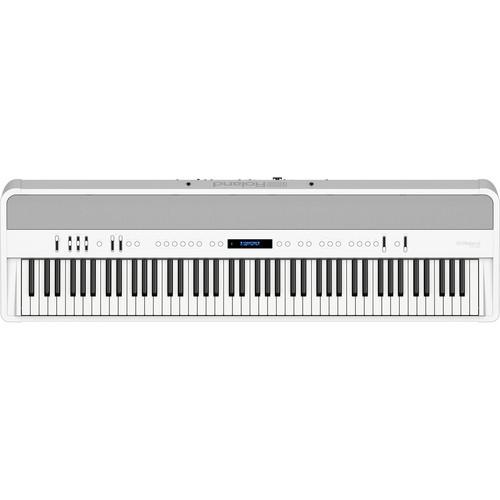

User Manual for Roland FP-90 Digital Piano Click to enlarge the picture
Contents of the user manual for the Roland FP-90 Digital Piano
- Product category: Digital Pianos Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Digital Pianos
|
User manual for the Roland FP-90 Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The white FP-90 from Roland is a digital piano featuring the company's flagship piano sound engine and keyboard, housed in a sleek cabinet that also includes a multi-channel speaker system with enough power for performing in intimate venues. A selected range of additional sounds that include electric pianos, strings, organs, and synths is available, allowing the keyboard to function in a variety of musical scenarios. Bluetooth audio/MIDI support allows for connecting wirelessly with Roland's Piano Partner 2, and other music apps on a smartphone or tablet.
The SuperNATURAL Piano Modeling technology utilized in the instrument reproduces the entire sound-creation process of an acoustic piano, including the combination of notes played, their resonance, and the way in which the piano's many elements interact with each other. The resultant complex sound, complete with overtones, changes in response to players' input, via an 88-note keyboard that blends wood and molded materials for an enhanced playing experience.
A microphone input further enhances the enjoyment that can be derived from the instrument. A harmony effect can generate automatic vocal harmonies, and with an optional USB memory stick plugged in, the piano and vocal performances can be recorded as audio data, and then transferred to a computer for sharing the occasion with everyone involved. WAV audio files, performances recorded as audio data for composing or self-evaluation, and SMF songs can all be played from the USB memory using various options. - Authentic grand piano touch from the PHA-50 (Progressive Hammer Action with Escapement) keyboard, which combines wood and molded materials for realistic feel and lasting durability
- Uses SuperNATURAL Piano Modeling technology instead of conventional sampling for a richer, more detailed piano sound
- Four speakers provide a powerful sound that's ideal for intimate live performances
- Selection of electric piano, strings, organ, and synth sounds, along with thirty registrations for storing favorite sound setups, including layers and splits for live performance
- Microphone input and vocal effects
- Connect a smartphone or tablet via Bluetooth and play along with audio from favorite apps routed through the piano's speaker system
- Enhance performances with rhythm accompaniments from Roland's Piano Partner 2 app
- Optional KSC-90 stand and KPD-90 pedal provide an integrated look for home use
- Includes DP-10 damper pedal, and compatible with optional RPU-3 triple pedal
UPC: 761294509746 In the Box Roland FP-90 Digital Piano (White) External Power Supply and Power Cable DP-10 Damper pedal Music Rest Limited 5-Year Warranty on Parts, 2 Years for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland FP-90 Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland FP-90 Specs | Sound Generator | Piano Sound
Piano Sound: SuperNATURAL Piano Modeling
Maximum Polyphony
Piano: Limitless (solo playing using "Concert Piano, Ballad Piano, Mellow Piano, and Bright Piano" tones)
Other: 384
Tones
Piano: 15 tones
Electric Piano: 16 tones
Strings: 11 tones
Organ: 15 tones
Pads: 15 tones
Other: 278 tones (including 8 drum sets, 1 SFX set) | | Keyboard | Keyboard
PHA-50 Keyboard: Wood and plastic hybrid structure, with escapement and ebony/ivory feel (88 keys)
Touch Sensitivity
Key Touch: 100 types, fixed touch
Hammer Response
Keyboard Modes
Whole
Dual
Split (split point adjustable) | | Playback Functions | Speakers
Speakers: Dual 8 x 12 cm (3.2 x 4.75") with speaker box
Dome Tweeters: Dual 2.5 cm (1.0")
Rated Power Output
2 x 25 W
2 x 5 W
Volume Level (SPL)
107 dB (value measured according to Roland's technical standard)
Headphones
Capable of Headphones 3D Ambience | | Tuning | Master Tuning
415.3-466.2 Hz (adjustable in increments of 0.1 Hz)
Temperament
10 types - Equal, Just Major, Just Minor, Pythagorean, Kirnberger I, Kirnberger II, Kirnberger III, Meantone, Werckmeister, Arabic), selectable temperament key | | Effects | Effects
Ambience
Equalizer (3-band digital equalizer)
Organ Tones Only
Rotary speaker effect
Electric Piano Tones Only
Modulation speed
Piano Designer "Concert Piano, Ballad Piano, Mellow Piano, Bright Piano Tones Only
Lid
Key-off noise
Hammer noise
Duplex scale
Full-scale string resonance
Damper resonance
Key-off resonance
Cabinet resonance
Soundboard type
Damper noise
Single-note tuning
Single-note volume
Single-note character | | Bluetooth | Audio: Bluetooth 3.0 (supports SCMS-T content protection)
MIDI, Turning Music Sheet: Bluetooth 4.0 | | Microphone | Effects
Compressor
Doubling
Echo
Controls
Microphone gain knob
Microphone volume slider | | Recording and Playback | Playback
Standard MIDI Files (format 0, 1)
Audio File: WAV, 44.1 kHz, 16-bit linear format, MP3, 44.1 kHz, 64-320 kbps, requires USB flash memory
Internal Songs
10 songs total
Recording
Standard MIDI Files (format 0, approximately 70,000 notes memory)
Audio File: WAV, 44.1 kHz, 16-bit linear format, requires USB flash memory | | Functions | Convenient Functions
Metronome (adjustable tempo, beat, down beat, pattern, volume, tone)
Transpose (keyboard/song in semitones)
Registration (30 registrations, capable of pedal shift)
Registration set
Tone demo
Auto off
Display
Graphic LCD 132 x 32 dots
Controls
Volume slider
Equalizer sliders (low, mid, high)
Part sliders (lower, upper)
Song volume slider
Speaker switch | | Connections | 2 x 1/4" TS Audio Output
1 x 1/8" (3.5 mm) TRS stereo mini Audio Input
1 x 1/4" TS Microphone Input
1 x 1/4" TRS, 1 x 1/8" (3.5 mm) stereo mini Headphones
3 x 1/4" TRS Pedal (Damper/R, Sostenuto/C, Soft/L)
2 x 5-pin DIN MIDI In/Out
1 x USB Type-A
1 x USB Type-B
1 x DC input | | Power Requirements | 120 VAC, 60 Hz for 12 W power adapter | | Dimensions (WxDxH) | 52.8 x 15.2 x 5.2" (1340 x 390 x 136 mm) detached music rest | | Weight | 52.1 lb (23.6 kg) with music rest | | | | Package Weight | 67.85 lb | | Box Dimensions (LxWxH) | 56.0 x 20.0 x 10.0" |
