User Manual for Roland GO:MIXER PRO 9-Input Audio Mixer Pedal for Smartphones Click to enlarge the picture
Contents of the user manual for the Roland GO:MIXER PRO 9-Input Audio Mixer
- Product category: Audio Interfaces Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Audio Interfaces
 |
User manual for the Roland GO:MIXER PRO 9-Input Audio Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

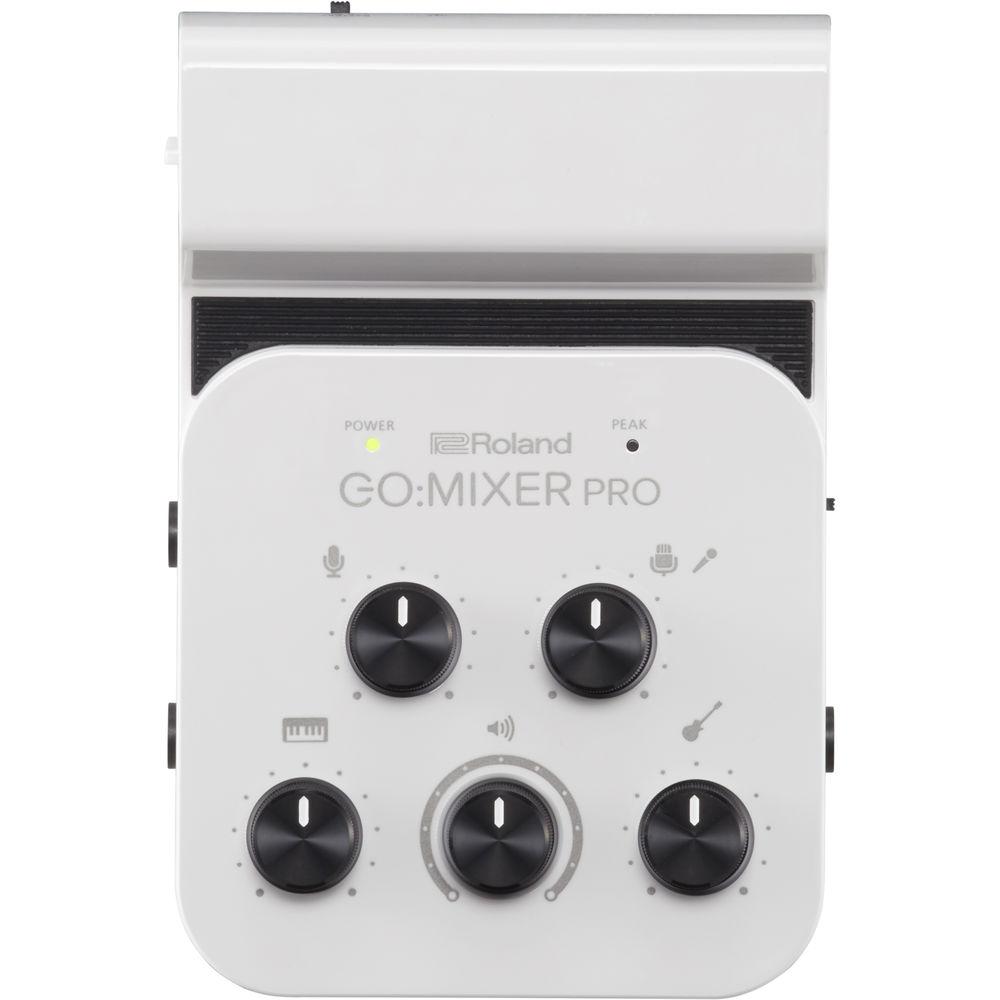

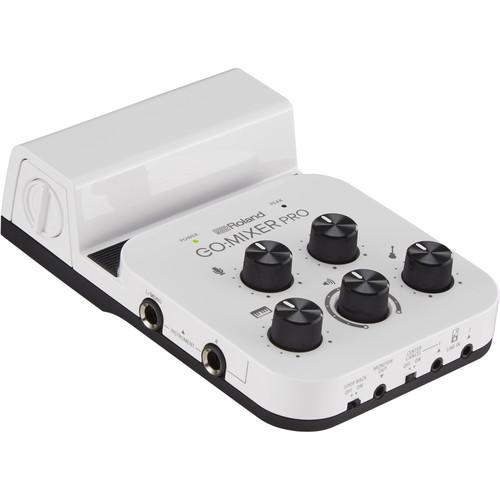

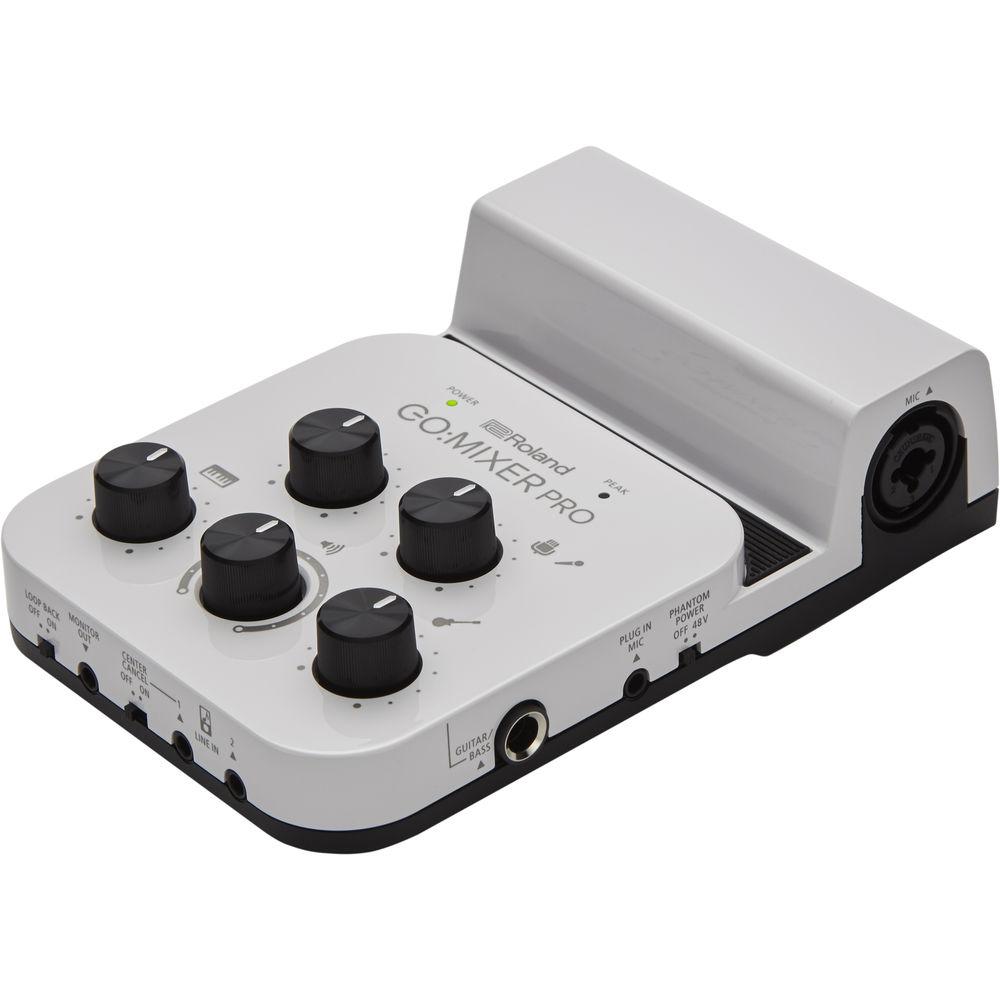

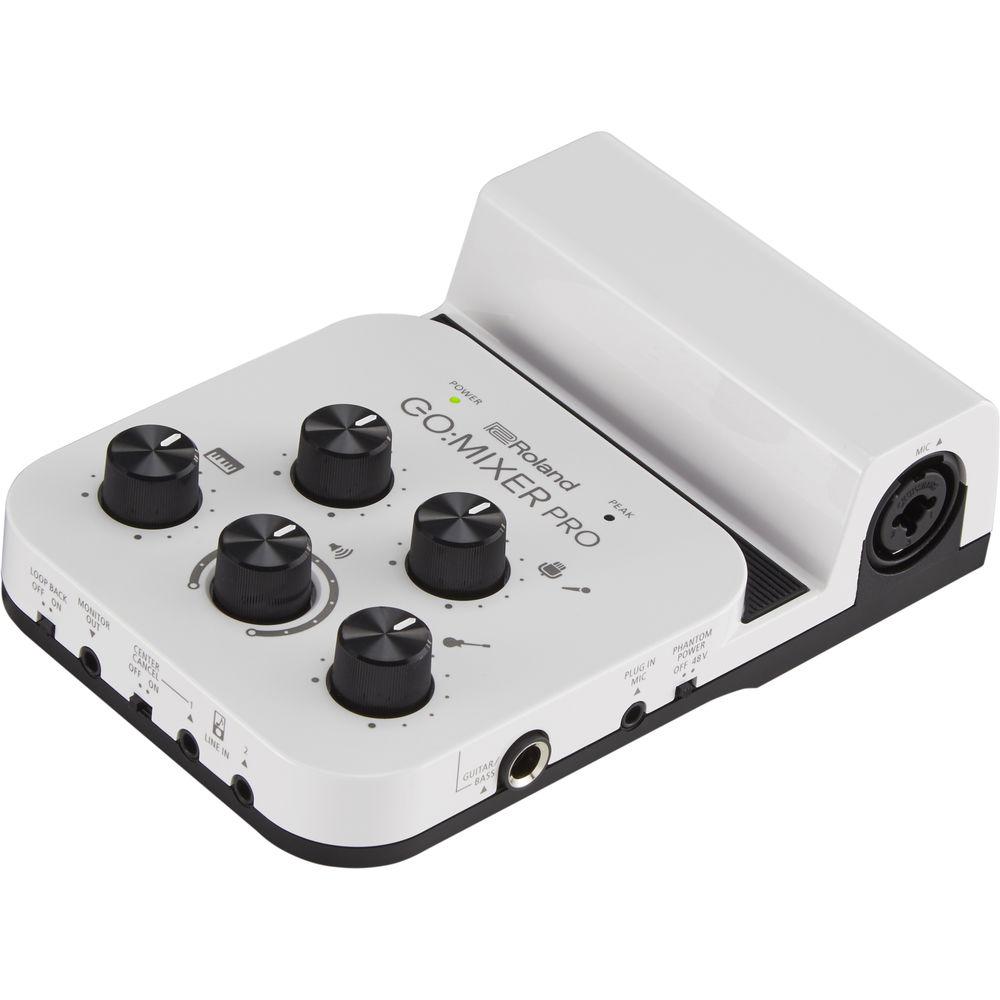

Product description The Roland GO:MIXER PRO is a 9-input audio mixer pedal designed to blend mic, instrument, and line sources for musicians, podcasters, and video/streaming content creators using mobile devices. Connect a dynamic, ribbon, or condenser microphone to the XLR-1/4" combo input, which offers selectable phantom power. A 3.5mm mic input with plug-in power supports microphones such as lavaliers and headworn condensers. Three 1/4" instrument inputs are provided for hookup of a stereo keyboard and mono guitar/bass, and two 3.5mm line inputs accommodate equipment such as sound modules, music players, and mixers.For easy karaoke setup, a selectable Center Cancel mode eliminates center-panned sources from the first line input. The switchable Loop Back function feeds the digital audio output from your smartphone to the 3.5mm monitor output jack, making it simple to record along with music from your device.Power the GO:MIXER PRO with four AAA batteries (available separately) or via a USB connection to your smartphone or tablet. The sturdy, compact housing has an integrated phone cradle to keep your smartphone at a convenient angle. It includes cables to allow connectivity with Lightning-equipped iOS devices or USB-equipped Android devices. - USB-powered mixer works with Android smartphones and iOS tablets and smartphones

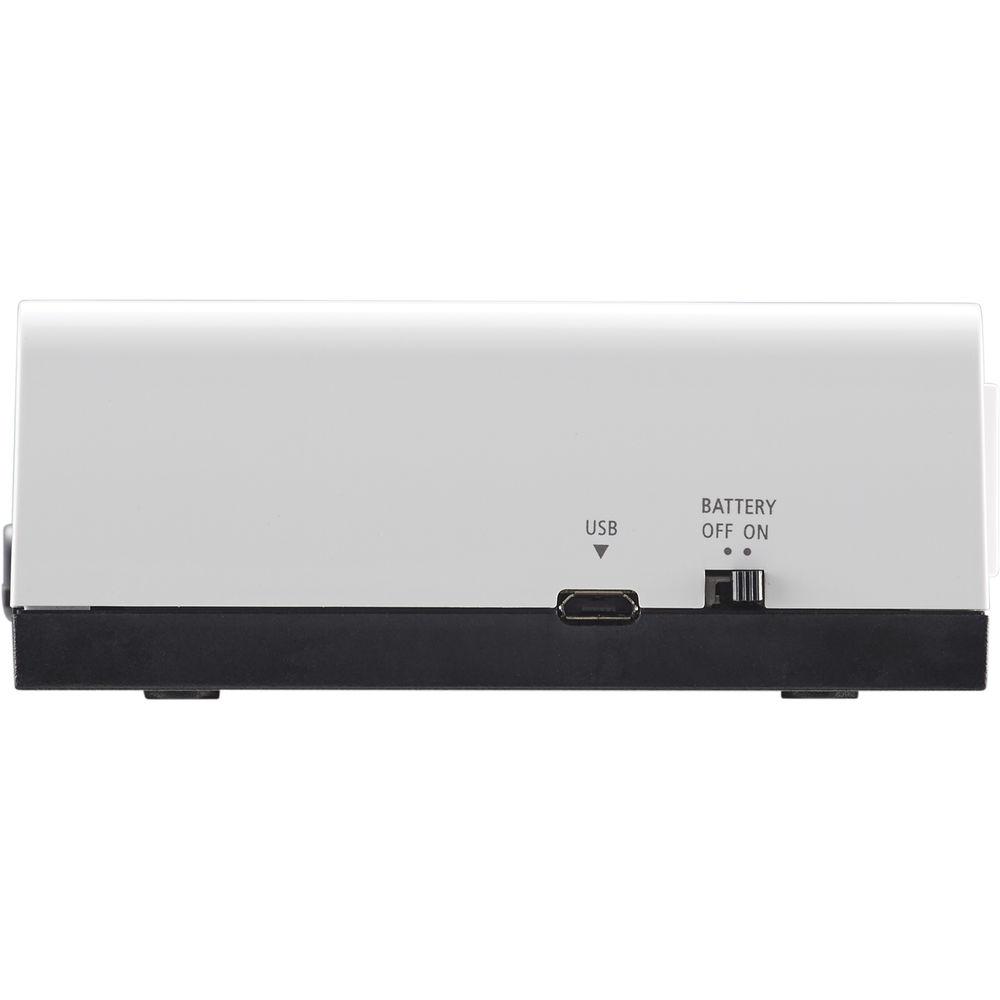

- Supports powering via batteries for standalone operation

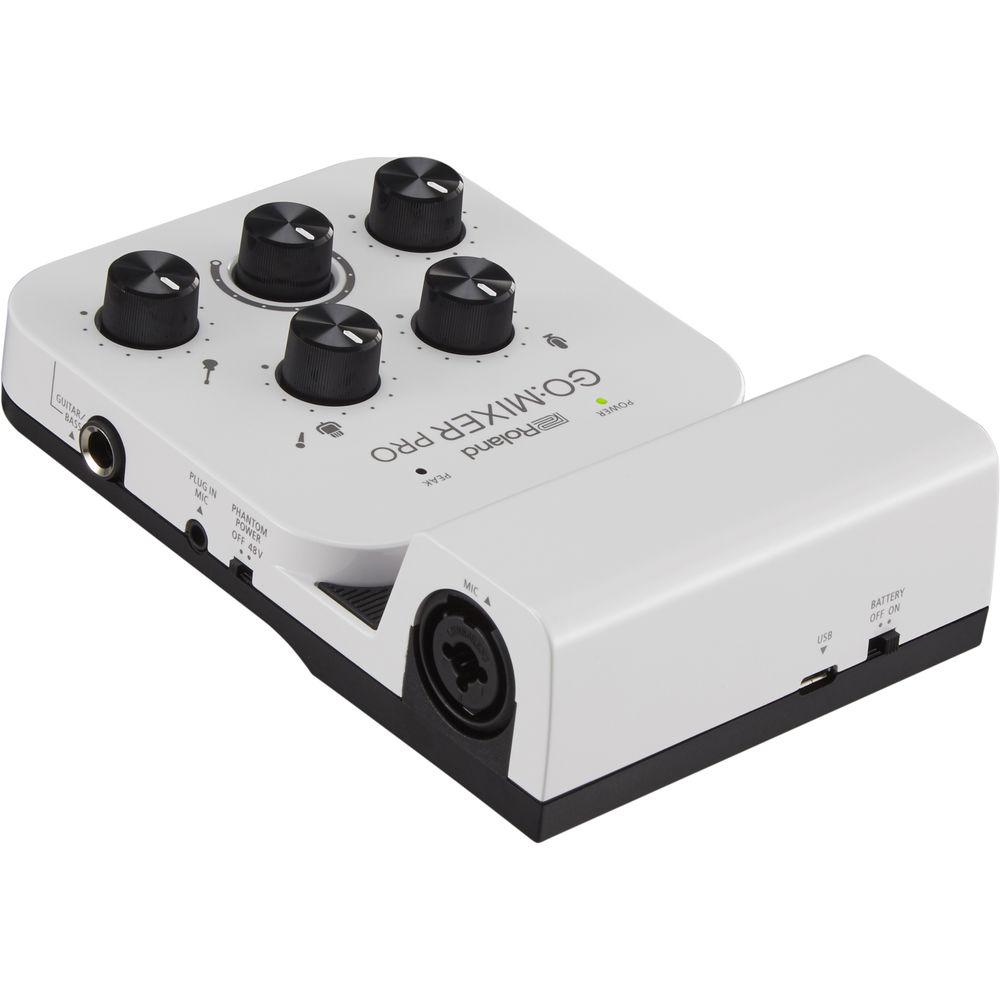

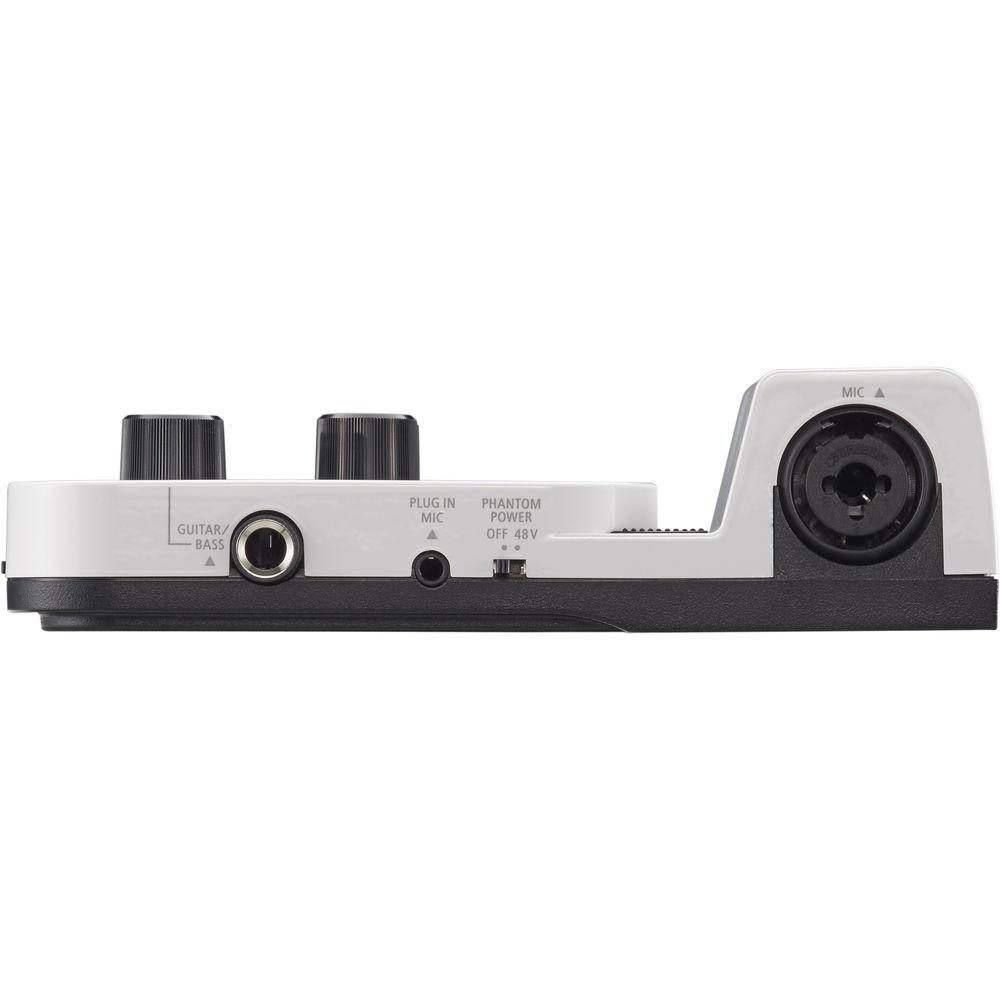

- XLR-1/4" combo microphone input with selectable 48 VDC phantom power
- 3.5mm mic input with 2.5V plug-in power
- 1/4" Hi-Z guitar/bass input

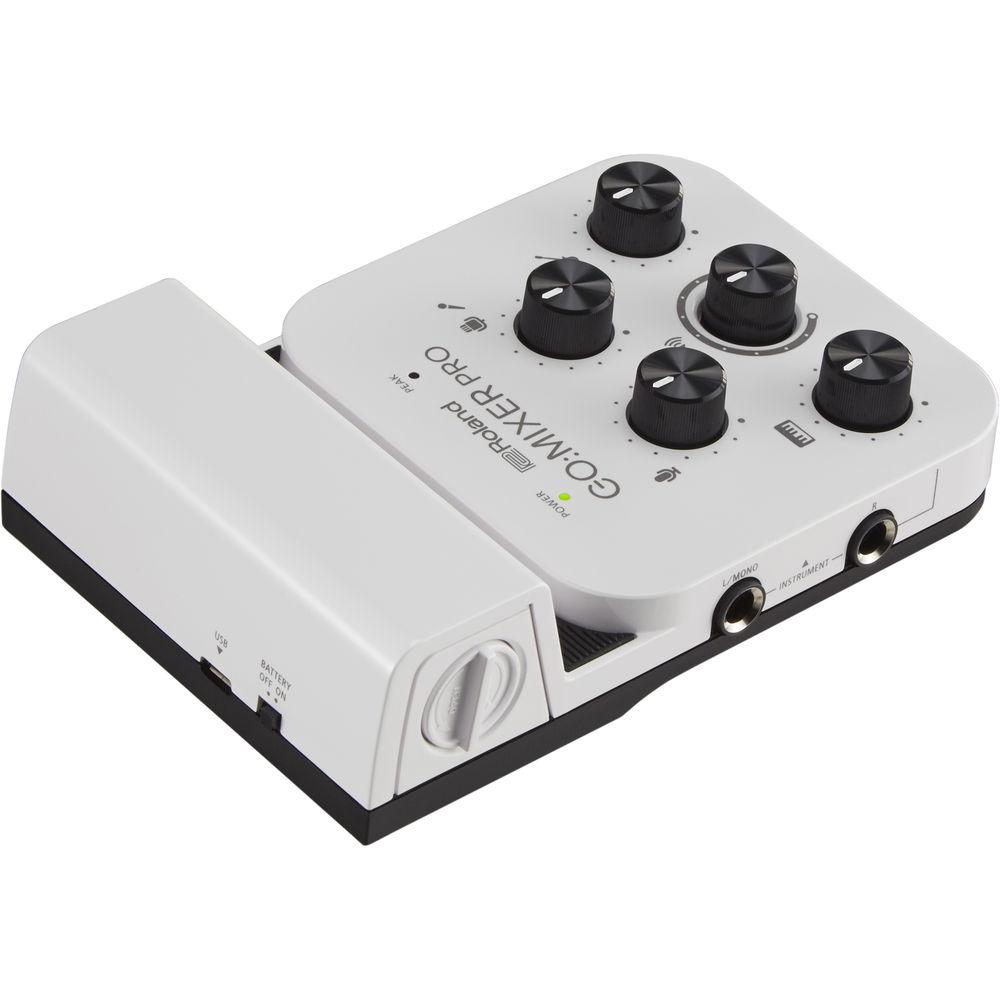

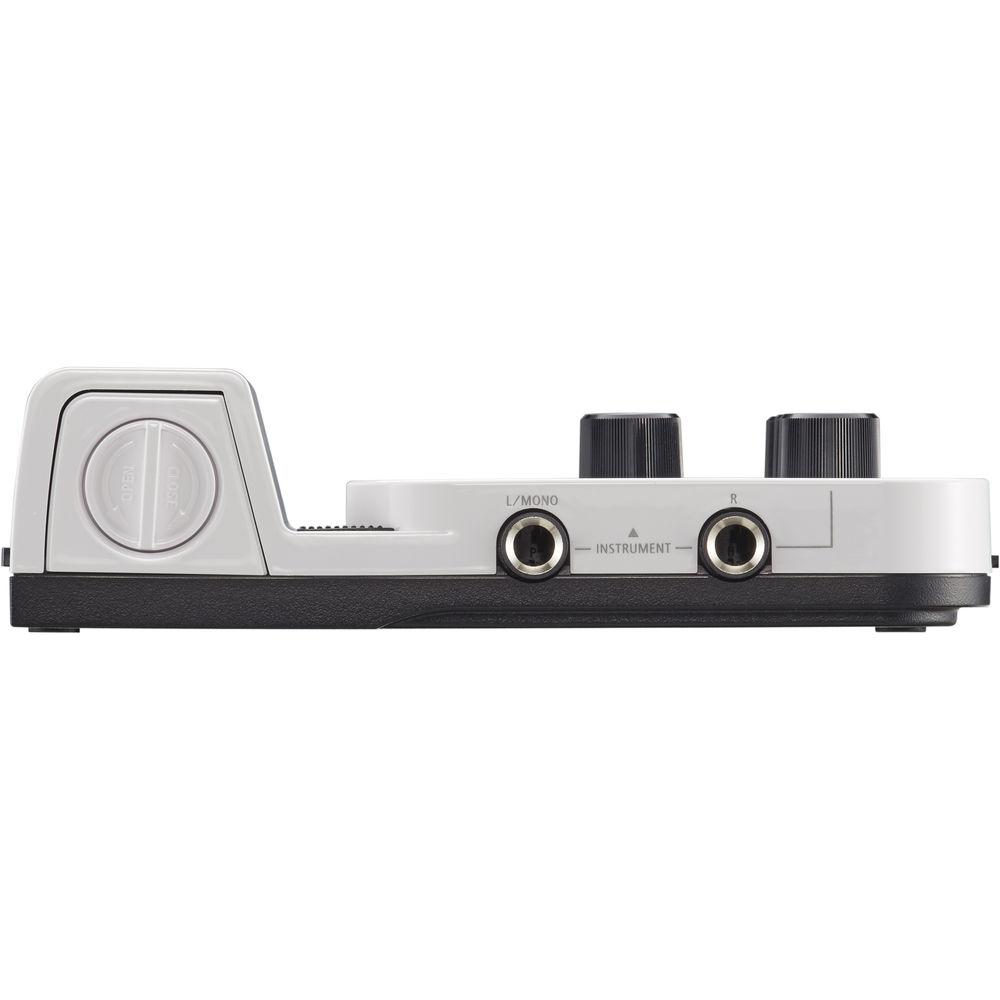

- Two 1/4" instrument inputs
- Two 3.5mm stereo line inputs
- 3.5mm stereo monitor output with level control

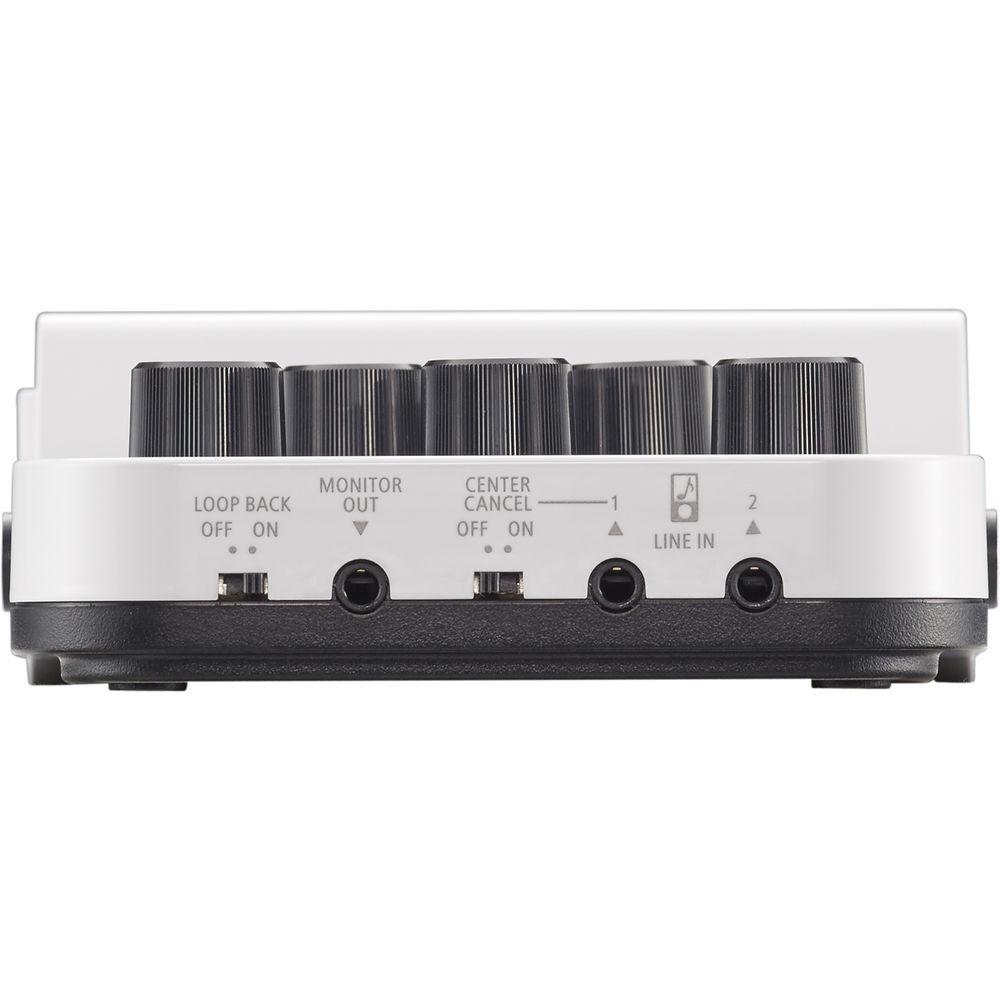

- Switchable Loop Back mode feeds the digital audio output from your smartphone to the 3.5mm monitor output
- Selectable Center Cancel mode eliminates center-panned instruments and vocals from the stereo source connected to the first line input (ideal for karaoke)
- Power and peak indicators
UPC: 761294512760 In the Box Roland GO:MIXER PRO 9-Input Audio Mixer Pedal for Smartphones Lightning to USB Micro-B Cable USB OTG Micro-B to USB Micro-B Cable USB Type-C to USB Micro-B Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland GO:MIXER PRO 9-Input Audio Mixer Pedal for Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland Go:Mixer Pro Specs | System Requirements | iOS 11
Lightning port
Android 7 or 8
Micro-USB Type-B or USB Type-C port
USB OTG (On-The-Go) functionality support | | Inputs | 1 x XLR-1/4" combo mic input
1 x 1/8" / 3.5 mm mic input
3 x 1/4" instrument inputs
2 x 1/8" / 3.5 mm stereo line inputs | | Outputs | 1 x 1/8" / 3.5 mm TRS | | USB | 1 x Micro-USB Type-B | | Phantom Power | 48 VDC, 6 mA (maximum) | | Plug-In Power | 2.5 V | | Power Supply | USB bus power
4 x AAA LR03 alkaline batteries
4 x AAA HR03 NiMH batteries | | Current Draw | 170 mA | | Battery Life (approx.) | Up to 4.5 hours (via alkaline batteries) | | Dimensions (W x D x H) | 4.1 x 6.1 x 1.6" / 104 x 155 x 41 mm | | Weight | 7.8 oz / 220 g (excluding batteries and cables) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.5 x 6.8 x 2.9" |
