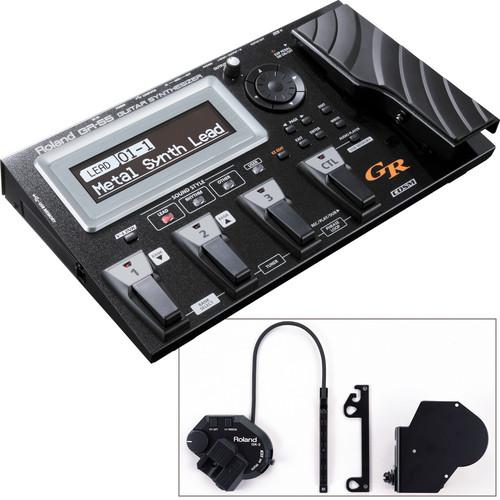

User Manual for Roland GR-55 Guitar Synthesizer with GK-3 Pickup Click to enlarge the picture
Contents of the user manual for the Roland GR-55 Guitar Synthesizer with GK-3
- Product category: Processors, Trainers & Synths Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Processors, Trainers & Synths
 |
User manual for the Roland GR-55 Guitar Synthesizer with GK-3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

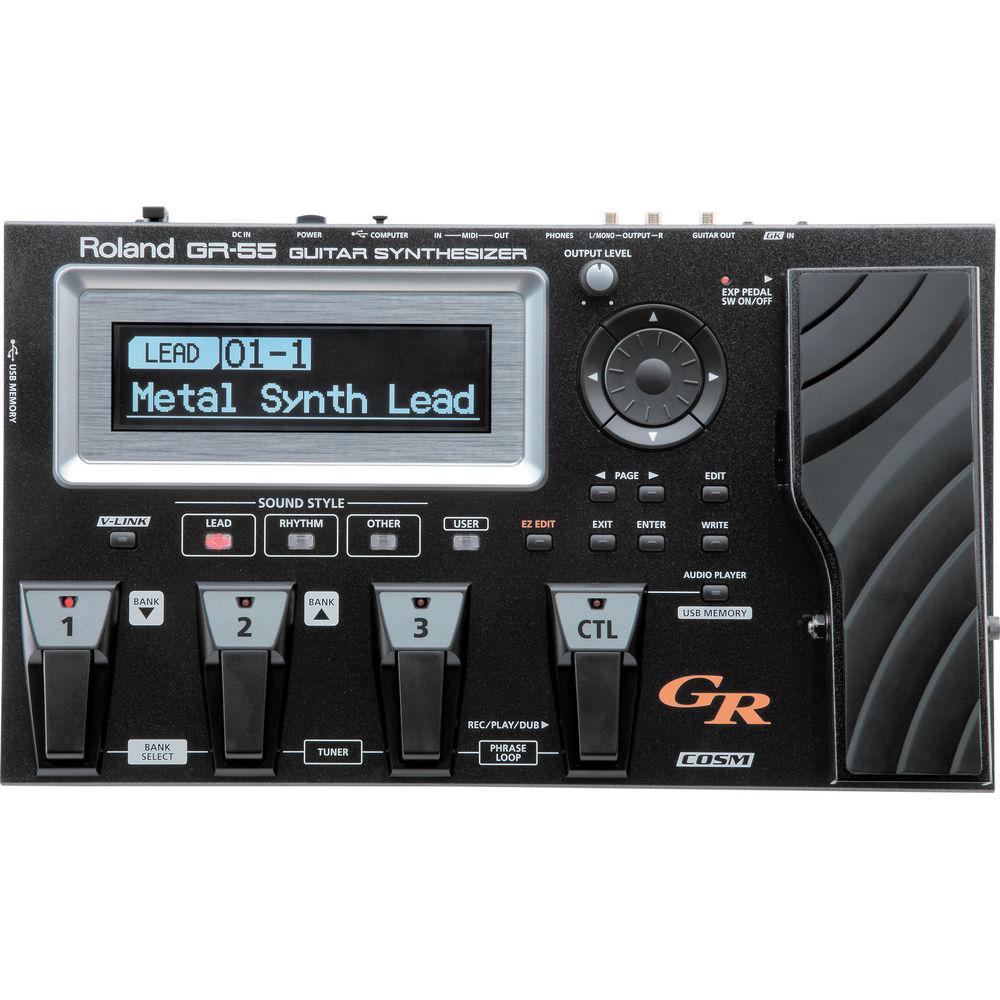

Product description The GR-55 Guitar Synthesizer with GK-3 Pickup from Roland is a fast reacting and accurate guitar synthesizer for use with the included GK3 pickup attached to any type of electric guitar. Guitars are not normally thought of as synthesizer controllers, but the company has been pursuing this concept for many years. When paired with the GK-3 pickup, any electric guitar can trigger the sounds of the tone module with imperceptible latency, a huge consideration when playing live. Pitch detection is also very accurate.
The triple-core generator houses an array of virtual guitars, basses, amplifiers, and synthesizer voices, delivered by two PCM synthesizers containing over 900 tones, along with COSM guitar modeling. Using the simple category buttons, the onboard ready-to-use presets (270, plus 297 user) can easily be auditioned, either on stage or in the studio.
The GR-55 connects the guitarist to desktop music production with two USB ports. The rear-panel port can be used for MIDI/audio data communication, while the side-panel port is dedicated to real-time playback of audio files from a USB memory device (sold separately). Foot control of USB audio playback is available, so that hands never need to leave the guitar.

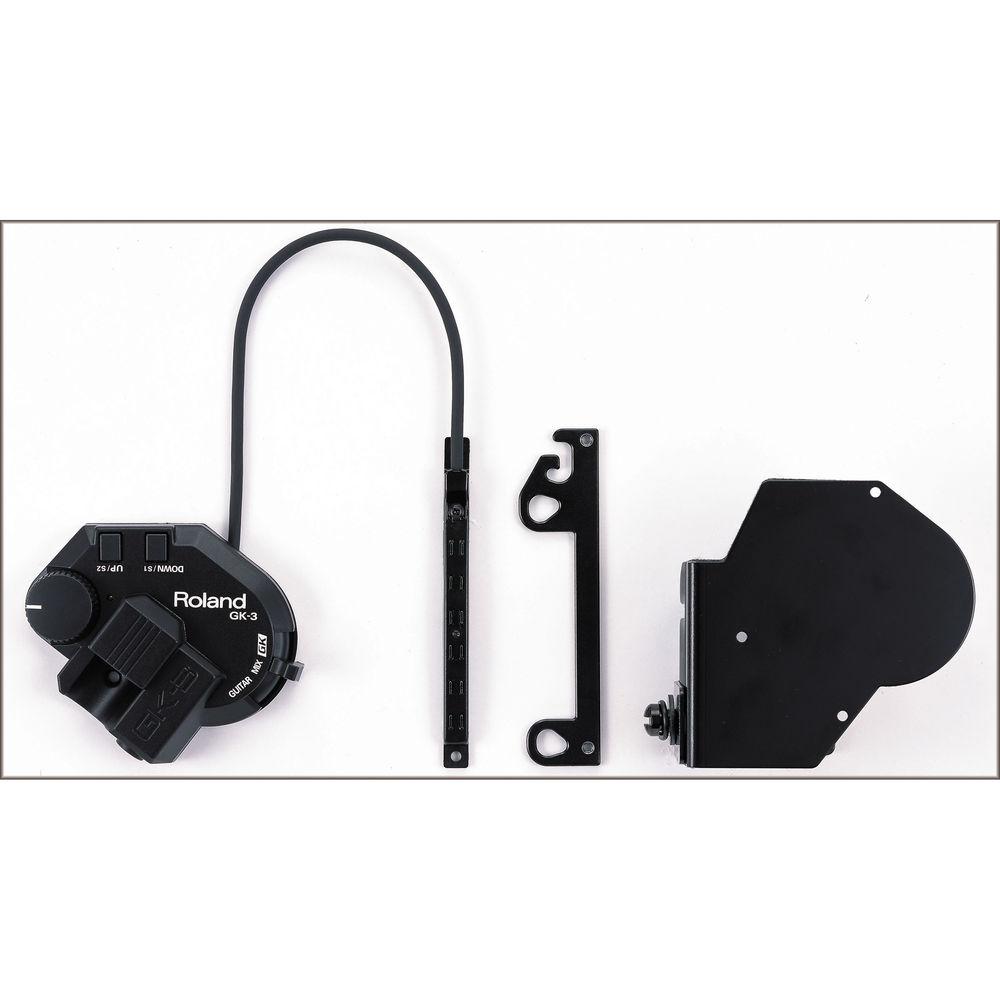

The GK-3 Divided Pickup attaches to any steel-stringed electric (no drilling necessary) and delivers accurate performance data to the GR-55, sending individual signals from each guitar string to the device. The pickup's slim-line design enables ideal placement on the guitar, while a big and smooth GK knob and Select Switch allow for changing from synthesizer, to normal guitar tone, or using both mixed together. GR-55 - Fusion of guitar synthesis and powerful COSM guitar modeling
- Up to four sound sources at a time - two PCM synthesizer tones, plus COSM guitar modeling and normal guitar input
- Easy to use and easy to play with hundreds of great, ready-to-use sounds for rock or pop guitarists
- Advanced Roland technology provides superb sound quality and lightning-fast processing
- Over 900 of Roland's latest fully editable PCM sounds, including pianos, organs, strings, vintage synthesizers, and much more
- COSM guitar and amp modeling
- Two types of multi-effects engines, plus global reverb, chorus, and delay effects, and an onboard looper
- Built-in USB audio player with foot control

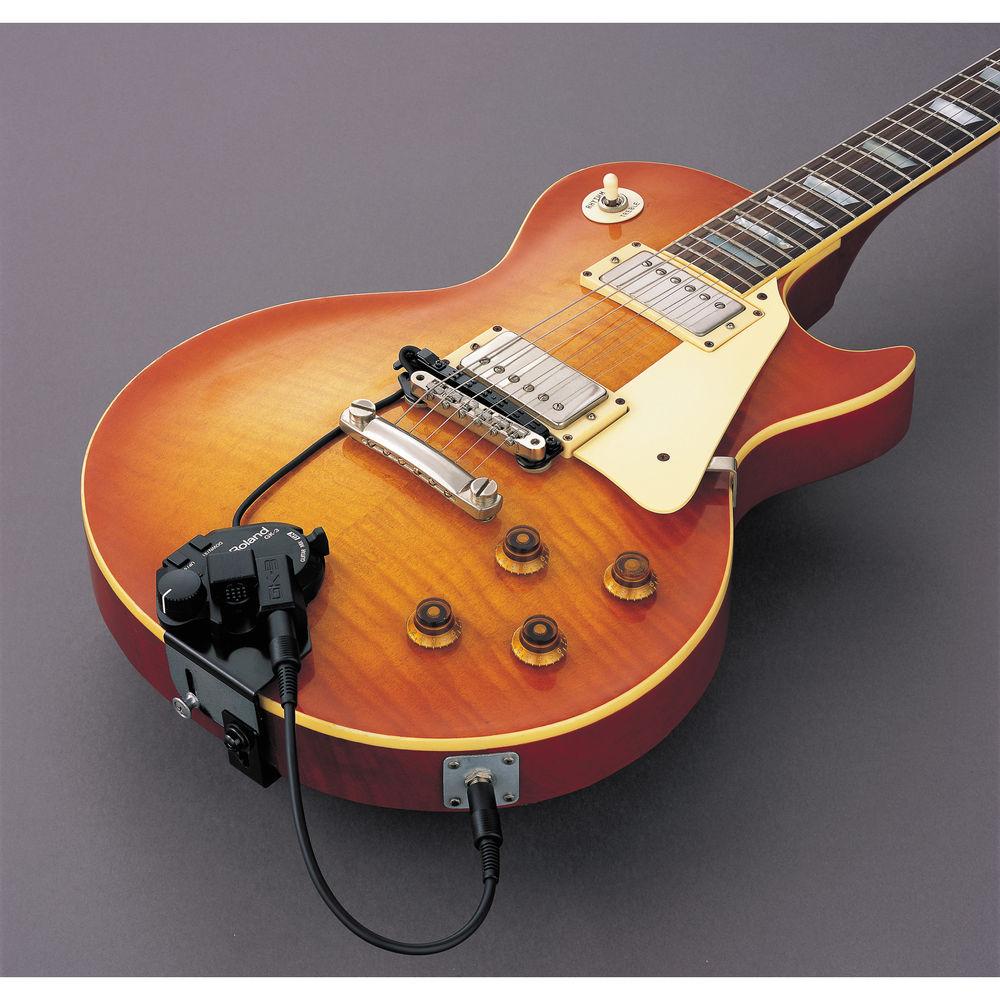

GK-3 - Mounts easily on any steel-stringed electric without damage to the guitar
- Attachment accessories include double-sided tapes, holder to secure the controller unit, and special attachment plate for installing the pickup unit to Les Paul-type guitars
- Adjustable pickup cable length
- 1/4" phone jack for normal guitar input
- Adjustable Curve Design adjusts the curvature of the pickup unit to the curvature of the guitar strings
UPC: 761294503089 In the Box Roland GR-55 Guitar Synthesizer with GK-3 Pickup (Black) External Power Supply GK-3 Pickup with Various Attachment Accessories 16.4 ft (5m) GK Cable Normal Guitar Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland GR-55 Guitar Synthesizer with GK-3 Pickup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland GR-55 Specs | Sound Generator | PCM: 2 tones
Modeling: 1 tone | | Tones | PCM: 910 types
Modeling: 23 types (guitar mode), 17 types (bass mode) | | Effect Variations | MFX (Multi-Effects): 20 types
AMP (Preamp): 42 types
MOD (Modulation): 14 types
DELAY: 7 types
REVERB: 5 types
CHORUS: 4 types
EQ: 1 type | | Presets | Guitar Mode
Preset: 270 + User: 297
Bass Mode
Preset: 90 + User: 297 | | AD Conversion | 24-bit (GK Pickup)
24-bit + AF method (Normal Pickup) AF (Adaptive Focus) method is a proprietary method from Roland and BOSS that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters | | DA Conversion | 24-bit | | Sampling Rate | 44.1kHz | | Inputs | GR-55

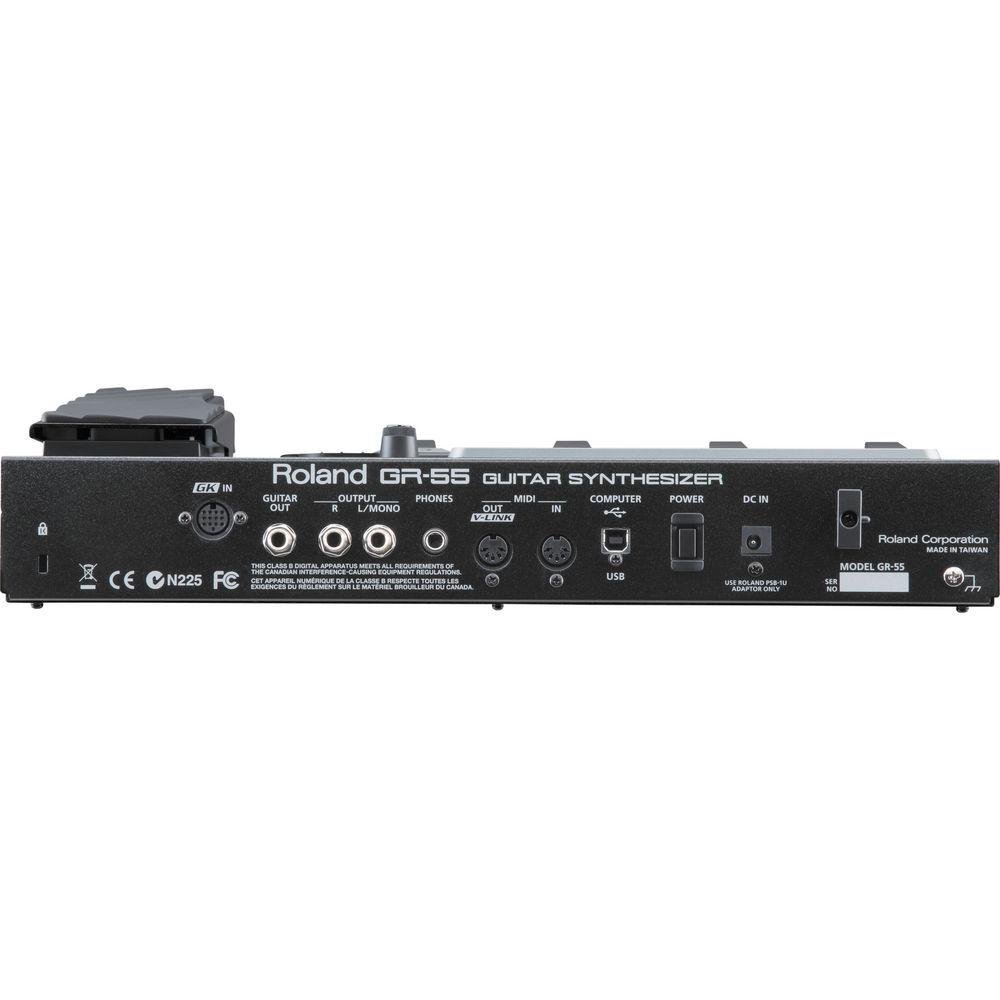

1 x 13-pin DIN GK
GK-3
1 x 1/4" TS phone Pickup input jack | | Outputs | 1 x 1/4" TS phone Guitar
2 x 1/4" TS phone Output Left/Mono, Right
1 x 1/4" TRS phone Headphones | | Output Impedance | 2kΩ | | Nominal Output Level | -10dBu | | Other Connectors | GR-55
2 x 5-pin DIN MIDI IN/OUT
1 x USB Computer
1 x USB Memory Stick (for USB Memory Audio Player playback)
1 x DC In
GK-3
1 x GK connector | | External Storage | Sys-Ex | | Display | GR-55
Graphic LCD 240 x 64 dots
GK-3
Power Indicator | | Power Requirements | 9 VDC via external adapter 700 mA current draw | | Dimensions (WxDxH) | GR-55
16 x 9.6 x 3.1" (405 x 244 78 mm)
GK-3 Body
3.4 x 2.9 x 0.9" (87 x 74 x 23mm)
GK-3 Pickup
4.1 x 0.3 x 0.4" (102 x 8 x 9mm) | | Weight | GR-55
7.3 lb (3.3 kg)
GK-3 Body
3 oz (100g) | | Specialties | USB Memory Audio Player file format - WAV, AIFF | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 23.7 x 13.2 x 6.1" |
