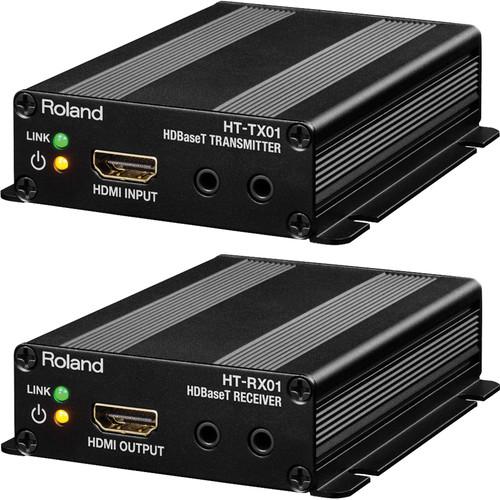

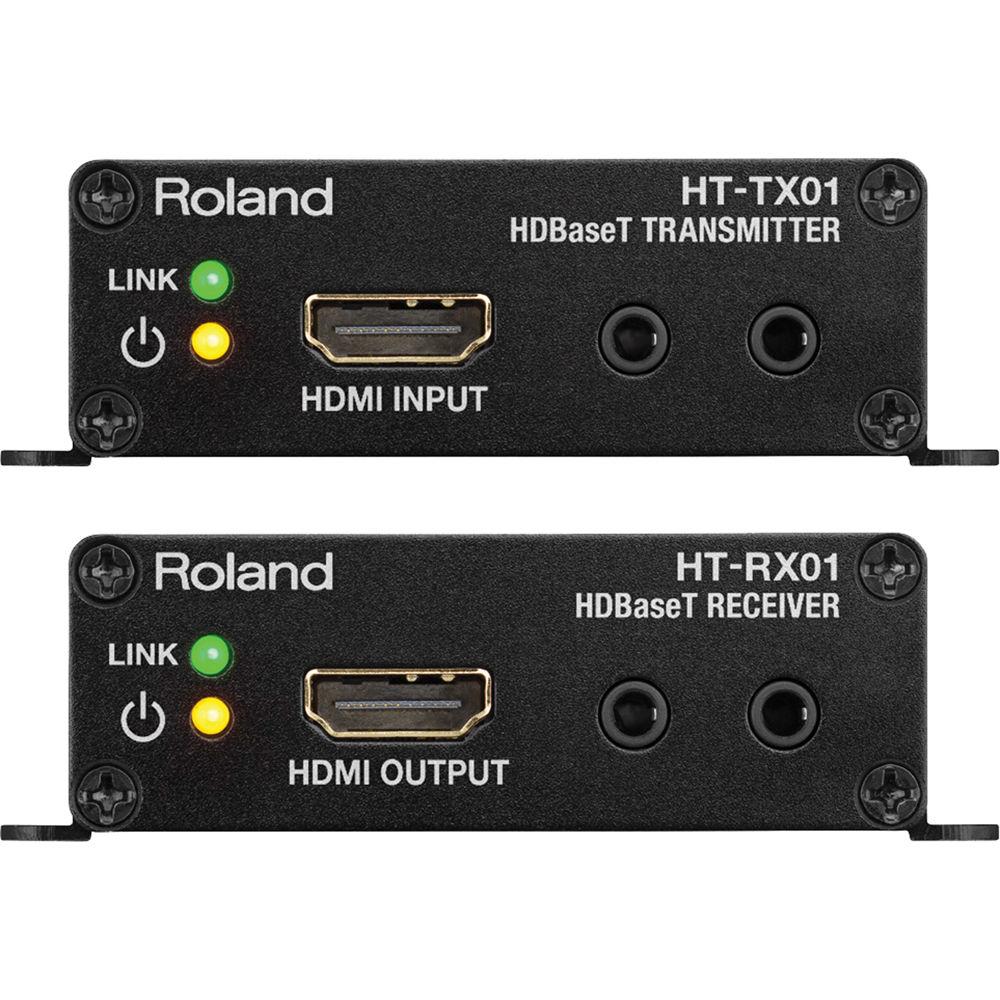

Product description The HDBaseT Transmitter and Receiver Set from Roland includes an HT-TX01 transmitter and an HT-RX01 receiver capable of extending HDMI signals over a distance of up to 328 feet over a CAT5 or higher cable. The extender set makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. RS-232C control signals can be transmitted along with the video and audio, reducing system wiring. - HT-TX01 HDBaseT Transmitter The HT-TX01 HDBaseT Transmitter from Roland transmits an HDMI signal to an HT-TX01 transmitter (sold separately) up to 328 ft over a shielded CAT5e or higher Ethernet cable. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. RS-232C control signals can be extended along with video and audio signals, reducing system wiring.
- Transmit HDMI signals to a compatible transmitter up to 328 ft over an Ethernet cable
- Convert HDMI signals to HDBaseT
- Up to 1080 / 60p and WUXGA support for HDMI
UPC: 761294507148 - HT-RX01 HDBaseT Receiver The HT-RX01 HDBaseT Receiver from Roland receives an HDMI signal from an HT-RX01 receiver (sold separately) from up to 328 ft over a shielded CAT5e or higher Ethernet cable. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. When used as a receiver for the HDBaseT output of an XS Series multi-format matrix switcher, RS-232C control signals can be extended along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.
- Receive HDMI signals to a compatible receiver from up to 328 ft over an Ethernet cable
- Re-convert HDBaseT signals to HDMI
- Up to 1080 / 60p and WUXGA support for HDMI
UPC: 761294507155 In the Box Bundle Items HT-TX01 HDBaseT Transmitter xtxvvquffvtrxxttcuwcdfvwqtwerye - 6.5 ft (2 m) RS-232 Conversion Cable
- Limited 1-Year Warranty on Parts
- Limited 90-Day Warranty on Labor
HT-RX01 HDBaseT Receiver - 6.5 ft (2 m) RS-232 Conversion Cable
- Limited 1-Year Warranty on Parts
- Limited 90-Day Warranty on Labor
Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland HDBaseT Transmitter and Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HT-TX01 HDBaseT Transmitter
| Input Formats | 480 / 59.94i, 576/50i, 480/59.94p, 576 / 50p , 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
RGB Formats: Conforms to VESA DMT version 1.0 revision 11
The maximum refresh rate of RGB is 75 Hz (excluding 1600 x 1200 and 1920 x 1200; the refresh rate of these 2 is 60 Hz)
1920 x 1200 / 60 Hz : Reduced blanking | | Audio Formats | Maximum: PCM 8 channels, Dolby Digital, True HD DTS-HD Master Audio | | Connectors | 1 x RJ45 output

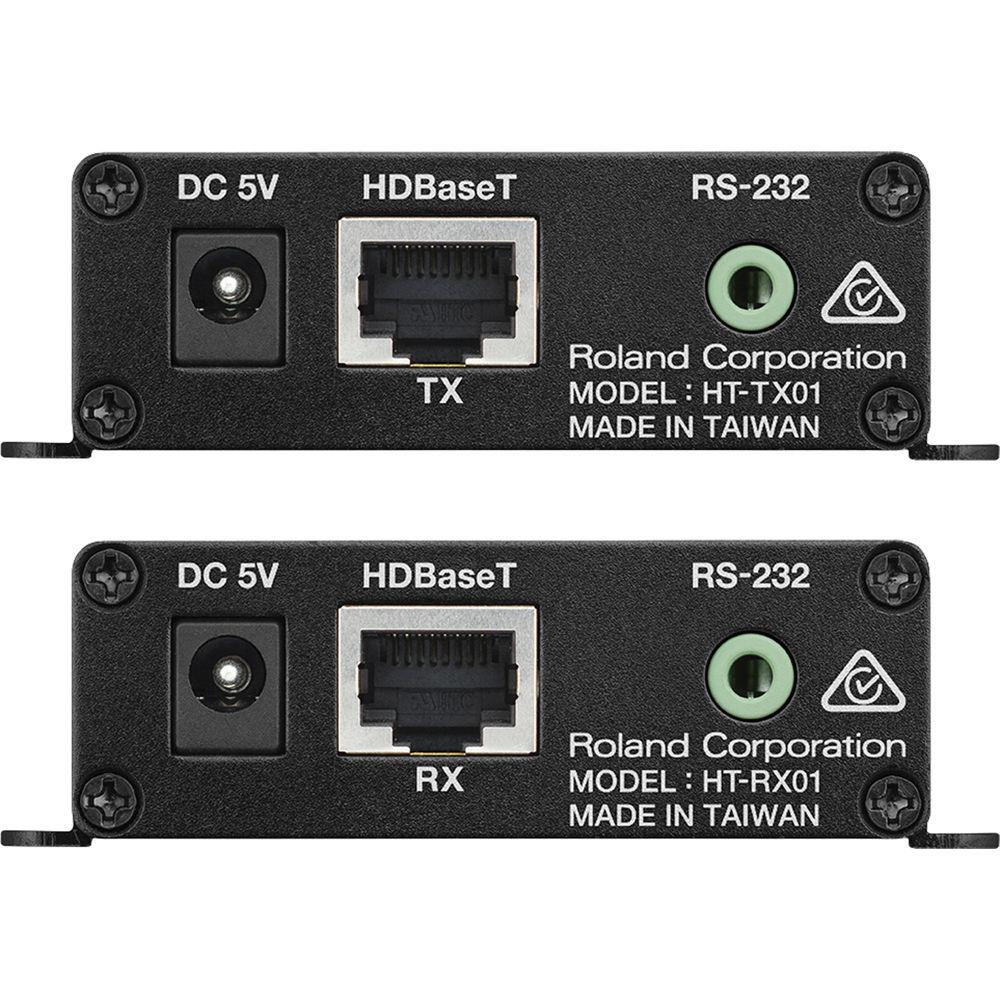

1 x HDMI input
1 x 9 pin D-sub RS-232 | | Transmission Range | 328' (100 m) | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Operating Humidity Range | 10 to 85 % (no condensation) | | Storage Temperature Range | -4 to 140°F (-20 to 60°C) | | Power Supply | AC Adapter | | Current Draw | 2 A | | Dimensions | 3.2 x 3.7 x 1.0" (8.1 x 9.3 x 2.4 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 7.85 x 7.45 x 2.75" | - HT-RX01 HDBaseT Receiver
| Input Formats | 480 / 59.94i, 576/50i, 480/59.94p, 576 / 50p , 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
RGB Formats: Conforms to VESA DMT version 1.0 revision 11
The maximum refresh rate of RGB is 75 Hz (excluding 1600 x 1200 and 1920 x 1200; the refresh rate of these 2 is 60 Hz)
1920 x 1200 / 60 Hz : Reduced blanking | | Audio Formats | Maximum: PCM 8 channels, Dolby Digital, True HD DTS-HD Master Audio | | Connectors | 1 x RJ45 input
1 x HDMI output
1 x 9 pin D-sub RS-232 | | Transmission Range | 328' (100 m) | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Operating Humidity Range | 10 to 85 % (no condensation) | | Storage Temperature Range | -4 to 140°F (-20 to 60°C) | | Power Supply | AC Adapter | | Current Draw | 2 A | | Dimensions | 3.2 x 3.7 x 1.0" (8.1 x 9.3 x 2.4 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 7.9 x 7.5 x 2.8" |
