User Manual for Roland HT-TX01 HDBaseT Transmitter Click to enlarge the picture
Contents of the user manual for the Roland HT-TX01 HDBaseT Transmitter
- Product category: Video Extenders & Repeaters Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Video Extenders & Repeaters
 |
User manual for the Roland HT-TX01 HDBaseT Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

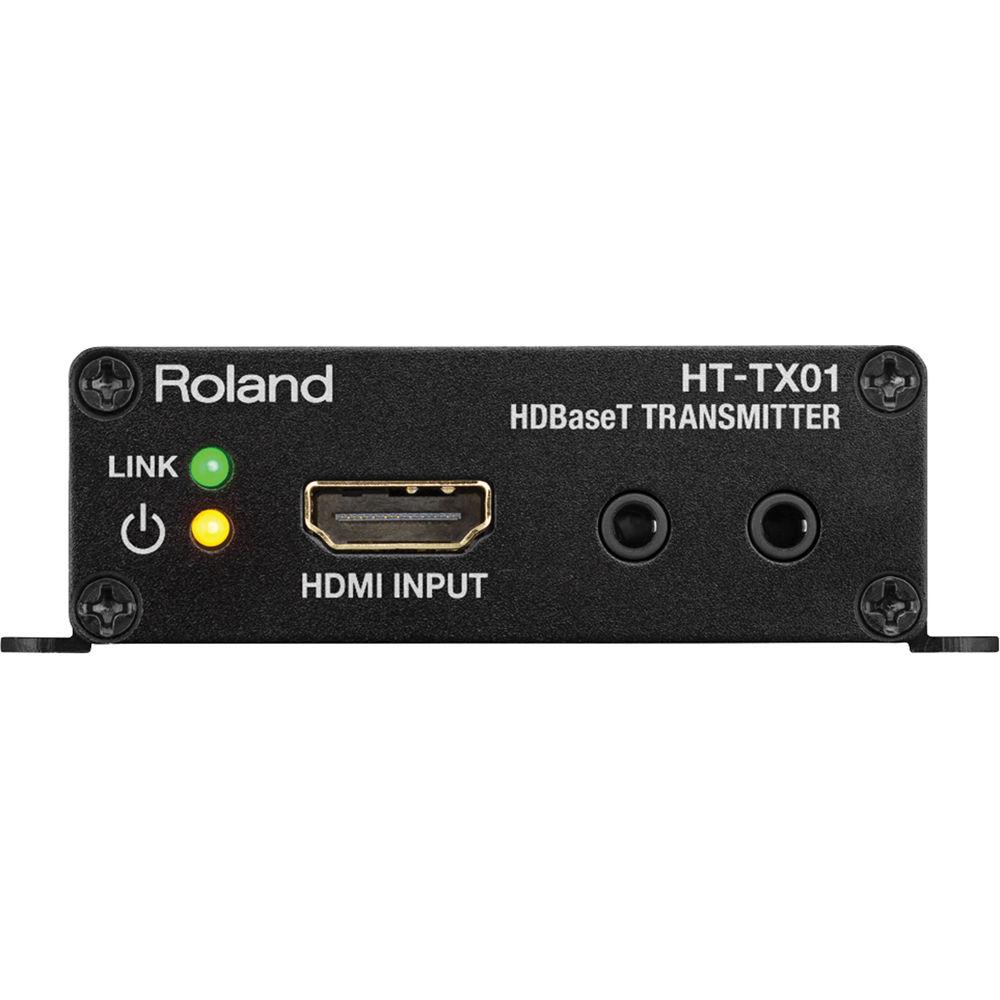

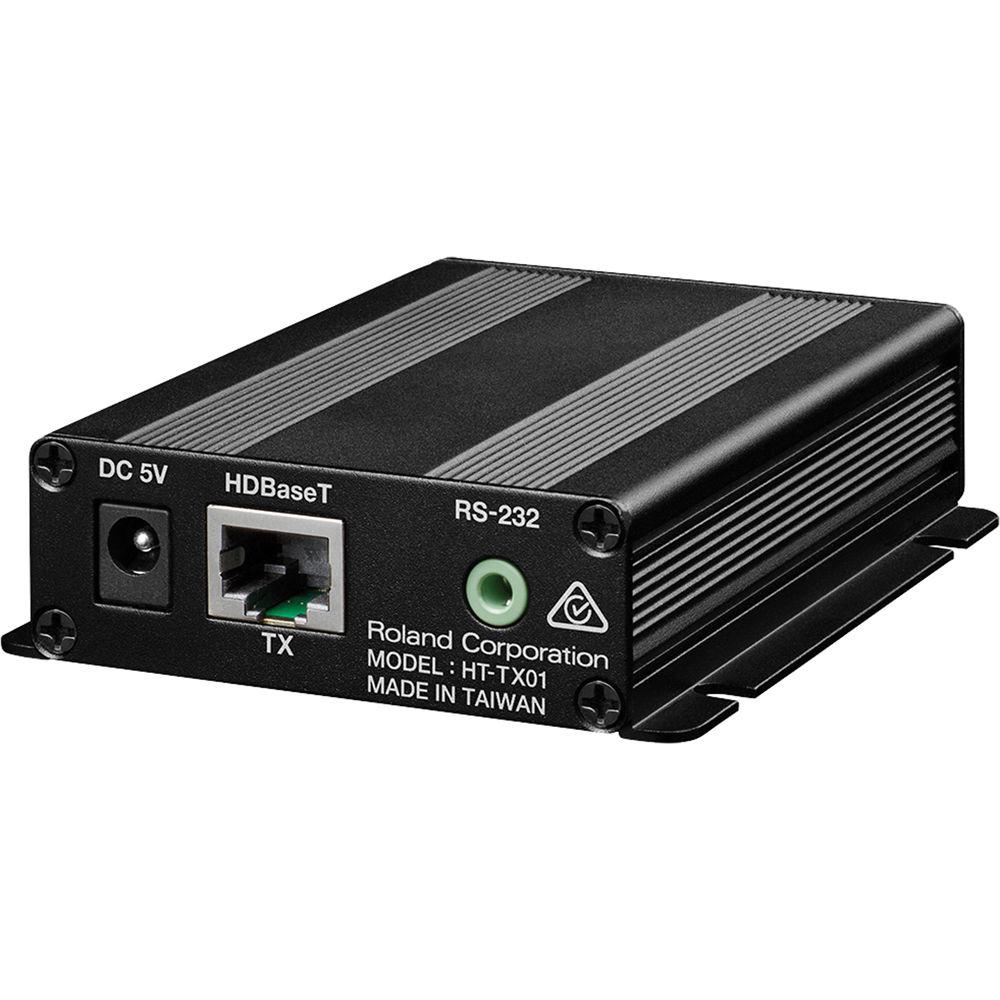

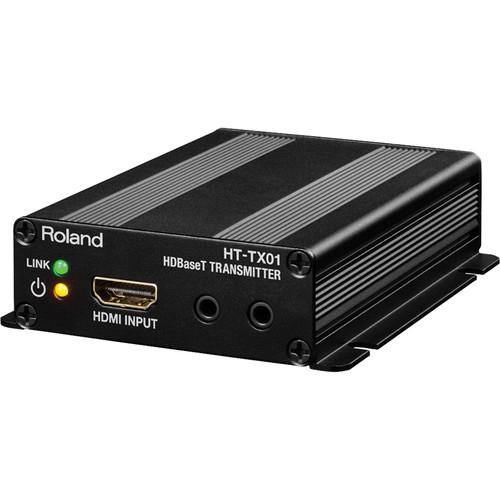

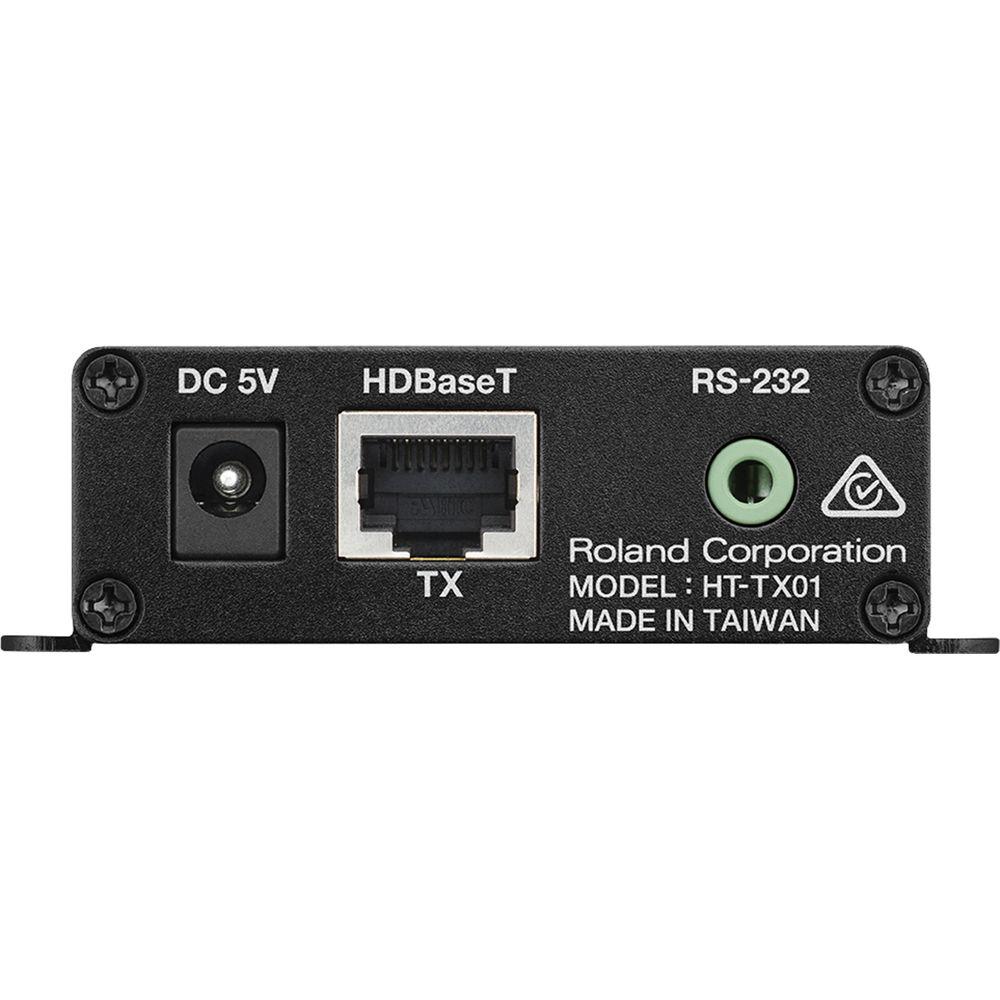

Product description The HT-TX01 HDBaseT Transmitter from Roland transmits an HDMI signal to an HT-TX01 transmitter (sold separately) up to 328 ft over a shielded CAT5e or higher Ethernet cable. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. RS-232C control signals can be extended along with video and audio signals, reducing system wiring. - Transmit HDMI signals to a compatible transmitter up to 328 ft over an Ethernet cable
- Convert HDMI signals to HDBaseT
- Up to 1080 / 60p and WUXGA support for HDMI
UPC: 761294507148 In the Box Roland HT-TX01 HDBaseT Transmitter AC Adapter 3 x AC Plugs 6.5 ft (2 m) RS-232 Conversion Cable 3 x Ferrite Core Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland HT-TX01 HDBaseT Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland HT-TX01 Specs | Input Formats | 480 / 59.94i, 576/50i, 480/59.94p, 576 / 50p , 720 / 59.94p, 720 / 50p, 1080 / 59.94i, 1080 / 50i, 1080 / 59.94p, 1080 / 50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
RGB Formats: Conforms to VESA DMT version 1.0 revision 11
The maximum refresh rate of RGB is 75 Hz (excluding 1600 x 1200 and 1920 x 1200; the refresh rate of these 2 is 60 Hz)
1920 x 1200 / 60 Hz : Reduced blanking | | Audio Formats | Maximum: PCM 8 channels, Dolby Digital, True HD DTS-HD Master Audio | | Connectors | 1 x RJ45 output
1 x HDMI input
1 x 9 pin D-sub RS-232 | | Transmission Range | 328' (100 m) | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Operating Humidity Range | 10 to 85 % (no condensation) | | Storage Temperature Range | -4 to 140°F (-20 to 60°C) | | Power Supply | AC Adapter | | Current Draw | 2 A | | Dimensions | 3.2 x 3.7 x 1.0" (8.1 x 9.3 x 2.4 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 1.31 lb | | Box Dimensions (LxWxH) | 7.85 x 7.45 x 2.75" |
