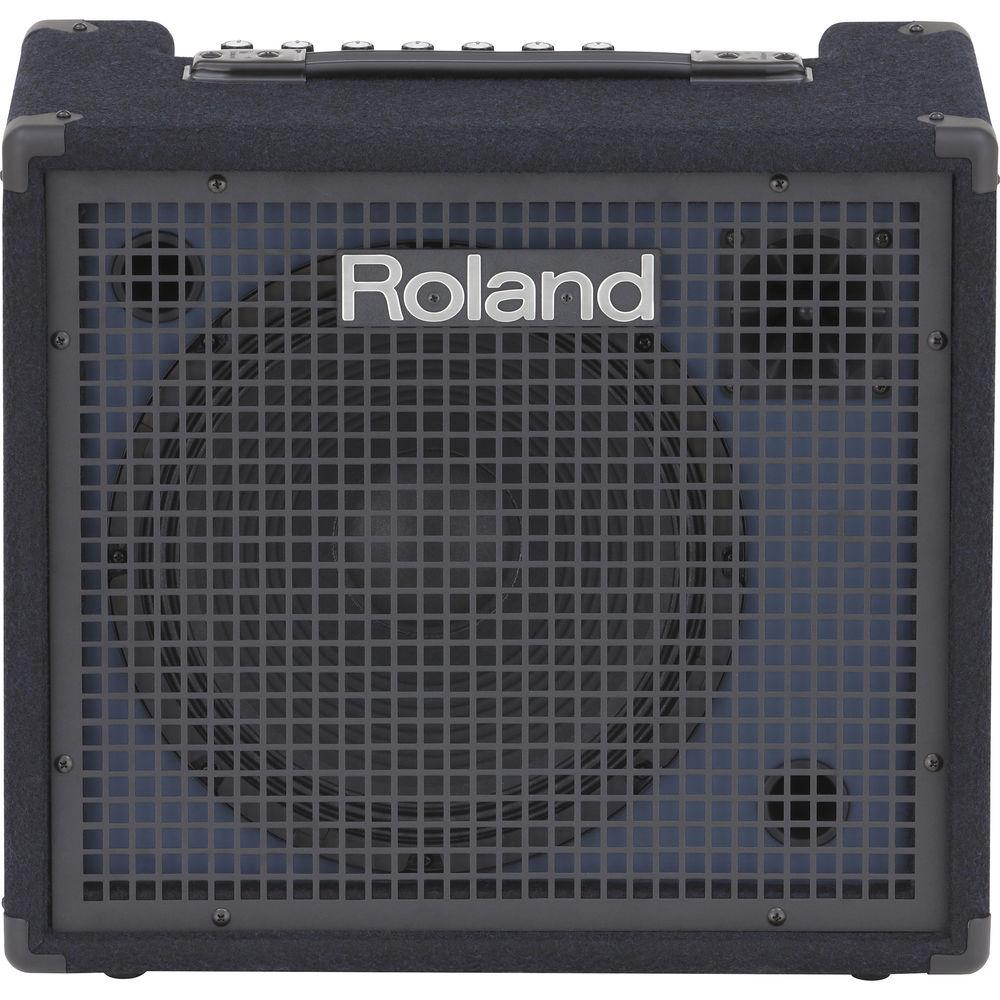

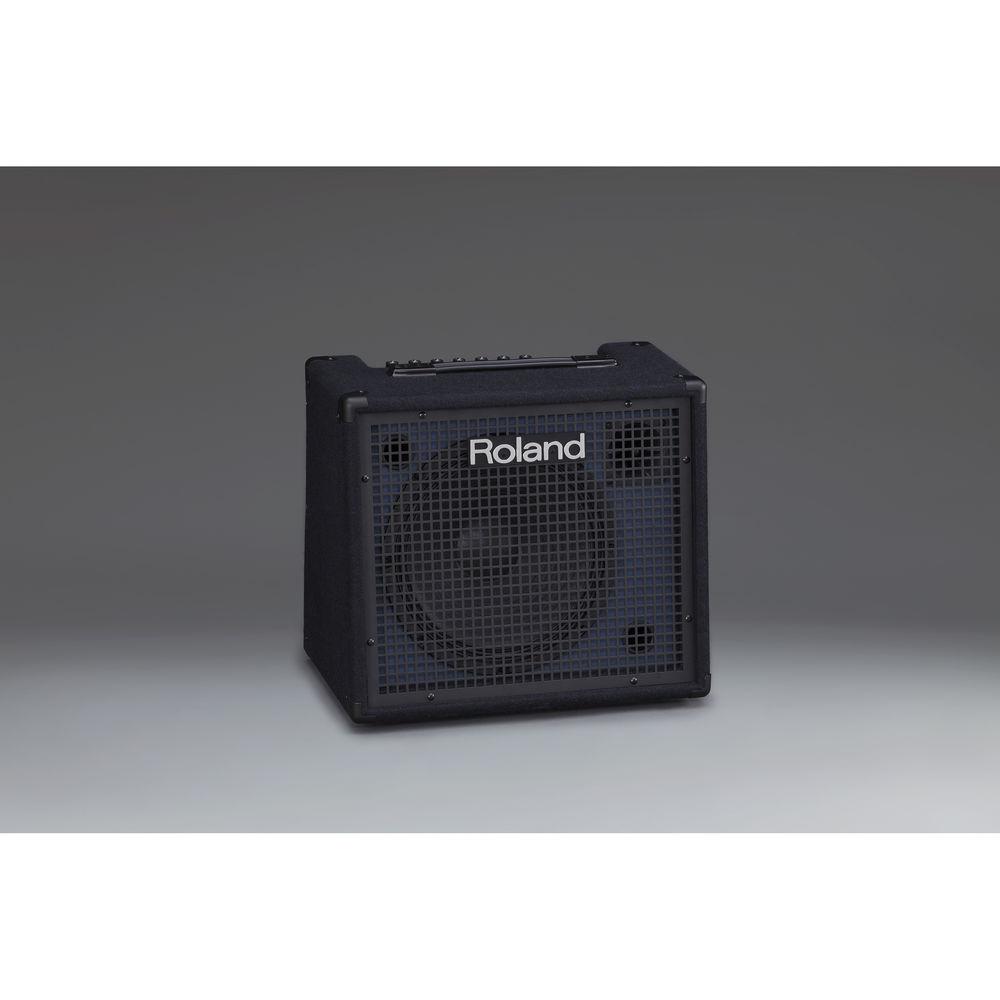

Product description The KC-200 4-Channel Mixing Keyboard Amplifier from Roland features 100W of power, an integrated mixer with four line-input channels, and a dedicated auxiliary input with support for an XLR vocal microphone. The KC series bass-reflex cabinet, is paired with a redesigned power section and updated 12" woofer. It can be used in sound reinforcement applications for 88-note stage pianos, organs, synthesizers, rhythm machines, and other electronic instruments. In addition to the four 1/4" line input channels for various electronic instruments, the KC-200 has an auxiliary channel with 1/8" and RCA inputs. These can be used for connection to smartphones, music players, or other devices. Also, channel 4 is equipped with a headphone jack. It allows you to monitor click or guide tracks while performing, without sending the sound to a PA via the amp's line out jack. - Full-Range Sound for Keyboards and Electronic Musical Instruments
- The KC-200 offers full-range audio reproduction in a compact amp with 100W of power. The cabinet features a twin bass-reflex design that provides extended low-frequency response without distortion.
- Versatile Connectivity for Performing, Recording, and Practice
- The KC-200 integrates into any playing environment. A 1/4" line output enables you to interface with PA systems, stage monitors, and recording devices. A sub-out jack is available for a powered subwoofer and the level is tied to the amp's master volume for one-touch control. Plugging into the phones jack mutes the onboard speakers and sub out, which is suitable for private practice sessions, and more.
- Onboard 4+1 Mixing
- There are four 1/4" line input channels for support of keyboards, drum machines, and various electronic instruments. There is also an auxiliary channel with a 1/8" and RCA inputs for connecting smartphones, music players, or other devices. Additionally, channel 1 includes an XLR input too, letting you plug in a vocal mic for more versatility. Channel 4 is dedicated to monitoring through the KC-200's onboard speakers and headphones jack; this allows you to monitor click or guide tracks while performing without sending the sound to a PA via the amp's line out jack.
UPC: 761294511701 In the Box Roland KC-200 4-Channel Mixing Keyboard Amplifier Limited 3-Year Warranty for Parts Limited 2-Year Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland KC-200 4-Channel Mixing Keyboard Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland KC-200 Specs | Rated Power Output | 100W | | Nominal Input Level | @ 1 kHz:
Channel 1 (XLR type, Mic/Line): -50, -20 dBu
Channel 2 (Line): -20 dBu
Channel 3 (Line): -20 dBu
Channel 4 (Monitor): -20 dBu
Auxiliary In (L, R, Stereo): -10 dBu | | Nominal Output Level | @ 1 kHz:
Line Out: +4 dBu
Sub Out: +4 dBu | | Speakers | 1 x 12" (30 cm) woofer

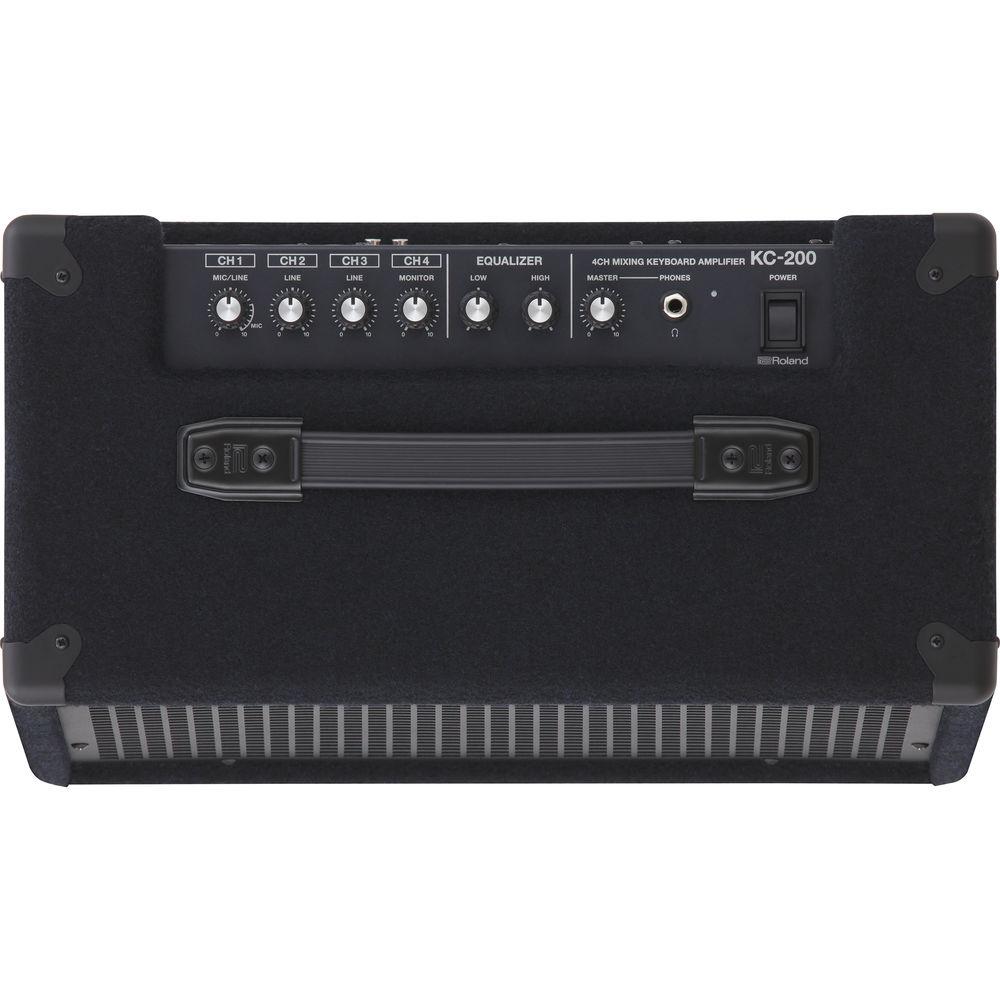

1 x tweeter | | Controls | Power Switch
Channel 1: Mic/line knob
Channel 2: Line knob
Channel 3: Line knob
Channel 4: Monitor knob
Equalizer: Low knob, high knob

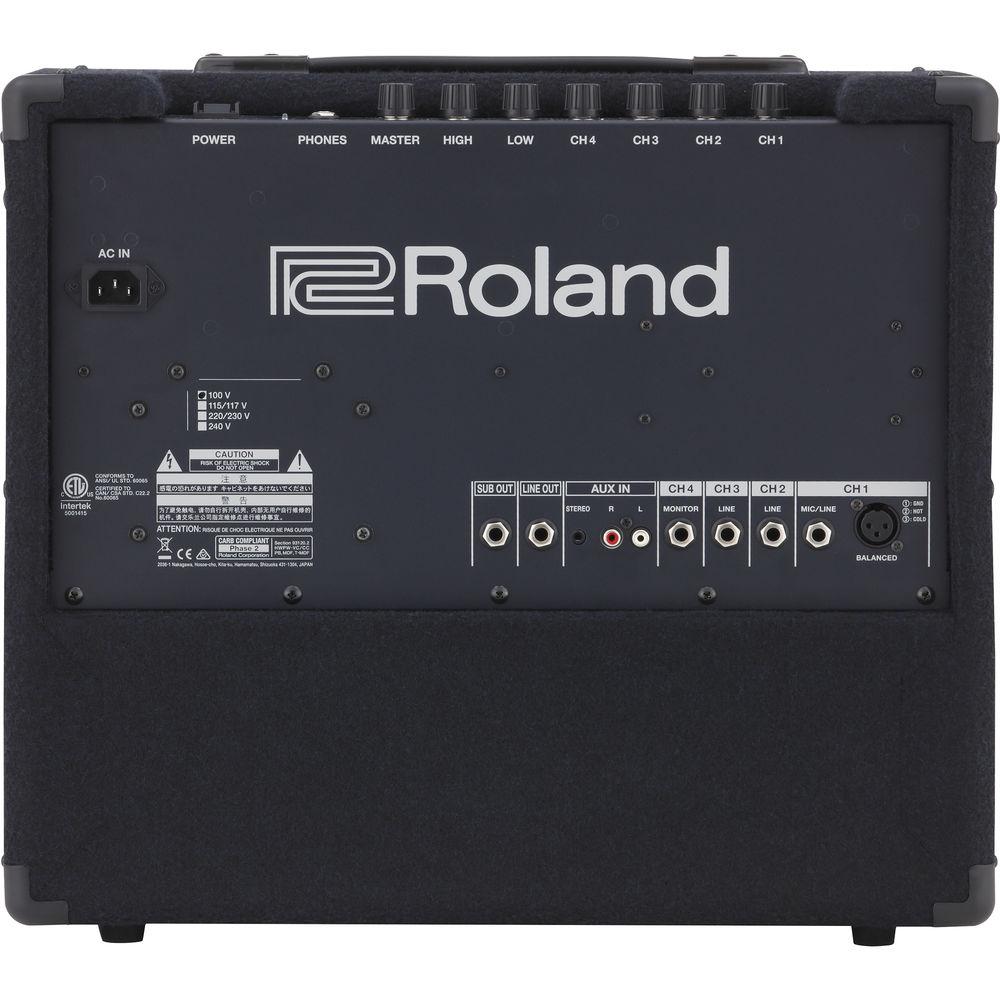

Master knob | | Indicators | Power | | Connectors | Channel 1 Jack: XLR type
Channel 1 (Mic/Line) Jack: 1/4" (6.3 mm) phone type
Channel 2 (Line) Jack: 1/4" (6.3 mm) phone type
Channel 3 (Line) Jack: 1/4" (6.3 mm) phone type
Channel 4 (Monitor) Jack: 1/4" (6.3 mm) phone type
Auxiliary In (L, R) Jacks: RCA phono type
Auxiliary In (Stereo) Jack: 1/8" (3.5 mm) stereo miniature phone type
Line Out Jack: 1/4" (6.3 mm) phone type
Sub Out Jack: 1/4" (6.3 mm) phone type
Phones Jack: 1/4" (6.3 mm) TRS phone type (mono signal output) | | Power Consumption | 70 W | | Dimensions (W x D x H) | 19.0 x 11.0 x 17.0" (480 x 295 x 435 mm) | | Weight | 33 lb (15 kg) | | | | Package Weight | 42.45 lb | | Box Dimensions (LxWxH) | 21.5 x 20.5 x 14.5" |
