User Manual for Roland KC-80 3-Channel, Mixing Keyboard Amplifier Click to enlarge the picture
Contents of the user manual for the Roland KC-80 3-Channel, Mixing Keyboard Amplifier
- Product category: Keyboard Amplifiers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Keyboard Amplifiers
 |
User manual for the Roland KC-80 3-Channel, Mixing Keyboard Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

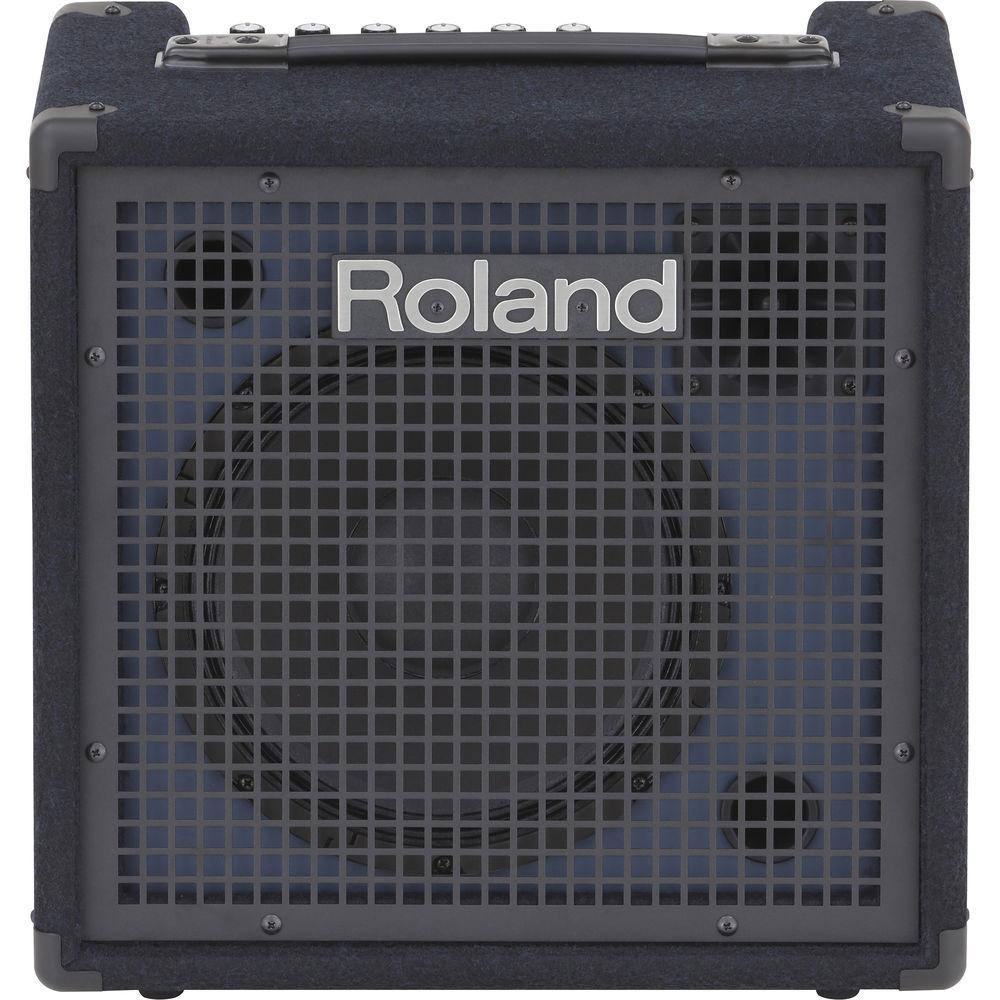

Product description The KC-80 3-Channel, Mixing Keyboard Amplifier from Roland features 50W output power, three line-input channels, a dedicated auxiliary input, and support for an XLR vocal mic. Paired with the built-in 10" woofer, the keyboard amplifier can be used by musicians and producers to amplify pianos, organs, synthesizers, rhythm machines, and other electronic instruments. The KC-80's cabinet is a twin bass-reflex design that provides extended low-frequency response without distortion. There is an auxiliary channel with 1/8" and RCA inputs for connecting smartphones, music players, or other devices. Channel 1 also includes an XLR input, allowing you to plug in a vocal mic for even more versatility. This keyboard amplifier integrates into many environments. A 1/4" line output enables you to interface with PA systems, stage monitors, and recording devices. There's also a sub-out jack for connecting to a powered subwoofer, with level tied to the amp's master volume for one-touch control. Plugging into the phones jack across the top of the unit, will mute the onboard speakers. This is suitable for private practice sessions and checking sounds on stage with headphones. - Full-Range Sound for Keyboards and Electronic Musical Instruments
- The KC-80 offers full-range audio reproduction in a portable amp. The cabinet features a twin bass-reflex design offering extended low-frequency response with a 10" woofer. It is suitable to amplify 88-note stage pianos, organs, and synthesizers, plus rhythm machines and other electronic instruments.
- Versatile Connectivity for Performing, Recording, and Practice
- The keyboard amplifier can integrate into any playing environment. It is equipped with a 1/4" line output that enables you to interface with PA systems, stage monitors, and recording devices. There is a sub-out jack for connecting to a powered subwoofer, with level conveniently tied to the amp's master volume for one-touch control. Plugging into the phones jack mutes the onboard speakers and sub out, which is suitable for private practice sessions and checking sounds on stage with headphones.
- Onboard 3+1 Mixing
- The KC-80's three 1/4" line input channels support keyboards, drum machines, and various electronic instruments. In addition, there's an auxiliary channel with 1/8" and RCA inputs for connecting smartphones, music players, or other devices. Channel 1 also includes an XLR input, allowing you to plug in a vocal mic for even more versatility.
UPC: 761294511695 In the Box Roland KC-80 3-Channel, Mixing Keyboard Amplifier Limited 3-Year Warranty for Parts Limited 2-Year Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland KC-80 3-Channel, Mixing Keyboard Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland KC-80 Specs | Rated Power Output | 50 W | | Nominal Input Level | @ 1 kHz
Channel 1 (Mic/Line): -50, -20 dBu
Channel 2 (Line): -20 dBu
Channel 3 (Line): -20 dBu
Auxiliary In (L, R, Stereo): -10 dBu | | Nominal Output Level | @ 1 kHz
Line Out: +4 dBu
Sub Out: +4 dBu | | Speakers | 1 x Woofer: 10" (25 cm)
1 x Tweeter: Not specified by manufacturer | | Controls | Power switch
Channel 1: Mic/Line knob
Channel 2: Line knob
Channel 3: Line knob
Equalizer: Low knob, high knob

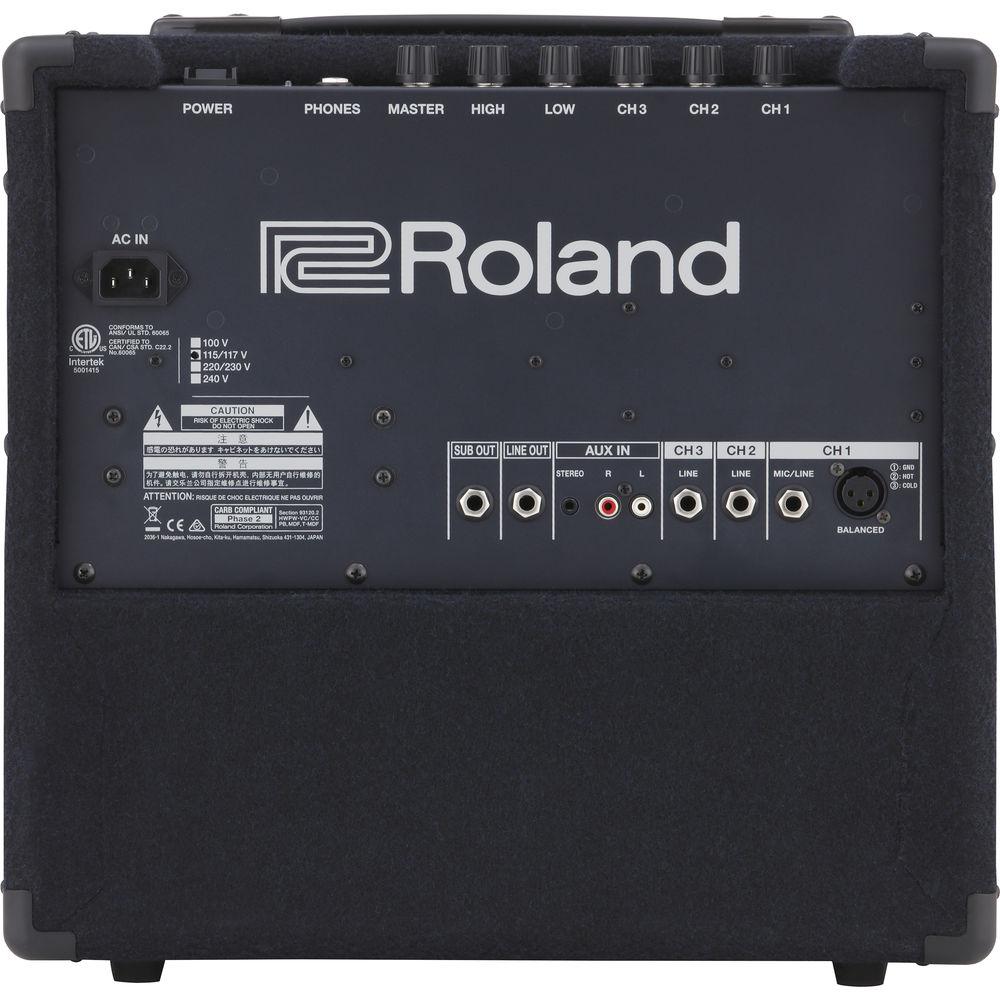

Master knob | | Indicator | Power | | Connectors | Channel 1 Jack: XLR type
Channel 1 (Mic/Line) Jack: 1/4" (6.3 mm) phone type
Channel 2 (Line) Jack: 1/4" (6.3 mm) phone type
Channel 3 (Line) Jack: 1/4" (6.3 mm) phone type
Auxiliary In (L, R) Jacks: RCA phono type
Auxiliary In (Stereo) Jack: 1/8" (3.5 mm) stereo miniature phone type
Line-Out Jack: 1/4" (6.3 mm) phone type
Sub-Out Jack: 1/4" (6.3 mm) phone type
Phones Jack: Stereo 1/4" (6.3 mm) phone type
Foot SW Jack: 1/4" (6.3 mm) phone type | | Power Consumption | 50 W | | Dimensions (W x D x H) | 17.0 x 12.0 x 16.0" (420 x 300 x 410 mm) | | Weight | 28 lb (12.5 kg) | | | | Package Weight | 34.2 lb | | Box Dimensions (LxWxH) | 20.0 x 18.5 x 15.0" |
