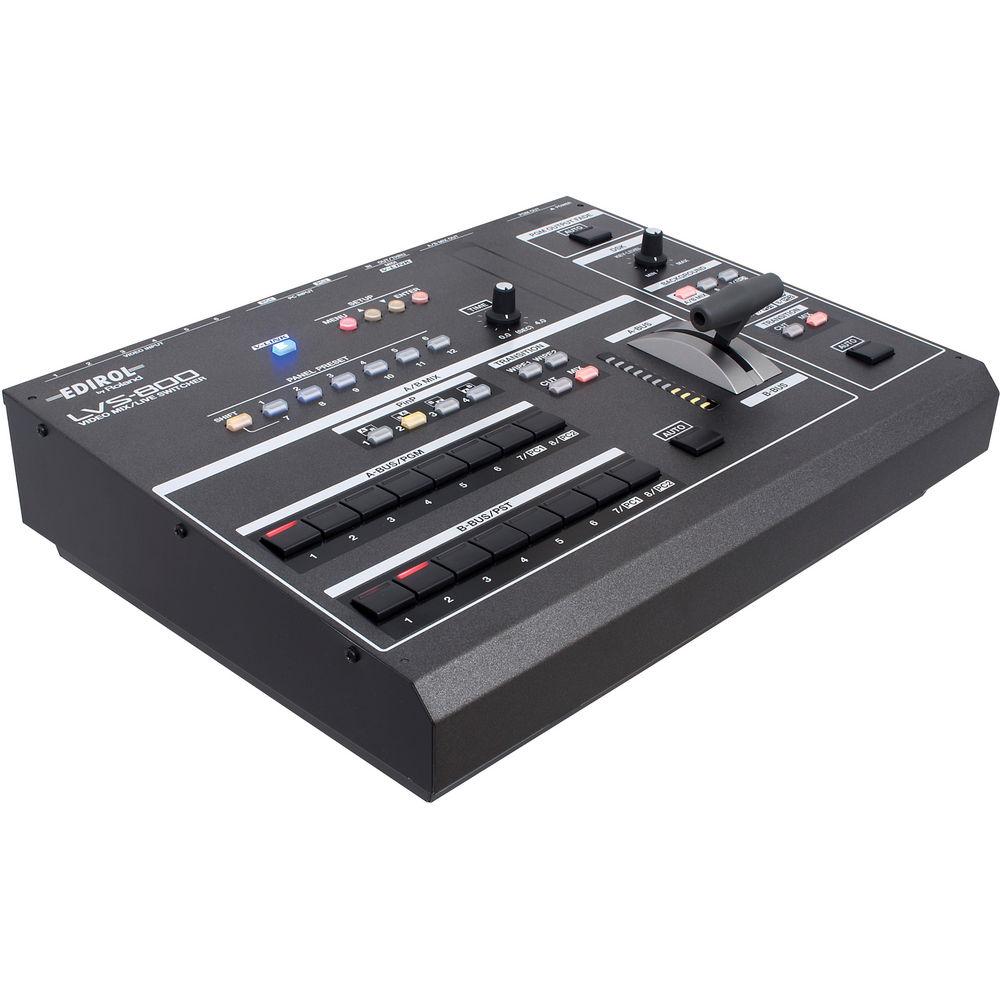

User Manual for Roland LVS-800 Video Mix Live Switcher - Refurbished Click to enlarge the picture
Contents of the user manual for the Roland LVS-800 Video Mix Live Switcher
- Product category: Uncategorized Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Uncategorized
 |
User manual for the Roland LVS-800 Video Mix Live Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

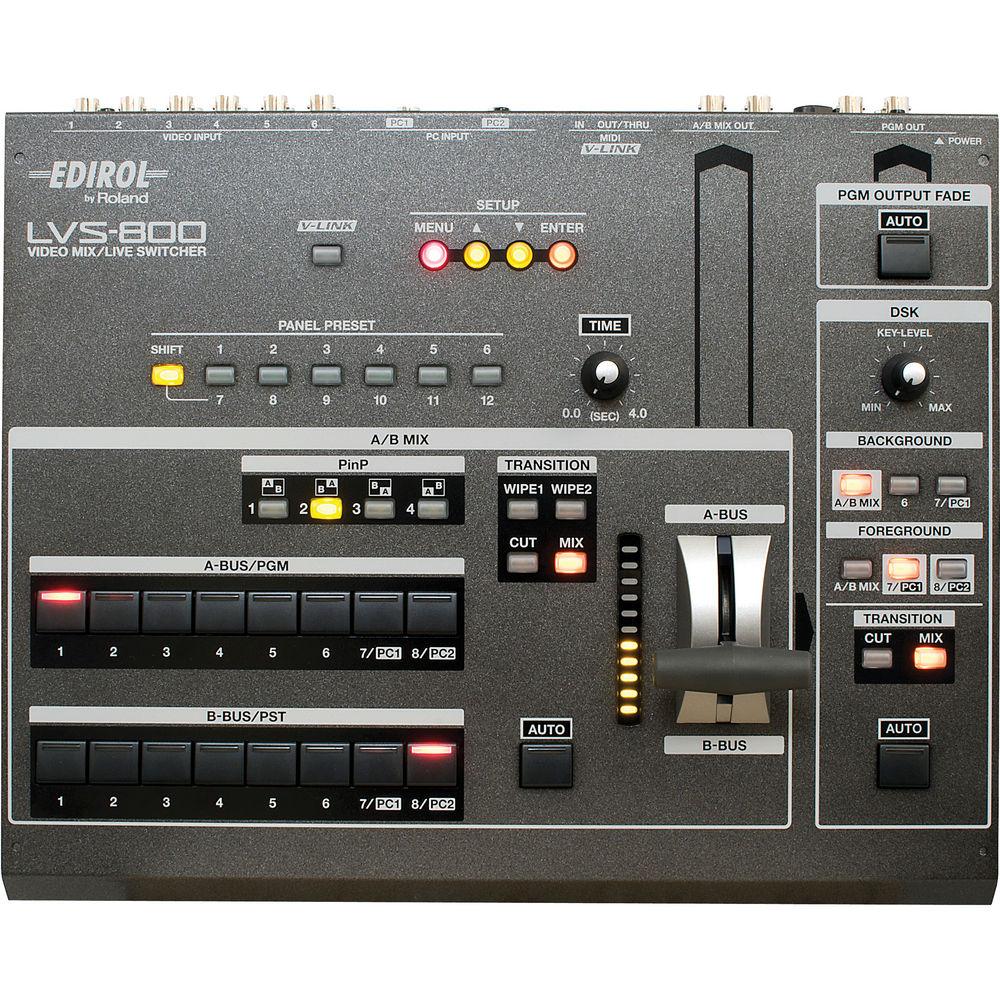

Product description The LVS-800 Video Mix/Live Switcher from Edirol/Roland is an eight-channel standard definition video mixer. It is well suited for use in live events or installations demanding stability, ease of use, and professional connectivity. Other features include a downstream keyer (DSK), dual computer inputs, and multiple outputs. Use this solution in a variety of settings and applications, including corporate settings, houses of worship, schools, and event production, among others. - Eight Video Inputs
- Mix between a variety of video sources including scan convertors for PC inputs. Whether you are using cameras, DVD players, PC/Mac or other video sources, you can seamlessly mix between all sources.
- Two Independent Outputs
- Each bus can output different sources. Create exciting multi-screen environments for live events. Output a separate feed for recording or webstream on one output while sending different content to the main screen.
- DSK (Downstream Keyer)
- You can place a graphic overlay on top (foreground) of the regular video appearing underneath (background). It is added at the end of the feed before going to the Program Out. Place talent in front of a green screen and use the DSK to create "Virtual Sets" using background images from other sources.
- Panel Preset Buttons
- Save and recall mixer configurations. Increase operational ease for volunteers. Store favorite or commonly used mixer functions for instant recall.
- Program Output Fade
- Dissolve main program out to black or white. Quickly move to a white or black screen at the touch of a button. Provides a smooth mechanism to go to black during the presentation or at the end of a song.
- Transitions
- Move from one video source to another using dissolves or wipes. Add a professional touch by moving between sources in a variety of ways.
- Picture-in-Picture
- One video source is displayed in full, while a second is displayed in an inset window. Enhance presentations with additional vantage points, sign language inset, or graphics elements such as logos.
- V-LINK
- It includes a MIDI protocol that allows interchange of control being audio and video products. Audio faders on the RSS V-Mixer M-400 can follow transitions of input selection for audio follows video function.
- RS-232
- Control the LVS-800 from remote devices such as control touch panels. Include the LV-800 into fully integrated A/V systems that can be controlled through a common control interface.
In the Box Roland LVS-800 Video Mix/Live Switcher One-Year Limited Warranty User Manual PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland LVS-800 Video Mix Live Switcher - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

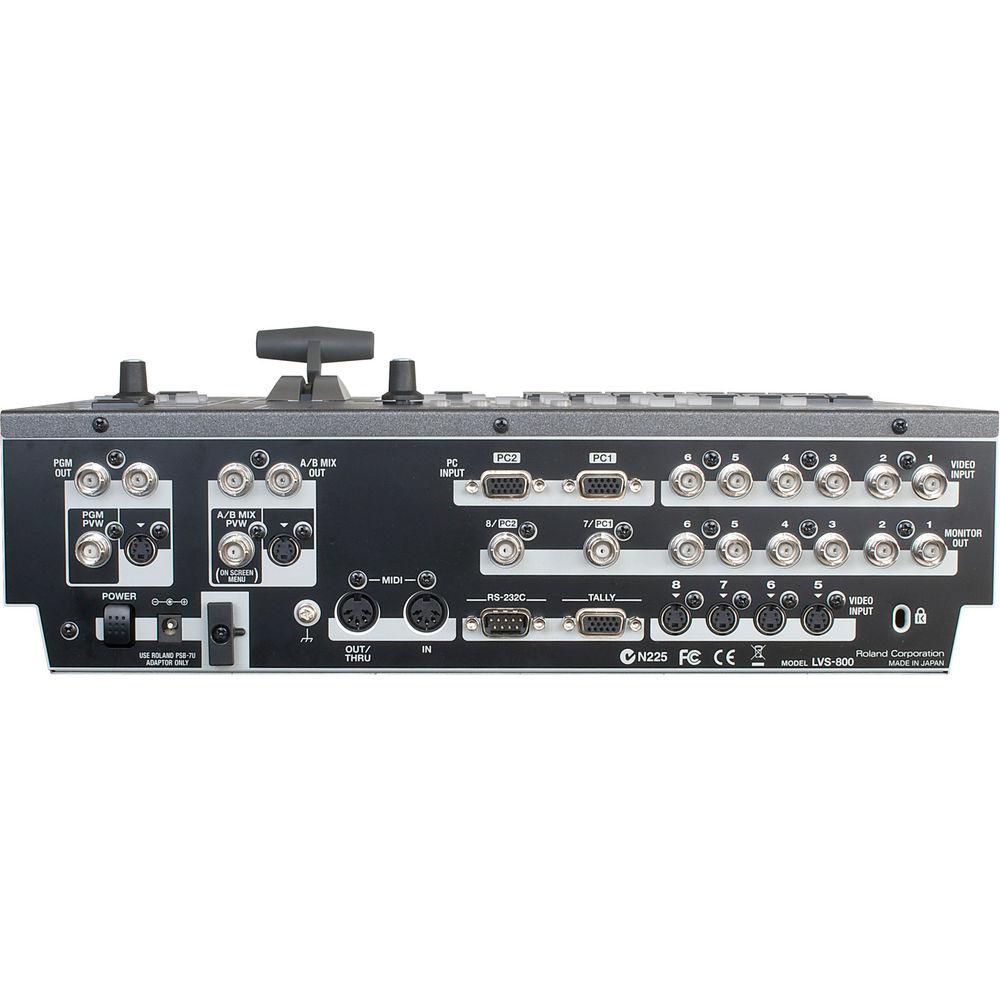

Technical parametersRoland LVS-800B Specs | Inputs | Video (composite):
BNC type x 6 (Ch 1 - 6)
S-Video:
4-pin mini DIN type x 4 (Ch 5 - 8)
PC-RGB:
D-SUB 15-pin shrink type x 2 (Ch 7 - 8)
* S-Video input takes priority for channels 5-8 | | Outputs | A/B MIX:
4-pin mini DIN type x 1,
BNC type x 2 + Preview x 1 (*1)
PGM-OUT:
4-pin mini DIN type x 1,
BNC type x 2 + Preview x 1 (*2)
*1: Preview displays one of input channel 1 to 8 video and on-screen menu.
*2: Preview displays one of input channel 6 to 8 video and A/B MIX OUT video
Monitor Output: Video (composite) BNC type x 8 (Ch 1 - 8) | | Formats | NTSC or PAL:
ITU601
PC-RGB:
640 x 480/120Hz, 800 x 600/120Hz, 832 x 624/80Hz,
1024 x 768/80Hz, 1152 x 864/80Hz, 1152 x 870/75Hz,
1280 x 1024/75Hz, 1600 x 1200/60Hz
(RGB VH: positive/negative logic)
* VESA DMT Version 1.0 Revision 10 conform
* The refresh rate is the maximum value of each resolution | | Sampling Rate | Video 4:2:2 (Y: B-Y: R-Y), 8bit, 13.5MHz | | Sync | Frame Synchronizer: 4 systems | | Impedance | INPUT LEVEL/IMPEDANCE
Video (Composite):
1.0Vp-p, 75
S-Video:
<Luminance Signal> 1.0Vp-p, 75
<Chroma Signal> 0.286mVp-p, 75 (NTSC)/0.3mVp-p, 75 (PAL)
PC-RGB:
0.7Vp-p, 75 (H, V: 5V TTL) OUTPUT LEVEL/IMPEDANCE
Video (Composite):
1.0Vp-p, 75
S-Video:
<Luminance Signal> 1.0Vp-p, 75
<Chroma Signal> 0.286mVp-p, 75 (NTSC)/0.3mVp-p, 75 (PAL) | | Controls | MIDI(IN, OUT/THRU)
RS-232C(D-SUB 9-pin type) | | Tally | D-sub 15pin shrink type, maximum Input = 12V, 200mA open collector type | | Power | Power: AC adapter
Current Draw: 2200mA | | Dimensions (HxWxD) | 5.38 x 14.81 x 12.44" (136 x 376 x 315mm) | | Weight | 9 lbs 8 oz (4.3kg) | | | | Package Weight | 14.25 lb | | Box Dimensions (LxWxH) | 18.8 x 18.3 x 8.4" |
