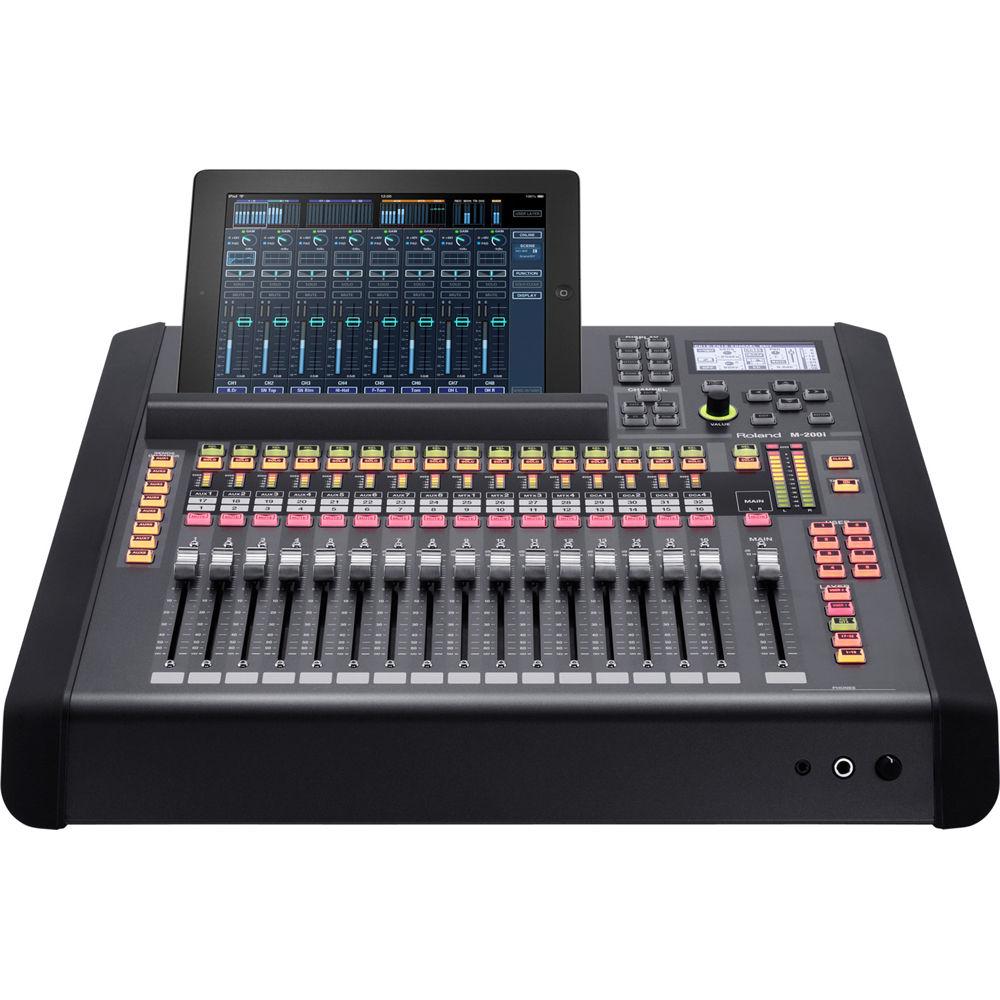

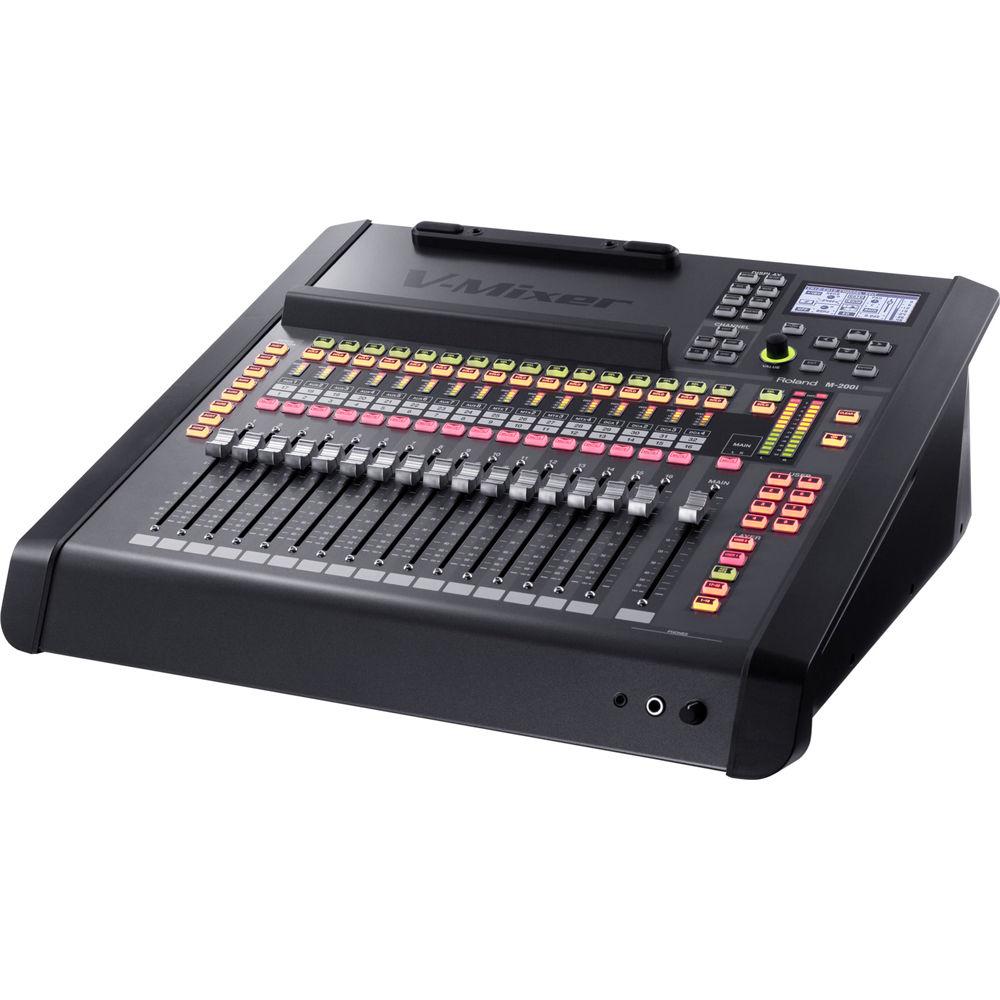

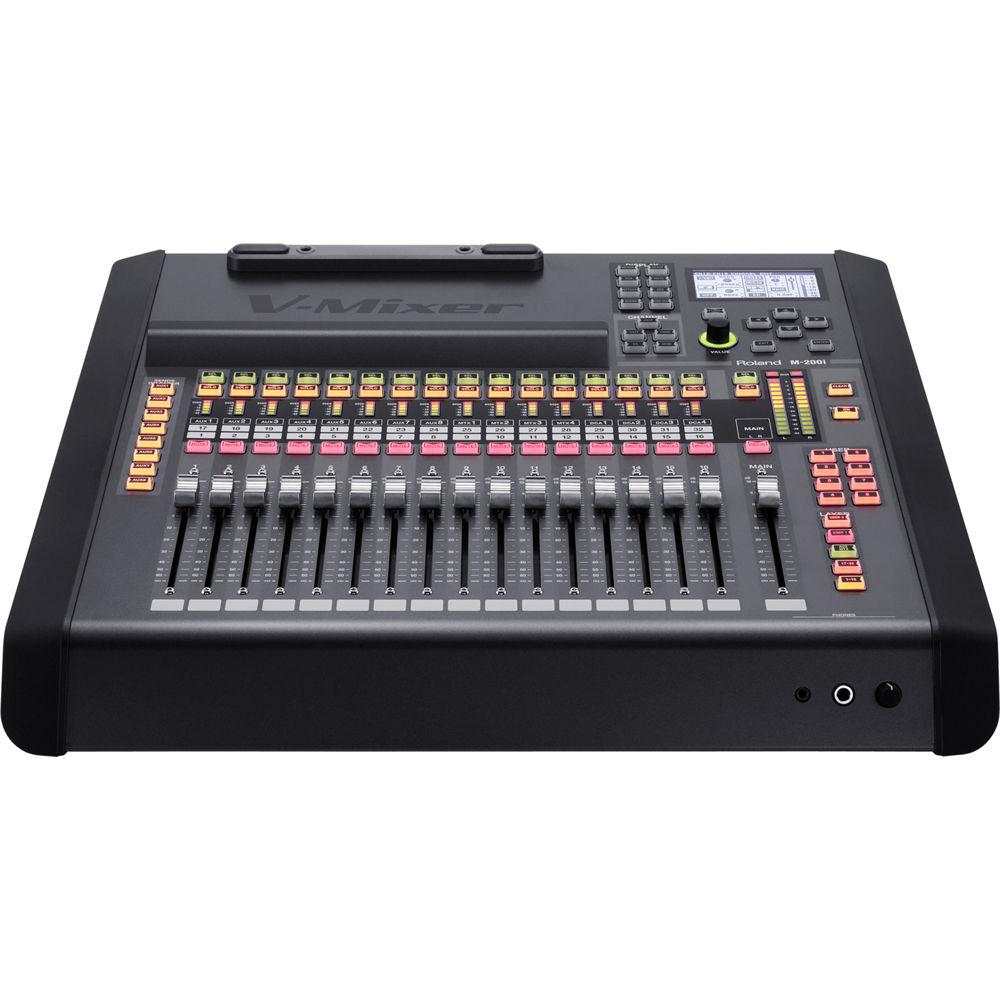

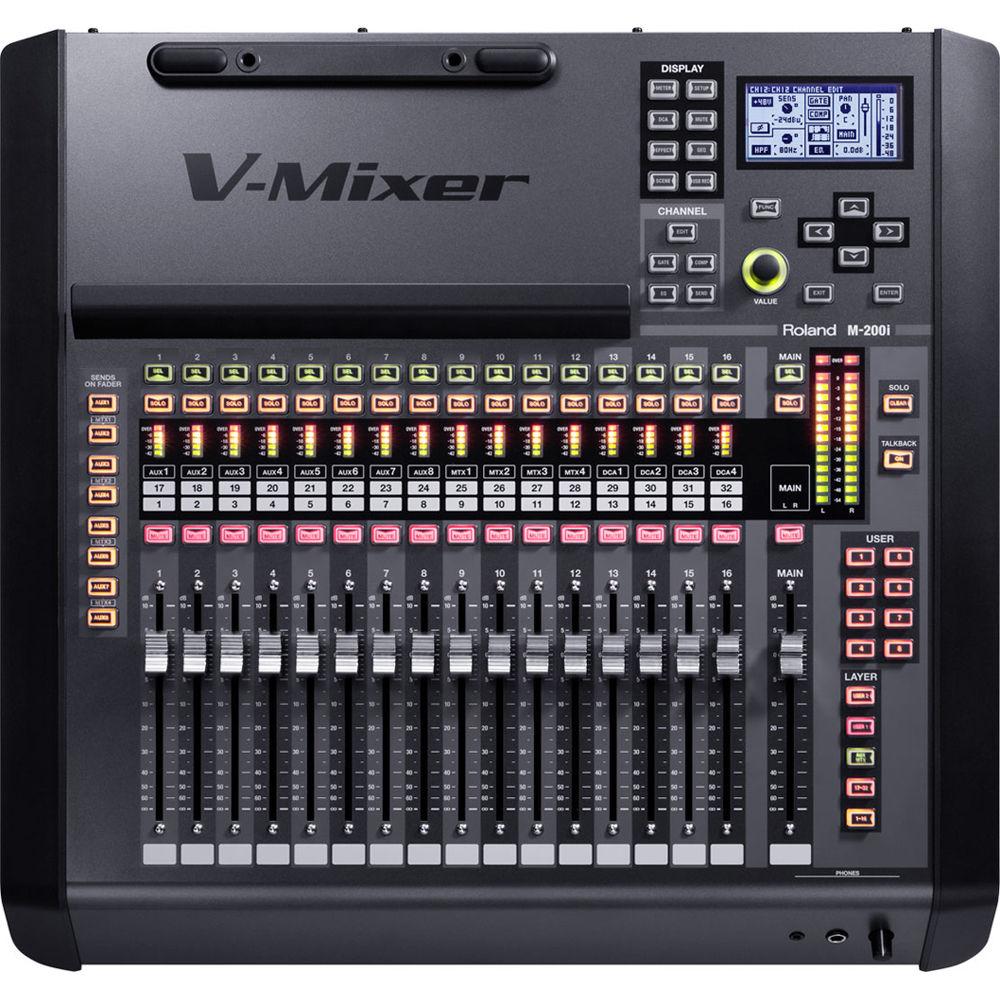

Product description The M-200i 32-Channel Live Digital Mixing Console from Roland is a V-Mixer with 24 analog inputs, 12 analog outputs, and stereo digital output (AES/EBU), all built-in to the main unit and it is ready to perform out of the box. It can be used in sound reinforcement applications such as rehearsals, live stage, theater, houses of worship, and more. The basics of any mix starts with good channel processing and all input channels are equipped with two dynamics processors and 4-band parametric equalizers. The Main, 8 Aux, and 4 Matrix output busses are also equipped with a compressor, 4-band parametric EQ, limiter, and delay. The M-200i features 17 motorized faders, dedicated buttons and knobs for key functions, and can interface with an iPad (sold separately) as a large touch screen display. Use the iPad for intuitive control of effects and other graphical manipulation, while physically controlling the volume with the motorized faders. In addition, the M-200i incorporates a built-in REAC port that allows you to expand using any other device from the REAC family including Personal Mixers and/or Multi-channel Recorder/Player technology (sold separately). - Hybrid Surface that Combines an iPad with a Physical Controller
- The iPad functions as a large touch screen display. Use the iPad for intuitive control of effects and other graphical adjustments, while physically controlling the volume with the motorized faders. The advanced "Touch & Turn" surface provides a more convenient mixing environment than ever before by allowing you to touch a control on the iPad and control it with a physical knob
- All Functions Required for High-End Live Audio Production
- The M-200i has a comfortable mixing capacity with its 32 channel inputs + Main/8 AUX/4 Matrix outputs. Despite its compact size, the M-200i ensures a comfortable 32 channel input mix capacity. The output has the full specifications of Main (LR)/8 AUX/4 Matrix, which supports many mixing applications. Any of the built-in 24 analog inputs, the 40x40 channels on the REAC port, the effect outputs, and USB memory recorder can be assigned to the 32 channels
- Effect Types
- Stereo Reverb, Reverb+gate, Delay X 2, Long Delay, Multi Tap Delay, Cross-modulation Delay, Stereo Chorus, Stereo Flanger, Stereo Phaser, Channel Strip X 2, Pitch Shifter X 2, GEQ, Stereo Flanger SBF-325, Phase Shifter SPH-323, Dimension D SDD-320
- Built-in USB Memory Recorder for Uncompressed WAV Recording
- Any two of the Main/8 AUX/4 Matrix outputs can be recorded as a 16-bit, uncompressed WAV file by inserting a USB memory stick in the back panel. WAV files stored in USB memory can be also be played from any input channel. In addition, the USB memory can be used for saving/loading configuration files on the M-200i
UPC: 761294502747 In the Box Roland M-200i 32-Channel Live Digital V-Mixer Console Dock cable Tablet Stand AC Adapter Power Cord Limited 1-Year Warranty Limited 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland M-200i 32-Channel Live Digital V-Mixer Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland M200i Specs | | | Channels | 32 | | Buses | Main L/R
8 Aux
4 Matrix | | Inputs/Outputs | Inputs: 24 (64 when using optional REAC devices)
Outputs: 14 (Max 54 ports when using REAC Devices) | | Signal Processing | AD/DA Conversion: 24-bit
Sample Rate: 48 kHz or 44.1 kHz | | Console Latency | Console: 2.0 ms (typ.)
Sample Rate: 48 kHz
Effects: No insert effects
Total Latency of audio signal from M-200i's console inputs to M-200i's outputs. | | Network Latency | 2.5 ms (typ.)
Sample Rate: 48 kHz
Effects: No insert effects

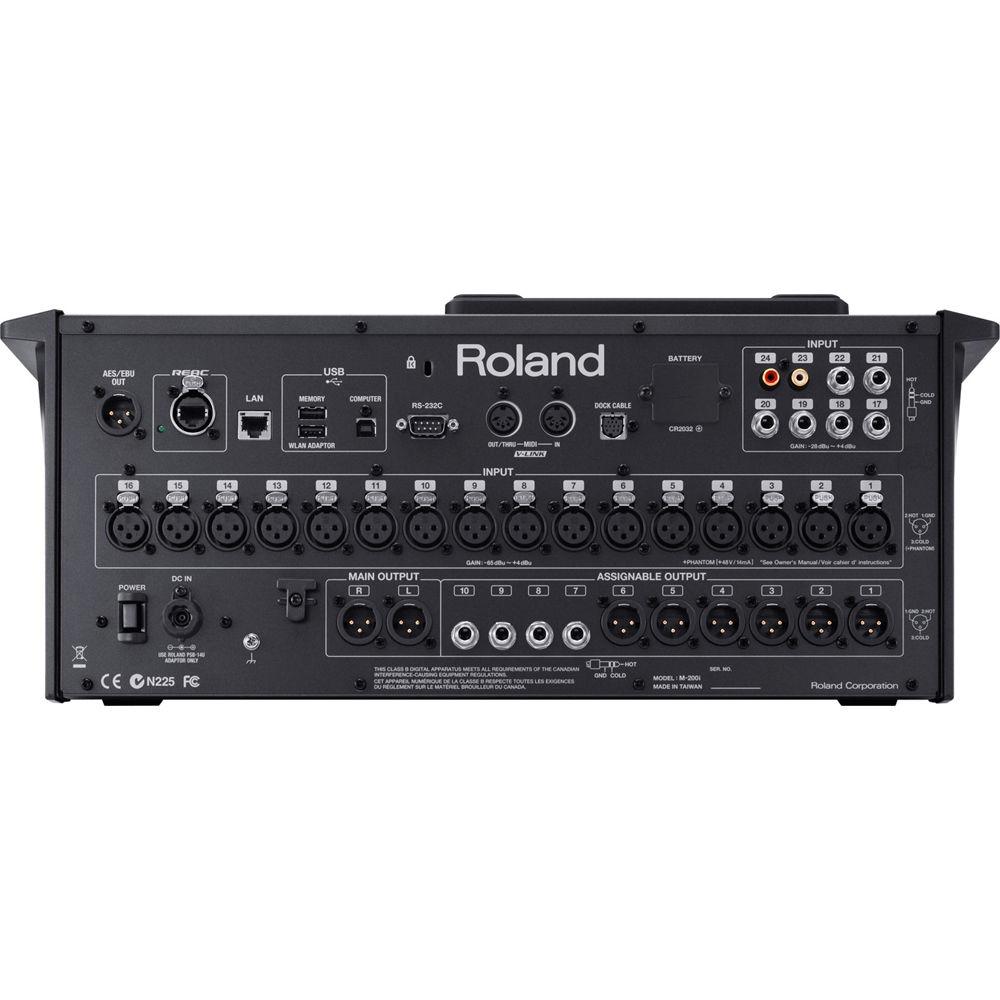

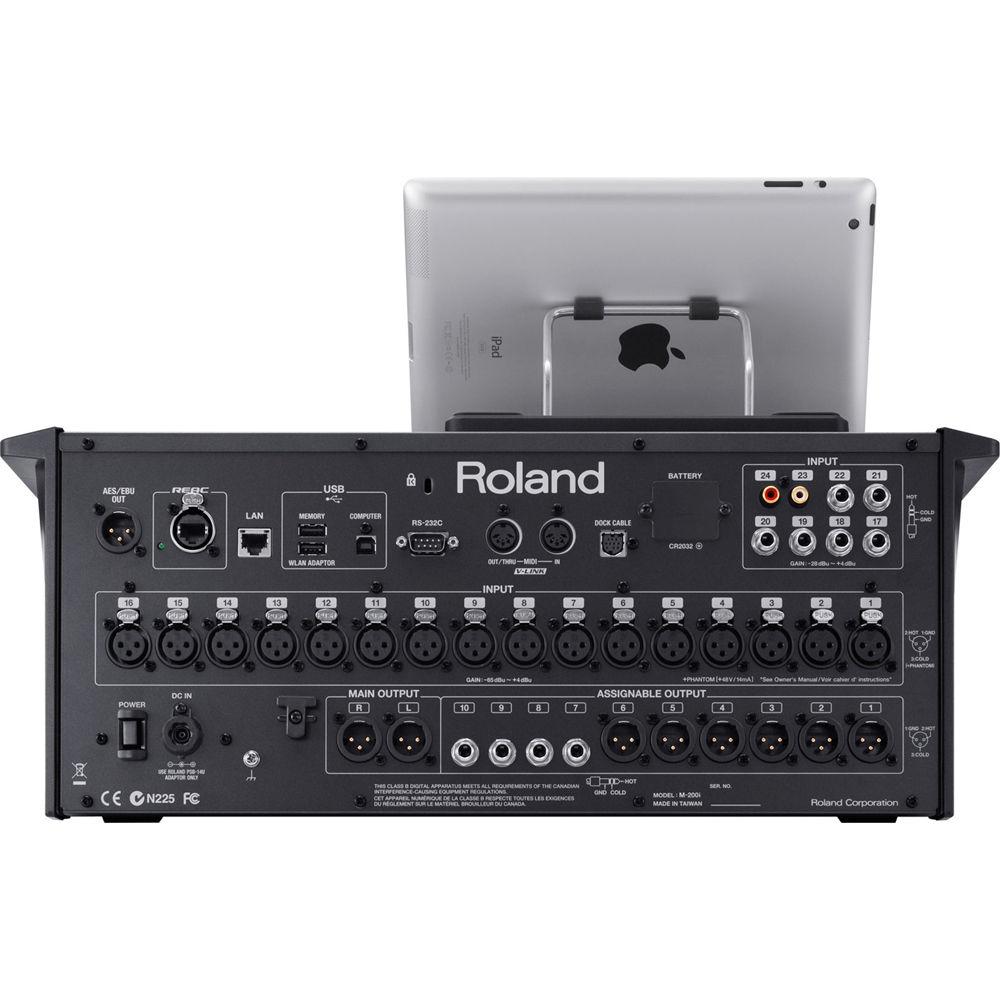

Total System Latency of audio signal from S-1608 inputs to outputs via M-200i's REAC ports. | | | | Input/Output | Input Jacks (1 to 16): XLR-3-31 type (balanced, phantom power)
Input Jacks (17 to 22): 1/4" (6.3 mm) phone jack type (balanced)
Input Jacks (23 to 24): RCA phone type
Assignable Output Jacks (1 to 6): XLR-3-32 type (balanced)
Assignable Output Jacks (7 to 10): 1/4" (6.3 mm) phone jack type (balanced)
Main Output Jacks (L,R): XLR-3-32 type (balanced)
Headphones Jack: Stereo 1/4: (6.3 mm) phone type, 1/8" (3.5 mm) mini-jack type
AES/EBU Out Jacks: XLR-3-32 type (110 ohms balanced)
REAC port: RJ-45 EtherCon type
RS-232C Connector: 9-pin D-sub type
MIDI Connectors (Out/Thru, In): 5-pin DIN type
USB Memory Port: USB type A
USB WLAN Adapter Port: USB type A
USB Computer Port: USB type B
Lan Port: RJ45 type
DOC Cable Port: 10-pin mini DIN type
DOC Cable Port: 10-pin mini DIN type DC In jack | | Grounding Terminal | XLR type: 1 GND, 2 HOT, 3: Cold
Phantom power: DC+48V (unloaded maximum), 14 mA (maximum load, All XLR type inputs) | | | | Frequency Response | Assignable Output Jacks (1 to 10): -2 dB/+0 dB (20 kOhms load, +4 dBu, typ.)
Main Output Jacks (L, R): -2 dB / +0 dB (20 kOhms load, +4 dBu, typ.)
Phones Jack: -3 dB / +0 dB (40 ohms load, 150 mW, typ.)
Sample Rate: 48 kHz or 44.1 kHz
Input Connector: Input 1 to 24 (Pad: ON, Input Sens: +4 dBu, 20 Hz to 20 kHz | | Total Harmonic Distortion (THD) + N | Assignable Output Jacks (1 to 10): 0.05 % (+4 dBu, typ.)
Main Output Jacks (L, R): 0.05 % (+4 dBu, typ.)
Phones Jack: 0.05 % (40 ohms load, 150 mW, typ.)
Sample Rate: 48 kHz or 44.1 kHz
Input Connector: Input 1 to 24 (Input sens: +4 dBu, 20 Hz to 20 kHz) | | Dynamic Range | Assignable Output Jacks (1 to 10): 102 dB (typ.)
Main Output Jacks (L, R): 102 dB (typ.)
Sample Rate: 48 kHz or 44.1 kHz
Input Connector: Input 1 to 24 (Input sens: +4 dBu, 20 Hz to 20 kHz) | | Crosstalk @ 1 kHz | Input Jacks (1 to 24): -80 dB (Input sens: +4 dBu, IHF-A, typ.)
Assignable Output Jacks (1 to 10): -88 dB (typ.)
Main Output Jacks (L, R): -88 dB (typ.)
Sample Rate: 48 Khz or 44.1 kHz | | Nominal Input Level | Variable:
Input Jacks (1 to 16): -65 to +4 dBu
Input Jacks (17 to 24): -28 to +4 dBu | | Input Impedance | Input Jacks (1 to 16): 14 kOhms
Input Jacks (17 to 24): 10 kOhms | | Maximum Input Level | Non Clip: Input Jacks (1 to 24 +22 dBu (1 kHz, 20 kOhms load, typ.) | | Nominal Output Level | Assignable Output Jacks (1 to 10): +4 dBu (Load impedance: 10 kOhms, typ.)
Main Output Jacks (L, R): +4 dBu (Load impedance: 10 kOhms, typ.) | | Output Impedance | Assignable Output Jacks (1 to 10): 600 ohms (typ.) Main Output Jacks (L, R): 600 ohms (typ.)
Headphone jack: 49 ohms (typ.) | | Minimum Load Impedance | Phones Jack: 16 ohms | | Maximum Output Level | Non Clip:
Assignable Output Jacks (1 to 10): +22 dBu (1 kHz, 10 kOhms load, typ.)
Main Output Jacks (1 to 10): +22 dBu (1 kHz, 10 kOhms load, typ.)
Headphones Jack: 150 mW + 150 mW (1 kHz, 40 ohms load, typ.) | | Residual Noise Level (IHF-A, typ.) | -88 dBu (All faders: Min)
-80 dBu (Main Fader: Unity, Channel faders: Unity only one Input 1 channel, Preamp sens: Min)
-61 dBu (Main Fader: Unity, Channel faders: Unity only one Input 1 channel, Preamp sens: Max)
Input 150 ohms terminate
Output Connector: Assignable Output Jacks (1 to 10), Main Output Jacks (L, R)
Sample Rate: 48 kHz or 44.1 kHz | | Equivalent Input Noise Level | -126 dBu (Main Fader: Unity, Channel faders: Unity only one channel, Preamp sens: Max)
Output Connector: Assignable Output Jacks (1 to 10), Main Output Jacks (L, R)
Sample Rate: 48 kHz or 44.1 kHz | | | | Display | Graphic LCD 132 x 64 dots with backlight | | Current Draw | 3.6 A | | Operation Temperature | 32 to 104°F (5 to 40°C) | | | | Dimensions (W x D x H) | 19.3 x 19.3 x 7.8" (49 x 49 x 20 cm) | | Weight | 22 lb (9.8 kg) | | | | Package Weight | 29.2 lb | | Box Dimensions (LxWxH) | 24.0 x 23.0 x 11.0" |
