User Manual for Roland MOBILE AC: Acoustic Chorus Battery-Powered Amplifier Click to enlarge the picture
Contents of the user manual for the Roland MOBILE AC: Acoustic Chorus Battery-Powered
- Product category: Guitar Amplifiers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Guitar Amplifiers
 |
User manual for the Roland MOBILE AC: Acoustic Chorus Battery-Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

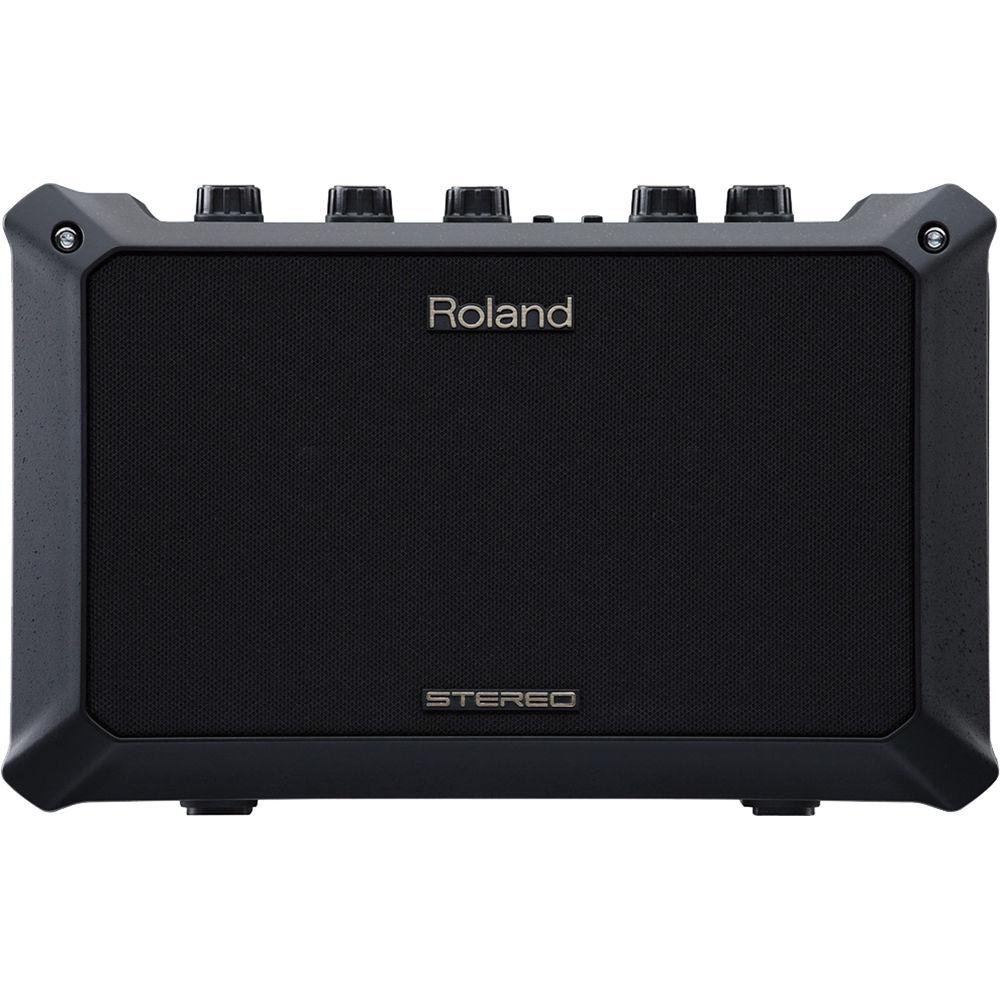

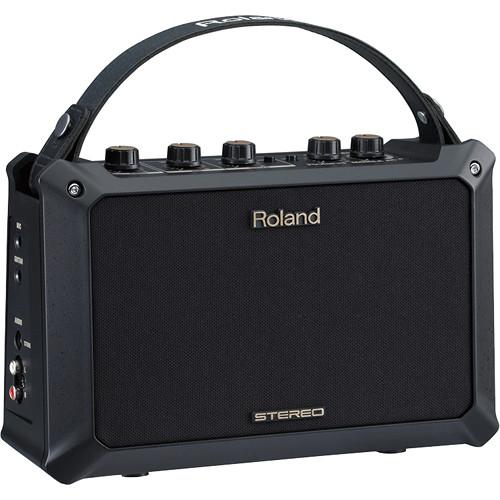

Product description The MOBILE AC: Acoustic Chorus Battery-Powered Amplifier from Roland is optimized for acoustic guitar and designed to travel. It features a 15-hour battery life on six AA batteries. It also features stereo chorus, reverb effects, portable audio and microphone inputs.
The MOBILE AC has 1/4" inputs for guitar and microphone with independent volume controls for each. The two 4-inch speakers can create a spacious sound with the addition of the Wide push-button effect. This can also enhance the built-in chorus and reverb. The Tone knob acts as a brightness control, adding presence as it's turned clockwise. The MOBILE AC also a third input, with dedicated volume control, for connecting a portable media player.
The MOBILE AC includes batteries and a carrying strap. An optional AC adapter is sold separately. - MOBILE AC: Acoustic Chorus Battery-Powered Amplifier
-
- Inputs for guitar, microphone, and iPod
- Independent volume control per input
- Powered for 15 hours by six AA batteries
- Dual 4" speakers with "Wide" button
- Built-in stereo chorus and reverb
- 1/8" headphone output
UPC: 761294503744 In the Box Roland MOBILE AC: Acoustic Chorus Battery-Powered Amplifier - 6 x AA Alkaline Batteries
- Strap
- 3-Year Parts / 2-Year Labor Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland MOBILE AC: Acoustic Chorus Battery-Powered Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland MOBILE AC Specs | Rated Power Output | 2.5W + 2.5W | | Nominal Input Level | Audio: -10 dBu
Mic: -50 dBu

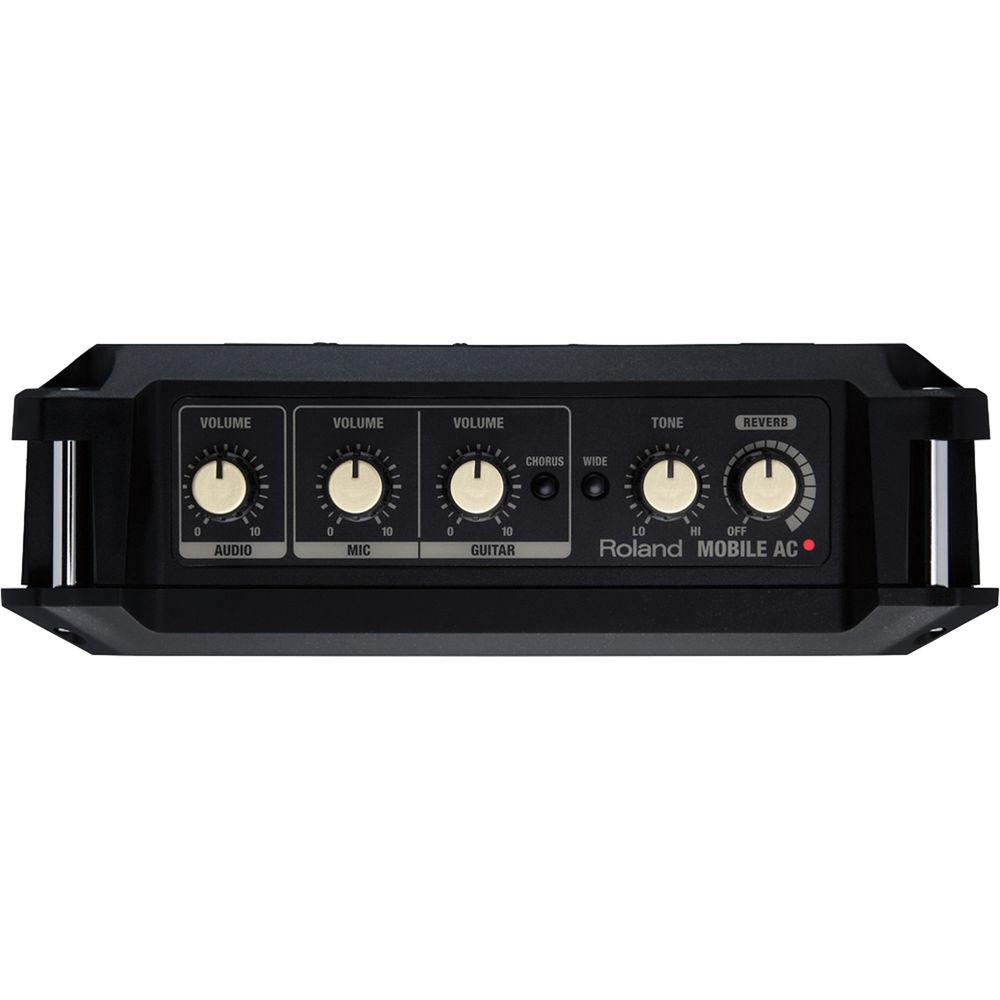

Guitar: -10 dBu | | Speakers | 2 x 3.9" (10 cm) speakers | | Controls | - Power
- Wide
- Tone
- Reverb
- [Audio] Volume
- [Mic] Volume
- [Guitar] Volume
- Chorus

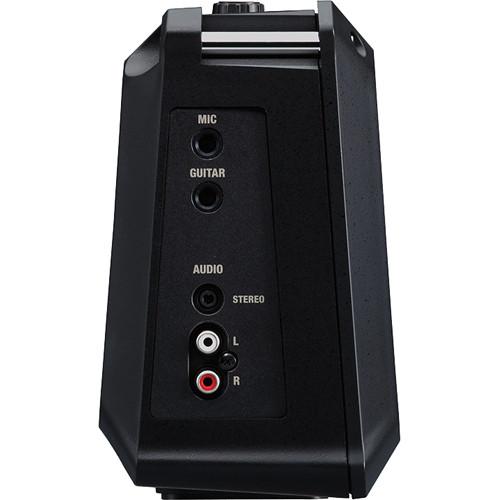

| | Power LED Indicator | Yes | | Connectors | 1 x 1/4" - Mic
1 x 1/4" - Guitar
1 x 1/8" TRS stereo mini - Audio

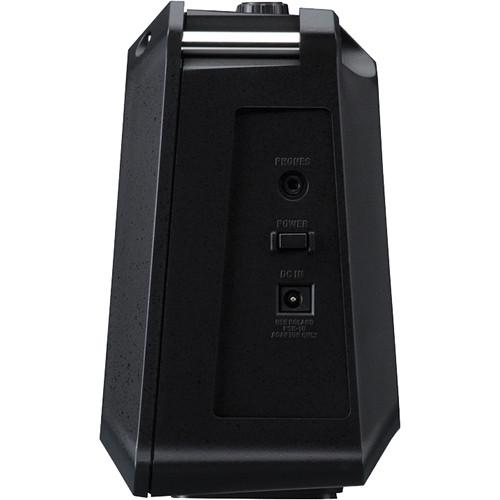

2 x RCA phono - Audio (1 x L/R) | | Headphone Output | 1 x 1/8" (3.5 mm) TRS stereo mini | | Power Supply | 6 x AA alkaline batteries
AC adapter (sold separately) | | Current Draw | 175 mA (DC 9V) | | Battery Life | 15 hours | | Dimensions (W x D x H) | 11 x 4.25 x 7" (280 x 108 x 177 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 13.4 x 9.5 x 6.2" |
