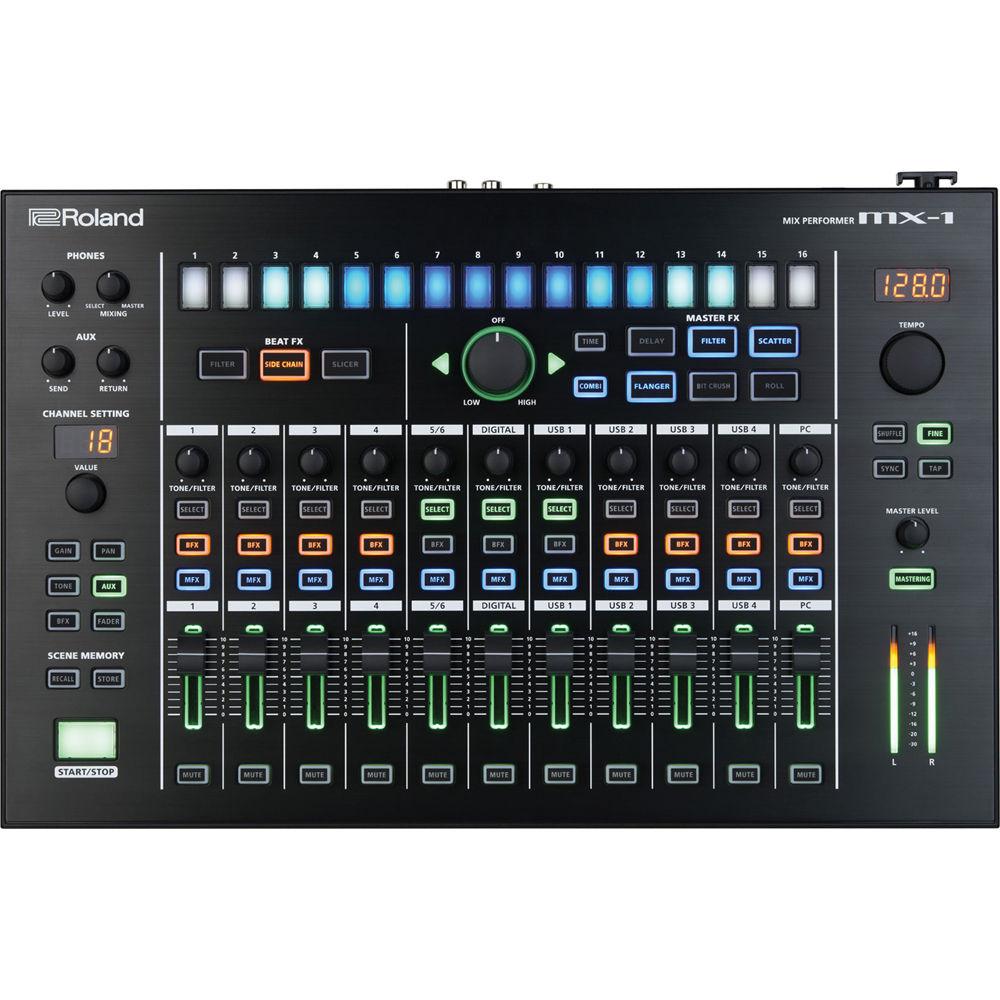

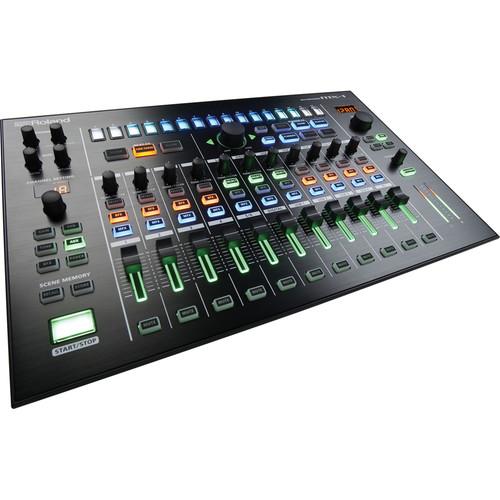

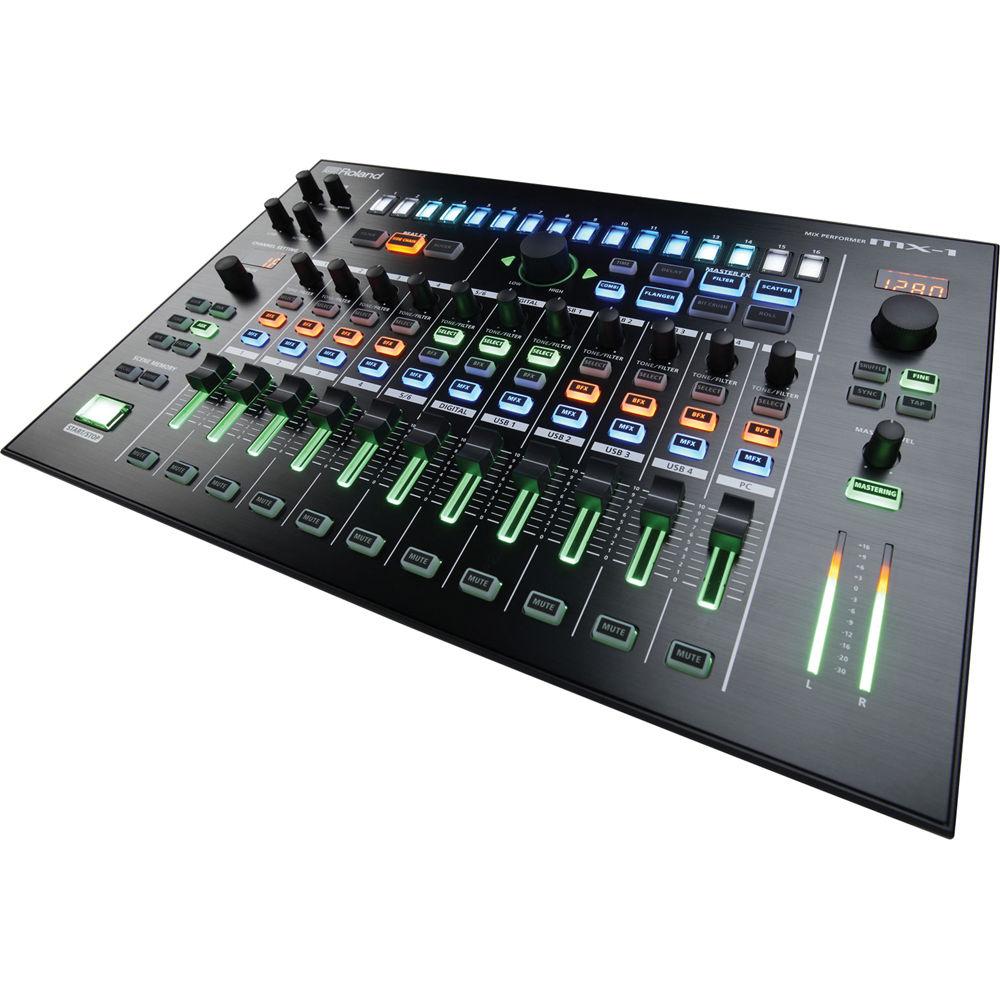

Product description The MX-1 AIRA Mix Performer is an 18-channel performance mixer with analog and digital connectivity, proprietary ARIA audio/MIDI USB capability, step-sequenced beat and master FX, plus transport and tempo control. The MX-1 brings together your synths, drum machines, loops, DAW tracks, and more into a single performance-optimized mixing instrument. It's an ideal piece for performing electronic musicians and producers.
Combining elements of a mixer, control surface, audio interface, and step-based effector, the MX-1 is designed to be the glue of your electronic music rig. In addition to acting as a mixer and global FX unit, the MX-1 can also function as a control surface mode with DAW control, opening up even more production possibilities. With per-channel tone/filter knobs to control ten kinds of EQs, filters, and isolators, the MX-1 has a plethora of tools to better integrate every element of your production setup into your live rig. - Features:
-
- Three kinds of step-sequenced Beat FX (Filter, Side Chain, Slicer) with TR-style buttons
- Six kinds of Master FX (48 variations) with large performance control knob
- Beat FX and Master FX can be applied to any or all inputs; Beat FX are per channel
- Combi mode rhythmically alternates the Master FX using the step-sequencer
- Four AIRA Link USB ports support audio, MIDI, sync, and bus power (on Port 3) for AIRA gear
- Mix mode provides six analog, one digital (stereo), four AIRA (stereo) , and two PC channels through mixer and FX
- External mode provides 18 channels from DAW through mixer and FX (all inputs direct to DAW)
- Control Surface mode for full DAW control via MIDI
- DJ-style cue monitoring, quick mutes, and six fader curves per channel
- Per-channel Tone/Filter knob with ten kinds of EQs, filters, and isolators
- Transport and tempo control with fine, shuffle, and tap-tempo functions
- Instantly save and recall complete setups including all FX configurations
- Ableton Live Lite serial number card included
UPC: 761294506974 In the Box Roland MX-1 AIRA Mix Performer Ableton Live Lite Serial Number Card AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland MX-1 AIRA Mix Performer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland MX-1 Specs | Tempo | 40 - 300 bpm | | Scenes | 16 x 4 (Bank A, B) | | Effects | BEAT FX
FILTER: 5 types
SIDE CHAIN: 5 types
SLICER: 5 types
MASTER FX
DELAY: 8 types
FILTER: 8 types
SCATTER: 8 types
FLANGER: 8 types
BIT CRUSH: 8 types
ROLL: 8 types | | Mastering Formats | 10 types | | USB Audio | Sampling Frequency: 96 kHz, 48 kHz, 44.1 kHz
Input: 18 channels
Output: 18 channels | | Signal Processing | PC Interface: 24-bit
AD/DA conversion: 24-bit | | Sampling Frequency | AD/DA Conversion: 96, 48, 44.1 kHz
Digital(In, Out): 96, 48, 44.1 kHz | | Nominal Input Level | Input 1-4: -26- +4 dBu (variable)
Input 5/6: -26- +4 dBu (variable) | | Nominal Output Level | Mix Out: +4 dBu | | Headroom | 18 dB | | Input Impedance | Input 1-4: 100 kOhms
Input 5/6: 100 kOhms | | Output Impedance | Mix Out: 1 kOhm
Phones: 24 ohms | | Frequency Response | 96.0 kHz: 20 Hz-40 kHz (+0/-2 dB)
48.0 kHz: 20 Hz-22 kHz (+0/-2 dB)
44.1 kHz: 20 Hz-20 kHz (+0/-2 dB) | | Dynamic Range | AD Block Input 1-4: 100 dB typ.
AD Block Input 5/6: 100 dB typ.

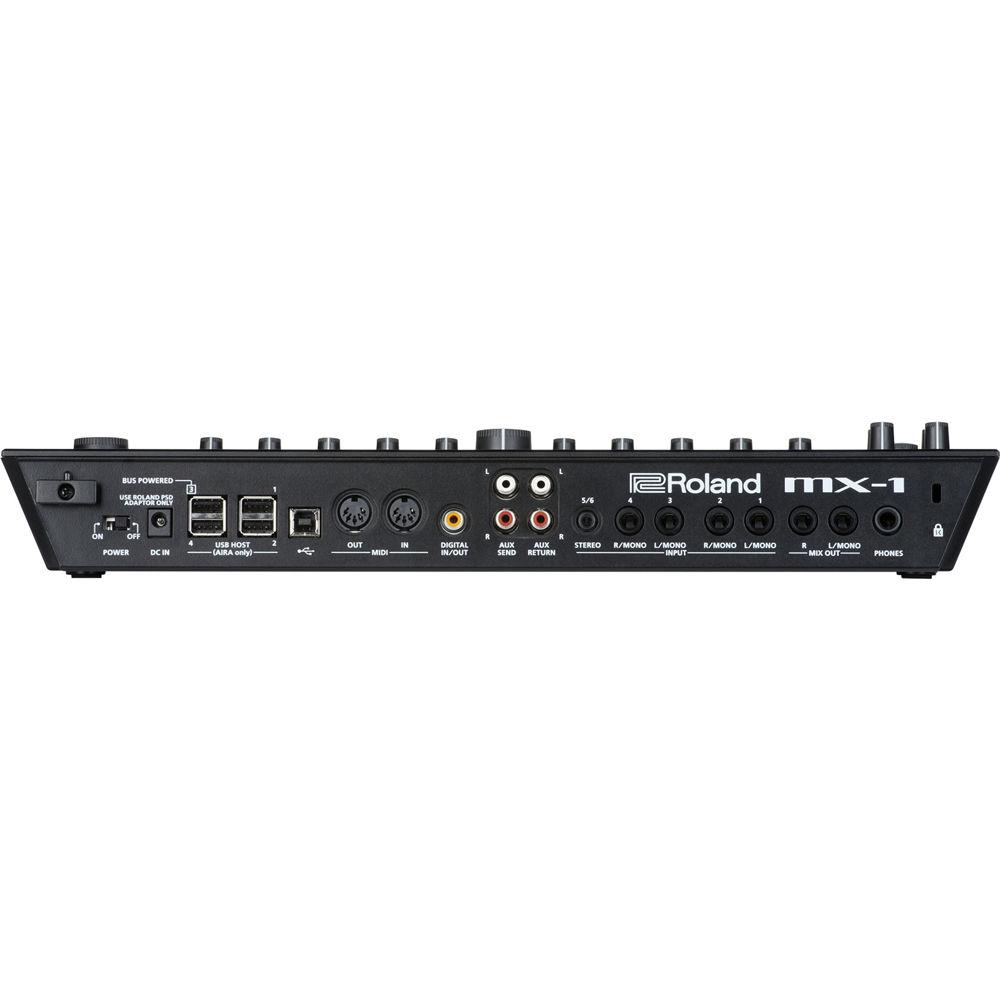

DA Block Mix Out: 108 dB typ. | | Connectors | Phones Jack: 1/4" stereo phone type
Mix Out (L/Mono, R) Jacks: 1/4" phone type (unbalance)
Input 1-4 (L/Mono, R/Mono) Jacks: 1/4" phone type (unbalanced)
Input 5/6 Jack: Stereo 1/8" phone type
Aux Return (L, R) Jacks: RCA phono type
Aux Send (L, R) Jacks: RCA phono type
USB Function Port: USB type B (audio, MIDI)
USB Host 1-4 Ports: USB type A (audio, MIDI, for only TB-3/VT-3/TR-8/SYSTEM-1)
USB Host 3 port can supply USB bus power
Coaxial In/Out jack
MIDI (In, Out) connectors
DC In jack | | Interface | Hi-Speed USB
Digital Input, Output: Coaxial type (conforms to IEC60958)
MIDI In/Out | | Power Supply | AC adaptor | | Current Draw | 1.7 A | | Dimensions | 15.7 x 10.4 x 2.6 (400 x 264 x 65 mm) | | Weight | 4 lb (1.81 kg) | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 21.4 x 13.4 x 5.7" |
