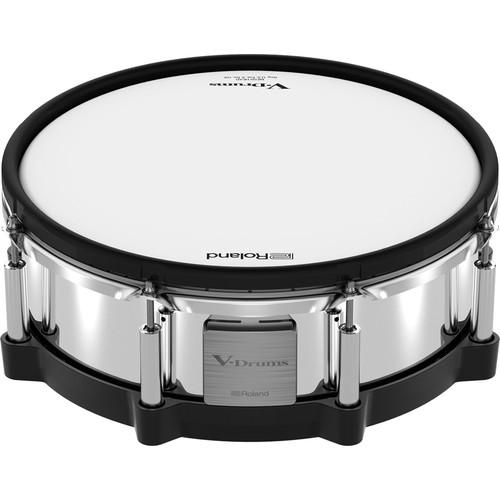

User Manual for Roland PD-140DS V-Pad Digital Snare Click to enlarge the picture
Contents of the user manual for the Roland PD-140DS V-Pad Digital Snare
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
|
User manual for the Roland PD-140DS V-Pad Digital Snare contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The PD-140DS V-Pad Digital Snare from Roland is a 14" mesh head designed as a snare pad for the V-Drums TD-50 electronic drum set. It features a high-resolution multi-sensor system that responds accurately and naturally to your drumming techniques and nuances with acoustic-like snare drum playability. With the highly developed multi-sensor system, the resolution for detecting the striking position on the head as well as the playing dynamics are vastly improved. A cross-stick can be executed using traditional hand technique without the need to adjust any module functions. -
- High-resolution triggering designed to connect digitally to the TD-50 drum sound module, providing realistic snare sound and accurate positional detection
- Natural cross-stick playability using a traditional cross-stick hand technique
- Comfortable playing feel and natural response with a 3-layer mesh head
- Standard 14” diameter snare drum size for professional playability and acoustic-like performance
UPC: 761294508718 In the Box Roland PD-140DS V-Pad Digital Snare Connection Cable Drum Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland PD-140DS V-Pad Digital Snare in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland PD-140DS Specs | Size | Pad Size: 14"
Shell Depth: 4.3" | | Tension Control | Tension Rods: 8 | | Mounting | Snare stand | | Head | 3-ply mesh head (floating mid-layer structure) | | Triggering | Available playing methods (triggers)
Head shot (high-resolution positional detection, wide dynamic range)
Rim shot (depth detection, wide dynamic range)
Cross stick (automatic switching)
Brush sweep
| | Sensor Input | Multi-element sensor system
Head sensor
3 x Position sensors
Rim sensor
3 x Cross-stick sensors
Built-in sensing processor
| | Cover | Supported Covering Size (W x L): 3.9 x 41.7" / 98.0 x 1,060.0 mm
Thickness: 0.04" / 1.00 mm | | Connector | Digital Trigger Out Plug (compatible with Roland drum sound module equipped with Digital Trigger In port) | | Power | Power Supply: Supplied from Digital Trigger In port (DC 5 V) Current Draw: 90 mA | | Dimensions | 15 x 15 x 6.3" (38 x 38 x 16 cm) | | Weight | 10.8 lb (4.9 kg) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 18.7 x 18.3 x 9.5" |
