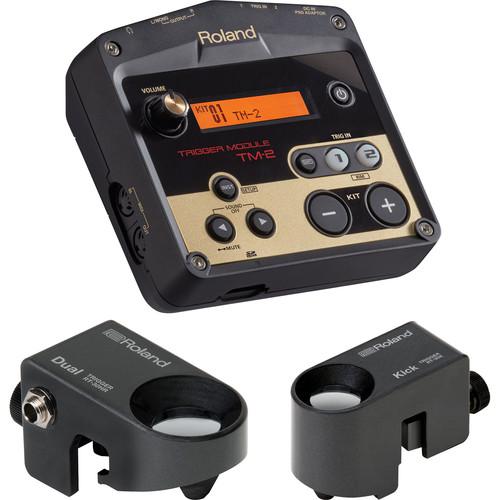

Roland PER-PK-HYB1 Trigger Pack for Hybrid

User Manual for Roland PER-PK-HYB1 Trigger Pack for Hybrid Acoustic Electric Drums

• Product category: Electronic Drums Roland
• Brand: Roland
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Roland Electronic Drums

Product description

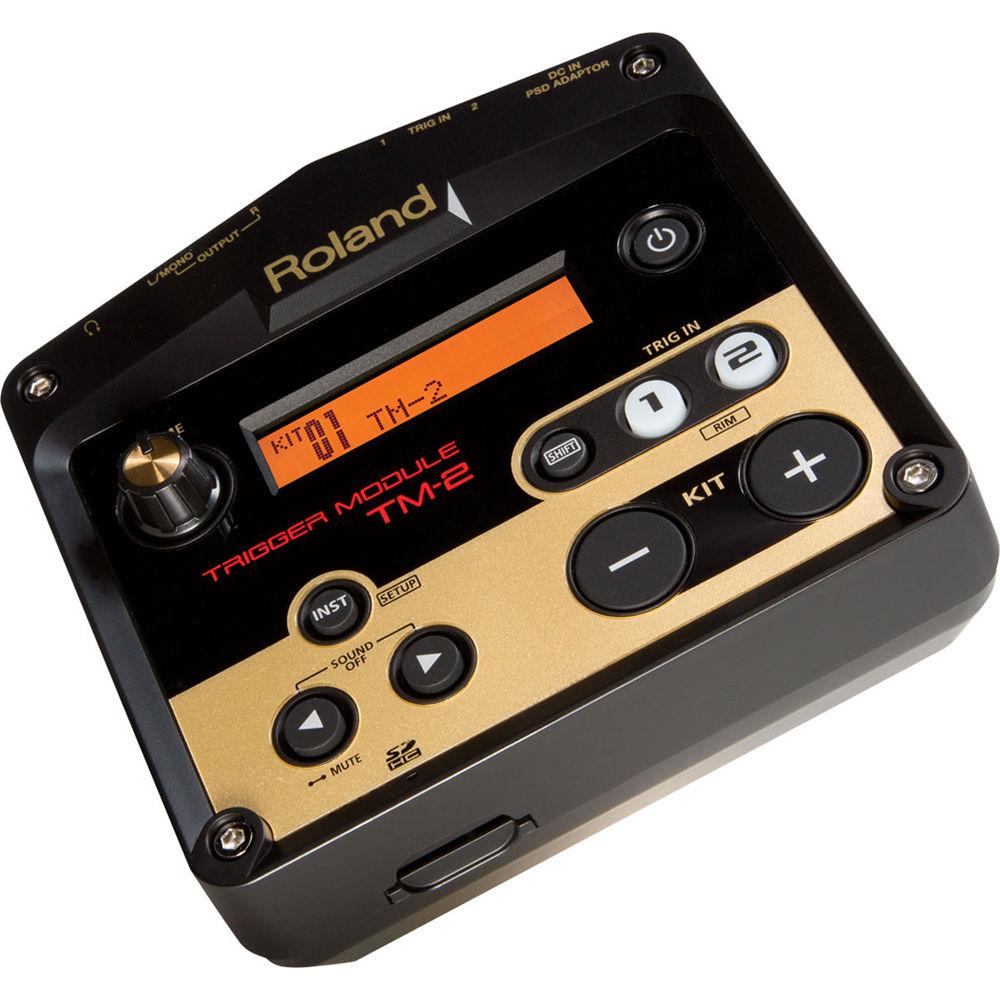

• TM-2 - Trigger Module The TM-2 from Roland is a compact and battery powered trigger module that provides a simple solution for acoustic drummers looking to enhance their kits with electronic percussion. Two trigger inputs support a wide variety of the company's pads and drum triggers, while the ready-to-play sounds are optimized for augmenting live acoustic drums.

  Studio-quality multi-effects are available for processing the kits, and triggering custom WAV sounds, loops, and backing tracks can be done via an SDHC card. Just copy any WAV audio files from a computer onto an SDHC card, and then insert it into the trigger module's card slot.

  MIDI I/O allows for triggering sounds in V-Drums modules, keyboards, and synthesizer modules, and when connected to a computer via a MIDI interface, MIDI data can be recorded and sounds played within most popular music software. It's also possible to play both internal sounds and WAV sounds stored on an SDHC card from an external MIDI device.
  • Compact trigger module for acoustic drummers looking to enhance their kits with electronic percussion
  • Over 100 ready-to-play professional sounds, ranging from acoustic drums and percussion to modern electronic instruments
  • Includes many sounds and tonal elements designed for layering with acoustic drums, providing enhanced, high-impact sounds for playing live drums through a PA system
  • Suitable for all genres, from rock and metal to electronic music

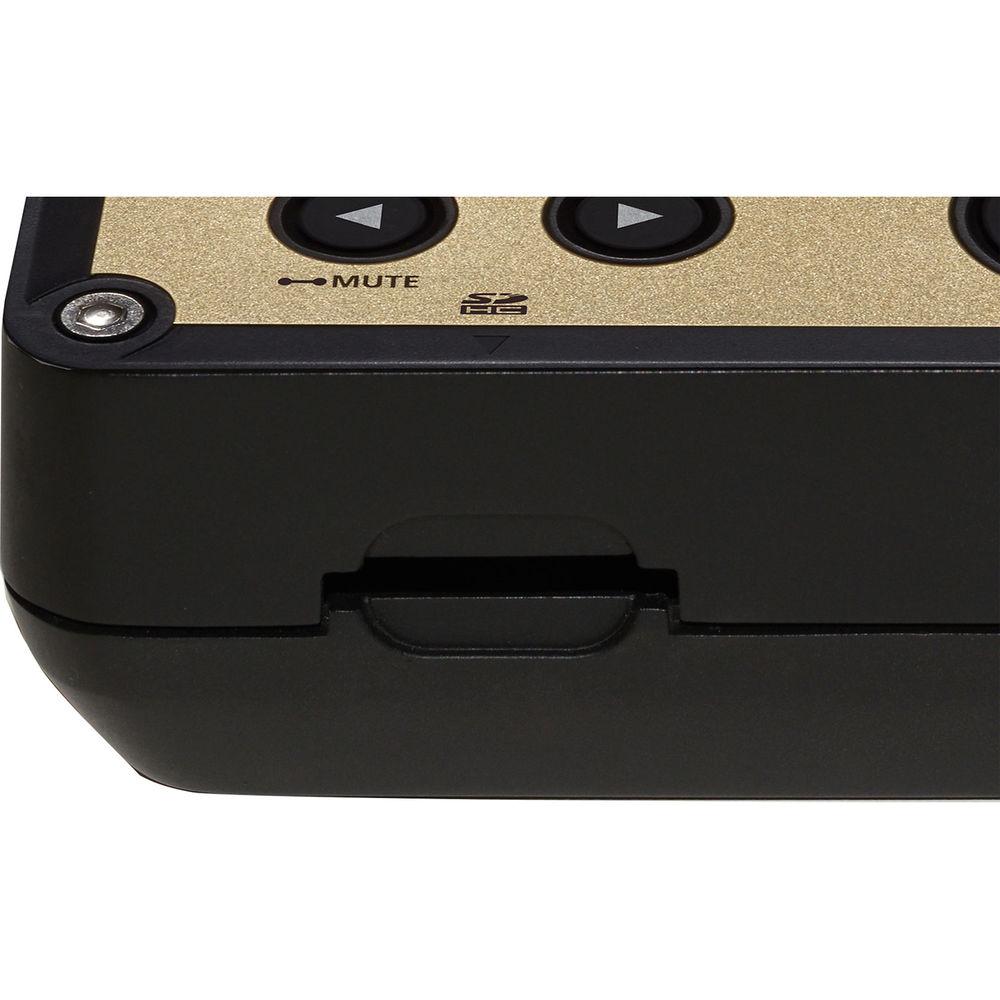

  • SDHC card slot lets users trigger their own WAV sounds stored on SDHC media, from one-shot samples and loop phrases to complete backing tracks
  • Two trigger inputs that support both single- and dual-trigger pads
  • Simple and intuitive user interface for creating and selecting kits
  • Process kits with powerful effects such as reverb, flanger, delay, and more
  • Compatible with Roland RT-series acoustic drum triggers and Roland percussion pads, including the BT-1 Bar Trigger Pad, KT-10 Kick Trigger Pedal, V-Pads, and V-Cymbals
  • Powered by batteries or included AC adapter

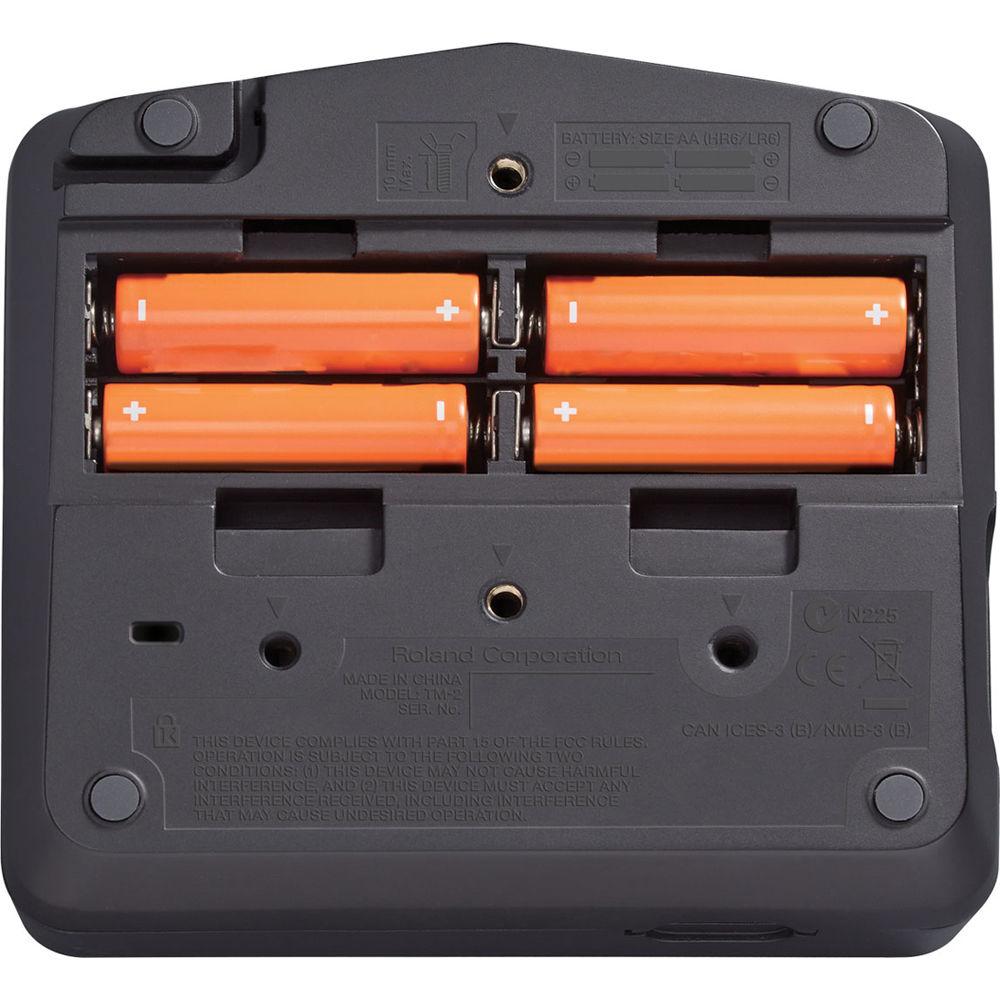

  • Runs for up to four hours on four AA-size batteries
  • Included mounting plate allows the TM-2 to be attached to a hi-hat stand or drum rack with a standard multi-clamp

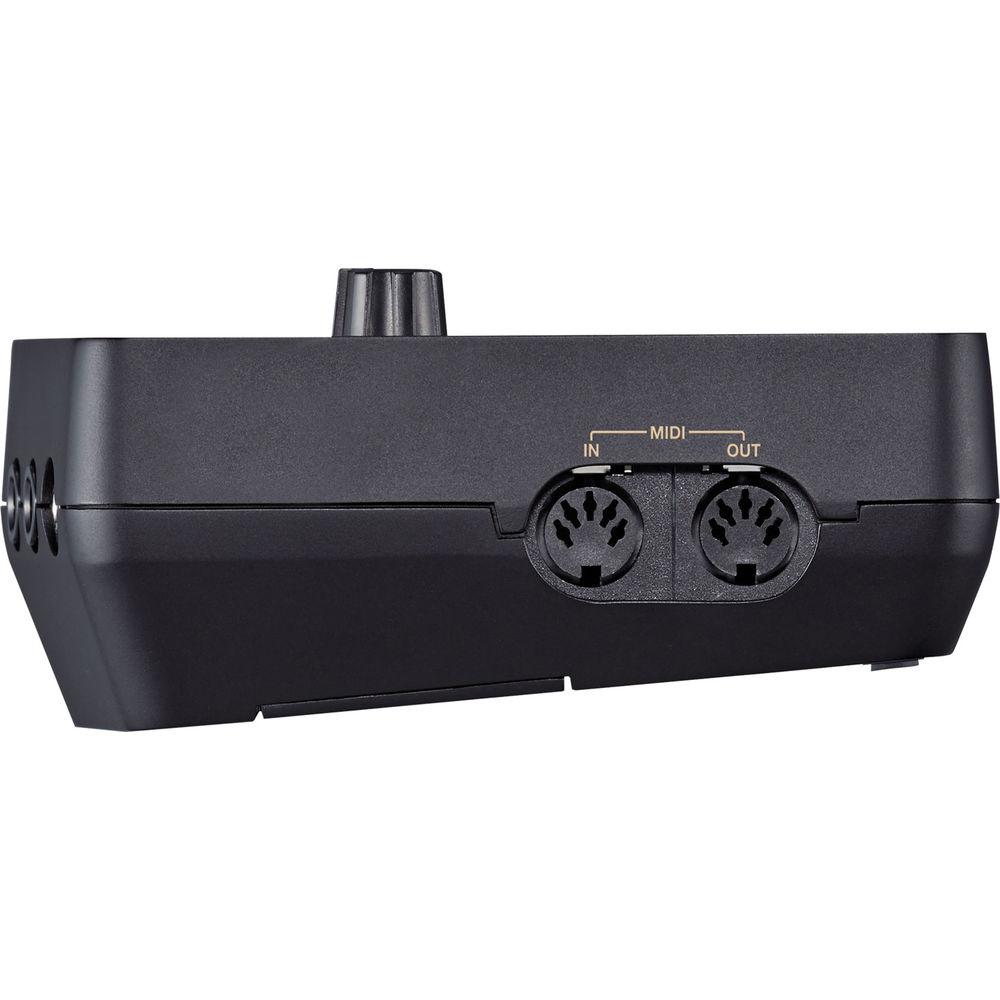

  • MIDI I/O for triggering sounds in external sound modules, capturing MIDI data in music software, and playing the TM-2 from other devices
  UPC: 761294504352
• RT-30K Acoustic Kick Drum Trigger Designed for streamlined setup for those who want to explore hybrid acoustic/electronic drumming, the RT-30K Acoustic Kick Drum Trigger from Roland attaches directly to your kick drum's rim, employing a self-guiding mount that eliminates the need for mechanical adjustment once mounted. The trigger features a fiberglass-reinforced ABS body as well as a protective grip designed to prevent marring on wooden bass drum hoops. A TRS cable is included.
  • Trigger device for playing electronic sources from an acoustic bass drum
  • Compatible with Roland's TM-2 Trigger Module, TD-series V-Drums sound modules, and SPD-series percussion pads
  • Installs on nearly any metal drum hoop, including inward-curved hoop styles
  • Self-guided mount for streamlined installation
  • Durable fiberglass-reinforced ABS body and secure mounting mechanism
  • Durable fiberglass-reinforced ABS body and secure mounting mechanism for dependable operation
  • Protective grip prevents marring of wood bass drum hoops
  • TRS connection cable included
  UPC: 761294507117

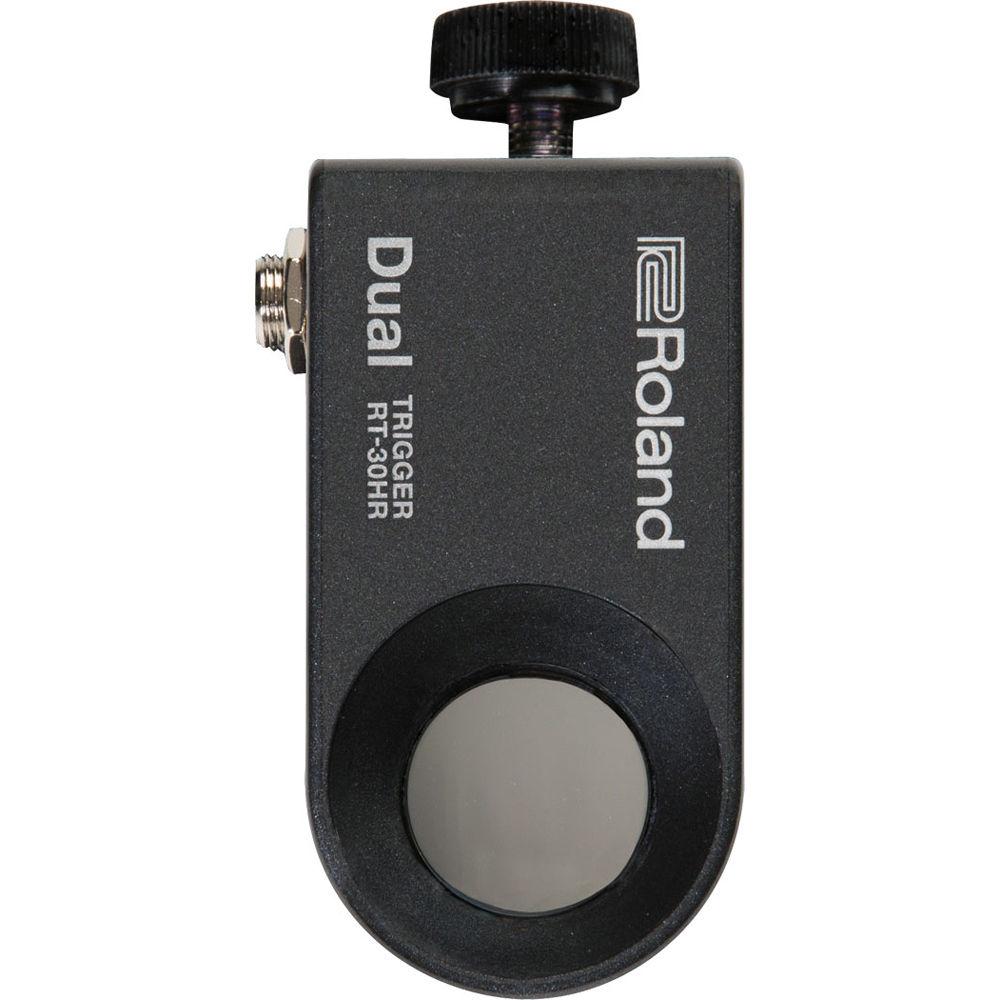

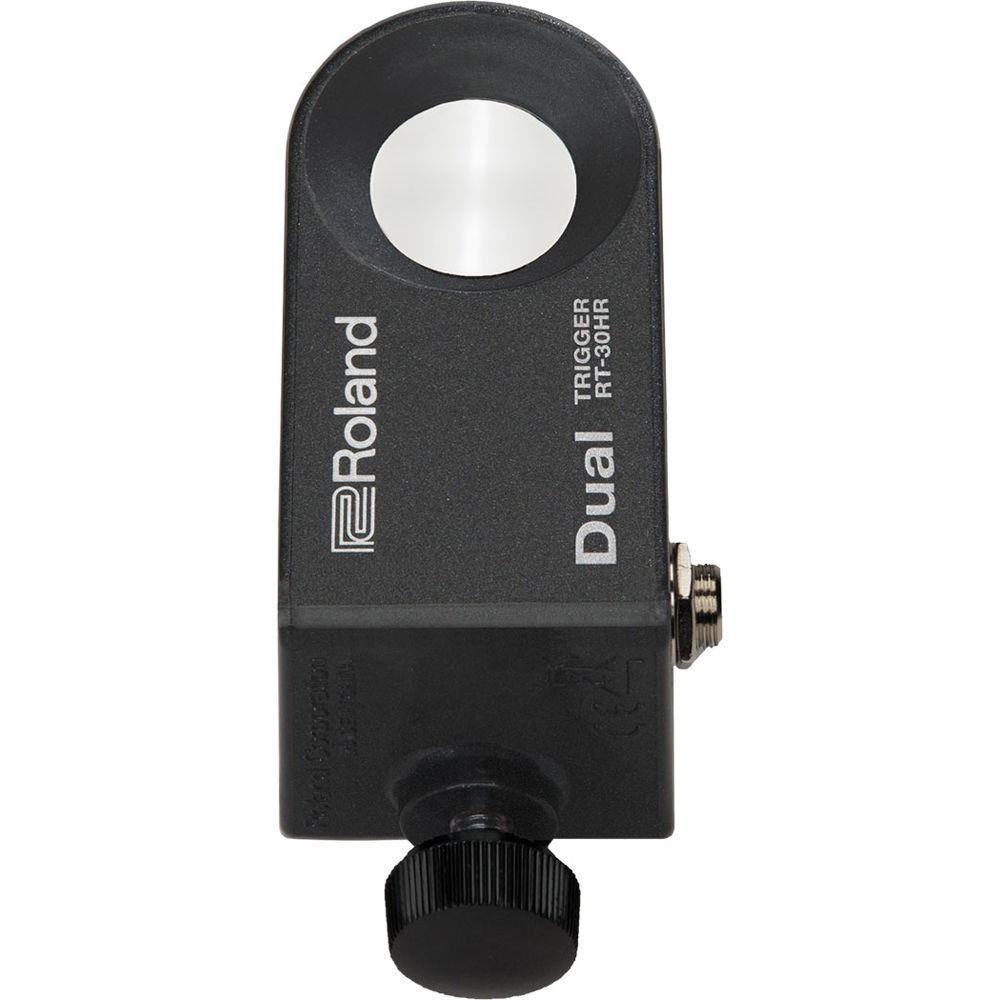

• RT-30HR Double Acoustic Drum Trigger Designed for streamlined setup for those who want to explore hybrid acoustic/electronic drumming, the RT-30HR Double Acoustic Drum Trigger from Roland attaches directly to your drum's metal rim, employing a self-guiding mount that eliminates the need for mechanical adjustment once mounted. Its head sensor allows it to be used on toms and snare drums, and supports independent head and rim triggering. Its 1/4" trigger output is side-mounted for cable management. A stereo TRS cable is included.
  • Head-based trigger device for playing electronic sources from acoustic drums
  • Compatible with Roland's TM-2 Trigger Module, TD-series V-Drums sound modules, and SPD-series percussion pads
  • Installs on nearly any metal drum hoop, including inward-curved hoop styles
  • Self-guided mount for streamlined installation
  • 10mm lower in profile than previous designs for increased playing comfort
  • Durable fiberglass-reinforced ABS body and secure mounting mechanism for dependable operation
  • Side-mounted trigger output jack for improved cable management
  • TRS connection cable included
  UPC: 761294506561

• External Power Supply

• Mounting Plate

• 2 x Wing Bolts (M5 x 10)

• Owner's Manual

• One (1) Year Parts, Ninety (90) Days Labor Limited Warranty

• 11.5' (3.5 m) Stereo Cable

• Limited 1-Year Warranty

• 11.5' (3.5 m) Stereo Cable

• Limited 1-Year Warranty

Also Includes

• 2 x 1/4" Connection Cables, TRS
• Module Clamp
• Limited 1-Year Warranty on Parts
• Limited 90-Day Warranty on Labor

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TM-2 - Trigger Module

  Kits	99
  Presets	100
  User Instruments	Number: 90,300 maximum File Format: WAV (16-bit/44.1 kHz, stereo/mono) Storage Media: SD/SDHC memory card (32 GB maximum)
  Effects	Multi-Effects: 1 system, 11 types
  Display	Backlit LCD 16 characters x 2 lines
  Connectors	2 x 1/4" TS main out 1 x 1/8" TRS stereo mini headphones 2 x 1/4" TRS trigger in 2 x 5-pin DIN MIDI in, out 1 x DC in
  Power Requirements	AC adaptor (400 mA current draw) 4 x AA or LR6 Alkaline batteries (not included) 4 x AA or HR6 Rechargeable Ni-MH batteries (not included)
  Battery Life	Alkaline AA, LR6: Approximately 4.5 hours Rechargeable Ni-MH AA, HR6: Approximately 6 hours (when using batteries with a capacity of 2,000 mA) *Times may vary according to usage conditions, batteries used, and type of SD memory card used.
  Dimensions (WxDxH)	5.4 x 5.1 x 2.4 (135 x 130 x 59 mm)
  Weight	13 oz (360 g)

  Box Dimensions (LxWxH)	10.079 x 7.953 x 3.937"

• RT-30K Acoustic Kick Drum Trigger

  Triggers	1 (Head)
  Connector	1x 1/4" Phone Type Output Jack
  Rim Measurements	Height: 1.2 to 1.4" (30 to 36 mm) Thickness: 0.5" (12 mm)
  Dimensions (W x D x H)	1.5 x 4.4 x 2.5" (38 x 111 x 62 mm)
  Weight	4 oz (95 g)

  Box Dimensions (LxWxH)	7.95 x 5.0 x 2.65"

• RT-30HR Double Acoustic Drum Trigger

  Triggers	1 (Head)
  Connector	1x 1/4" Phone Type Output Jack
  Rim Measurements	Height: 0.5" (13 mm), maximum
  Dimensions (W x D x H)	1.6 x 4.4 x 1.8" (39 x 112 x 45 mm)
  Weight	3 oz (67 g)

  Box Dimensions (LxWxH)	6.9 x 5.0 x 2.6"
