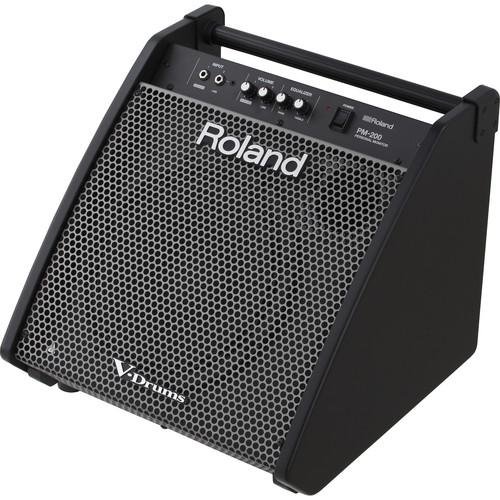

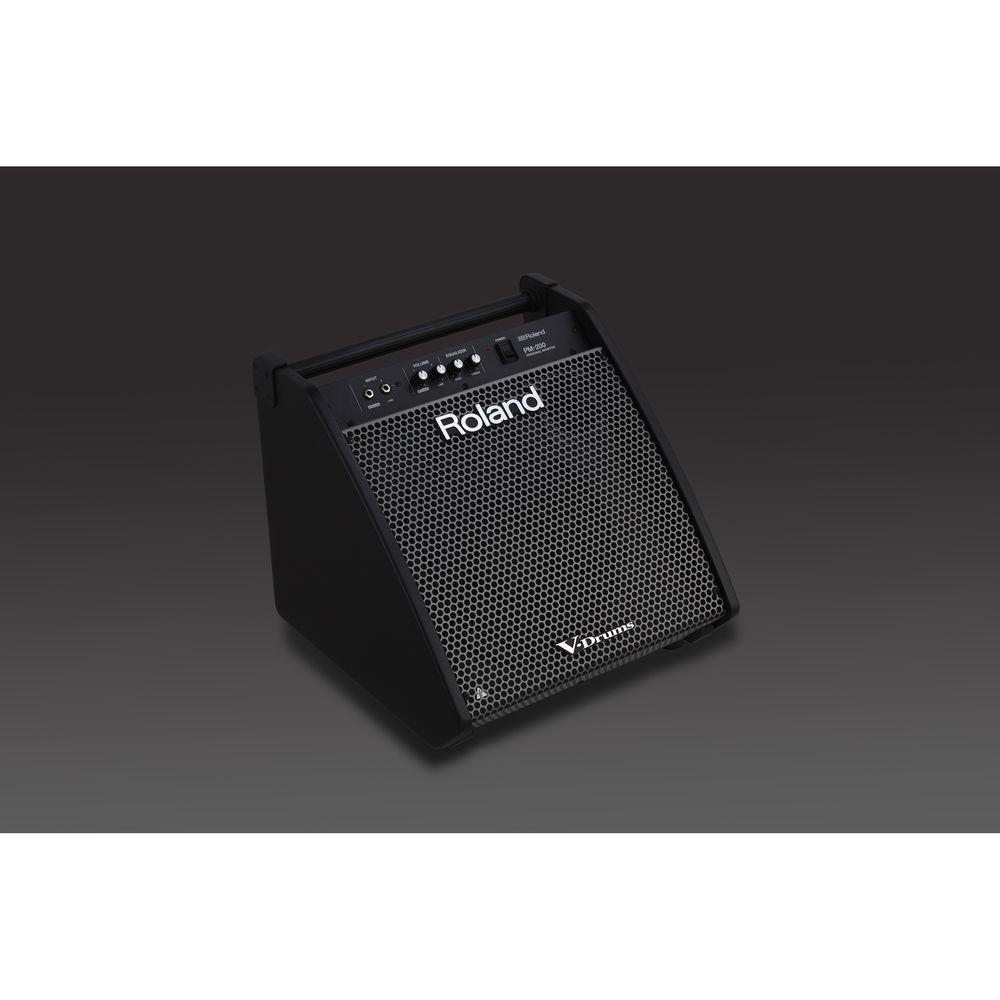

Product description The Roland PM-200 is a premium, all-in-one monitor designed for use with the V-Drums electronic percussion products and features a full-range audio system with 80W of power, which powers the custom 10" woofer and a horn-loaded tweeter.

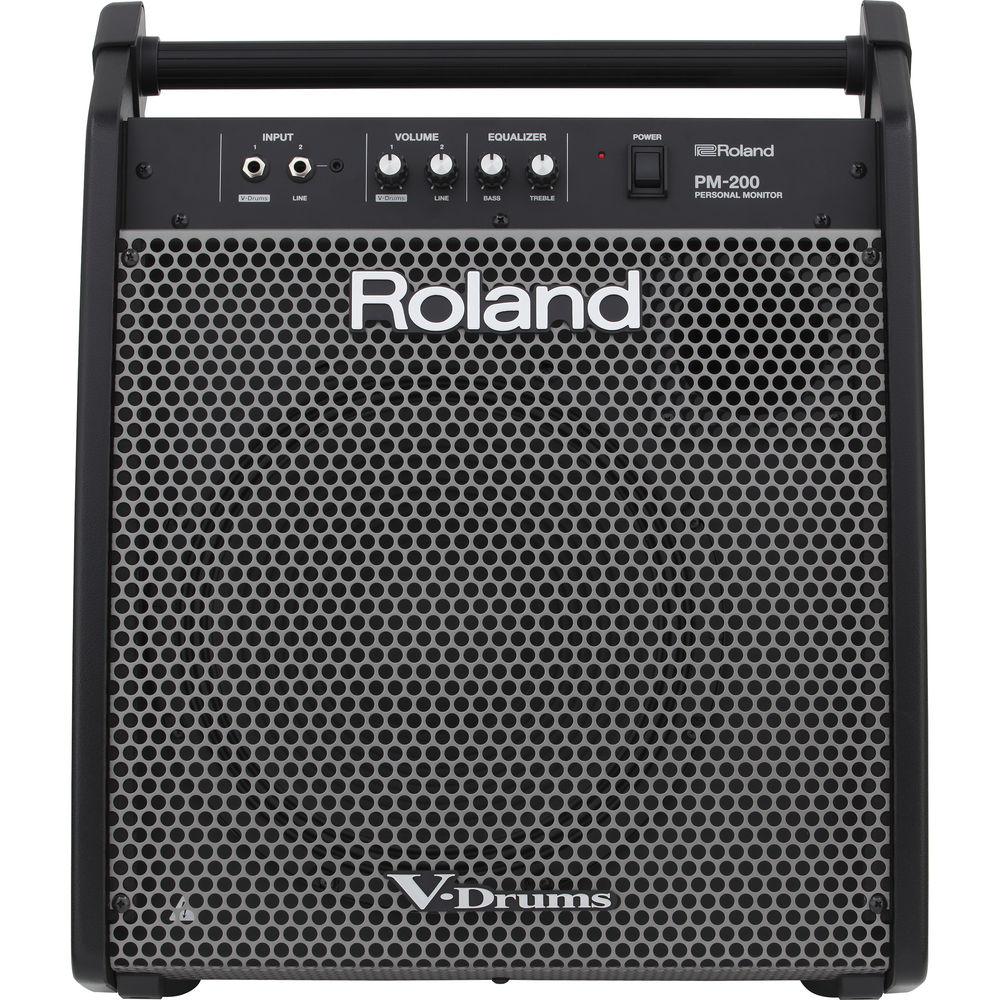

The front panel offers two 1/4" line inputs. Input one is allocated to the V-Drums, while input two offers both a 1/4" and an 1/8" input to connect a variety of sources such as a personal music players, phones, and tablets. There are dedicated controls for V-Drum volume and line input 2 volume, as well as bass and treble control knobs. The angled design provides ideal coverage for the seated player, while the full-width bar handle on top offers a convenient way to carry monitor and adjust the floor position.

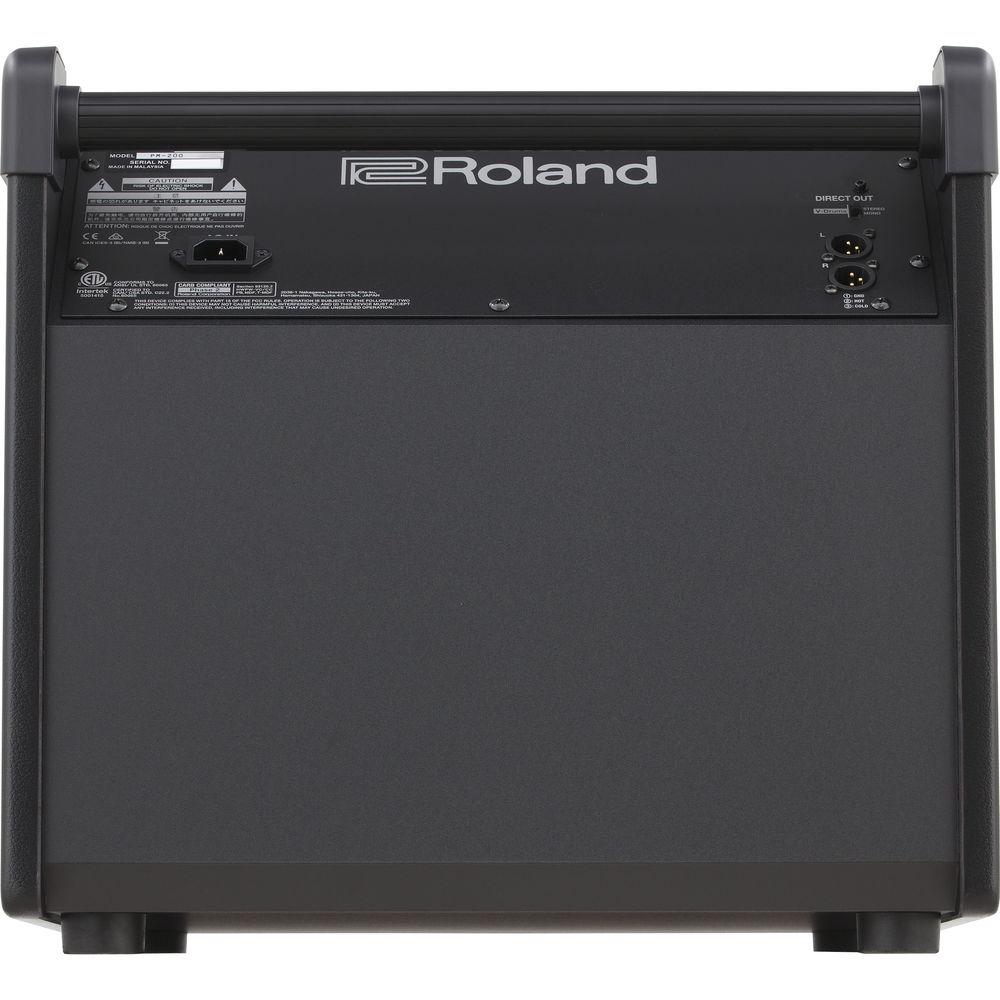

The PM-200 is equipped with two XLR direct outputs to send sounds to a mixer or recording device, providing additional flexibility for using he monitor in stage, rehearsal, and studio applications. The PM-200 is a mono monitor, but it can accept a stereo connection, enabling true stereo pass-thru to the direct outputs. The rear panel's stereo/dual-mono switch offers a convenient and flexible way to interface with a variety of setups. The Roland PM-200 ships with a power cord. -
- Premium all-in-one monitor designed for use with V-Drums electronic percussion products
- Full-range audio system with 180W of power, a custom 12" woofer, and a horn-loaded tweeter

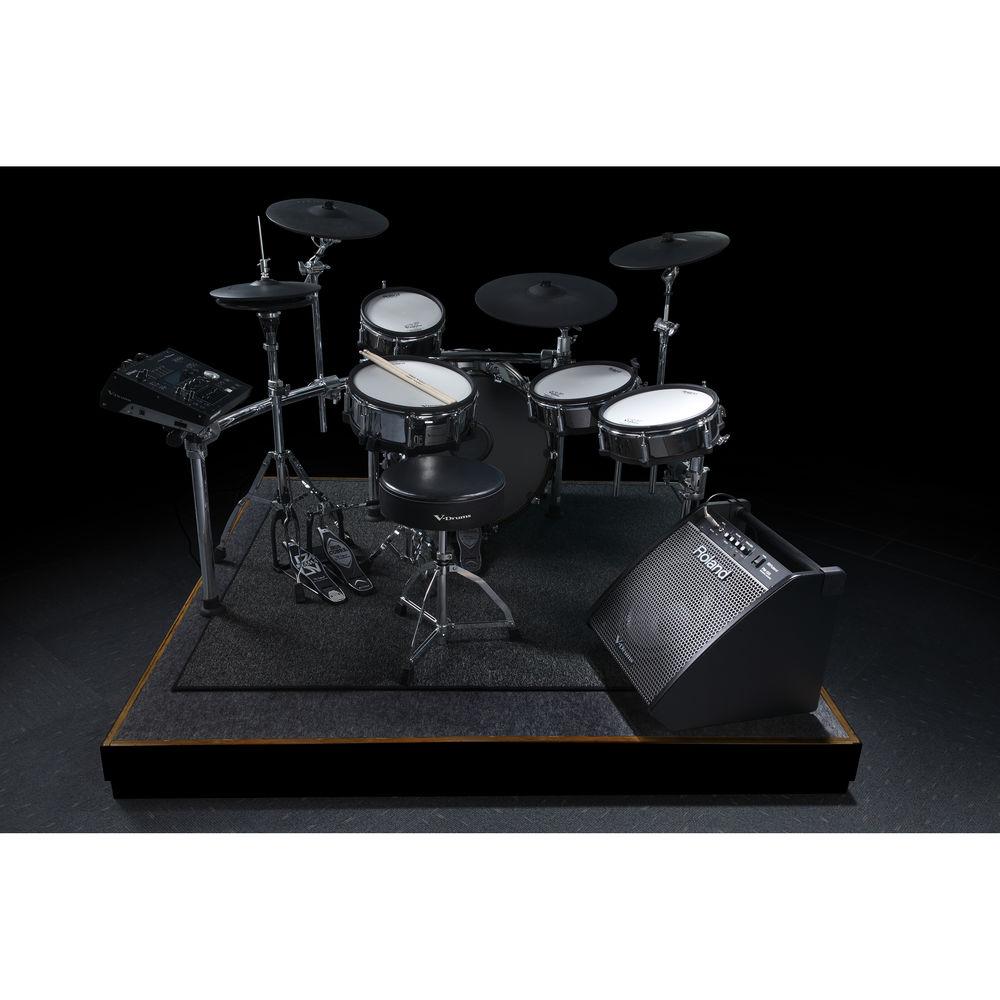

- Angled design provides ideal sound coverage for the seated player
- Integrated mixer with independent volume controls and global EQ
- Dedicated V-Drums input plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players
- Two XLR direct outputs with selectable stereo or dual mono output for a V-Drums module connected in stereo
- Full-width bar handle for easy floor adjustment and carrying convenience
UPC: 761294511893 In the Box Roland PM-200 Personal Monitor for V-Drums Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland PM-200 Personal Monitor for V-Drums in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland PM-200 Specs | Power Output | 180 W | | Nominal Input Level | V-Drums Input: -6 dBu (10 kOhms)
Line Input: -6 dBu (10 kOhms) | | Speaker | Woofer: 12.0" / 30.5 cm
Tweeter: Horn loaded | | Controls | Power switch
V-Drums volume knob
Line input volume knob
Bass knob
Treble knob | | Indicator | Power | | Connectors | Line Input 1 (V-Drums): Stereo 1/4" / 6.35 mm TRS
Line Input 2: Stereo 1/4" / 6.35 mm and 1/8" / 3.5 mm
Direct Out: 2 x XLRAC
Power In: Standard IEC power cord | | Power Consumption | 64 W | | Dimensions (W x D x H) | 18.0 x 18.5 x 16.5" / 458.0 x 469.0 x 420.0 mm | | Weight | 46.3 lb / 21.0 kg | | | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 22.5 x 21.5 x 20.0" |
