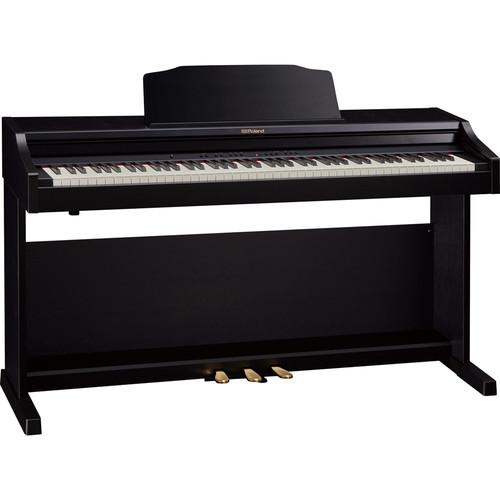

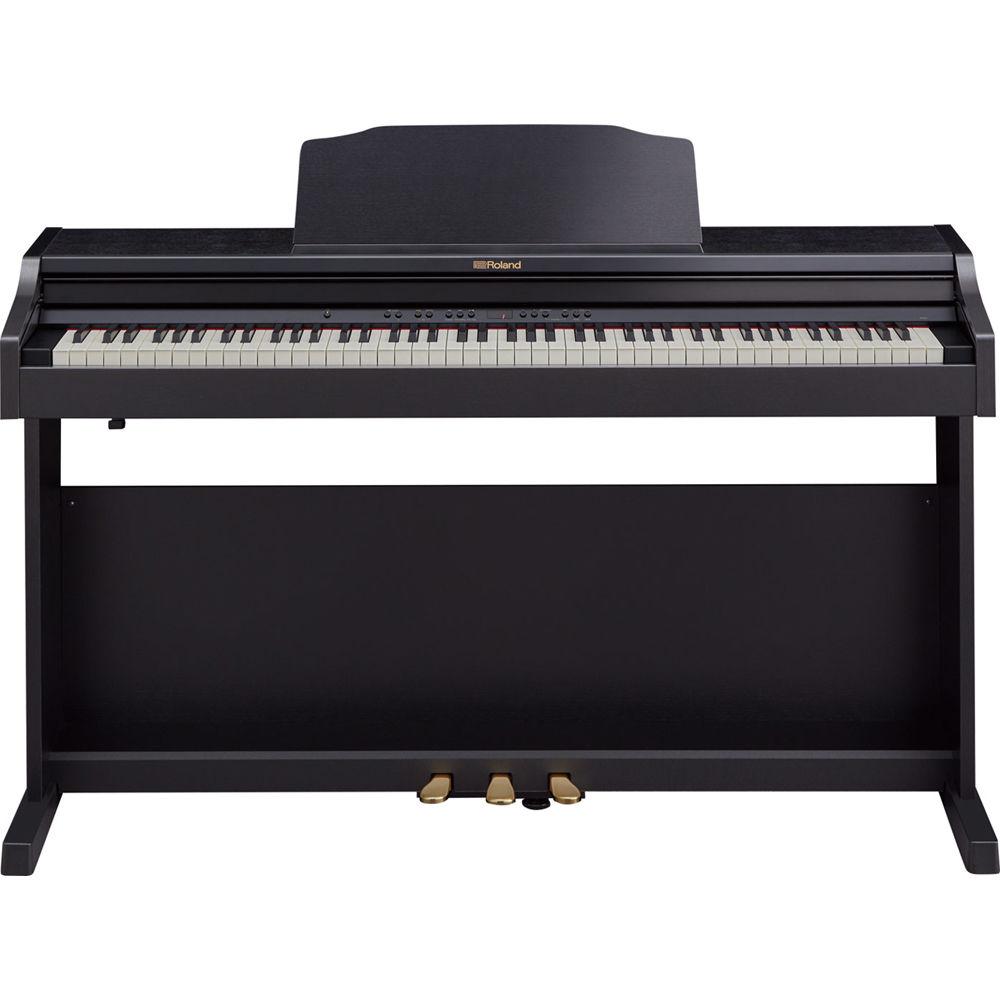

Product description Designed for beginners, intermediate players, or simply anyone who wants a digital piano in their home, the Roland RP501R provides 11 piano tones, a whole host of practice features, built-in rhythm accompaniments, and more. It also allows for connectivity to iPad and Android apps over Bluetooth streaming.The RP501R features 88 keys that allow for expressive play, giving you a feel that’s weighted and reminiscent of ivory. Its pedal, too, offers dampening that emulates the pedals of real grand pianos, allowing for half-pedaling and other techniques. If you wish to practice through headphones, the piano features an effect which creates an immersive, multi-dimensional soundstage. This piano is styled in black and ships with an included bench. - Authentic Sound and Expressive Feel
- With onboard SuperNATURAL technology derived from Roland's flagship digital pianos, the RP501R delivers a rich, expressive tone. An array of built-in speakers ensures that sound fills the room. The PHA-4 keyboard responds to the nuances of your touch, while the Progressive Damper Action pedal lets you perform traditional techniques with all the feel of an acoustic pianist.
- 305 Tones and 72 Backing Styles
- The RP501R captures the authentic sound of a traditional acoustic piano, yet also offers over 300 additional sounds to foster creativity. The onboard Rhythm feature lets you jam with your choice of 72 backing styles in various genres (pop, jazz, and more.). Don't worry—the band will follow all your changes.
- Educational Features
- Bluetooth, MIDI, and USB connectivity give you access to a wealth of piano apps such as Roland's Piano Partner 2, which displays internal songs as sheet music and helps you work on your sight-reading. Additionally, an onboard metronome improves your sense of timing before you assess your progress with the onboard recorder. Audio and MIDI playback (from USB memory) lets you jam along with your favorite songs as they play through the piano's speakers, while Twin Piano mode allows you to play in the same key range side by side with a duet partner or teacher. If there's a song you want to learn, download it to your tablet from Sheet Music Direct, or install the piaScore app for free access to 70,000+ classical music scores. By pressing the piano's pedal, you can even turn the pages of the score on your tablet's screen.
- Key Features at a Glance
-
- SuperNATURAL piano delivers the authentic tone of an acoustic grand piano
- PHA-4 standard keyboard for expressive and responsive play
- Progressive Damper Action pedal offers continuous response for half-pedaling and other traditional acoustic piano techniques
- Headphones 3D Ambience effect provides an immersive sound experience when using headphones
- Allows for implementation of apps such as Roland’s Piano Partner 2, which encourages daily piano-learning and makes practicing fun
- Extensive onboard song library including songs which encourage scale memorization
- Metronome and recording functions to boost practice and learning
- Onboard Rhythm feature with intelligent accompaniment (72 different rhythm styles, including 6 pianist styles)
UPC: 761294509395 In the Box Roland RP501R Digital Piano (Black) AC Adapter Power Cord Headphone Hook Music Rest Bench Limited 5-Year Warranty on Parts Limited 2-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland RP501R Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland RP-501R-CBC Specs | | | Keyboard | 88 keys (PHA-4 standard keyboard with escapement and ivory feel) | | Touch Sensitivity | 5 types, fixed touch | | Mode | Whole, dual (volume balance adjustable), split (split point adjustable), twin piano | | | | Piano Sound | SuperNATURAL | | MIDI Format | Conforms to GM2, GS, XGlite | | Maximum Polyphony | 128 voices | | Tones | Piano: 11 tones
Other: 305 tones (including 8 drum sets, 1 SFX set) | | Tuning | Stretched Tuning: 2 types, always on
Master Tuning: 415.3 to 466.2 Hz (adjustable in increments of 0.1 Hz) | | Transpose | Key Transpose: -6 to +5 (in semitones) | | Effects | All tones
Ambiance (off, 10 levels)
Brilliance (21 levels)
Only for Piano Tones
Damper resonance (always on)
String resonance (always on)
Key-off resonance (always on) | | | | Tempo | Quarter note = 10 to 500 (when rhythm function turns on, quarter note = 20 to 250) | | Beat | 2/2, 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8 | | Volume | 100 levels | | | | Parts | 1x | | Save Features | Save Song: Standard MIDI files (format 0) | | Songs | Internal Memory: 10 songs maximum
External Memory: 99 songs maximum | | Note Storage | Approximately 30,000 notes | | Control | Song select, play/stop, rec, rewinding, fast-forwarding, top of song, part mute, tempo, all songs play, count-in, song balance | | Tempo | Quarter note = 10 to 500 (when rhythm function turns on, quarter note = 20 to 250) | | Resolution | 120 ticks per quarter note | | | | Number Of Rhythms/Styles | 72 types x 2 variations | | Controls | Rhythm select, start/stop, sync start, intro/ending, fill in, variation, leading bass, auto fill, rhythm part | | | | Playback | File Format: Audio file (44.1 kHz, WAV, 16-bit linear format) | | Control | Song select, play/stop, rewinding, fast-forwarding, top of song, all songs, play, song balance, center cancel | | | | Save Features | Save Song: Standard MIDI files (format 0) | | Songs | 10 songs, maximum | | Internal Songs | Piano Masterpieces: 69 songs
Easy Piano: 8 songs
Czerny: 100 songs
Hanon: 20 songs
Scale: 36 songs | | | | External Memory | USB flash memory | | Software | Playable Software: Standard MIDI files (format 0, 1), audio file (44.1 kHz, WAV, 16-bit linear format) | | Save Features | Save Song: Standard MIDI files (format 0) | | Songs | 99, maximum | | | | Display | 7-segment x 3 LEDs | | Lid | Slide type | | Other Functions | Panel lock, auto off | | Connectors | 1 x DC in jack
1 x 3.5 mm stereo miniature input, phone type
1 x 3.5 mm stereo miniature output, phone type
1 x USB Type-B computer port
1 x USB Type-A computer port
1 x stereo miniature headphone jack, phone type
1 x stereo 1/4" inch headphone jack, phone type | | Rated Power Output | 12 W (x2) | | Volume Level | 103 dB SPL | | Speakers | 2x 4.8" / 12 cm | | Headphones | 3D ambiance effect | | Controls | Volume | | Power Supply | AC adapter | | Power Consumption | Average power consumption of 9 W while piano is played with volume at center position
Power consumption of 3 W immediately after power-up; nothing being played
Rated power consumption of 22 W | | | | Dimensions (W x D x H) | Including Piano Stand, with Music Rest: 54.3 x 16.7 x 39.1" / 137.8 x 42.3 x 99.2 cm
Including Piano Stand, Without Music Rest: 54.3 x 16.7 x 32.8" / 137.8 x 42.3 x 83.4 cm | | Weight | Including Piano Stand, with Music Rest: 89.9 lb / 40.8 kg (actual weight may vary due to the fact that wooden parts are involved) | | | | Package Weight | 111.0 lb | | Box Dimensions (LxWxH) | 65.0 x 23.0 x 14.0" |
