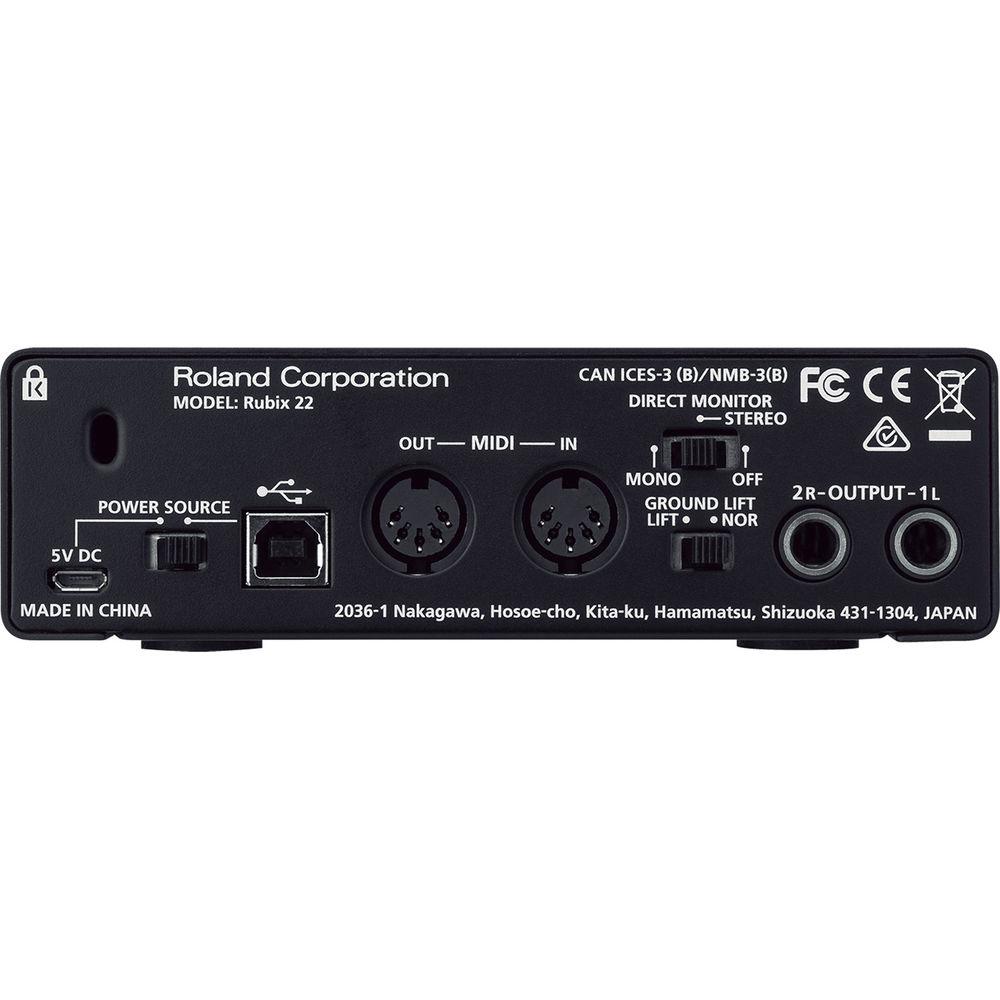

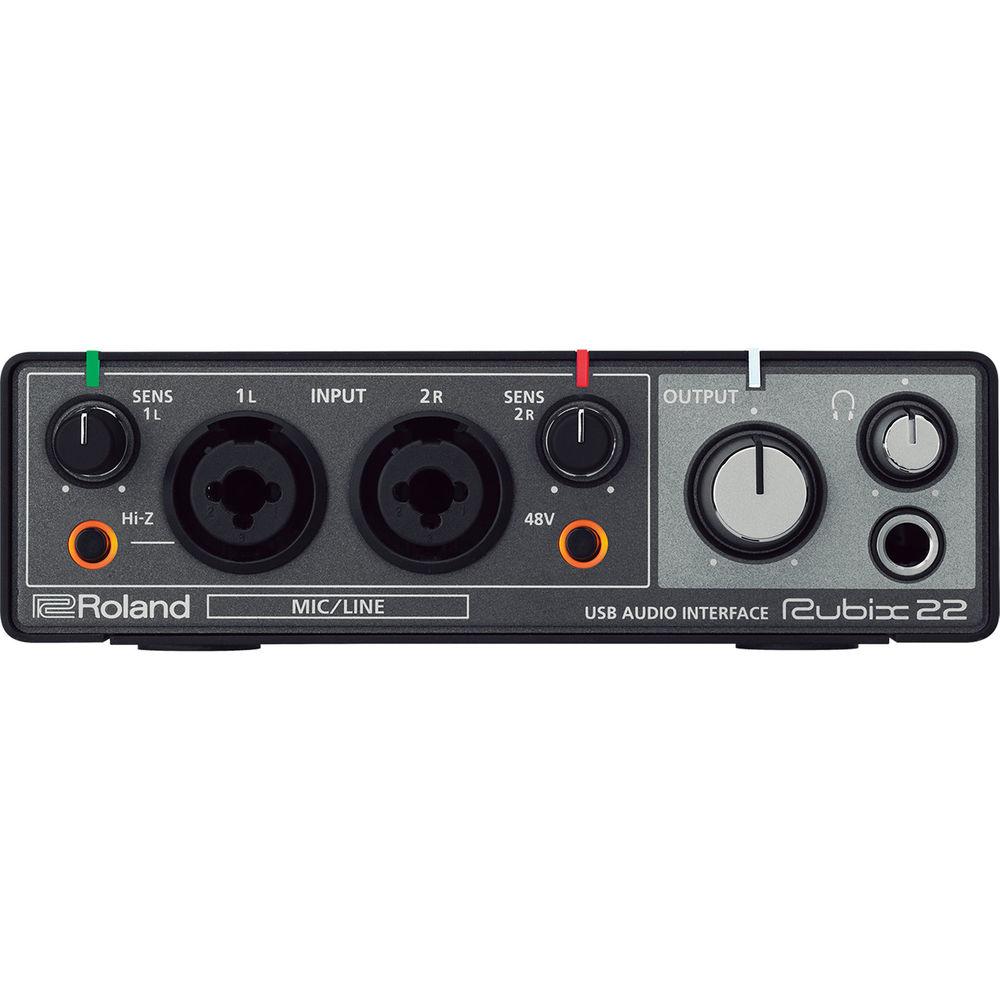

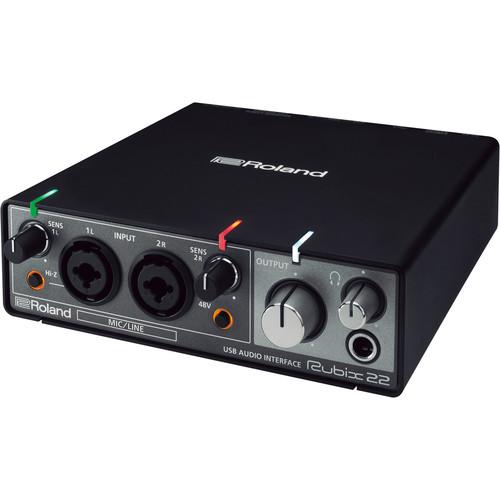

User Manual for Roland Rubix22 - 2x2 USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Roland Rubix22 - 2x2 USB Audio
- Product category: Audio Interfaces & Systems Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Audio Interfaces & Systems
 |
User manual for the Roland Rubix22 - 2x2 USB Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The 2-input/2-output Rubix22 USB audio interface from Roland offers a balance of high-fidelity sound, solid build quality, compact size, and powerful features, which give you studio-grade performance just about anywhere you choose to record.The unit is equipped with two low-noise mic preamps and a Hi-Z jack input for guitars or other high impedance sources. It supports audio resolution up to 24-bit / 192 kHz and features class-compliant Mac and Windows drivers for low latency.The Rubix22 is well equipped to meet the rigors of the road. Its sturdy and compact metal construction, extensive shielding, and ground lift effectively protect it against radio frequency interference and electrical hums, often found in live venues. It also features big level indicators that clearly show if a channel has incoming signal or if you're going to overload, critical for working in low-level light environments such as stages.Connect your Rubix22 to an iPad, and using the included Ableton Live Lite software, turn it into a compact system for on-location productions. - 2-input/2-output USB audio interface
- 2 low-noise mic preamps with XLR-1/4" combo jacks
- Hi-Z input for guitar and other high-impedance sources
- High-resolution audio up to 24-bit / 192 kHz
- Low-latency class-compliant drivers for Mac OS, Windows & iPad
- Big, easy-to-read indicators show vital information
- Ground lifts for quiet operation in a variety of venues
- Extensively shielded, low-noise design
- Sturdy and compact metal construction
- Includes Ableton Live Lite
UPC: 761294508923 In the Box Roland Rubix22 - 2x2 USB Audio Interface USB Cable Ableton Live Lite Serial Number Card Limited 1-Year Warranty User Manual PDF 6.1mbxtbavxwebcddzbdaztaarvruxzrqatfrfe Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Rubix22 - 2x2 USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland RUBIX22 Specs | | | Channels of I/O | 4 Inputs / 4 Outputs | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | LEDs (+48V, Hi-Z, Level, Limit, Power) | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 1 x Combo XLR / 1/4" Mic Input
1 x Combo XLR / 1/4" Mic/Line Input
1 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Balanced Output | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Gain Range | Line Inputs:
-44 to +4 dBu
Mic Inputs:
-60 to -12 dBu | | Max Input Level | Line Inputs:
+18 dBu
Mic Inputs:
+2 dBu | | Headphone Output Power | 20 mW per Channel into 47 Ohms | | Dynamic Range | A/D Converters:
104 dB
D/A Converters:
109 dB | | Impedance | Headphone Outputs:
47 Ohms
Hi-Z Inputs:
500 kOhms
Line Inputs:
15 kOhms
Mic Inputs:
>4 kOhms (Balanced)
Outputs:
2 kOhms (Unbalanced) | | THD+N | -94 dBu | | | | Sample Rates | 44.1, 48, 96, and 192 kHz (AD/DA Conversion) | | Bit Depth | 24-Bit | | | | OS Compatibility | Windows 7
Windows 8
Windows 8.1
Windows 10
macOS 10.10 or Later
iOS 9 or Later | | | | Power Requirements | USB Bus-Power | | | | Dimensions | 5.7 x 6.5 x 1.8" / 145 x 165 x 46 mm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 10.1 x 8.9 x 3.4" |
