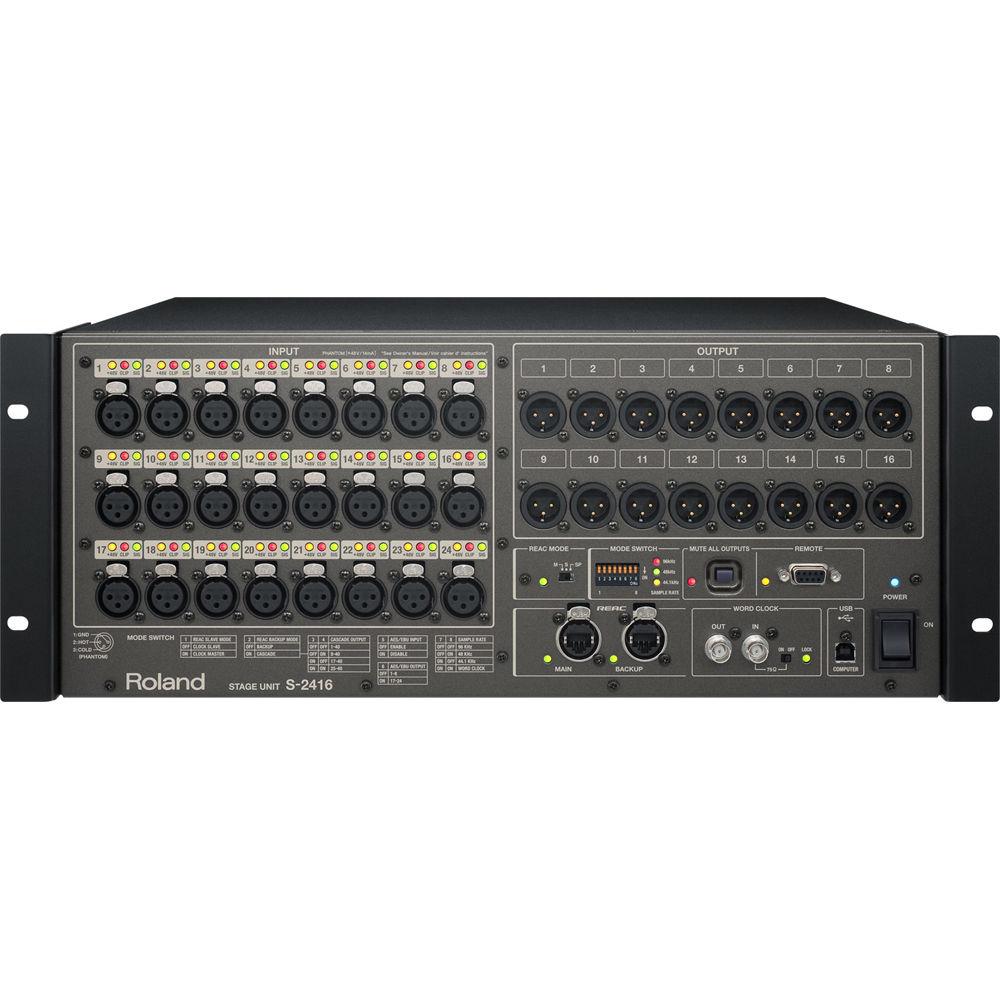

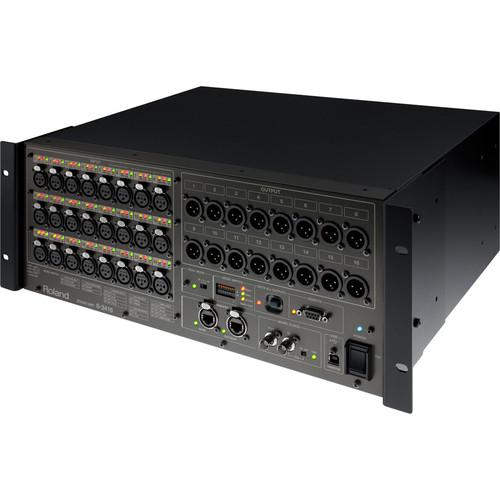

Product description The S-2416 24x16 Digital Snake Stage Unit from Roland solves two age-old problems of live sound and fixed installations at once. It allows you to transfer a total of 32 input and 24 output channels of high-quality audio without signal degradation over an extremely long distance, and the cable pull-through issue is a snap in fixed installations and a breeze to setup compared to using analog snakes.The S-2416 features 24 input x 16 output analog channels and 8 input x 8 output digital channels in a 4U rack-mount chassis. All input sections are equipped with discrete mic preamps designed to be transparent with uncolored sound; they can be controlled using any V-Mixer console, R-1000, an S-4000R unit connected by RS-232C, or by using the S-4000 RCS remote-control software on a computer (Mac or Windows) connected via USB. Furthermore, each Neutrik XLR jack connector features three-colored lights that communicate the status of phantom power, clipping, and signal presence.In addition, two REAC Neutrik Ethercon connectors, a main and a backup, are provided to create a redundant REAC network just in case a problem occurs with the main line. The operation switches to the backup connector with no break in the audio. Word clock in & out for 24-bit / 96, 48, or 44.1 kHz sample rates is also supported.The Rear Panel provides AES/EBU connectivity (25-pin D-sub type) for 8 channels of input and output providing connection to speaker processors, amps, and other devices capable of AES/EBU input and/or output. This is assigned to channels 25 through 32 and output is selectable by a mode switch. - Expand I/O with a Cascade Connection
- Switching the device to Cascade mode and connecting another Digital Snake makes it possible to expand inputs and outputs up to 40x40 channels
- High Sampling Rate of 96 kHz & Word Clock I/0
- A mode switch enables selection of 96, 48, or 44.1 kHz when the S-2416 is switched to Clock master mode. The unit is also equipped with word-clock input and output connectors (BNC) for supplying a master clock signal when using the AES/EBU connection
- Mute All Outputs Button
- The S-2416 is equipped with a Mute All Outputs Button to temporarily silence all outputs - a handy feature when changing cable connections
- Adjustable Rack Mounting for Greater Freedom
- Rack-mount angle brackets can be attached not only at the front panel, but also at the rear. This makes it possible to mount the S-2416 with either front or rear orientation as needed
UPC: 761294504574 In the Box Roland S-2416 24x16 Digital Snake Stage Unit Power Cord 4 x Rubber Foot Limited 1-Year Warranty for Parts Limited 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland S-2416 24x16 Digital Snake Stage Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland S-2416 Specs | | | Number of Channels | 32 in 24 out | | AD/DA Conversion | Sample Rate: 96, 48, 44.1 kHz
Signal Processing: 24-bits | | Frequency Response | -2 dB/+0 dB (@ +4 dBu, 10 Hz to 40 kHz, Sample Rate: 96 kHz, typ.) | | Total Harmonic Distortion (THD) + N | 0.007 % (Pad: Off, Input Gain: -10 dBu, 20 Hz to 20 kHz, typ.) | | Dynamic Range | Input Jacks (1 to 24): 110 dB (typ.) | | Channel Separation @ 1 kHz | Input Jacks (1 to 24): 103 dB (Input Gain: +4 dBu, IHF-A, typ.)
Output Jacks (1 to 16): 110 dB (typ.) | | Nominal Input Level | -65 to -10 dBu (Pad: Off)
-45 to +10 dBu (Pad: On) | | Maximum Input Level | Input Jacks (1 to 24): +28 dBu (1 kHz, 10 kOhms load, typ.) | | Input Impedance | Input Jacks (1 to 24): 7 kOhms | | Nominal Output Level | Output Jacks (1 to 16): +4 dBu (Load Impedance: 10 kOhms, typ.) | | Maximum Output Level | Output Jacks (1 to 16): +22 dBu (Load Impedance: 10 kOhms, typ.) | | Output Impedance | Output Jacks (1 to 16): 600 ohms (typ.) | | Recommended Load Impedance | Output Jacks (1 to 16): 10 kOhms or greater | | Residual Noise Level (IHF-A, typ.) | Output Jacks (1 to 16): -84 dBu | | Equivalent Input Noise Level | Input Jacks (1 to 24): -128 dB (Input Gain: -65 dBu, IHF-A, typ.) | | Network Latency | 375 µs when using REAC cable only
(AD to REAC to DA Latency: about 1.2 ms) | | Connectors | Input Jacks (1 to 24): XLR type, balanced, phantom power
Output Jacks (1 to 16): XLR type, balanced
AES/EBU Connector: DB-25 type
REAC Port: RJ-45 EtherCon type
Word Clock Connector: BNC type
Remote Connector: DB-9 type
Computer Port: USB type B
* XLR Type: 1 GND, 2 HOT, 3: COLD
* Phantom Power: DC+ 48 V (unloaded maximum), 14 mA (maximum load) (All XLR type inputs)
(* 0 dBu = 0.775 Vrms)
(*When a REAC Splitter S-4000D or a switching hub is used in-line with REAC cables, the network latency will increase by the amount of processing delay introduced by the splitting device itself. The actual delay is dependant upon the specifications of the splitting device, though the maximum delay amount for a single splitting device should be about 200 µs.) | | Power Consumption | 62 W | | Operation Temperature | 32 to 104°F (0 to 40°C) | | | | Dimensions (W x D x H) | 19.0 x 13.75 x 7.0" (48 x 35 x 18 cm) | | Weight | 21 lb (9.7 kg) |
