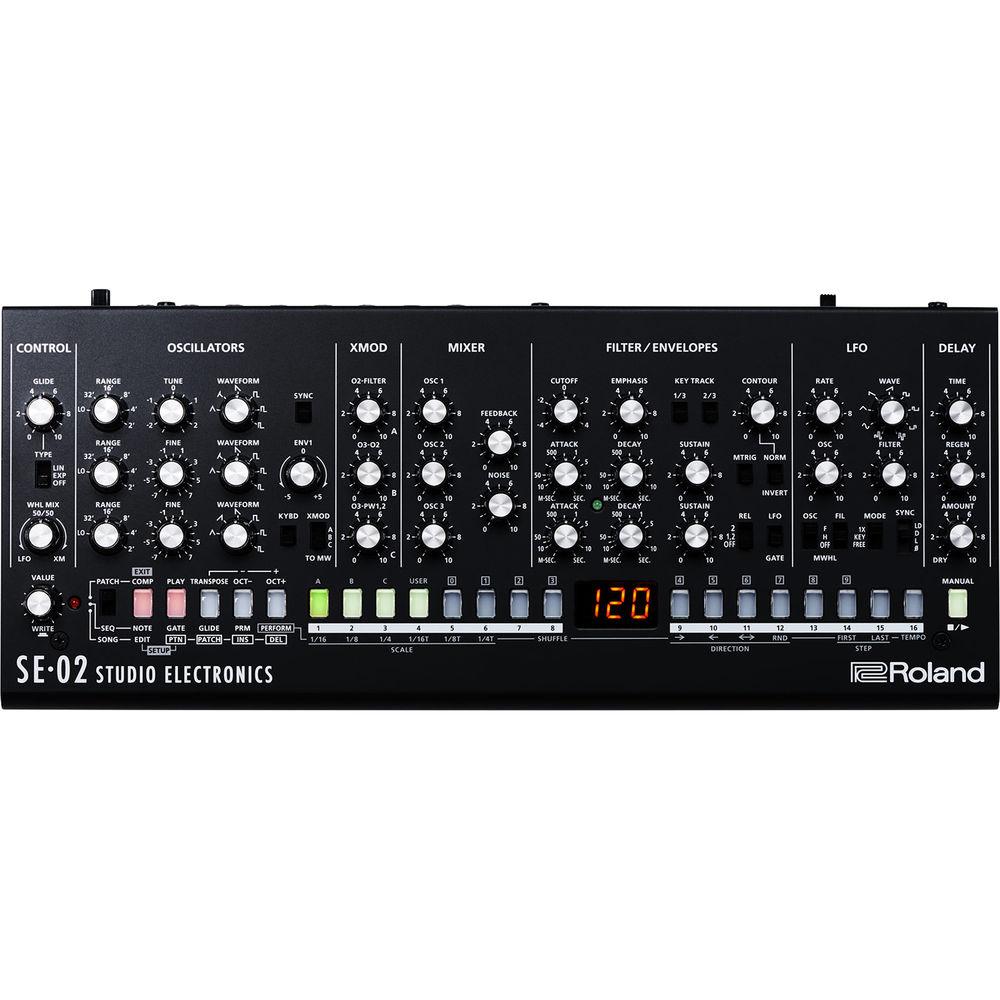

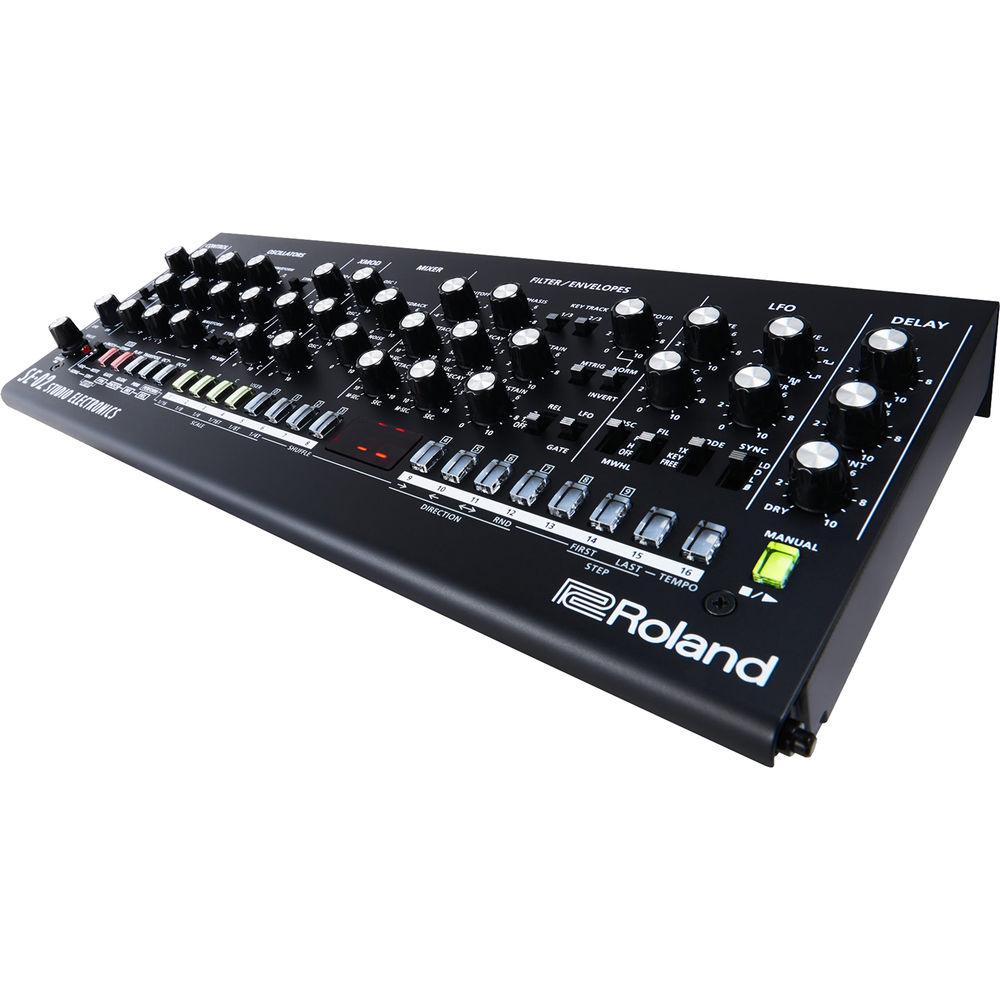

The Roland SE-02 Analog Synthesizer was designed in collaboration with Studio Electronics and is the first instrument in the Boutique Designer Series. The SE-02 utilizes authentic discrete analog circuitry to create its distinctly vintage sound and vast programming options. The panel is equipped with an array of high-quality knobs and switches for one-to-one control over parameters, as well as a powerful on-board sequencer.
The sound engine boasts three voltage-controlled oscillators (VCO), a voltage-controlled 24 dB low-pass filter (VCF), and a dual gain-stage amplifier (VCA). Each of the temperature-stabilized VCOs offers automatic tuning with selections for six different waveforms. Additionally, the Roland SE-02 provides a wide selection of tones beyond the classic "vintage" tones including three cross-modulation (XMod) types, a ripping filter feedback loop, envelope sweeping and inverting, oscillator sync, a noise generator, a tempo-syncing LFO with nine waveforms, and a tempo-syncing delay.

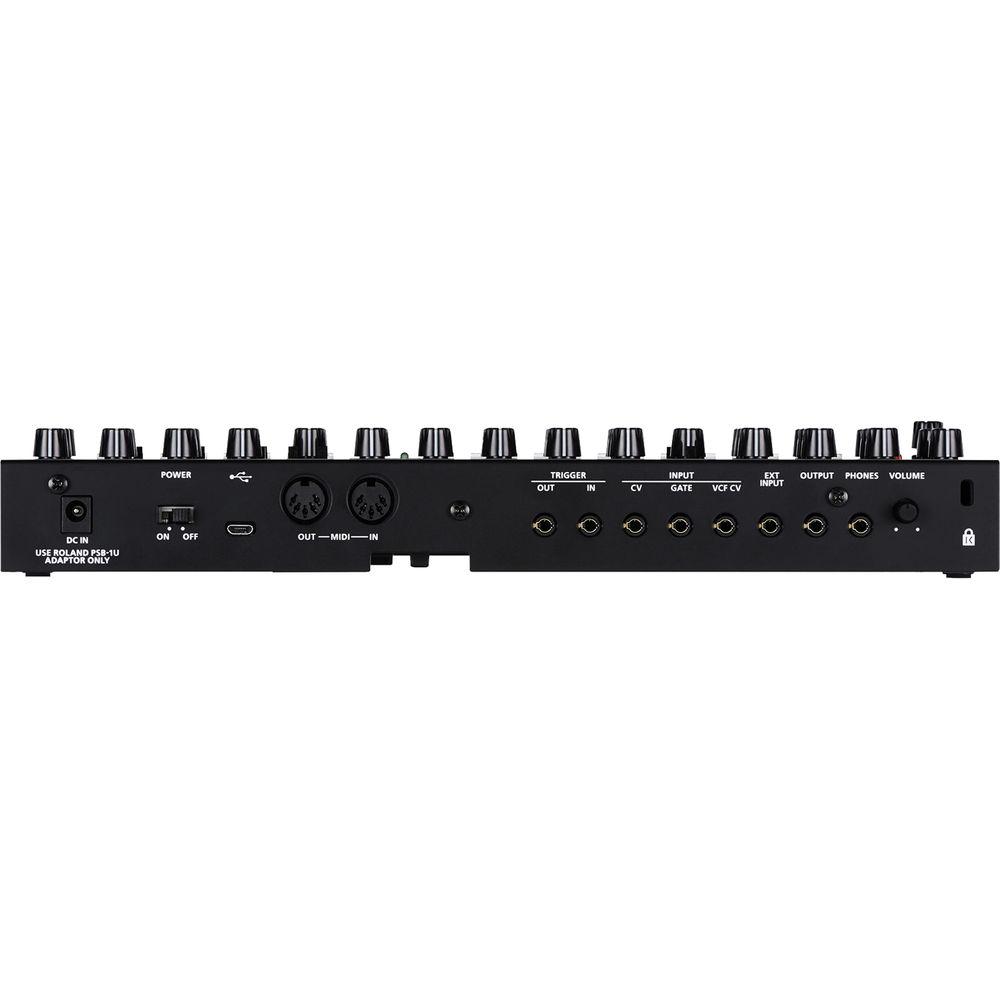

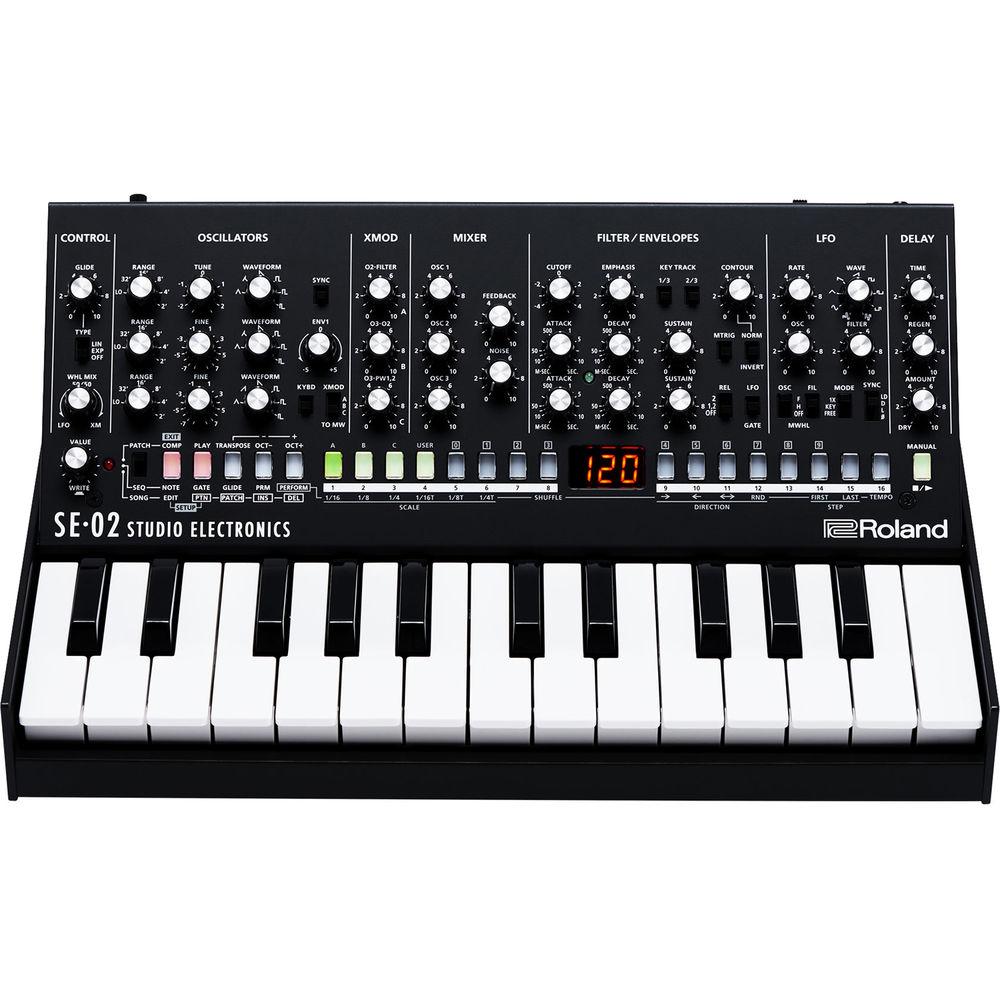

The enclosure is solidly built with a rugged metal top and fits Roland's optional K-25m or DK-01 accessory docks. There are a variety of input and output jacks on 1/8" connectors including a dedicated stereo headphone output, stereo line output, and stereo external audio input, as well as CV inputs for the VCF, CV pitch, gate, and trigger in and out. For MIDI control, the SE-02 offers full-sized, 5-pin DIN connectors for in and out, as well as a USB Micro-B connector, which enables audio and MIDI transmission. Chain two or more SE-02s to increase the polyphony for even greater sound explorations.
The 16-step sequencer adds motion and dimension to your sounds. It can sync to external tempo via MIDI, USB, or trigger input, and per-step gate time, adjustable glide, tempo, and patch number are stored with each sequence. Synth parameters can be automated by sequencing changes—just press a step and move a control. Creative performance features allow you to set shuffle, scale, direction, and first/last steps on the fly. The Roland SE-02 is powered by the included power cord and adapter. -
- Discrete analog circuitry with knob-per-function interface
- Three voltage-controlled oscillators with six waveforms
- Temperature-stabilized oscillators with automatic tuning
- 24 dB low-pass filter and dual gain-stage amplifier
- Three types of cross modulation (XMOD), feedback loop, and noise generator
- Tempo-syncing LFO with nine waveforms
- Tempo-syncing digital delay with bypass to maintain analog signal path
- Save and recall sounds with 384 preset and 128 user locations
- Musical and intuitive pattern sequencer with song mode
- Sequence notes, gate time, glide, and synth parameters
- CV, VCF CV, and gate inputs, plus trigger in/out
- External input for routing audio through the SE-02’s filter section
- Standard MIDI, USB-MIDI, and USB-audio
- Create a polyphonic synth by using Chain Mode to connect two or more SE-02s together via MIDI
UPC: 761294509937 In the Box Roland SE-02 Boutique Designer Series Analog Synthesizer AC Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland SE-02 Boutique Designer Series Analog Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland SE-02 Specs | Polyphony | 1 voice | | Presets | Preset Patch: 384 (3 banks x 128) | | User Memory | Patch: 128
Pattern: 128
Song: 16 | | Oscillators | Osc 1, Osc 2, Osc 3 (Osc 3 is also available as LFO)
Waveform: Triangle, sawtooth, triangle + sawtooth (OSC 1, 2 only), reverse sawtooth (OSC 3 only), square 1-3 | | Controllers | Common Section
Value knob
Tempo LED
Mode select switch
Function select buttons
1–16 buttons
Display
Manual button
Control Section
Glide knob
Type switch
Whl Mix knob
Oscillator Section
VCO 1
Range knob
Tune knob
Waveform knob
VCO 2
Range knob
Fine knob
Waveform knob
VCO 3
Range knob
Fine knob
Waveform knob
Sync switch
Env1 knob
Kybd switch
XMod to MW switch
XMod Section
O2-Filter knob
O3-O2 knob
O3-PW1, 2 knob
Mixer Section
Osc1 knob
Osc2 knob
Osc3 knob
Feedback knob
Noise knob
Filter/Envelope Section
Filter
Cutoff knob
Emphasis knob
Key Track 1/3, 2/3 switch
Contour knob
MTrig switch
Norm/Invert switch
Filter Envelope
Attack knob
Decay knob
Sustain knob
Amp Envelope
Attack knob
Decay knob
Sustain knob
Rel switch
LFO/Gate switch
Gate LED
LFO Section
Rate knob
Osc knob
Wave knob
Filter knob
MWhl switch
Mode switch
Sync switch
Delay Section
Time knob
Regen knob
Amount knob | | Effect | Delay | | Connectors | Phones: Stereo miniature phone
Output: Stereo miniature phone
Ext Input: Miniature phone
VCF CV Input: Miniature phone
CV Input: Miniature phone
Gate Input: Miniature phone
Trigger In: Miniature phone
Trigger Out: Miniature phone
MIDI Connectors: In, out
USB Port: USB Micro-B type (audio, MIDI) | | Power Supply | AC adapter (PSB-1U) | | Current Draw | 2 A | | Dimensions (W x D x H) | 11.8 x 5.0 x 1.8" / 300.0 x 128.0 x 46.0 mm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 13.9 x 7.1 x 5.1" |
