User Manual for Roland SPD::ONE KICK Percussion Pad Click to enlarge the picture
Contents of the user manual for the Roland SPD::ONE KICK Percussion Pad
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
 |
User manual for the Roland SPD::ONE KICK Percussion Pad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

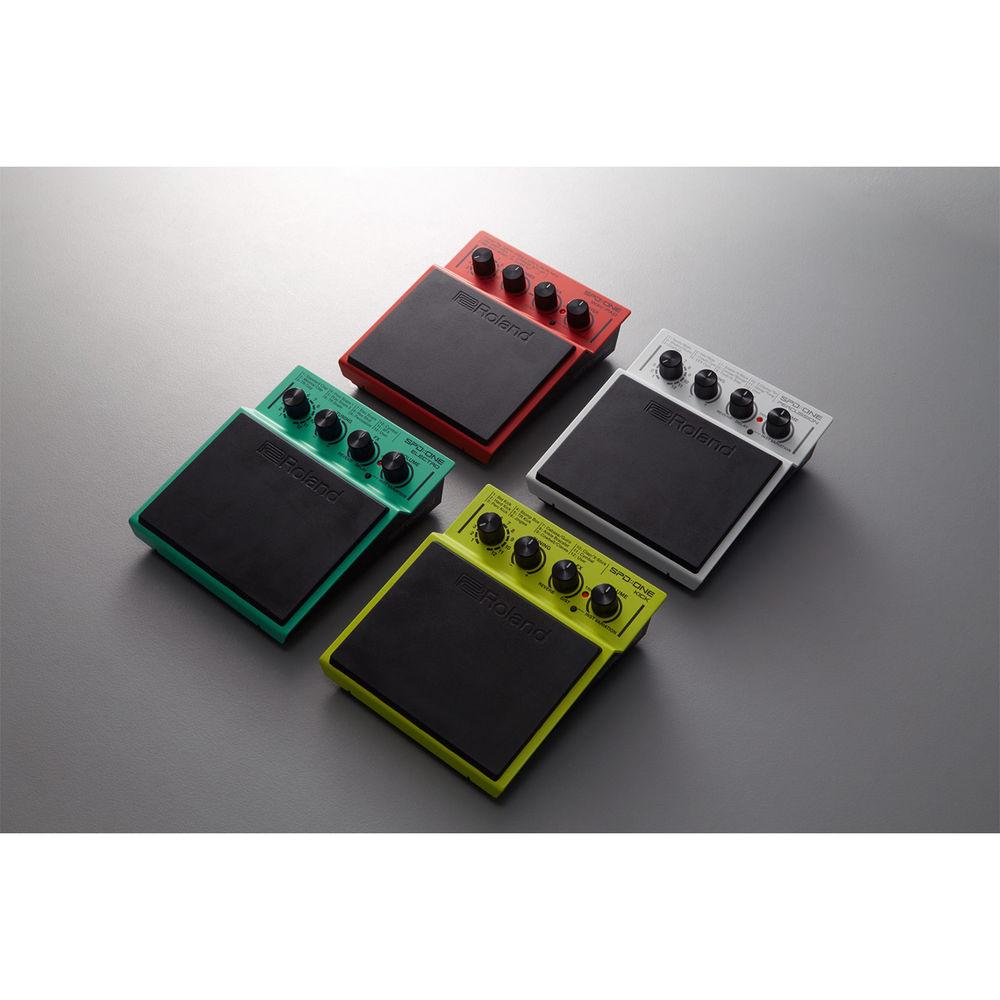

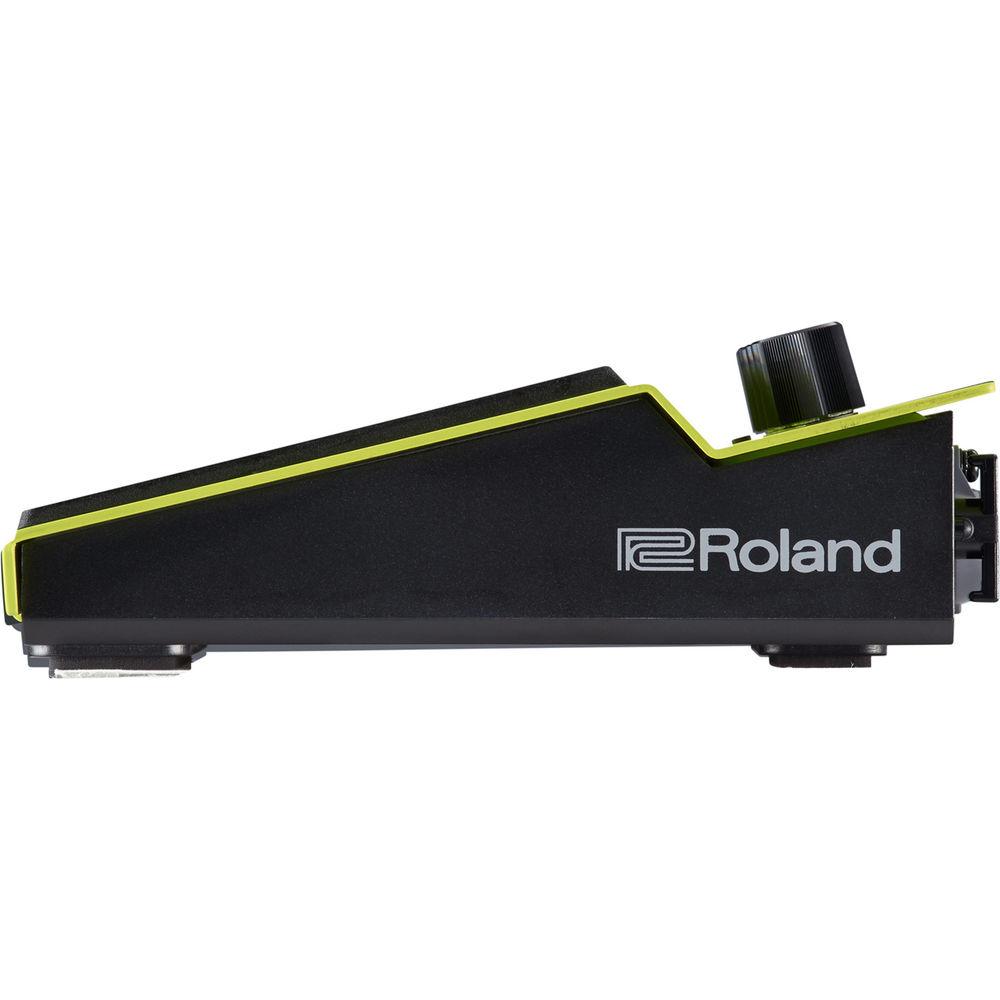

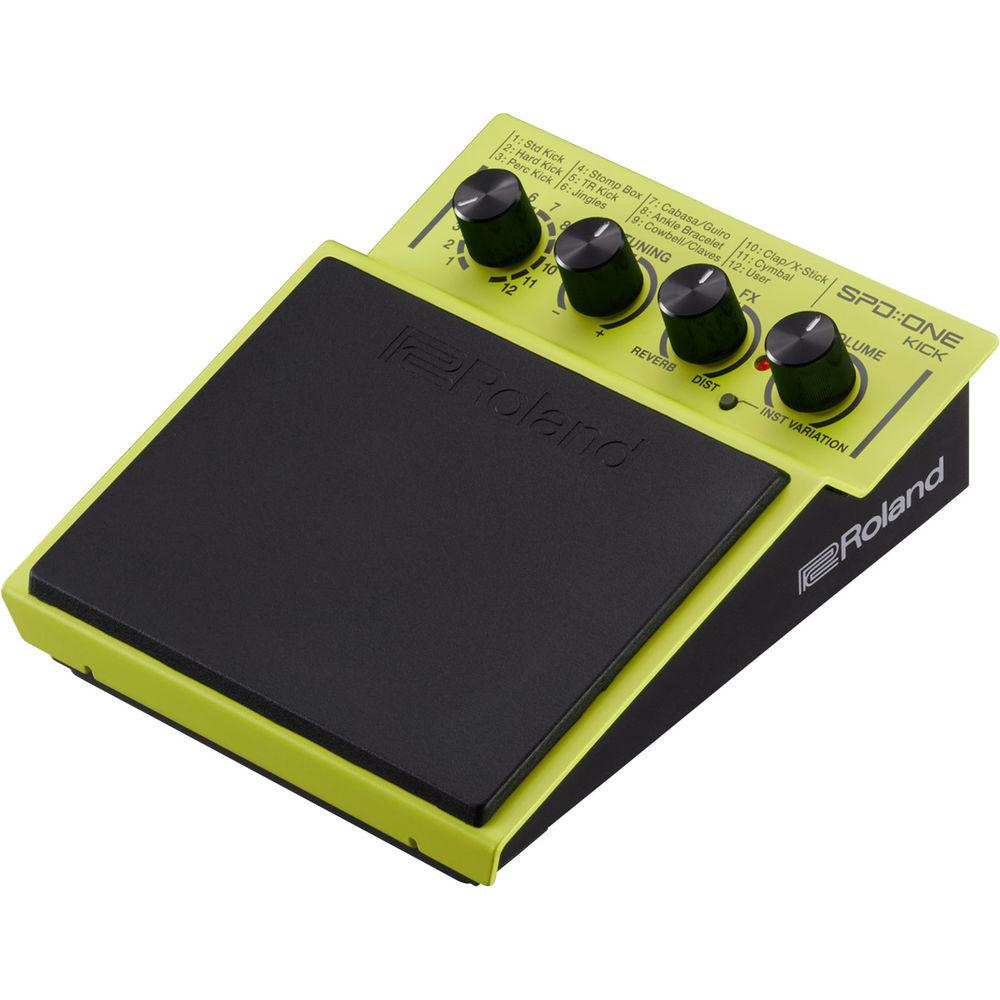

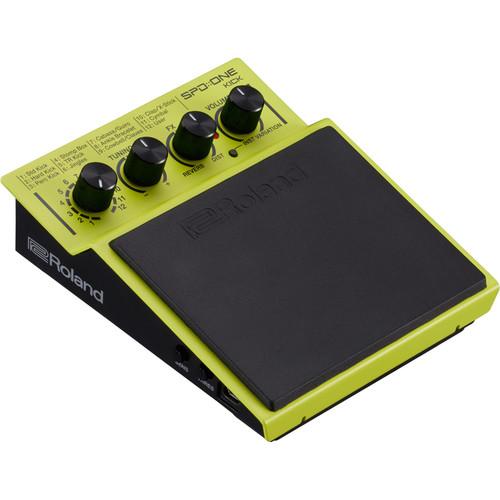

Product description Roland SPD::ONE Series Digital Percussion Pads Read More The SPD::ONE KICK Percussion Pad from Roland allows musicians to add kick drum and percussion sounds to their performances. It contains 22 sounds, including kick drums, stomp box, shakers, cowbells, and more, and can be played with sticks, hands, or feet. You can also import your own original audio data into one of the 12 internal sound banks. Powered by batteries or AC, the portable SPD::ONE KICK Percussion Pad can be placed on the floor, a tabletop, or mounted to any rig or drum setup with the included mounting adapter. Operation is simple with just four knobs on the control panel. You can change the sound, volume, balance, and more. Additionally, you can adjust sensitivity and trigger threshold settings quickly by using two control dials on the side of the unit. If you're a drummer, percussion player, guitarist, DJ, or vocalist, the SPD::ONE KICK is a simple and flexible way to expand your sound palette and invigorate your performances. - Light, compact digital percussion pad that can be played with drumsticks, hands, or feet
- 22 onboard sounds including kick drum and percussion sounds
- Import your own WAV data via USB to one of the 12 sound banks

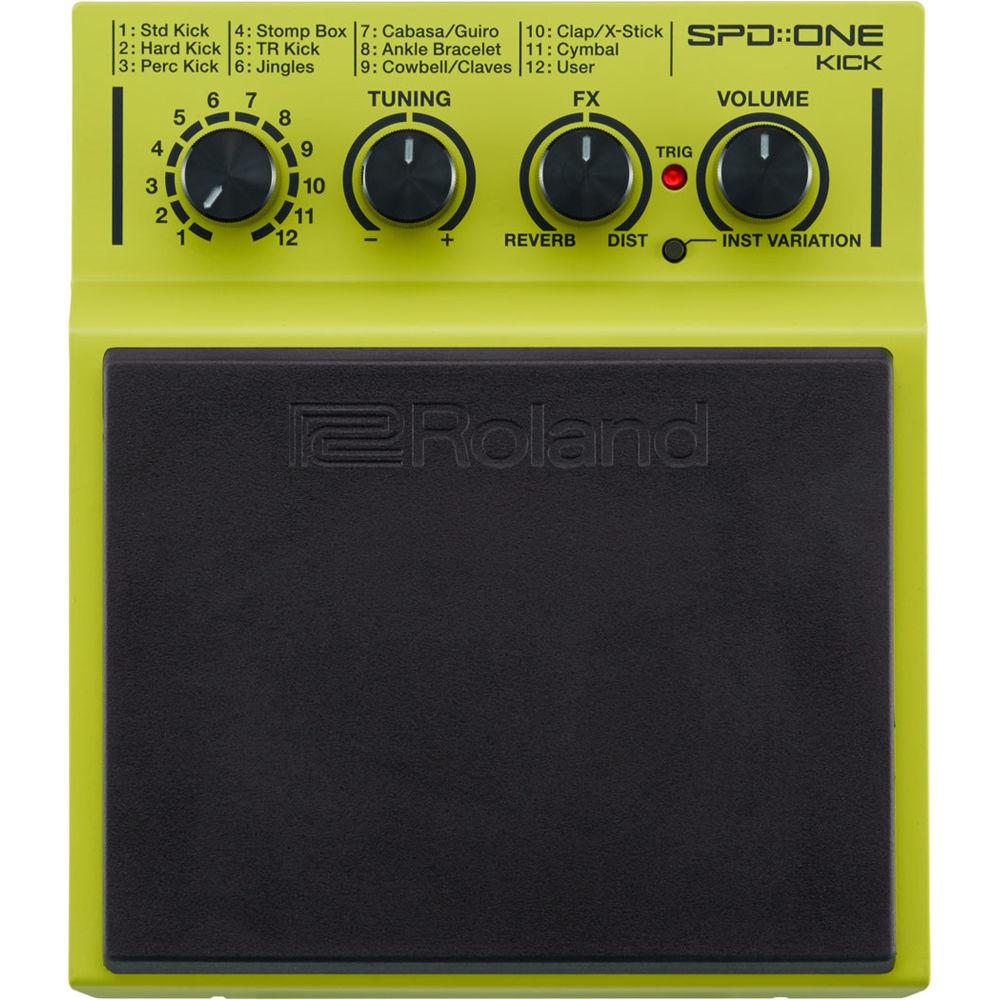

- Edit and control your sounds easily with just four knobs

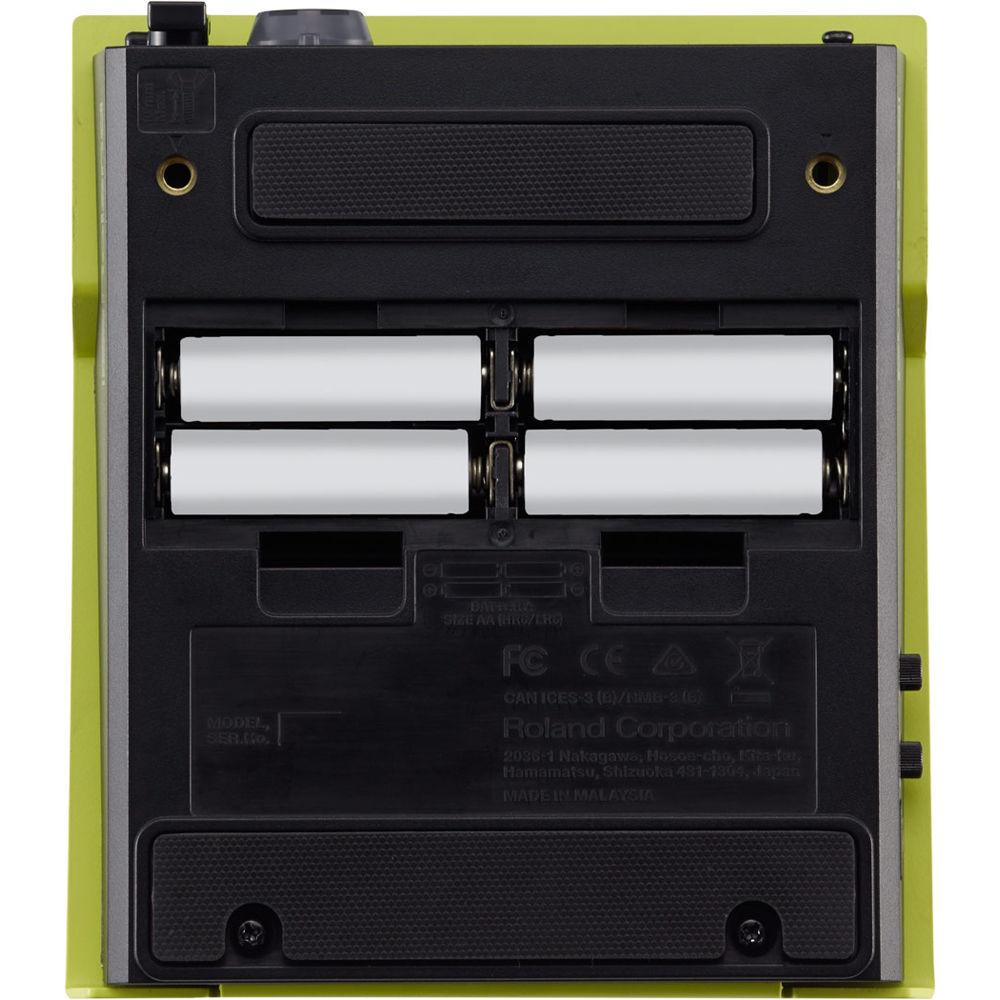

- Powered by batteries (4 x AA) or an AC adapter
- Main output (mono) and headphones output (stereo) for monitoring
- USB-MIDI enables use as a pad controller for music software

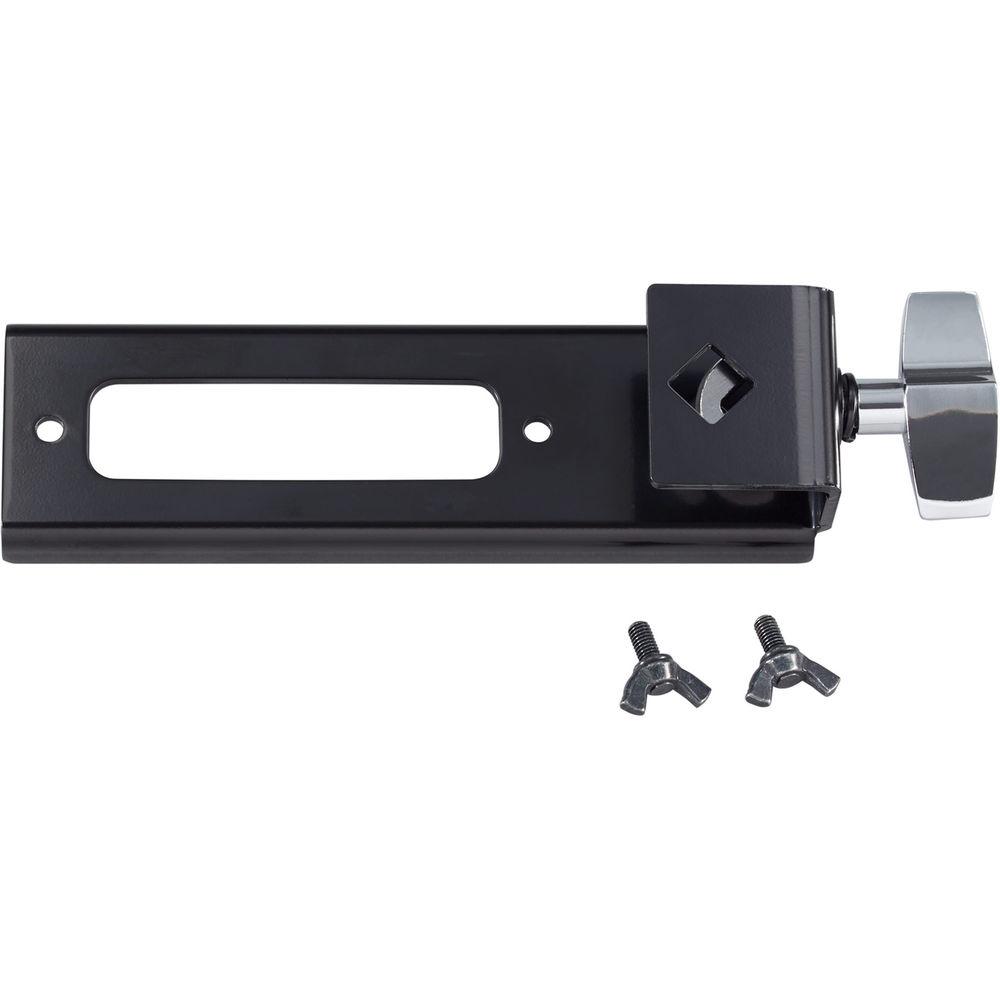

- Can be floor- or tabletop-mounted, or fitted to drum hardware and mic stands using the included mounting adapter
UPC: 761294510667 In the Box Roland SPD::ONE KICK Percussion Pad Mounting Attachment 2 x Attachment Screws Holder Mounting Screws (Bolt x 1, Nut x 1, Washers x 2) 4 x Alkaline Batteries (AA, LR6) Limited 90-Day Warranty for Labor Limited 1-Year Warranty for Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland SPD::ONE KICK Percussion Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland SPD-1K Specs | Instruments | 22 | | Sampler | Number of User Samples: 1
Sound Length: 5 seconds
Data Format: WAV (16-bit/44.1 kHz, mono/stereo) | | Controls | Instrument knob
Tuning knob
FX knob
Volume knob
Instrument variation button

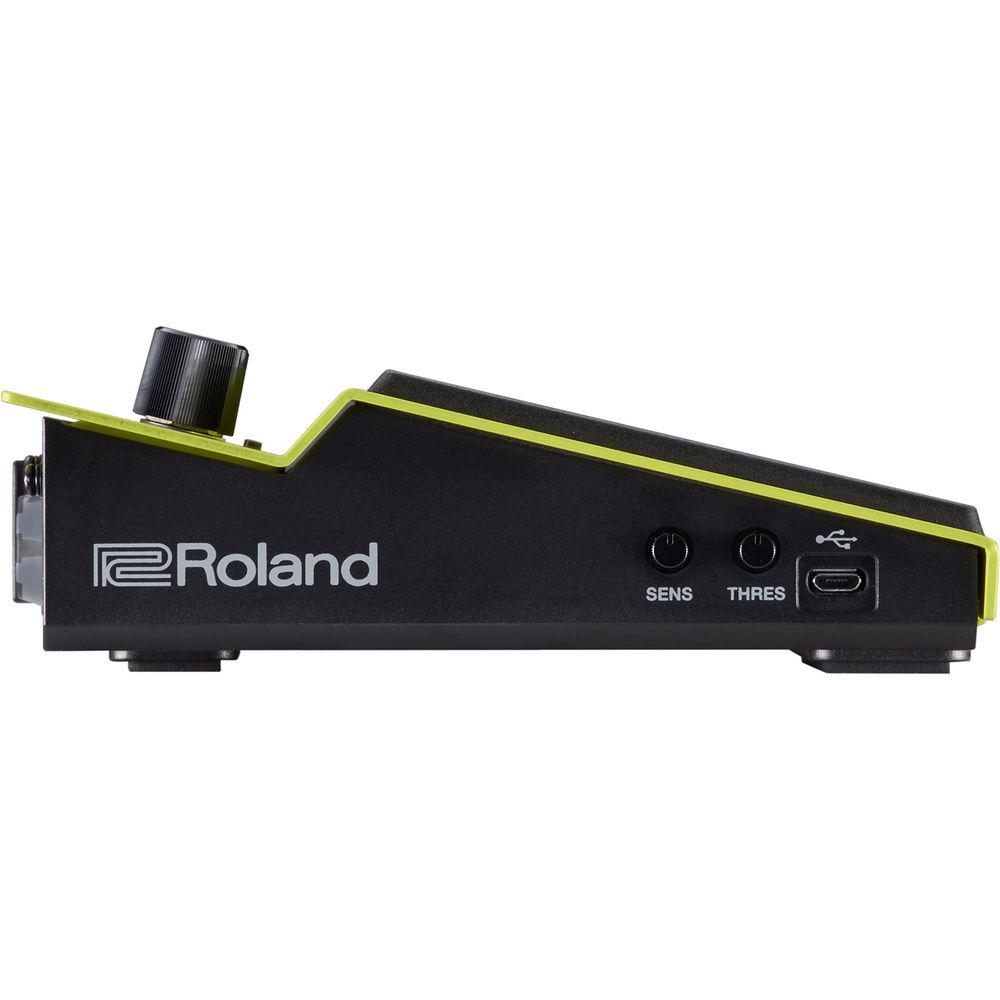

Threshold knob
Sensitivity knob
Power switch | | Effects | Reverb, delay | | Indicators | Trig indicator | | Connectors | Output (Mono) Jack: 1/4" (6.3 mm) phone type
Headphones Jack: Stereo 1/4" (6.3 mm) phone type
USB Port: USB Micro-B type
DC-in jack | | USB | MIDI
Mass storage class | | Power Supply | Rechargeable NiMH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC adapter (9 VDC) | | Current Draw | 300 mA (DC input) | | Battery Life | Rechargeable NiMH Battery (AA, HR6): Normal use is approx. 7 hours (4 hours maximum load)
Alkaline Battery (AA, LR6): Normal use is approx. 6 hours (3 hours maximum load) | | Dimensions (W x D x H) | 5.5 x 6.3 x 2.2" (140 x 160 x 56 mm) | | Weight | 2 lb (900 g) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 10.7 x 9.1 x 4.0" |
