User Manual for Roland SPD::ONE WAV PAD Percussion Pad Click to enlarge the picture
Contents of the user manual for the Roland SPD::ONE WAV PAD Percussion Pad
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
 |
User manual for the Roland SPD::ONE WAV PAD Percussion Pad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

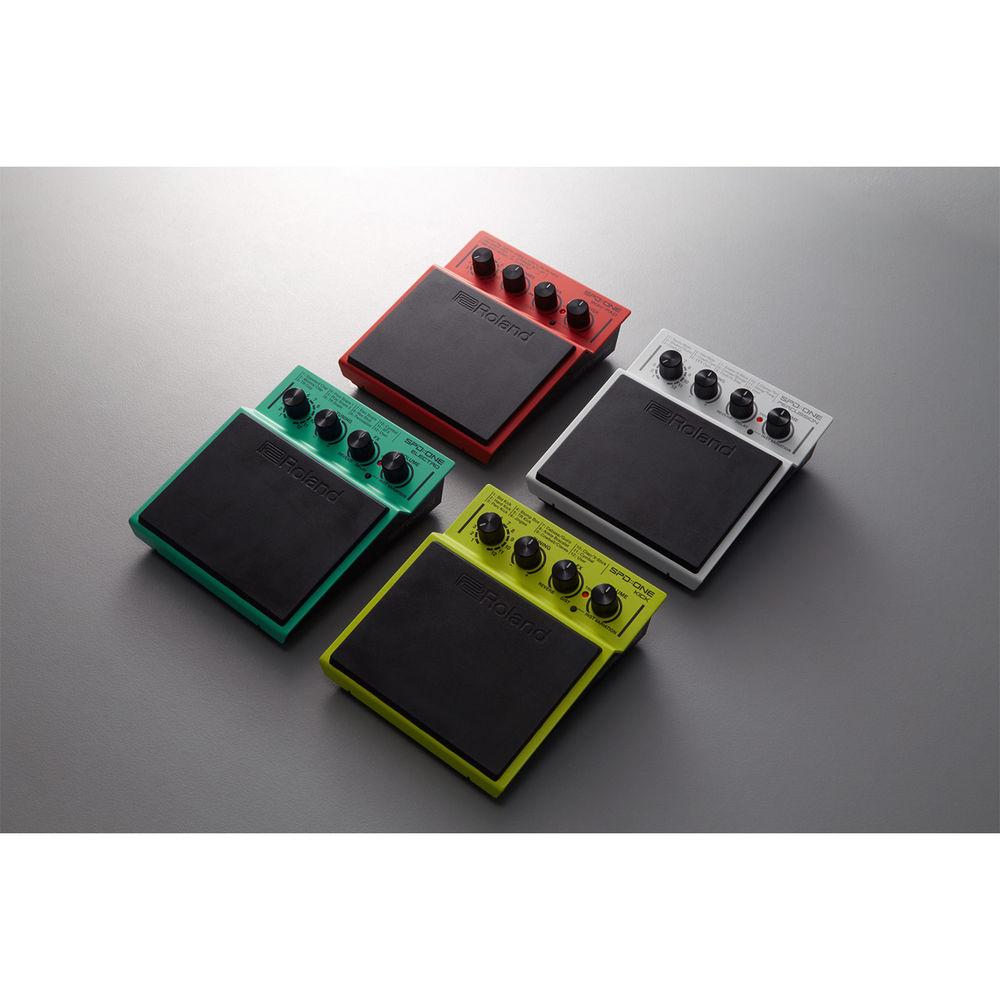

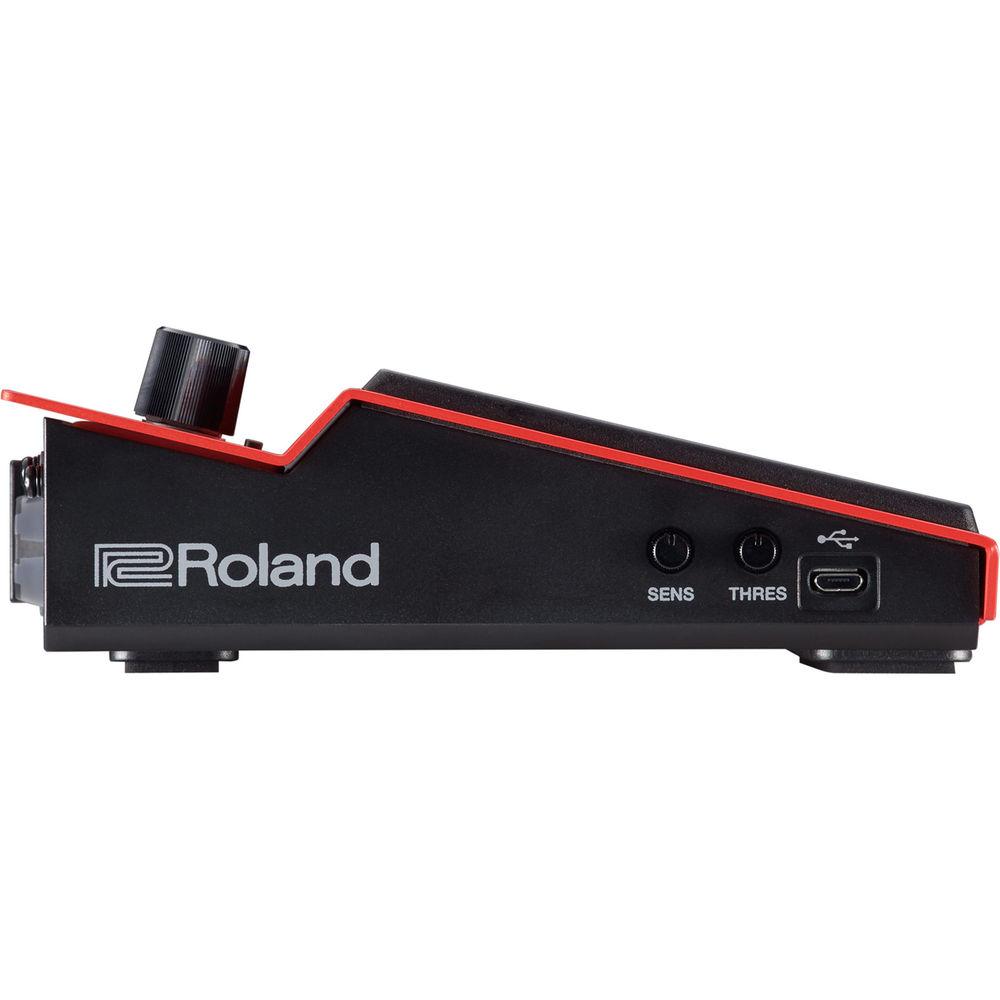

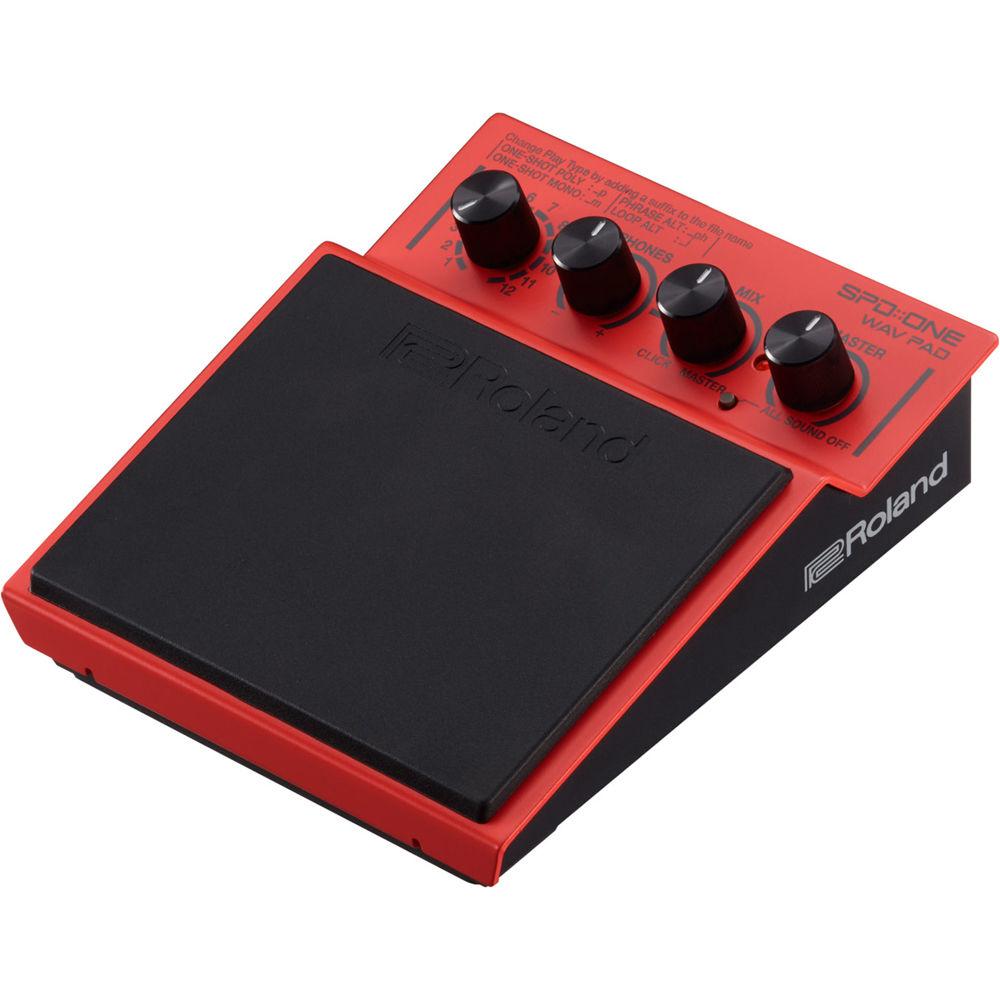

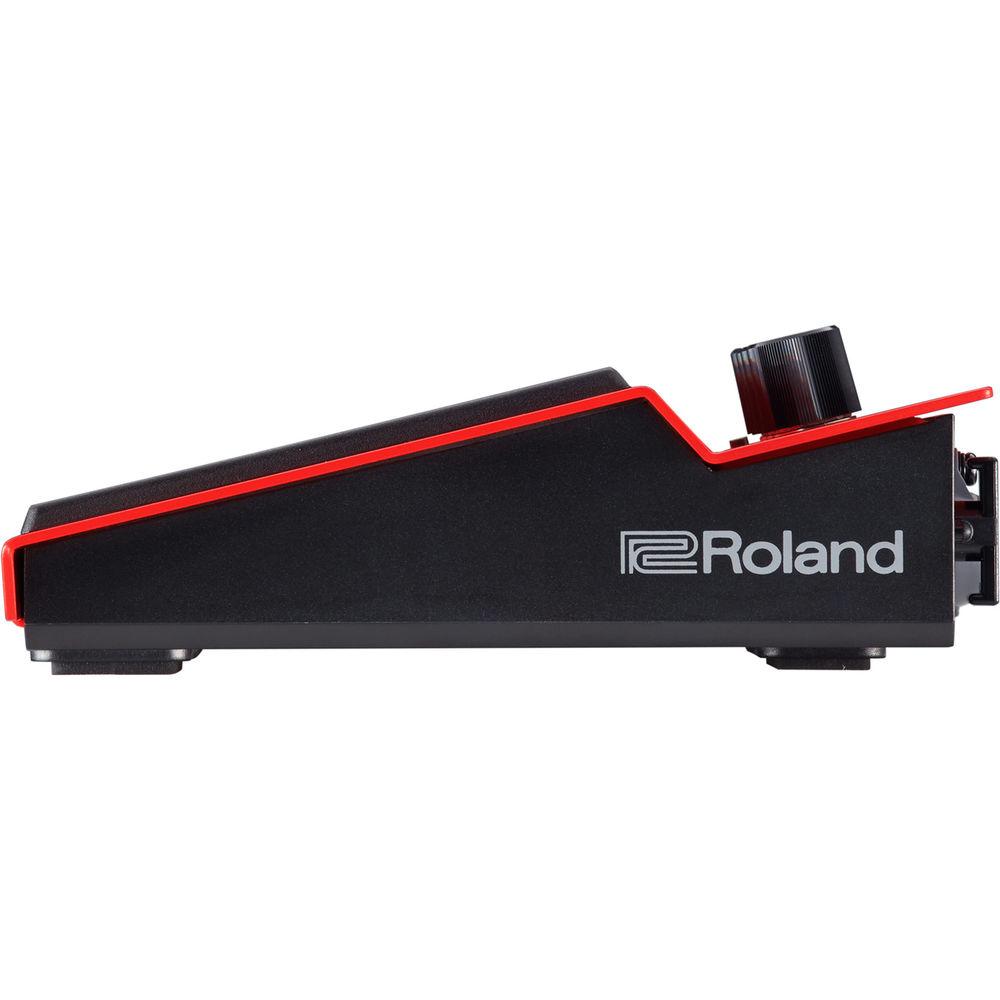

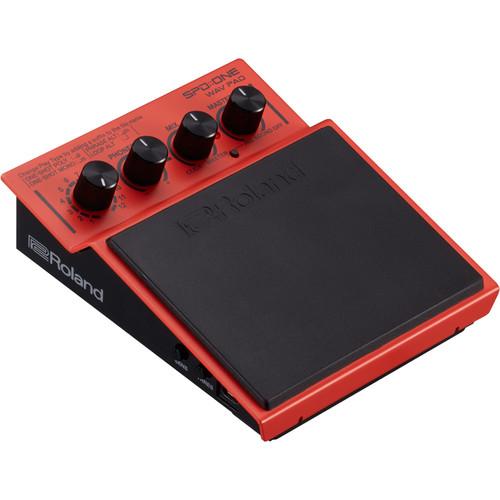

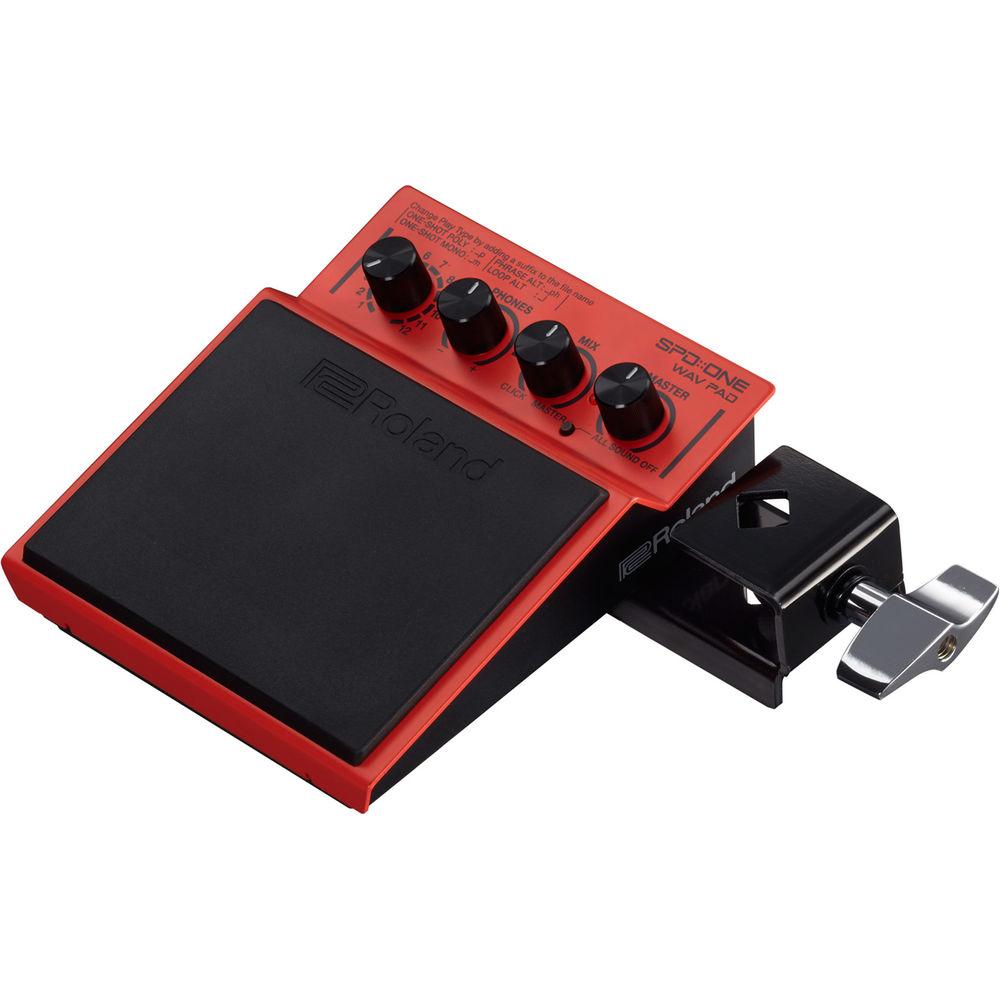

Product description Roland SPD::ONE Series Digital Percussion Pads Read More The SPD::ONE WAV PAD Percussion Pad from Roland allows musicians to perform with their own sounds and samples. Import your audio files by connecting the SPD::ONE WAV PAD to a Windows or Mac computer and dragging your WAV files into the drive that appears on the desktop. Once you're ready to go, the unit's pad can be played with sticks, hands, or feet. Powered by batteries or AC, the portable SPD::ONE WAV PAD percussion pad can be placed on the floor, a tabletop, or mounted to any rig or drum setup with the included mounting adapter. Operation is simple with just four knobs on the control panel. You can change the sound, volume, balance, and more. Additionally, you can adjust sensitivity and trigger threshold settings quickly by using two control dials on the side of the unit. If you're a drummer, percussion player, guitarist, DJ, or vocalist, the SPD::ONE WAV PAD is a simple and flexible way to expand your sound palette and invigorate your performances. - Light, compact digital percussion pad that can be played with drumsticks, hands, or feet
- Import your original WAV sound data by connecting to a computer via USB and dragging and dropping files

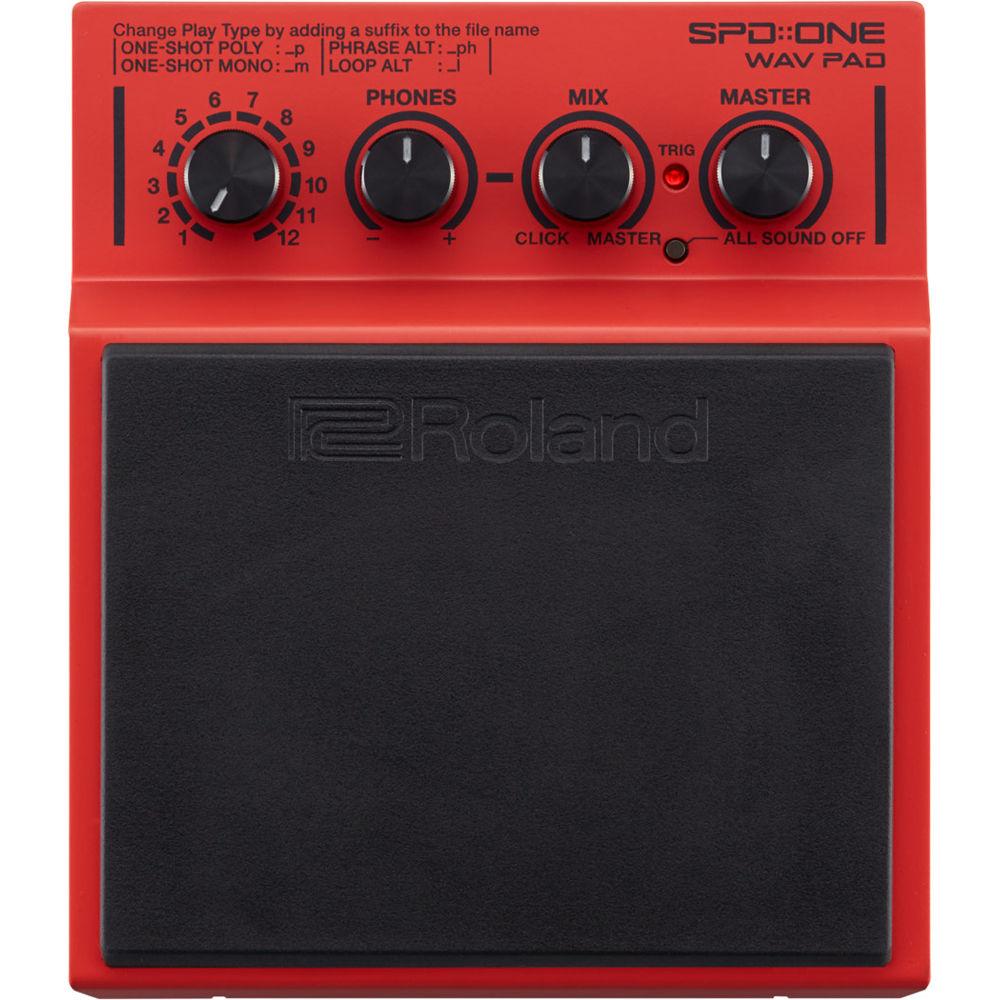

- Edit and control your sounds easily with just four knobs

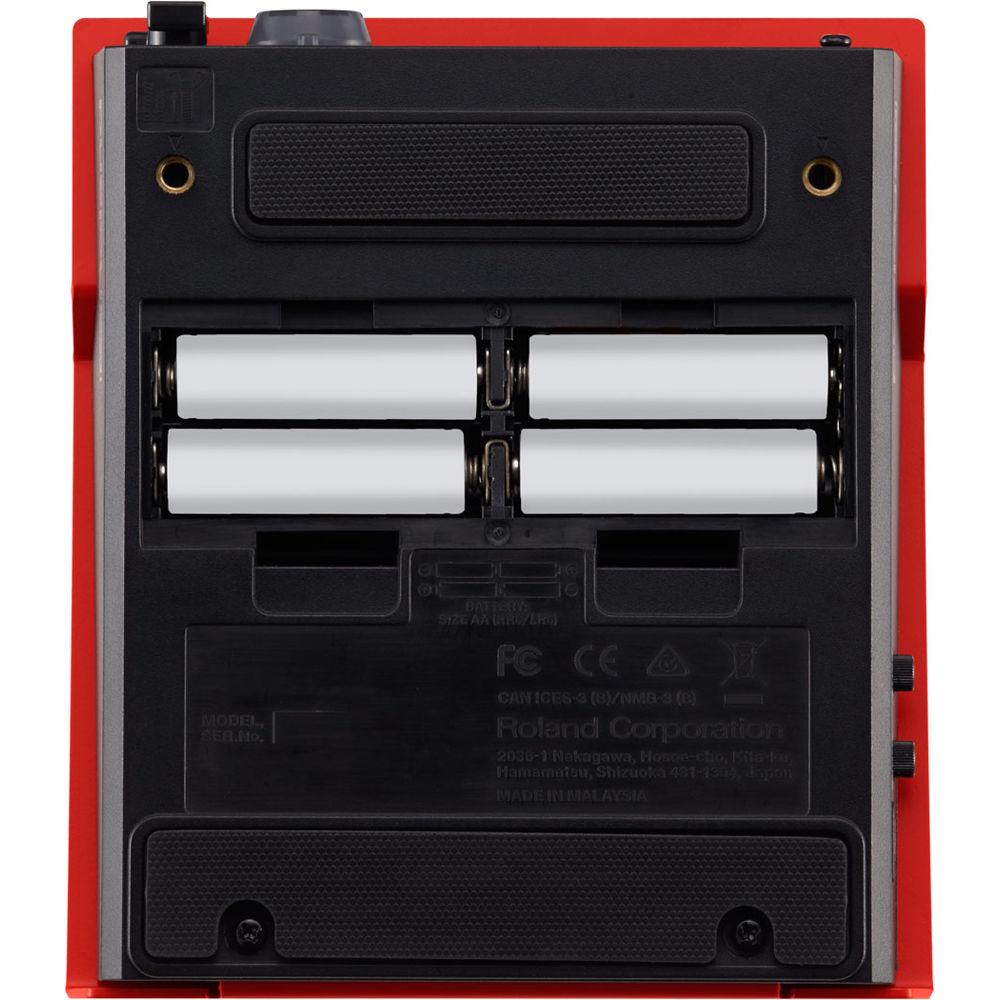

- Powered by batteries (4 x AA) or an AC adapter
- Main output (mono) and headphones output (stereo) for monitoring
- USB-MIDI enables use as a pad controller for music software
- Can be floor- or tabletop-mounted, or fitted to drum hardware and mic stands using the included mounting adapter

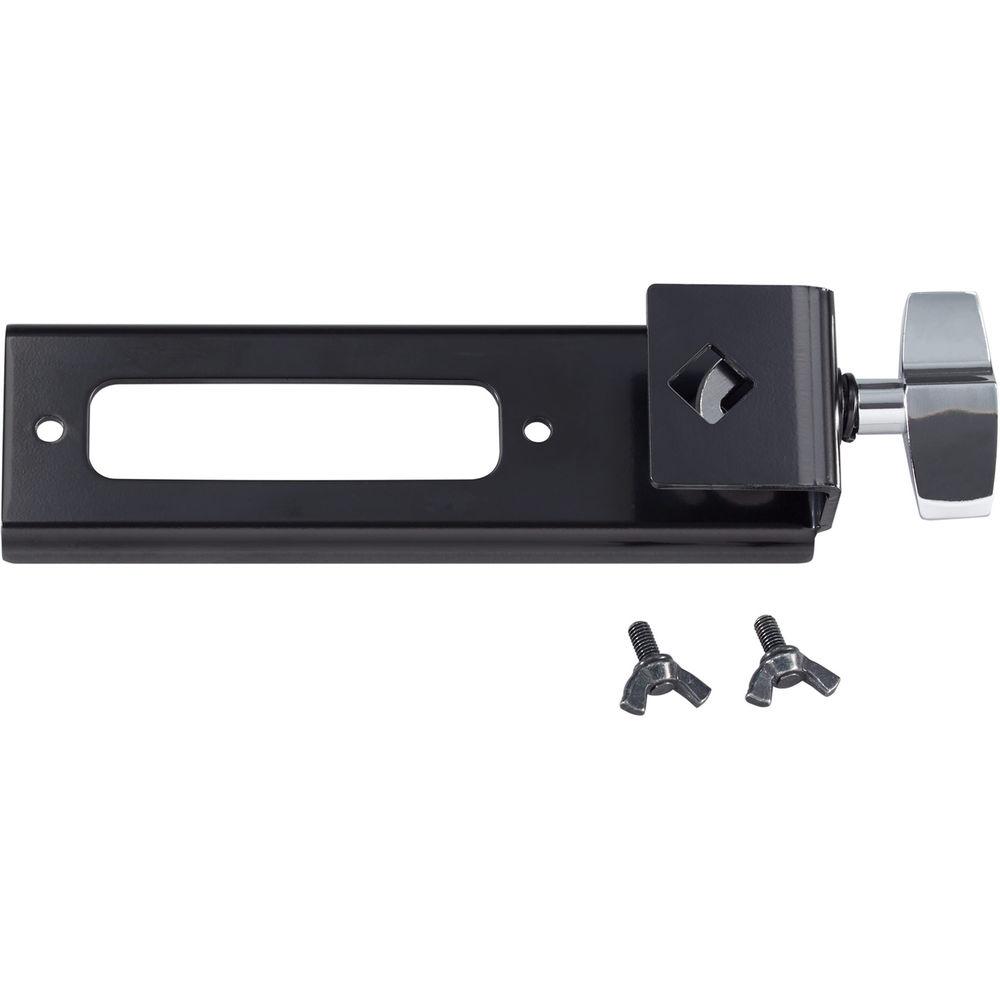

UPC: 761294510681 In the Box Roland SPD::ONE WAV PAD Percussion Pad Mounting Attachment 2 x Attachment Screws Holder Mounting Screws (Bolt x 1, Nut x 1, Washers x 2) 4 x Alkaline Batteries (AA, LR6) Limited 90-Day Warranty for Labor Limited 1-Year Warranty for Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland SPD::ONE WAV PAD Percussion Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland SPD-1W Specs | Number of Recordable Wave Data | 12 (layer and click waves data are excluded) | | Memory | 4 GB (approximately 6 hours in stereo) | | Data Format | WAV (16-bit/44.1 kHz, mono/stereo) | | Controls | WAVE knob
Phones knob
Mix knob
Master knob
All sounds off button
Threshold knob
Sensitivity knob

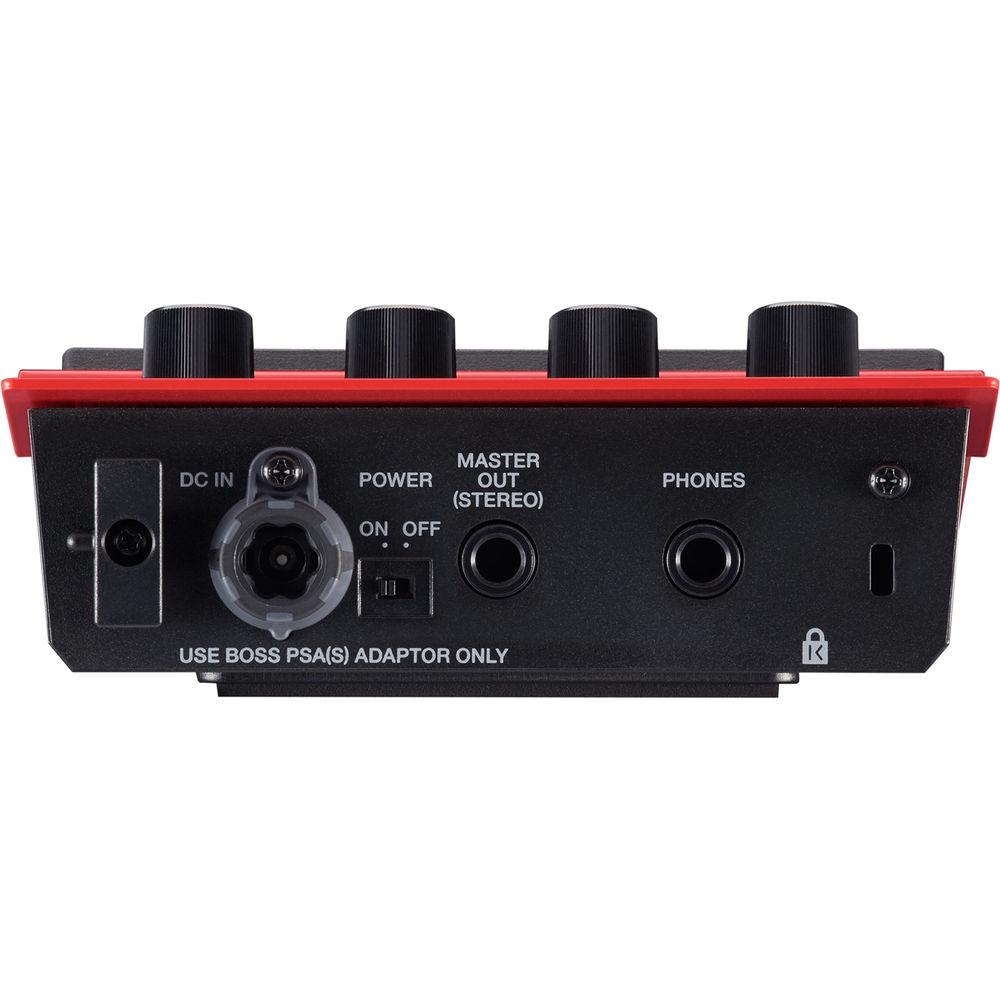

Power switch | | Indicators | Trig indicator | | Connectors | Master Output (Stereo) Jack: 1/4" (6.3 mm) phone type
Headphones Jack: Stereo 1/4" (6.3 mm) phone type
USB Port: USB Micro-B type
DC-in jack | | USB | MIDI
Mass storage class | | Power Supply | Rechargeable NiMH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC adapter (9 VDC) | | Current Draw | 300 mA (DC input) | | Battery Life | Rechargeable NiMH Battery (AA, HR6): Normal use is approx. 7 hours (4 hours maximum load)
Alkaline Battery (AA, LR6): Normal use is approx. 6 hours (3 hours maximum load) | | Dimensions (W x D x H) | 5.5 x 6.3 x 2.2" (140 x 160 x 56 mm) | | Weight | 2 lb (900 g) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 10.4 x 9.3 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Roland SPD::ONE WAV PAD Percussion Pad
| Subject: inconsistency in Roland SPD-One Wav Pad user manual | | Date: 02.02.2023 00:03:32 | Name: Kurt | HI
The product description says this:
Main output (mono) and headphones output (stereo) for monitoring
then the "technical parameters" say this:
Connectors
Master Output (Stereo) Jack: 1/4" (6.3 mm) phone type
Headphones Jack: Stereo 1/4" (6.3 mm) phone type.
(I wanted to run several of these into line level "Aux" inputs +this leads to several questions.
1. Is the Main output a Mono output or a Stereo output?
2. Is the main output BOTH?
3. Is the stereo headphone output just sending a (dual) MONO signal? (out of a TRS jack?)
4. When sending a dual mono signal out of a TRS jack, do TS cables work just as well? and is that why the "Main output" is listed as both "mono" and "stereo"?
5. Can a TRS cable be balanced or unbalanced? -and is one better if plugging an "SPD-ONE" into a typical stereo 1/8" "Aux" input jack (such as those found on most modern speakers [from computer speakers to the Bose S1], or the "Aux in" on an electric piano keyboard.) (Yes I know I'd have to get a custom cable made to go from the 1/4" out to the 1/8" in, but that is not the question. Question is WILL IT SOUND GOOD? or is there an incompatibility between whatever type of signal the SPD-ONE is putting out and what the average "Aux-in" jack needs to have sent in..
(sorry if this was long but all the questions sort of overlap, so it needed to be done, thanks+cheers!) | | Post reply |
