Product description

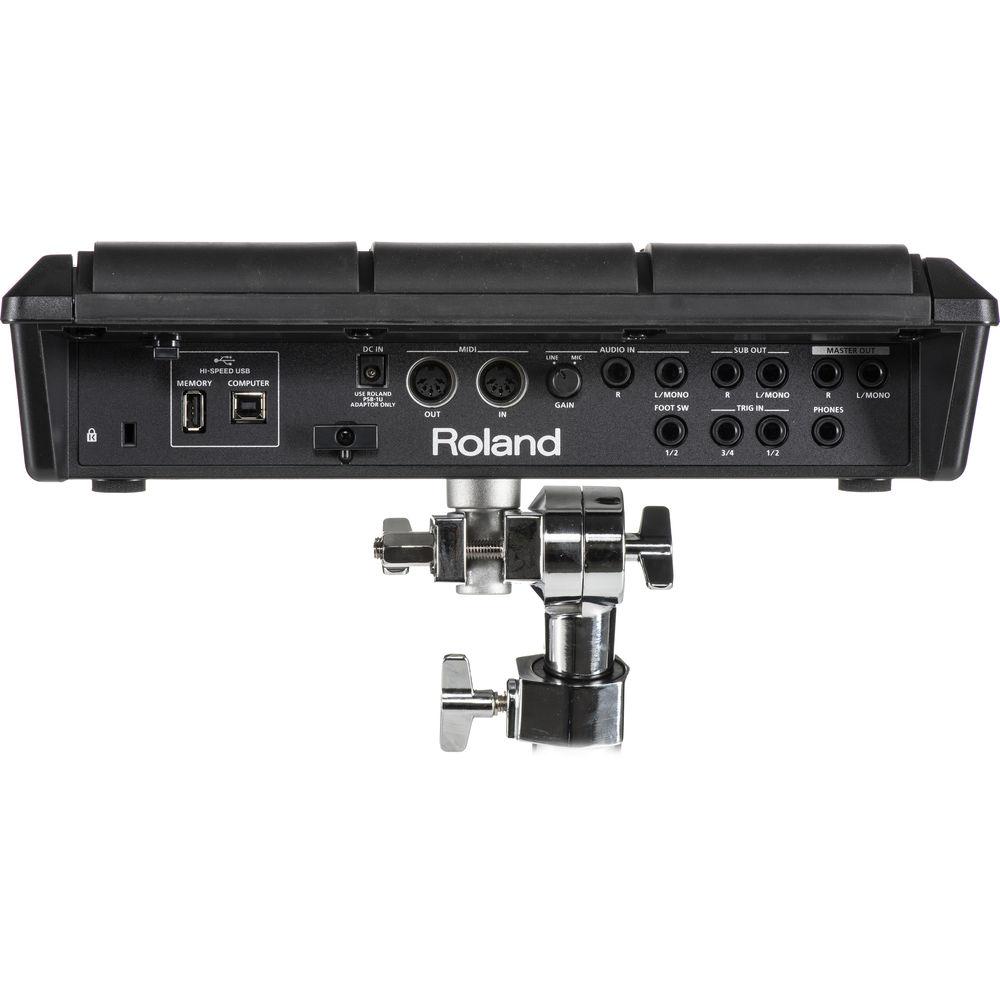

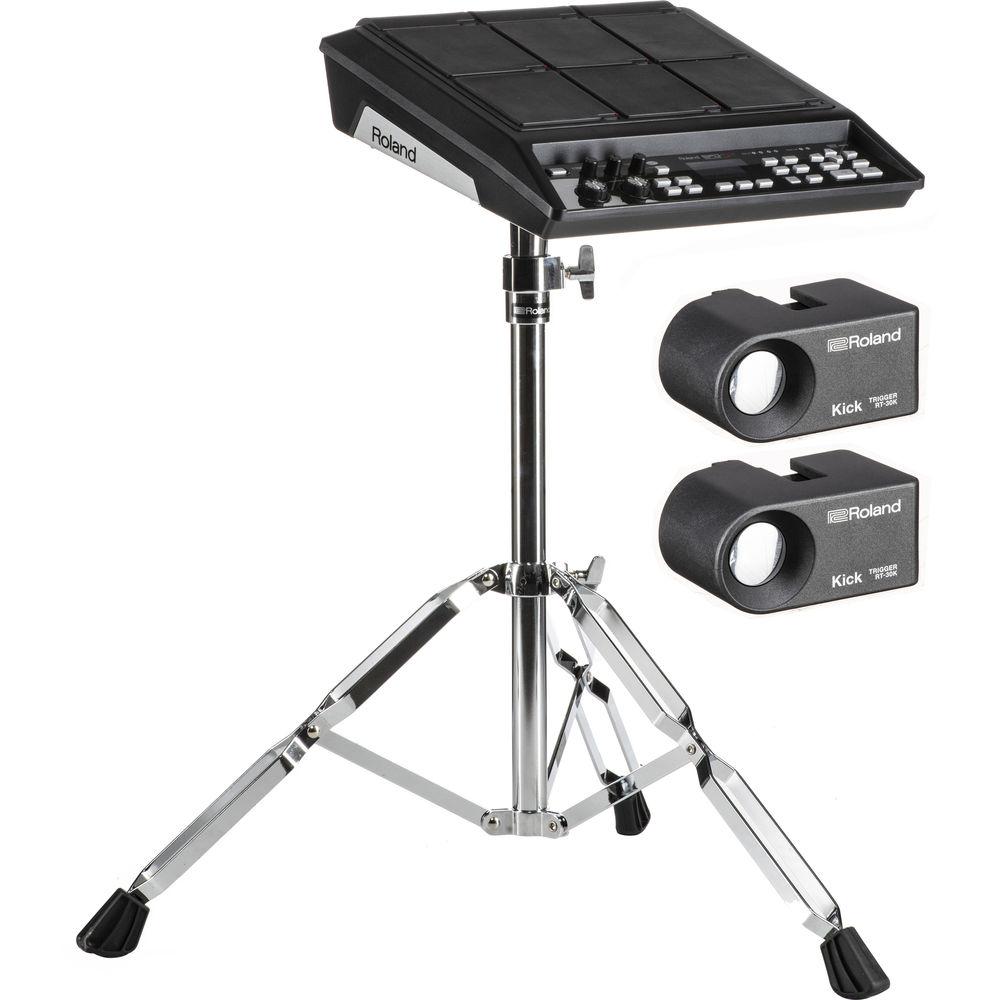

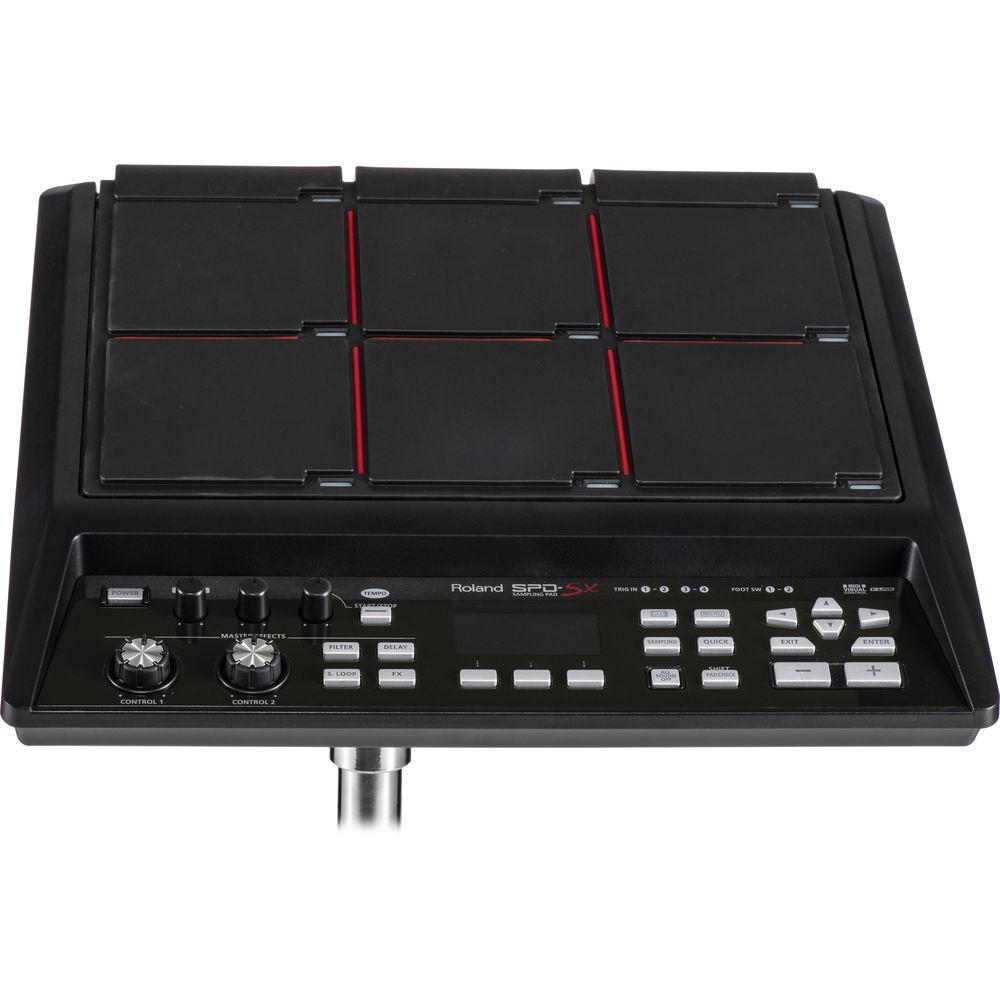

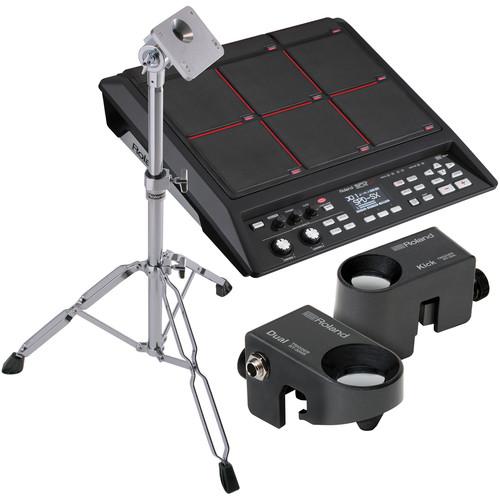

• SPD-SX Sampling Pad The SPD-SX Sampling Pad by Roland allows you to easily sample, capture, assign and play drum sounds and audio phrases on nine velocity sensitive drum pads. Each pad has a dedicated LED indicator that shows pad status and audio-level activity during performance. Ideal for home, studio or stage the SPD-SX has high-contrast red divider lines which help you see each pad zone clearly both onstage and in dimly lit environments. Equipped with 2GB of internal memory and a selection of pre-loaded sounds, the SPD-SX holds approximately six hours of samples - plenty of space to carry most sample libraries. However, if you've managed to compile a library the size of Timbaland's no need to worry; the SPD-SX was made with expansion in mind. Load and play samples directly from its built-in USB ports which support flash memory and mass storage drives along with USB MIDI/Audio transfer. Also, the included SPD-SX Wave Manager software allows you to connect a computer to import audio files, assign samples to any pad and organize them for easy access. To capture an audio sample from an external audio source, simply connect it to the SPD-SX; hit once to start the sample and again where you want it to end. It's just that simple. Once your samples have been loaded and are ready to be played, you can then start to manipulate them with three onboard multi-effects units controlled by four dedicated effect buttons and two real-time control knobs. The SPD-SX has twenty-one master effects including filter, delay and short looper as well as a built-in equalizer. Dial up these effects and access all pertinent information on the high contrast backlit LCD which provides easy-to-read data in most any environment. Drummers today are finding an ever increasing need to incorporate electronic sounds and audio samples into their performance. The SPD-SX enables them to do this while providing essential pro features such as individual click output routing, dedicated volume controls, Pad Check function, individual Sub Out and more. Not only is the SPD-SX packed with all the above features, it also includes multiple I/O options sure to accommodate most any application. The master out section includes two 1/4" outputs for connection to mixers and amplifiers and one 1/4" headphone jack. The input section includes two 1/4" left and right stereo/mono connectors with line and mic gain as well as a foot switch input for connecting a kick trigger and various other pedals. Also, two dual-trigger inputs allow you to expand the playing field by connecting external pads or acoustic drum triggers in addition to the nine pads on the SPD-SX. Not only can you expand the playing field, you can also access a limitless sound library with external sound modules via MIDI In and Out while also using the SPD-SX to control any MIDI compatible device or instrument.
  • Sample, capture, assign and play drum sounds and audio phrases on nine velocity sensitive drum pads
  • Easy capturing and assignment of sounds and audio phrases through Multi-Pad Sampling
  • Dedicated LED indicators show pad status and audio-level activity during performance
  • High-contrast red divider lines help you see each pad zone clearly onstage and in dimly lit environments
  • Internal memory holds approximately six hours of mono samples, three hours stereo
  • Built-in USB ports support flash memory, mass storage and USB MIDI/Audio data transfer
  • Included SPD-SX Wave Manager software allows you to import, assign and organize samples
  • Three onboard multi-effects units with four dedicated effect buttons and two real-time control knobs
  • Twenty-one master effects including filter, delay, short looper and built-in EQ
  • High contrast backlit LCD provides easy-to-read data in most any environment
  • Individual click output routing with dedicated volume control, Pad Check function and Sub Out
  • Two 1/4" outputs for connection to mixers and amplifiers and one 1/4" headphone jack
  • Two 1/4" left and right stereo/mono inputs with line and mic gain
  • Foot switch input for connecting a kick trigger and various other pedals
  • Two dual-trigger inputs allow connection of external drum pads or acoustic drum triggers
  • MIDI I/O allows connection of external sound modules for access to limitless sounds and control
  UPC: 761294501078

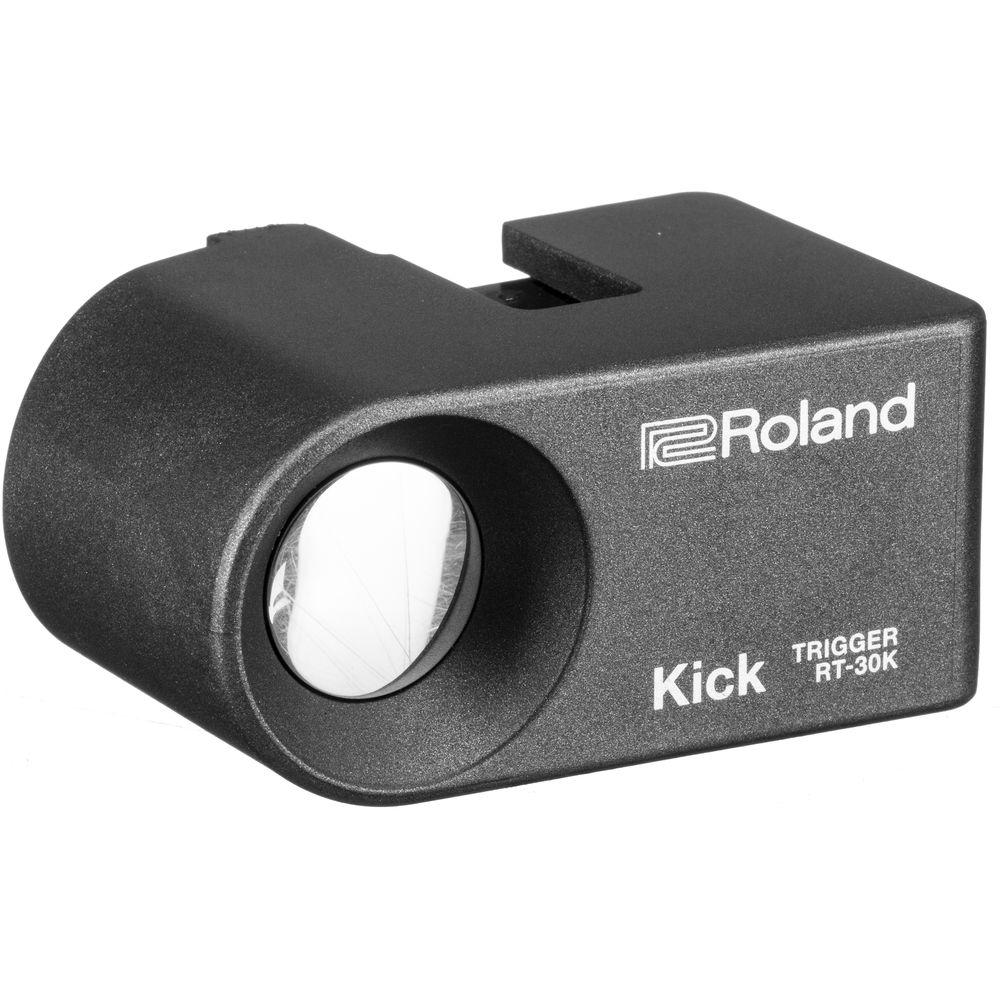

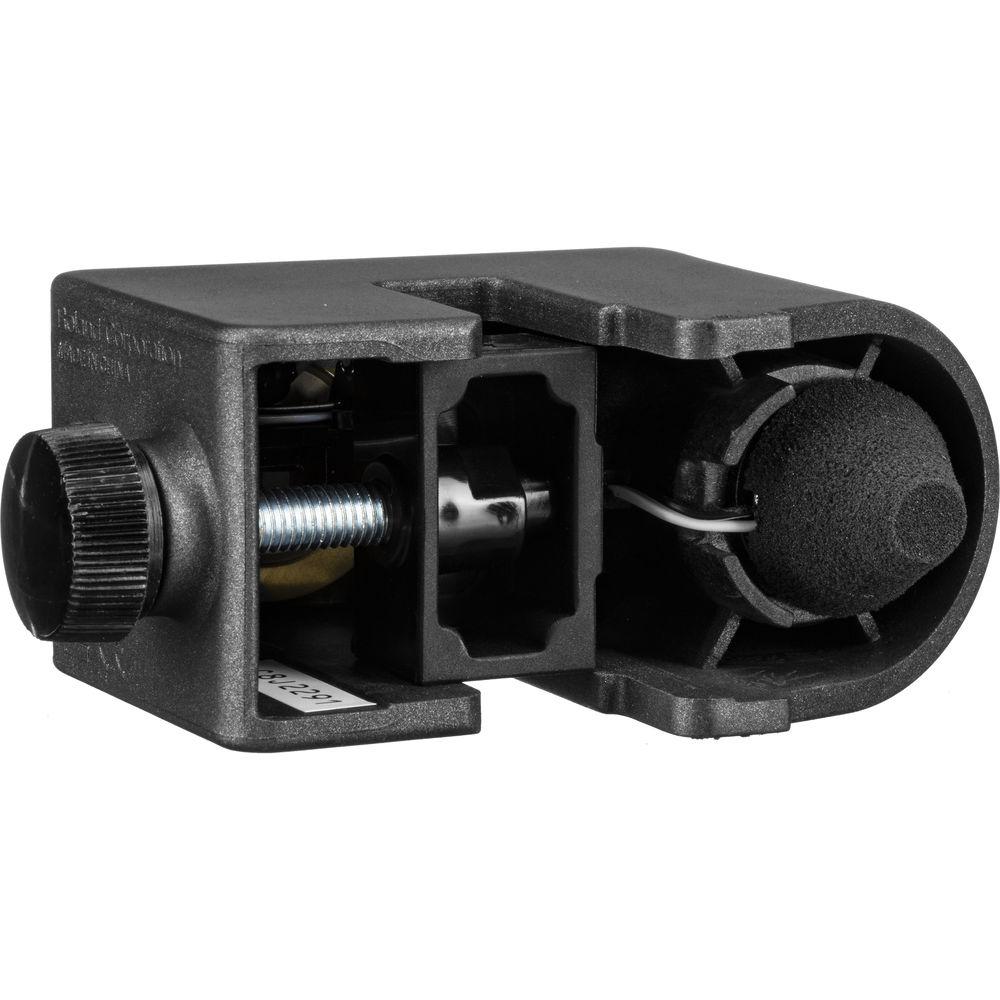

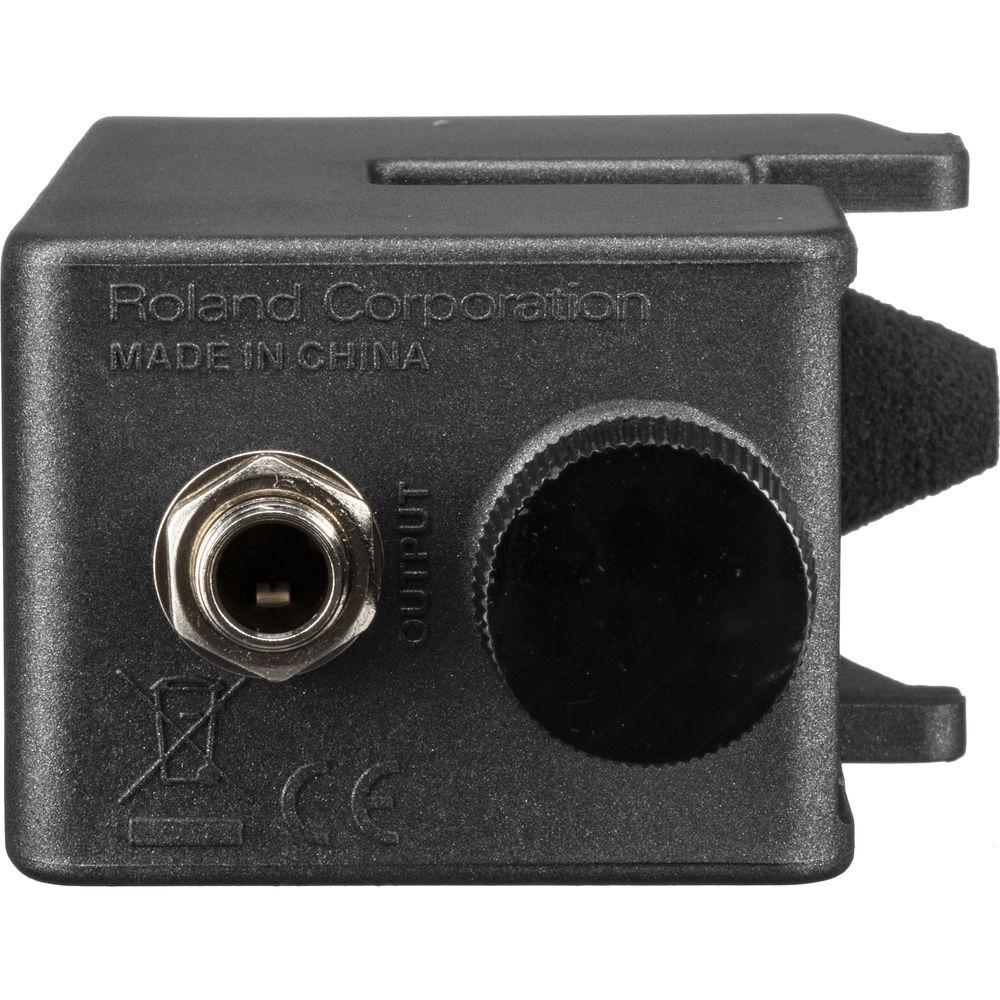

• RT-30K Acoustic Kick Drum Trigger Designed for streamlined setup for those who want to explore hybrid acoustic/electronic drumming, the RT-30K Acoustic Kick Drum Trigger from Roland attaches directly to your kick drum's rim, employing a self-guiding mount that eliminates the need for mechanical adjustment once mounted. The trigger features a fiberglass-reinforced ABS body as well as a protective grip designed to prevent marring on wooden bass drum hoops. A TRS cable is included.
  • Trigger device for playing electronic sources from an acoustic bass drum
  • Compatible with Roland's TM-2 Trigger Module, TD-series V-Drums sound modules, and SPD-series percussion pads
  • Installs on nearly any metal drum hoop, including inward-curved hoop styles
  • Self-guided mount for streamlined installation
  • Durable fiberglass-reinforced ABS body and secure mounting mechanism
  • Durable fiberglass-reinforced ABS body and secure mounting mechanism for dependable operation
  • Protective grip prevents marring of wood bass drum hoops
  • TRS connection cable included
  UPC: 761294507117
• RT-30HR Double Acoustic Drum Trigger Designed for streamlined setup for those who want to explore hybrid acoustic/electronic drumming, the RT-30HR Double Acoustic Drum Trigger from Roland attaches directly to your drum's metal rim, employing a self-guiding mount that eliminates the need for mechanical adjustment once mounted. Its head sensor allows it to be used on toms and snare drums, and supports independent head and rim triggering. Its 1/4" trigger output is side-mounted for cable management. A stereo TRS cable is included.
  • Head-based trigger device for playing electronic sources from acoustic drums
  • Compatible with Roland's TM-2 Trigger Module, TD-series V-Drums sound modules, and SPD-series percussion pads
  • Installs on nearly any metal drum hoop, including inward-curved hoop styles
  • Self-guided mount for streamlined installation
  • 10mm lower in profile than previous designs for increased playing comfort
  • Durable fiberglass-reinforced ABS body and secure mounting mechanism for dependable operation
  • Side-mounted trigger output jack for improved cable management
  • TRS connection cable included
  UPC: 761294506561

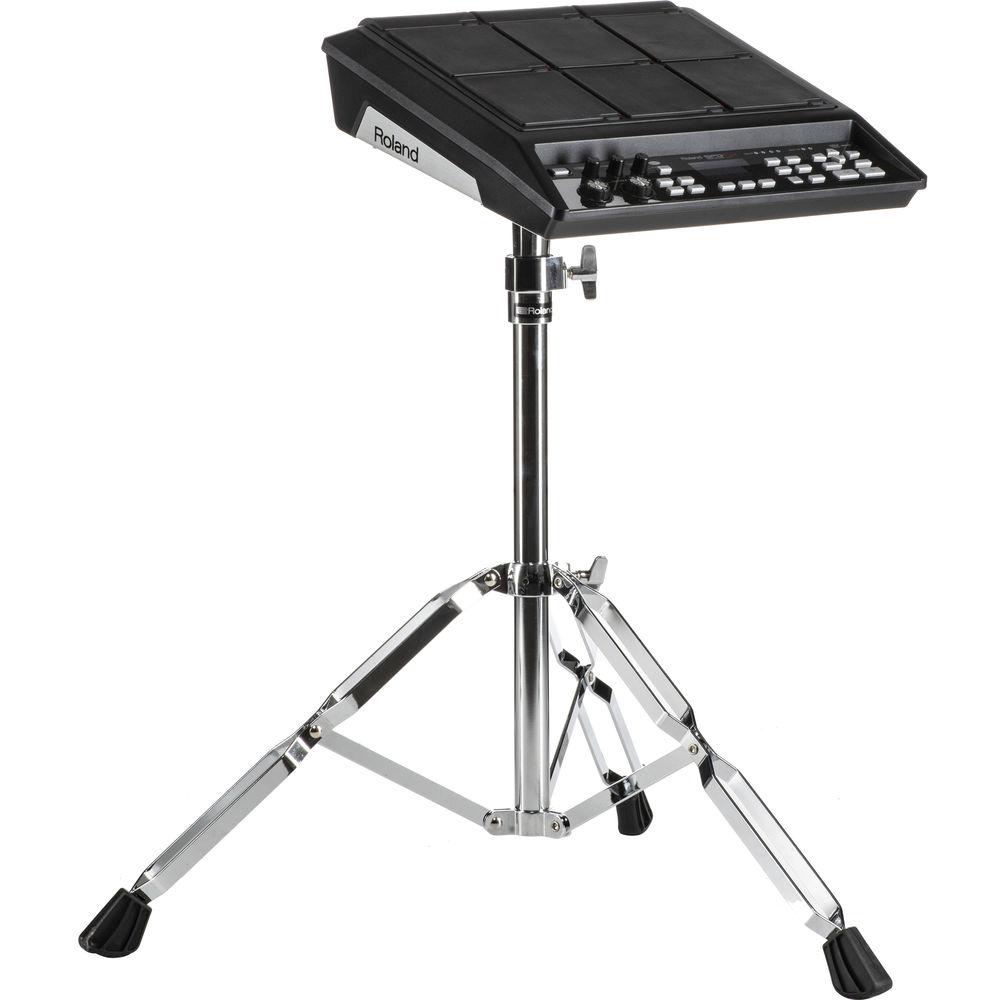

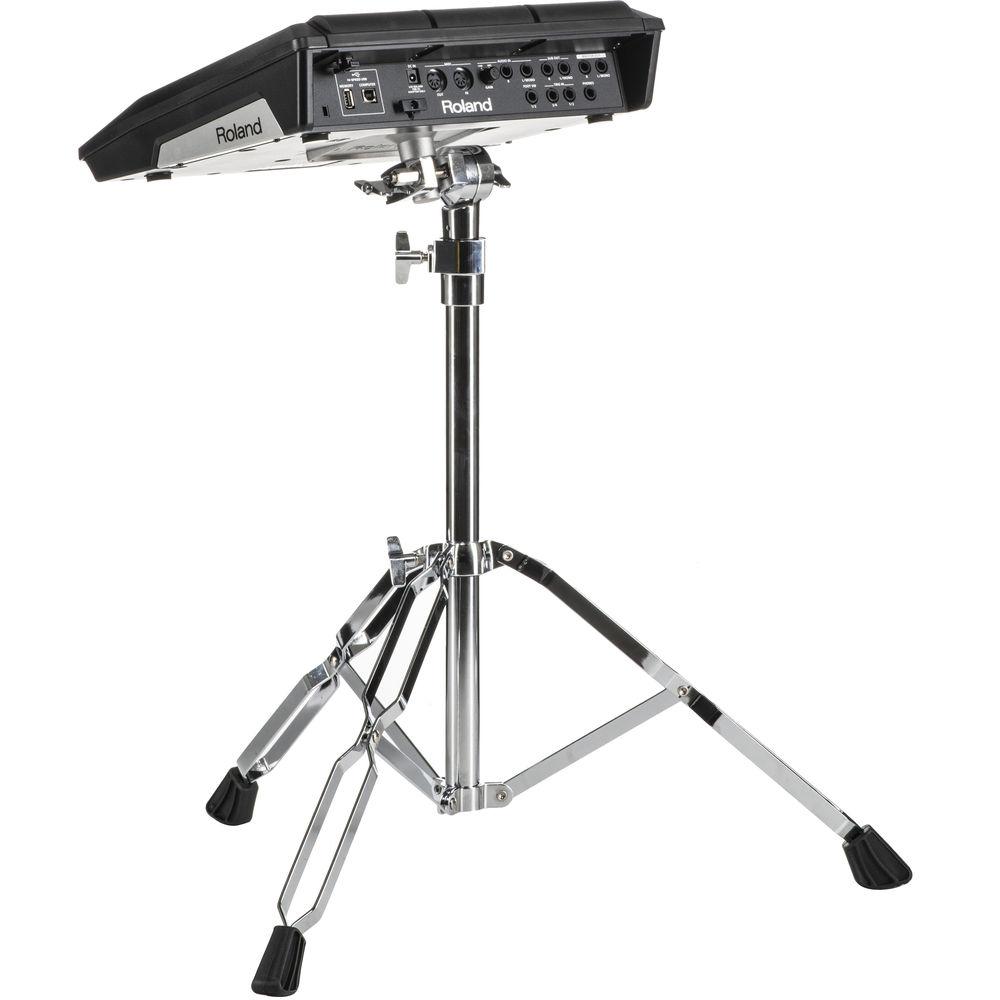

• PDS-10 - Pad Stand for HPD and SPD Series The PDS-10 from Roland is a double-braced tripod pad stand for use with the HPD and SPD series instruments. It features an angle-adjustment clamp with 200 degrees of tilt and a two-section center pipe for easy height adjustments.
  • Support stand for HPD and SPD series instruments
  • Double-braced tripod with an adjustable two-section pipe for use while standing or sitting
  • Adjustable head provides 200 degrees of tilt
  UPC: 761294089880

• AC Adapter

• CD-ROM SPD-SX Wave Manager, USB Driver and Preload Wave Data

• Limited 1 Year Warranty / 90 Days Labor

• 11.5' (3.5 m) Stereo Cable

• Limited 1-Year Warranty

• 11.5' (3.5 m) Stereo Cable

• Limited 1-Year Warranty

• 1 Year Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SPD-SX Sampling Pad

  Drum Pads	Nine built-in pads with LED indicators
  Polyphony	20 voices (maximum polyphony becomes 16 voices according as an operating state)
  Number of Recordable Wave Data	10,000 including preloaded wave data
  Sampling Time	Approximately 180 minutes in stereo (360 minutes in mono) not including preloaded wave data
  Data Format	16-bit linear PCM (WAV/AIFF)
  Sampling Frequency	44.1 kHz
  Kits	100
  Kit Chain	8 chains (20 steps per chain)
  Effects	Master Effects (21 Types) Equalizer Kit Effect 1 (20 Types) Kit Effect 2 (20 Types)
  Display	Graphic LCD 128 x 64 dots
  Inputs	Audio In: 1/4" L/Mono and Right with mic and line gain control Trigger In: 1/4" 1/2 and 3/4 Foot Switch: 1/4" 1/2
  Outputs	Headphones: 1/4" Stereo Master: 1/4" Stereo L/Mono and Right Sub Out: 1/4" L/Mono and Right
  Connectors	1 x USB computer connector 1 x USB Flash memory
  Interface	Hi-Speed USB (USB-MIDI, USB-Audio, USB mass storage class, USB flash drive)
  MIDI	In/Out
  Power Supply	DC 9 V (AC Adaptor PSB-1U)
  Current Draw	600 mA
  Dimensions (WxDxH)	14.33 x 13.03 x 3.70" (364 x 331 x 94 mm)
  Weight	5.5 lb (2.5 kg)

  Box Dimensions (LxWxH)	18.1 x 15.8 x 6.8"

• RT-30K Acoustic Kick Drum Trigger

  Triggers	1 (Head)
  Connector	1x 1/4" Phone Type Output Jack
  Rim Measurements	Height: 1.2 to 1.4" (30 to 36 mm) Thickness: 0.5" (12 mm)
  Dimensions (W x D x H)	1.5 x 4.4 x 2.5" (38 x 111 x 62 mm)
  Weight	4 oz (95 g)

  Box Dimensions (LxWxH)	7.95 x 5.0 x 2.65"

• RT-30HR Double Acoustic Drum Trigger

  Triggers	1 (Head)
  Connector	1x 1/4" Phone Type Output Jack
  Rim Measurements	Height: 0.5" (13 mm), maximum
  Dimensions (W x D x H)	1.6 x 4.4 x 1.8" (39 x 112 x 45 mm)
  Weight	3 oz (67 g)

  Box Dimensions (LxWxH)	6.9 x 5.0 x 2.6"

• PDS-10 - Pad Stand for HPD and SPD Series

  Box Dimensions (LxWxH)	27.0 x 5.8 x 4.5"
