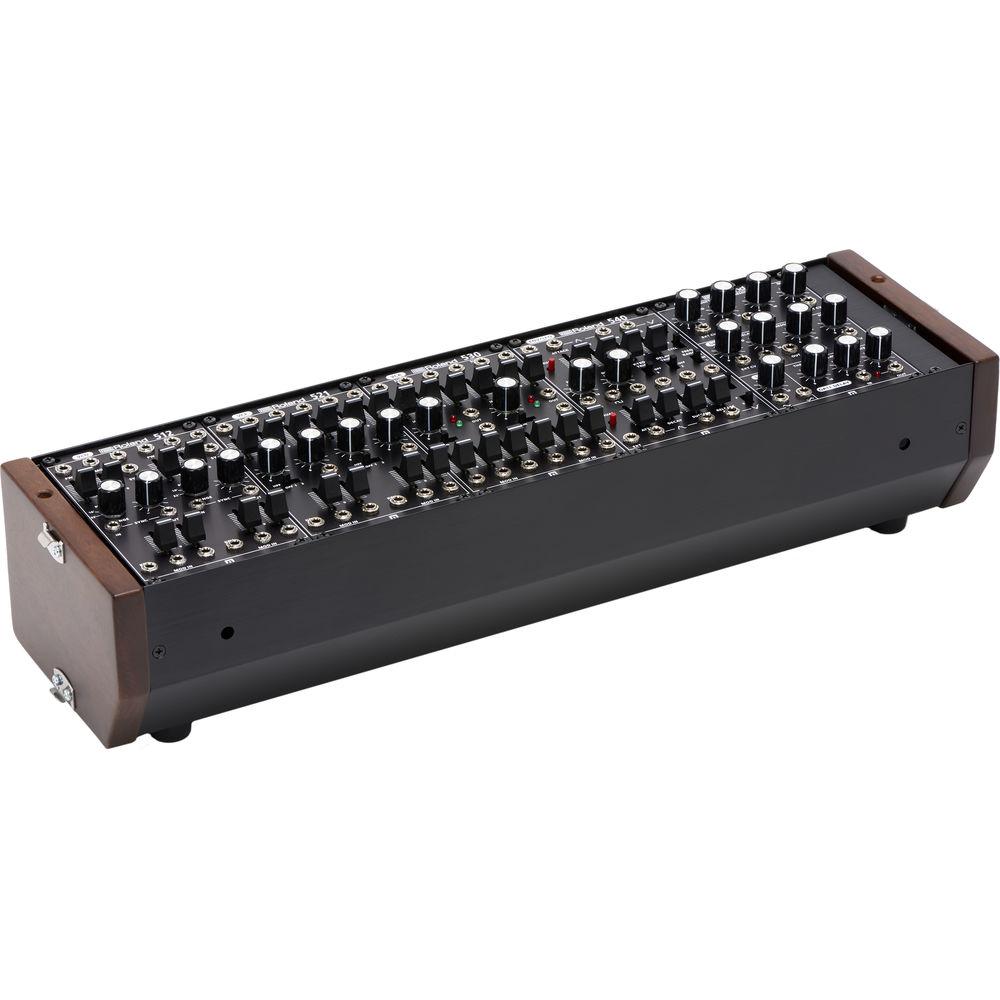

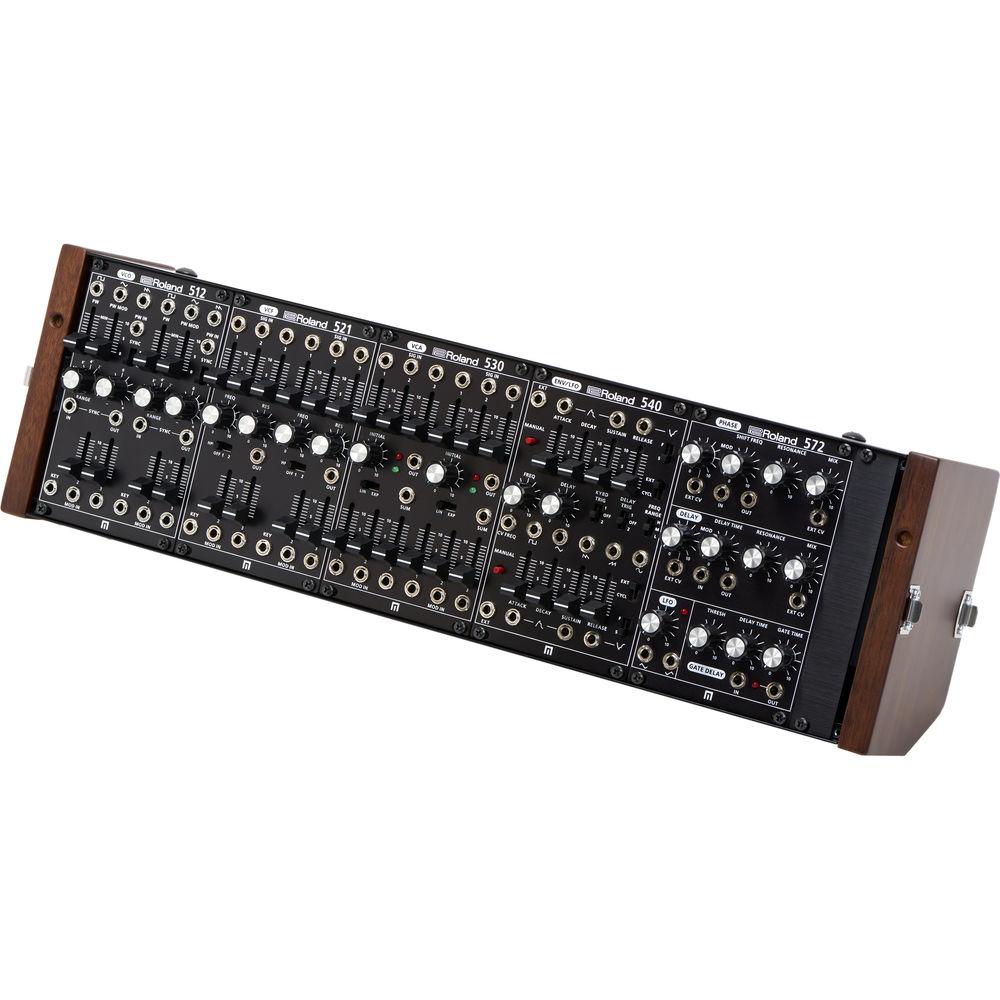

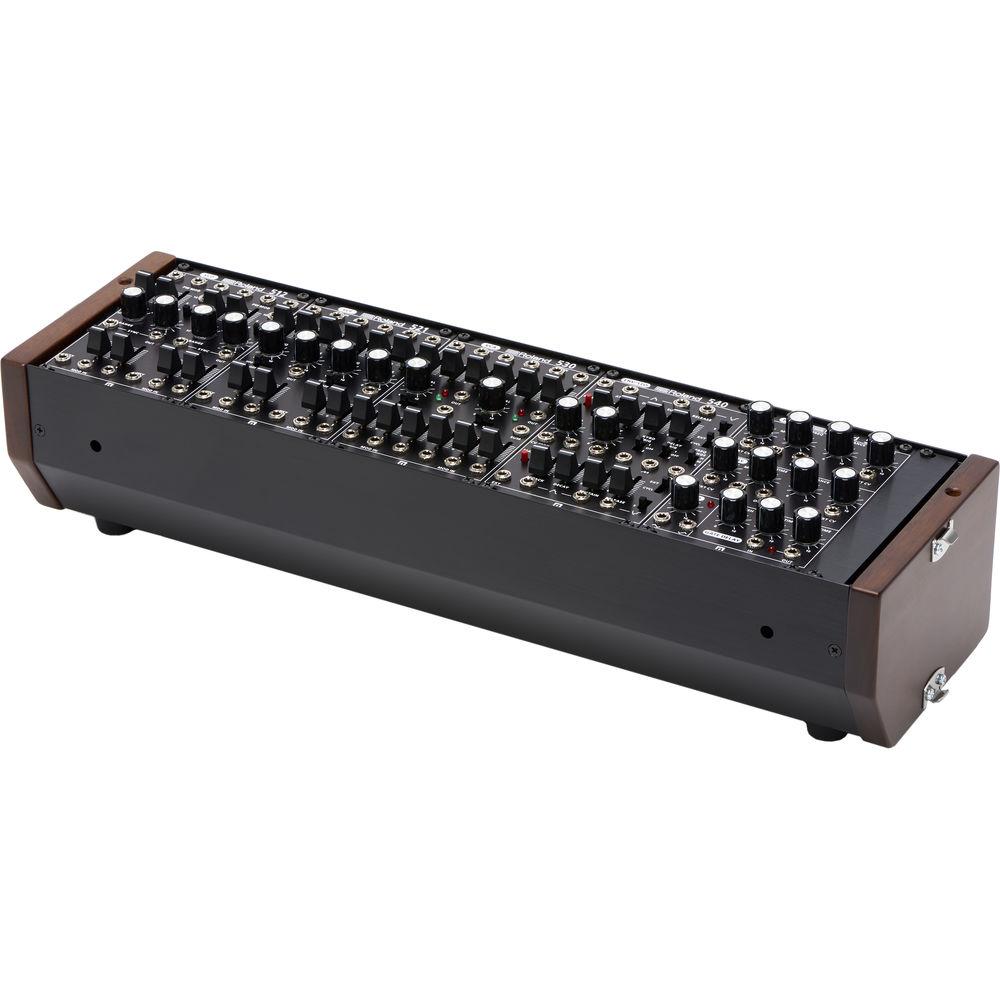

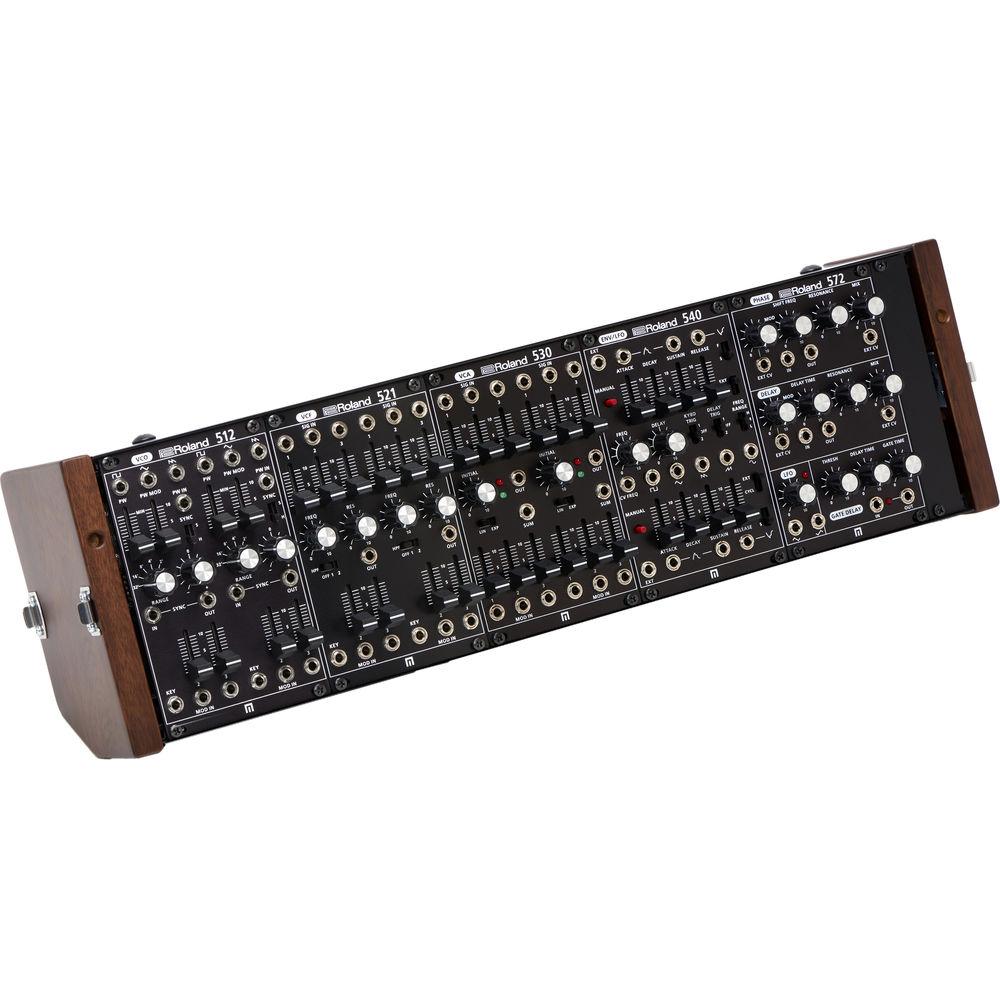

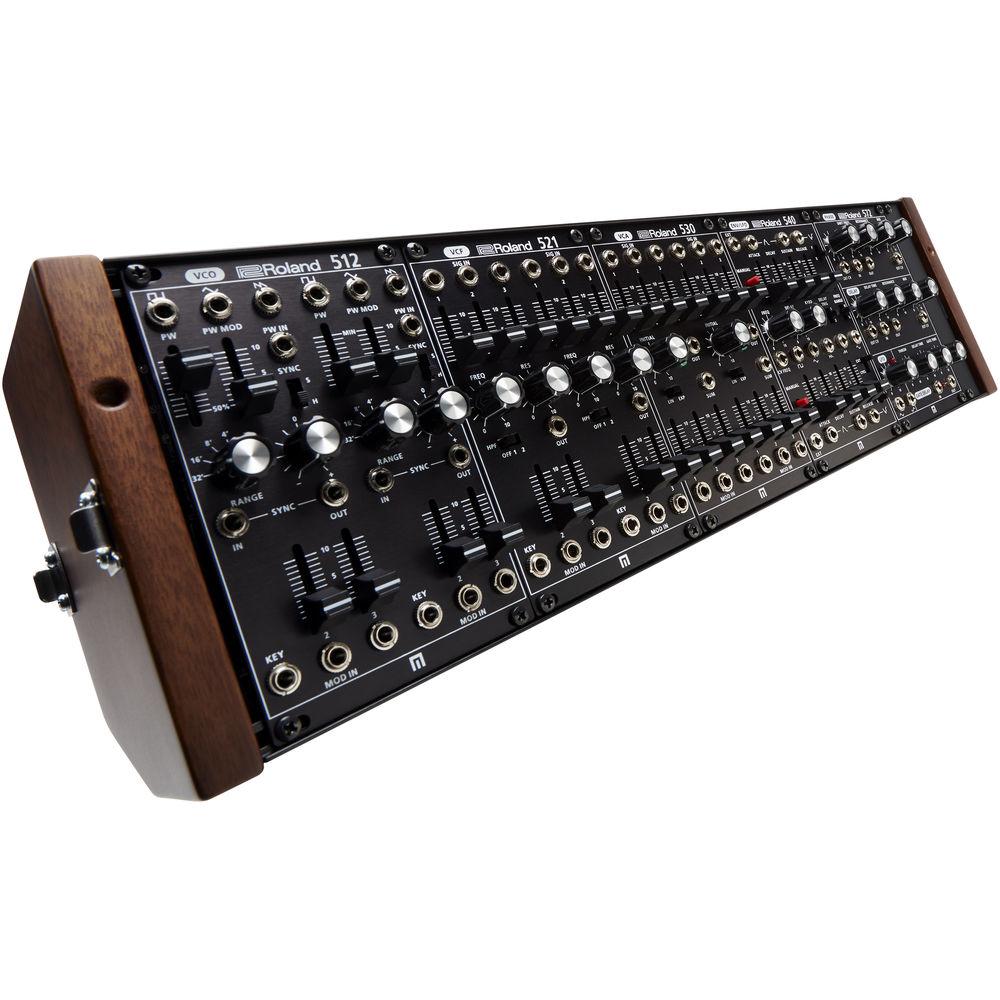

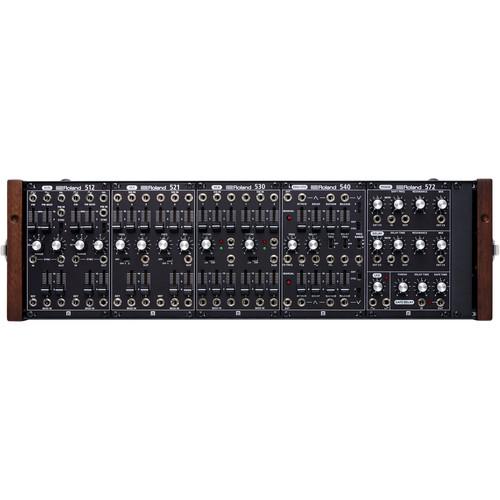

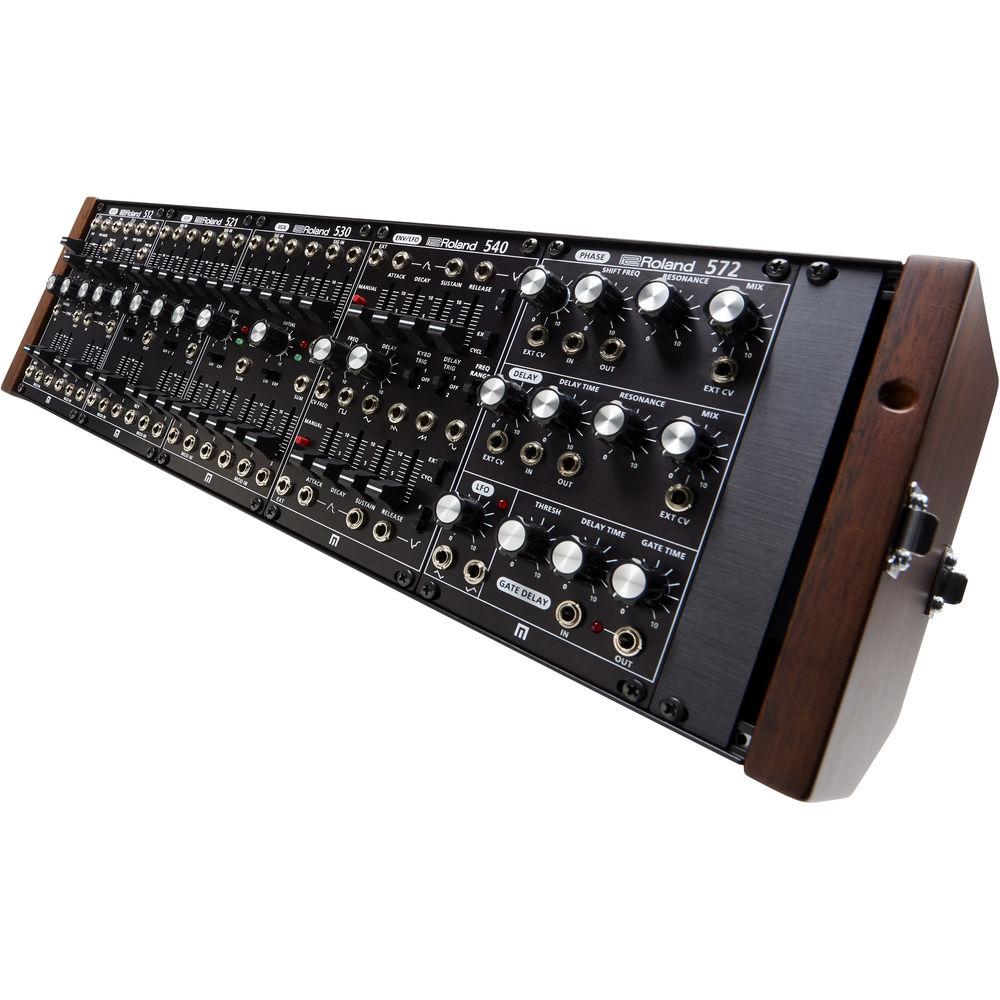

Roland System-500 - Complete Eurorack Modular

User Manual for Roland System-500 - Complete Eurorack Modular Synthesizer

• Product category: Synthesizer Modules Roland
• Brand: Roland
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Roland Synthesizer Modules

Product description

• System-500 Series - 512 Dual-VCO - Eurorack Module The System-500 Series 512 from Roland is a dual voltage-controlled oscillator (VCO) in a single Eurorack module. Each independent VCO offers pulse-, triangle-, and saw-waveform outputs simultaneously with 1V/octave tracking and variable pulse width via panel control or CV modulation. Each oscillator can also be synchronized to the other with a hard/soft selection switch to create unique "sync" sounds. The 512 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294507971
• System-500 Series - 521 Dual VCF - Eurorack Module The System-500 Series - 521 from Roland is a dual, voltage-controlled filter (VCF) in a single Eurorack module. Each independent VCF offers a three inputs with level slider controls, dedicated cutoff and resonance knobs, and three modulation inputs with inputs two and three offering attenuation sliders. Additionally, each filter has a 3-way switchable high-pass filter with off/1/2 settings. The 521 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294507988
• System-500 Series - 530 Dual VCA - Eurorack Module The System-500 Series - 530 from Roland is a dual, voltage-controlled amplifier (VCA) in a single Eurorack module. Each independent VCA offers three inputs with level-slider controls, an initial level knob, and three modulation inputs with dedicated level sliders. Additionally, each VCA has a 2-way switch for linear or exponential settings, LED indicators for load and overloaded signals, and two summed outputs, which combine the outputs of each VCA. The 530 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294507995
• System-500 Series - 540 Dual Envelope and LFO - Eurorack Module The System-500 Series - 540 from Roland is a dual voltage-controlled envelope and a single low-frequency oscillator (LFO) in a single Eurorack module. Each independent envelope offers parameter slider for attack, decay, sustain, and release (ADSR) and includes two standard outputs and one inverse output. Additionally, the envelopes have a manual-trigger switch, a fast/slow envelope-speed switch, and a gate-trigger switch that selects whether the envelope is triggered externally/manually or cycles, which creates a self-cycle based on attack and decay settings.

  The LFO offers knob controls for selecting the frequency and delay, while the CV Freq input allows for voltage control over the frequency of the LFO. Additionally, the LFO offers the simultaneous outputs of five waveforms, including square, triangle, sawtooth, reverse sawtooth, and sine. The Freq Range offers a three-way switch for selecting high-, medium-, and low-frequency ranges, while the Keyboard-Trigger switch offers settings for resetting the LFO waveform by envelope 1 or 2. The Delay Trigger also resets the LFO delay by envelope 1 or 2. The 540 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294508008
• System-500 Series - 572 Phase Shifter / Delay / LFO - Eurorack Module The System-500 Series - 572 from Roland is a time-based multi-effects Eurorack module that includes a 5-stage phase shifter, analog audio delay, a control-voltage gate delay, and an LFO. Offering controls for shift frequency & resonance, the phase shifter is capable of subtle to deep analog effects, while the audio delay offers independent control of delay time and resonance and creates flange- and chorus-like effects. Both the phase shifter and audio delay can be modulated by the internal LFO or via external CV signals, while the wet/dry effects mix is controllable manually or via an external CV signal.

  The LFO offers a knob for controlling frequency and features a triangle wave and inverse triangle wave output. The gate delay features knobs to control threshold, delay time, and gate for modifying incoming gate signals from other modules. The 572 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294508015
• SYR-E84 Eurorack Case The SYR-84 Eurorack Case from Roland is designed to protect and transport any System-500-series module, System-1m module, BITRAZER, DEMORA, TORCIDO, and SCOOPER modules, or any standard Eurorack synthesizer module. The 84hp case is constructed from black aluminum with wood sides and can be used flat, angled, or vertical. The detachable lid can be attached on the rear of the case to add stability when stacking multiple cases. The included stacking screws allow for two SYR-E84s to be joined together when larger setups are required.

  The high-capacity 2000mA DC power supply is specifically designed for modular instruments and provides stable, low-noise power for clean and reliable operation. Additionally, the case offers over-current protection to safeguard users and modules form hazardous current. The SYR-84 case ships with two male flying-bus cables, 40x installation screws, a DC power supply, and power cord.
  • • 84hp Eurorack case with rugged aluminum construction and wood side panels
    • Modules can be securely mounted to the M3 bar nut and the included male flying-bus cables
    • Includes a super-clean 2000 mA power supply designed especially for modular synths and effects
    • Stackable design and included screws allow two SYR-E84 cases to be joined together when a larger setup is required
    • Slant on the bottom corner of the case allows for angled positioning
    • Portable size and weight with a protective cover for travel
    • Case cover can be attached to the back with a latch to provide extra stability
    • Over-current protection to safeguard users and modules from hazardous currents
  UPC: 761294508763

• 4 x Eurorack Installation Screws

• Eurorack Ribbon Power Cable

• Limited 1-Year Warranty on Parts

• Limited 90-Day Warranty on Labor

• 4 x Eurorack Installation Screws

• Eurorack Ribbon Power Cable

• Limited 1-Year Warranty on Parts

• Limited 90-Day Warranty on Labor

• 4 x Eurorack Installation Screws

• Eurorack Ribbon Power Cable

• Limited 1-Year Warranty on Parts

• Limited 90-Day Warranty on Labor

• 4 x Eurorack Installation Screws

• Eurorack Ribbon Power Cable

• Limited 1-Year Warranty on Parts

• Limited 90-Day Warranty on Labor

• 4 x Eurorack Installation Screws

• Eurorack Ribbon Power Cable

• Limited 1-Year Warranty on Parts

• Limited 90-Day Warranty on Labor

• Pack of 40x Installation Screws

• 2 x 16-Pin Eurorack Power Supply Cables

• AC Adapter

• Power Cord

• Limited 1-Year Warranty

Also Includes

• 4 hp Blank Panel
• 8 x Patch Cables

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• System-500 Series - 512 Dual-VCO - Eurorack Module

  Controllers	Pulse-Width slider Pulse-Width Modulation slider Modulation-In 2 slider Modulation-In 3 slider Sync switch Range knob Pitch knob
  Connectors	Square Wave: 1/8" / 3.5 mm Triangle Wave: 1/8" / 3.5 mm Saw Wave: 1/8" / 3.5 mm Pulse-Width In: 1/8" / 3.5 mm Sync-In: 1/8" / 3.5 mm Sync-Out: 1/8" / 3.5 mm Key-In: 1/8" / 3.5 mm Modulation-In 2: 1/8" / 3.5 mm Modulation-In 3: 1/8" / 3.5 mm
  Horizontal Pitch	16 hp
  Power	Power Supply: Eurorack power Current Draw: 70 mA (+12 V), 55 mA (-12 V)
  Dimensions (W x D x H)	3.2 x 2.3 x 5.1" / 81.0 x 58.0 x 129.0 mm
  Weight	7.5 oz / 212.0 g

  Box Dimensions (LxWxH)	5.8 x 4.6 x 3.5"

• System-500 Series - 521 Dual VCF - Eurorack Module

  Controllers	Signal-In 1 slider Signal-In 2 slider Signal-In 3 slider Modulation-In 2 slider Modulation-In 3 slider HPF switch 2x Frequency knob 2x Resonance knob
  Connectors	Signal-In 1: 1/8" / 3.5 mm Signal-In 2: 1/8" / 3.5 mm Signal-In 3: 1/8" / 3.5 mm Out: 1/8" / 3.5 mm Key-In: 1/8" / 3.5 mm Modulation-In 2: 1/8" / 3.5 mm Modulation-In 3: 1/8" / 3.5 mm
  Horizontal Pitch	16 hp
  Power	Power Supply: Eurorack power Current Draw: 40 mA (+12 V), 40 mA (-12 V)
  Dimensions (W x D x H)	3.2 x 2.3 x 5.1" / 81.0 x 58.0 x 129.0 mm
  Weight	7.2 oz / 203.0 g

  Box Dimensions (LxWxH)	5.8 x 4.6 x 3.5"

• System-500 Series - 530 Dual VCA - Eurorack Module

  Controllers	Signal-In 1 slider Signal-In 2 slider Signal-In 3 slider Modulation-In 1 slider Modulation-In 2 slider Modulation-In 3 slider 2x Linear/Exponential switches 2x Initial knobs
  Indicator LEDs	Load: Green Overload: Red
  Connectors	Signal-In 1: 1/8" / 3.5 mm Signal-In 2: 1/8" / 3.5 mm Signal-In 3: 1/8" / 3.5 mm Out: 1/8" / 3.5 mm Sum: 1/8" / 3.5 mm Modulation-In 1: 1/8" / 3.5 mm Modulation-In 2: 1/8" / 3.5 mm Modulation-In 3: 1/8" / 3.5 mm
  Horizontal Pitch	16 hp
  Power	Power Supply: Eurorack power Current Draw: 50 mA (+12 V), 35 mA (-12 V)
  Dimensions (W x D x H)	3.2 x 2.3 x 5.1" / 81.0 x 58.0 x 129.0 mm
  Weight	6.8 oz / 194.0 g

  Box Dimensions (LxWxH)	5.9 x 4.6 x 3.5"

• System-500 Series - 540 Dual Envelope and LFO - Eurorack Module

  Controllers	Attack slider Decay slider Sustain slider Release slider Manual switch Fast/Slow switch External/Cycle switch Keyboard-Trigger switch Delay-Trigger switch Frequency-Range switch Frequency knob Delay knob
  Connectors	2x External Input: 1/8" / 3.5 mm 2x Envelope-1 Output: 1/8" / 3.5 mm 2x Envelope-2 Output: 1/8" / 3.5 mm Inverted Envelope: 1/8" / 3.5 mm CV Frequency: 1/8" / 3.5 mm Square Wave: 1/8" / 3.5 mm Triangle Wave: 1/8" / 3.5 mm Saw Wave: 1/8" / 3.5 mm Inverted Saw Wave: 1/8" / 3.5 mm Sine Wave: 1/8" / 3.5 mm
  Horizontal Pitch	16 hp
  Power	Power Supply: Eurorack power Current Draw: 85 mA (+12 V), 50 mA (-12 V)
  Dimensions (W x D x H)	3.2 x 2.3 x 5.1" / 81.0 x 58.0 x 129.0 mm
  Weight	7.1 oz / 202.0 g

  Box Dimensions (LxWxH)	5.8 x 4.6 x 3.5"

• System-500 Series - 572 Phase Shifter / Delay / LFO - Eurorack Module

  Controllers	Phase Shifter Modulation knob Shift-Frequency knob Resonance knob Mix knob Delay Modulation knob Time knob Resonance knob Mix knob LFO Frequency knob Gate Delay Threshold knob Delay Time knob Gate Time knob
  Indicator LEDs	LFO indicator Gate Delay-Out indicator
  Connectors	Phase Shifter Modulation External CV: 1/8" / 3.5 mm In: 1/8" / 3.5 mm Out: 1/8" / 3.5 mm Mix External CV: 1/8" / 3.5 mm Delay Modulation External CV: 1/8" / 3.5 mm In: 1/8" / 3.5 mm Out: 1/8" / 3.5 mm Mix External CV: 1/8" / 3.5 mm LFO Out: 1/8" / 3.5 mm Inverted Out: 1/8" / 3.5 mm Gate Delay In: 1/8" / 3.5 mm Out: 1/8" / 3.5 mm
  Horizontal Pitch	16 hp
  Power	Power Supply: Eurorack power Current Draw: 110 mA (+12 V), 90 mA (-12 V)
  Dimensions (W x D x H)	3.2 x 2.3 x 5.1" / 81.0 x 58.0 x 129.0 mm
  Weight	7.5 oz / 213.0 g

  Box Dimensions (LxWxH)	5.8 x 4.65 x 3.5"

• SYR-E84 Eurorack Case

  Power Supply	AC adapter (12 VDC)
  Current	Current Capacity 2,000 mA: +12 V 300 mA: +5 V 500 mA: -12 V
  Power Consumption	30 W: +12 V 3 W: +5 V 10 W: -12 V
  Dimensions (W x D x H)	18.9 x 5.3 x 6.2" / 481.0 x 135.0 x 157.0 mm
  Weight	5.3 lb / 2.4 kg

  Box Dimensions (LxWxH)	23.5 x 10.1 x 9.8"
