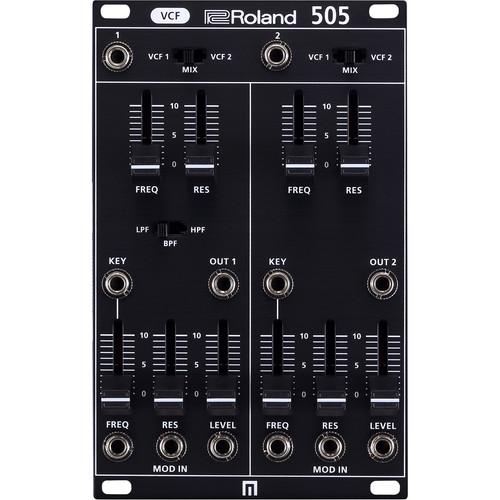

Product description The Roland System-500 Series - 505 VCF is a dual, voltage-controlled filter (VCF), based on the highly coveted SH5 synthesizer, in a single Eurorack module. Filter 1 offers a multimode circuit (LP, BP, HP), while filter 2 uses a fixed bandpass mode. What's more, the 505 can increase the resonance of the filter without losing the low end, making it a powerhouse for creating unique bass sounds.
There are dedicated inputs and outputs to each filter to allow for each to be used independently. Each filter also offers a mix switch allowing one to cascade the signal through either filter (series or parallel) for highly flexible signal routing. The 505 features a built-in VCA for each filter, as well as dedicated attenuator sliders and CV input controls for filter frequency, filter resonance, and level. The 505 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294512074 In the Box Roland System-500 Series - 505 VCF - Dual Filters Based on SH-5 - Eurorack Module 4 x Eurorack Installation Screws Eurorack Ribbon Power Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland System-500 Series - 505 VCF - Dual Filters Based on SH-5 - Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland 505 VCF Specs | Controllers | 2 x VCF select switch (1, 2)
2 x Frequency slider (1, 2)
2 x Resonance slider (1, 2)
1 x Filter type switch (1)
2 x Modulation in frequency slider (1, 2)
2 x Modulation in resonance slider (1, 2)
2 x Modulation in level slider (1, 2) | | Connectors | Signal In (1, 2): 2 x 1/8" / 3.5 mm
Key In (1, 2): 2 x 1/8" / 3.5 mm
Output (1, 2): 2 x 1/8" / 3.5 mm
Modulation In Frequency (1, 2): 2 x 1/8" / 3.5 mm
Modulation In Resonance (1, 2): 2 x 1/8" / 3.5 mm
Modulation In Level (1, 2): 2 x 1/8" / 3.5 mm | | Horizontal Pitch | 16 HP | | Power | Power Supply: Eurorack power
Current Draw: 85 mA (+12 V), 90 mA (-12 V) | | Dimensions (W x D x H) | 3.18 x 2.25 x 5.06" / 80.8 x 57.2 x 128.5 mm | | Weight | 6.7 oz / 191 g |
