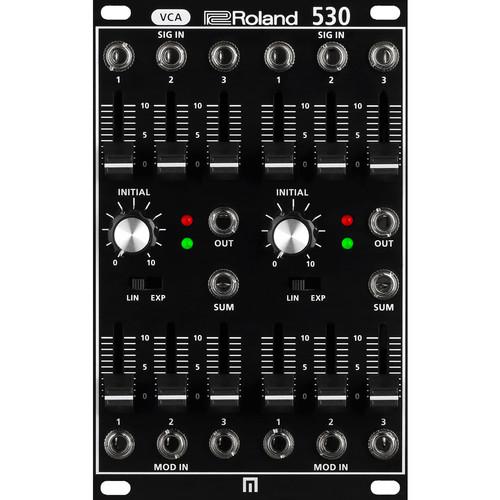

Product description The System-500 Series - 530 from Roland is a dual, voltage-controlled amplifier (VCA) in a single Eurorack module. Each independent VCA offers three inputs with level-slider controls, an initial level knob, and three modulation inputs with dedicated level sliders. Additionally, each VCA has a 2-way switch for linear or exponential settings, LED indicators for load and overloaded signals, and two summed outputs, which combine the outputs of each VCA. The 530 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294507995 In the Box Roland System-500 Series - 530 Dual VCA - Eurorack Module 4 x Eurorack Installation Screws Eurorack Ribbon Power Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland System-500 Series - 530 Dual VCA - Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland SYS-530 Specs | Controllers | Signal-In 1 slider
Signal-In 2 slider
Signal-In 3 slider
Modulation-In 1 slider
Modulation-In 2 slider
Modulation-In 3 slider
2x Linear/Exponential switches
2x Initial knobs | | Indicator LEDs | Load: Green Overload: Red | | Connectors | Signal-In 1: 1/8" / 3.5 mm
Signal-In 2: 1/8" / 3.5 mm
Signal-In 3: 1/8" / 3.5 mm
Out: 1/8" / 3.5 mm
Sum: 1/8" / 3.5 mm
Modulation-In 1: 1/8" / 3.5 mm
Modulation-In 2: 1/8" / 3.5 mm
Modulation-In 3: 1/8" / 3.5 mm | | Horizontal Pitch | 16 hp | | Power | Power Supply: Eurorack power
Current Draw: 50 mA (+12 V), 35 mA (-12 V) | | Dimensions (W x D x H) | 3.2 x 2.3 x 5.1" / 81.0 x 58.0 x 129.0 mm | | Weight | 6.8 oz / 194.0 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.9 x 4.6 x 3.5" |
