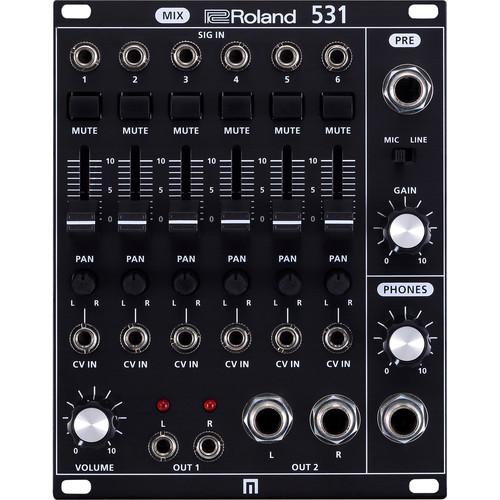

User Manual for Roland System-500 Series - 531 Mix 6-Channel Mixer - Eurorack Module Click to enlarge the picture
Contents of the user manual for the Roland System-500 Series - 531 Mix
- Product category: Synthesizer Modules Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Synthesizer Modules
|
User manual for the Roland System-500 Series - 531 Mix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The Roland System-500 Series - 531 Mix is high-quality Eurorack mixer with an updated approach and convenient, modern features including six inputs, each with level, pan, and performance mutes. The pan controls have CV inputs for creating space and dimension, while the built-in boutique-quality preamp offers a mic/line switch, which automatically connects to channel 6 (mic) or to 5/6 (line). The dedicated headphone output allows you to preview a mix before outputting to the two pairs of main (L/R) outputs with 3.5mm and 1/4" connectors. The 531 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294512081 In the Box Roland System-500 Series - 531 Mix 6-Channel Mixer - Eurorack Module 4 x Eurorack Installation Screws Eurorack Ribbon Power Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland System-500 Series - 531 Mix 6-Channel Mixer - Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland SYS-531 Specs | Controllers | Mute: 6 x switches
Signal In: 6 x sliders
Pan: 6 x knobs
Volume: 1 x knob
Mic/Line: 1 x switch
Gain: 1 x knob
Phones: 1 x knob | | Indicator LEDs | Overload (L/R): 2 x Red LEDs | | Connectors | Signal In: 6 x 1/8" / 3.5 mm
Pan CV In: 6 x 1/8" / 3.5 mm
Output 1 (L,R): 2 x 1/8" / 3.5 mm
Output 2 (L,R): 2 x 1/4" / 6.3 mm
Mic-Pre In: Stereo 1/4" / 6.3 mm
Headphone Output: Stereo 1/4" / 6.3 mm | | Horizontal Pitch | 20 HP | | Power | Power Supply: Eurorack power
Current Draw: 195 mA (+12 V), 165 mA (-12 V) | | Dimensions (W x D x H) | 4.0 x 2.3 x 5.1" / 101.3 x 57.2 x 128.5 mm | | Weight | 9.7 oz / 274.0 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 6.6 x 6.1 x 3.8" |
