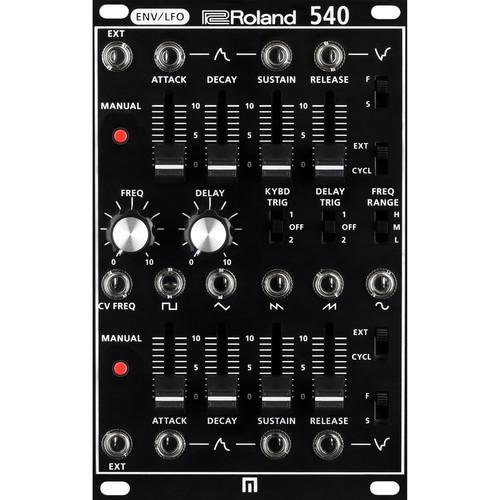

User Manual for Roland System-500 Series - 540 Dual Envelope and LFO - Eurorack Module Click to enlarge the picture
Contents of the user manual for the Roland System-500 Series - 540 Dual
- Product category: Synthesizer Modules Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Synthesizer Modules
|
User manual for the Roland System-500 Series - 540 Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The System-500 Series - 540 from Roland is a dual voltage-controlled envelope and a single low-frequency oscillator (LFO) in a single Eurorack module. Each independent envelope offers parameter slider for attack, decay, sustain, and release (ADSR) and includes two standard outputs and one inverse output. Additionally, the envelopes have a manual-trigger switch, a fast/slow envelope-speed switch, and a gate-trigger switch that selects whether the envelope is triggered externally/manually or cycles, which creates a self-cycle based on attack and decay settings.
The LFO offers knob controls for selecting the frequency and delay, while the CV Freq input allows for voltage control over the frequency of the LFO. Additionally, the LFO offers the simultaneous outputs of five waveforms, including square, triangle, sawtooth, reverse sawtooth, and sine. The Freq Range offers a three-way switch for selecting high-, medium-, and low-frequency ranges, while the Keyboard-Trigger switch offers settings for resetting the LFO waveform by envelope 1 or 2. The Delay Trigger also resets the LFO delay by envelope 1 or 2. The 540 includes four rack screws and a ribbon cable to connect to a Eurorack modular power supply (sold separately). UPC: 761294508008 In the Box Roland System-500 Series - 540 Dual Envelope and LFO - Eurorack Module 4 x Eurorack Installation Screws Eurorack Ribbon Power Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland System-500 Series - 540 Dual Envelope and LFO - Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland SYS-540 Specs | Controllers | Attack slider
Decay slider
Sustain slider
Release slider
Manual switch
Fast/Slow switch
External/Cycle switch
Keyboard-Trigger switch
Delay-Trigger switch
Frequency-Range switch
Frequency knob
Delay knob | | Connectors | 2x External Input: 1/8" / 3.5 mm
2x Envelope-1 Output: 1/8" / 3.5 mm
2x Envelope-2 Output: 1/8" / 3.5 mm
Inverted Envelope: 1/8" / 3.5 mm
CV Frequency: 1/8" / 3.5 mm
Square Wave: 1/8" / 3.5 mm
Triangle Wave: 1/8" / 3.5 mm
Saw Wave: 1/8" / 3.5 mm
Inverted Saw Wave: 1/8" / 3.5 mm
Sine Wave: 1/8" / 3.5 mm | | Horizontal Pitch | 16 hp | | Power | Power Supply: Eurorack power
Current Draw: 85 mA (+12 V), 50 mA (-12 V) | | Dimensions (W x D x H) | 3.2 x 2.3 x 5.1" / 81.0 x 58.0 x 129.0 mm | | Weight | 7.1 oz / 202.0 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.8 x 4.6 x 3.5" |
