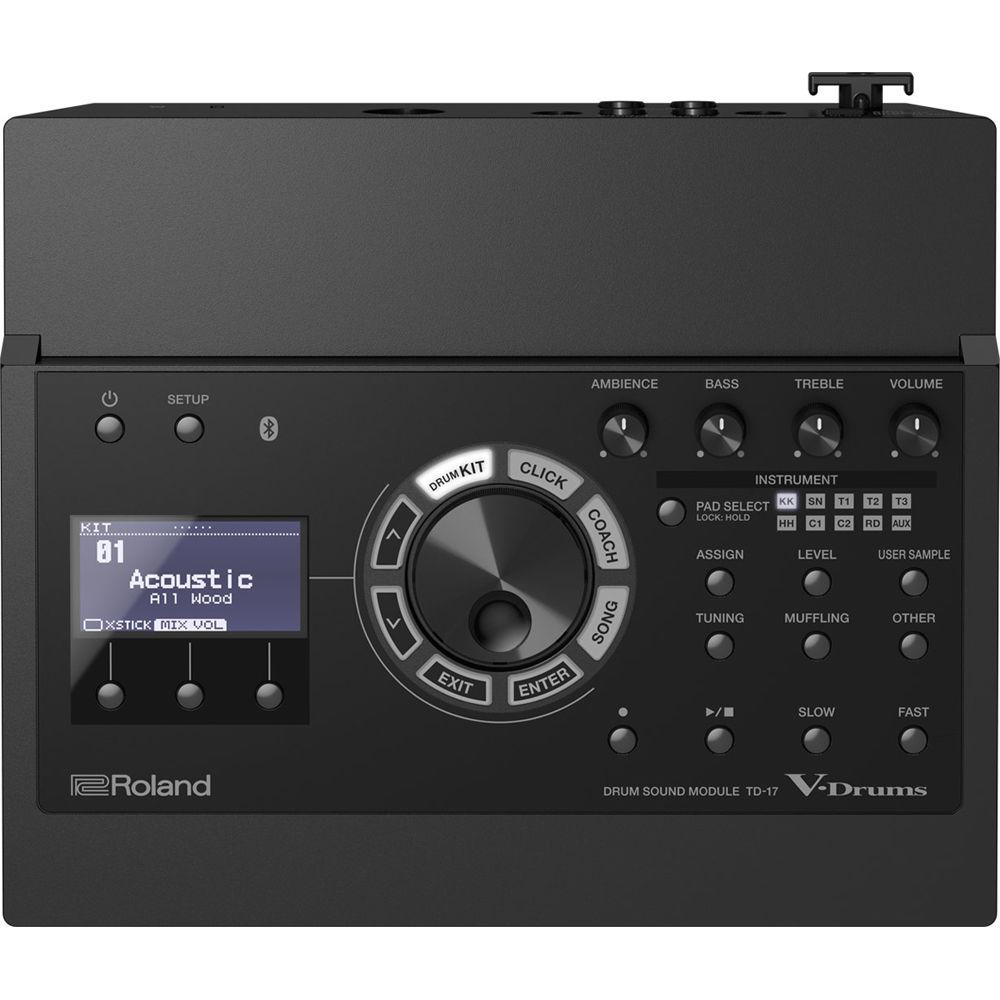

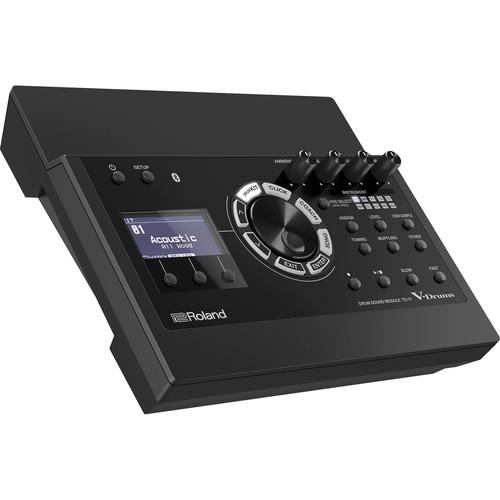

Product description Featuring a sound engine inherited from the flagship TD-50, the Roland TD-17 Drum Sound Module provides an expressive and natural drumming experience for V-Compact series pads and features an array of built-in coaching functions that will track your technique and measure your progress. Additionally, you can play along with your favorite tunes or watch online drum lessons while listening to the audio wirelessly via Bluetooth. The TD-17 is designed to help you become a better drummer, faster.
The Roland TD-17 includes 100 drum kits (50 presets) with 310 instruments. Each instrument can be customized via instrument parameters including level, pan, tuning, muffling, snare buzz, and strainer. With the onboard song player, you can mix the balance of your drumming with the built-in songs, change the tempo, and loop specific sections. It allows you to import your own songs and includes 7 preset songs for practicing and jamming along with. Import your own samples and songs and record your performance (up to 60 minutes). The Roland TD-17 includes a sound module mount, AC adapter, and special connection cable for working with optional drum pads and hardware. - General Features
-
- Expressive and dynamic sound inherited from Prismatic Sound modeling technology of the TD-50
- High-speed response with wide dynamic range and high-resolution of tonal changes
- Authentic hi-hat sound with smooth open-to-closed pedal control, and bow/edge tonal detection
- Open and closed rim-shots detected for authentic snare technique
- Bluetooth audio for wirelessly streaming audio from your smartphone to the TD-17 module
- Coach functions support your daily exercise and warm-up routines
- Play back audio files from SD card
- Preset drum kits cover a wide range of music genres, with further sound customization possible
- Ambience control and variation, to emulate venues from small stages to large halls
- Import user samples, assign them to any pad, and layer them with internal sounds for deeper customization and creating individual drum sounds
- Compatible with Melodics for V-Drums to improve your sense of time
- 2-trigger inputs for additional pads or pedals

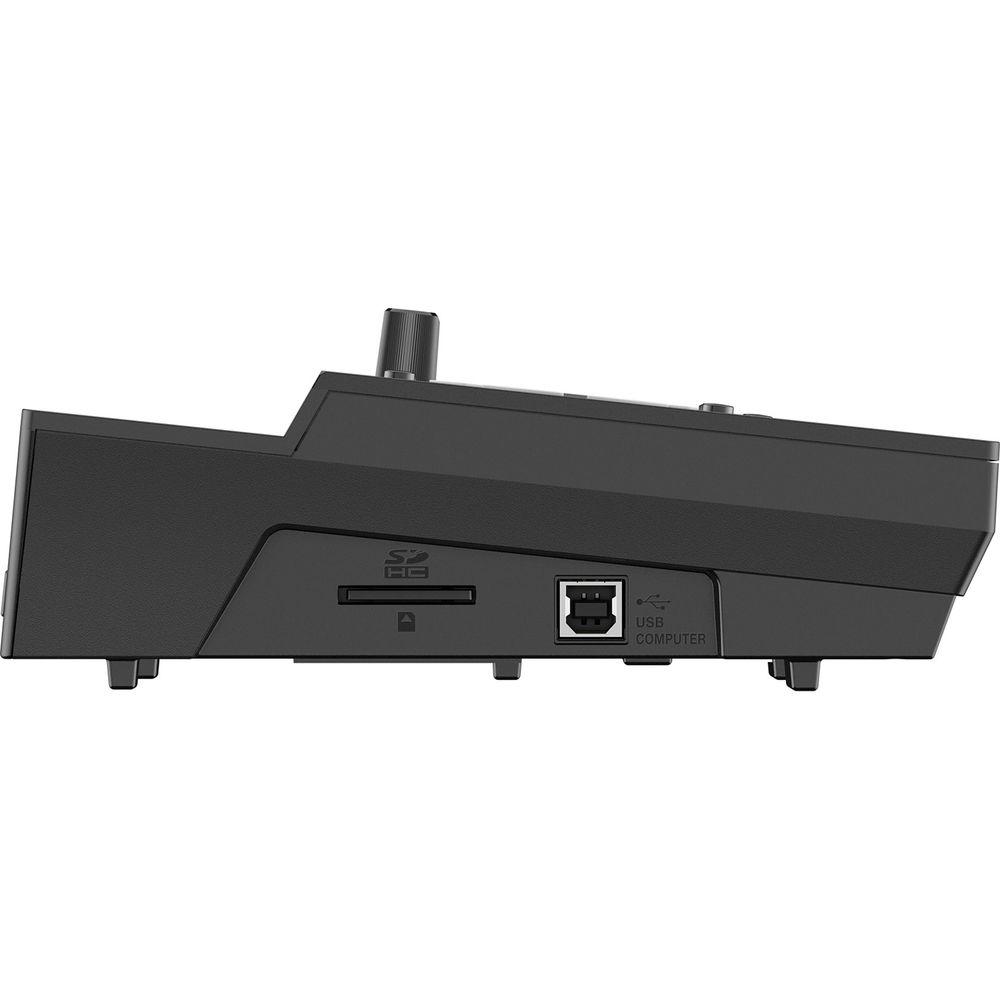

- USB port for connecting to your computer for music production
UPC: 761294511756 In the Box Roland TD-17 Drum Sound Module 2 x Sound Module Mount AC Adapter Special Connection Cable Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland TD-17 Drum Sound Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland TD-17 Specs | Drum Kits | 100 | | Instruments | 310 | | Parameters | Level (Volume), Pan, Tuning, Muffling, Snare Buzz, Strainer | | User Sample | Internal Memory Size: 32 MB
Number of User Sample: Maximum 100 (includes factory preloaded user samples)
Sound Length (Total): 24 minutes in mono, 12 minutes in stereo
File Format: WAV (44.1 kHz, 16-/24-bits) | | Effect Types | Kit Effect
Ambience: 25 types
Multi Effect: 30 types
Pad Equalizer: 3-band (Low, Mid, High), available on each pad
Master Effect
Equalizer: 2-band (bass, treble) | | Bluetooth | Supported Standards: Bluetooth Ver 4.2
Supported Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support for SCMS-T content protection) | | Songs | Internal Songs: 7
Song Player File Format: WAV (44.1 kHz, 16-/24-bits), MP3 | | Recorder | Recording Method: Real time
Maximum Length: 60 min (with SD card)
Temporary Recording: 3 min (with no SD card)

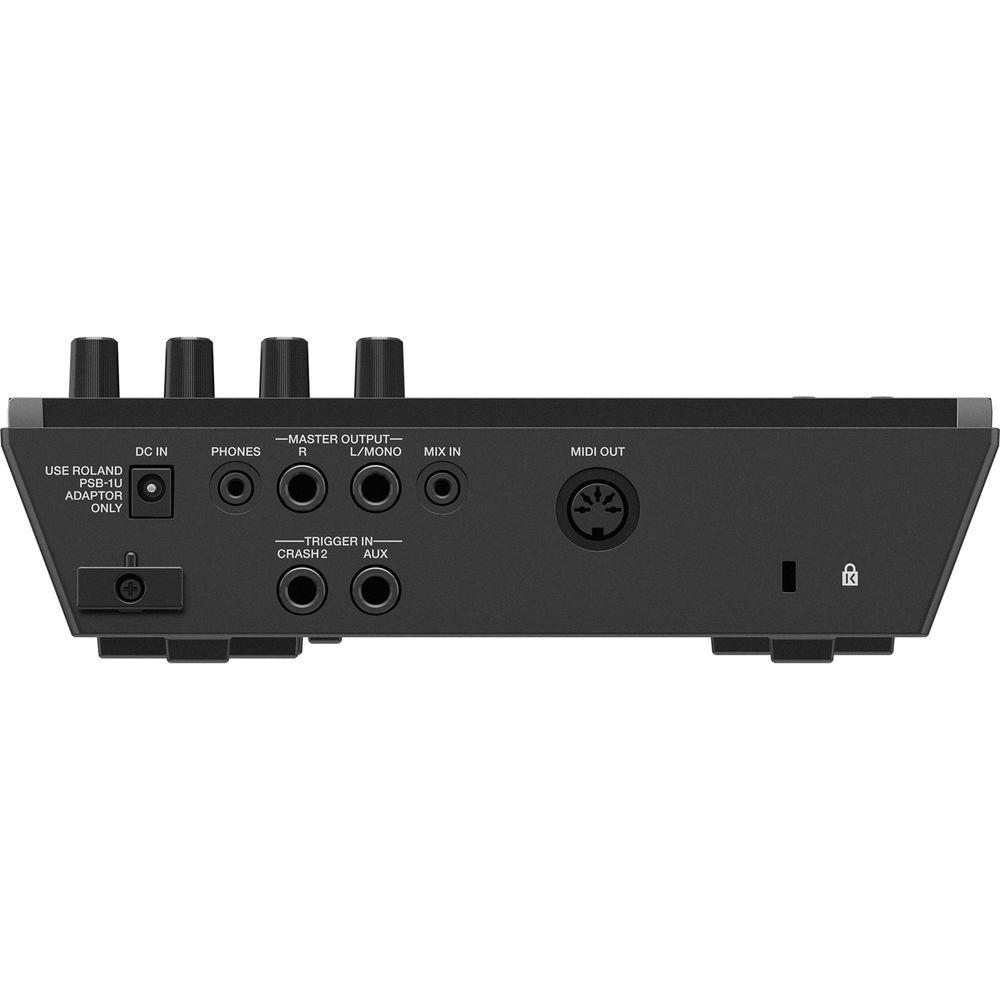

File Format: WAV (44.1 kHz, 16 bits) | | Display | 128 x 64 dots graphic type LCD (backlit) | | External Memory | SD card (SDHC supported) | | Connectors | Trigger Input Connector: 1 x DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control)
Trigger In Jack: 2 x 1/4" / 6.3 mm TRS phone type (CRASH 2, AUX)
Master Output: 2 x 1/4" / 6.3 mm phone type (L/Mono, R)
Phones: 1 x 1/8" / 3.5 mm stereo miniature phone type
Mix In: 1 x 1/8" / 3.5 mm stereo miniature phone type
MIDI Out: 1 x 5-pin DIN
USB Computer: 1 | | Output Impedance | Output: 1 kOhms
Phones: 94 Ohms | | Input Impedance | Mix In: 11 kOhms | | USB | Computer Speed: Hi-speed USB
Driver Mode: Generic, Vender
Protocol: USB MIDI, USB Audio
Audio
Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling Rate Converter): 96 kHz, 48 kHz
Record: 2 channels (1 stereo)
Playback: 2 channels (1 stereo) | | Power Supply | AC adapter (9 VDC) | | Current Draw | 490 mA | | Dimensions (WxDxH) | 8.78 x 7.72 x 2.52" / 223 x 196 x 64 mm | | Weight | 2.0 lb / 0.9 kg |
