User Manual for Roland TD-17KVX-S V-Drums Electronic Drum Kit Click to enlarge the picture
Contents of the user manual for the Roland TD-17KVX-S V-Drums Electronic Drum Kit
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
 |
User manual for the Roland TD-17KVX-S V-Drums Electronic Drum Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

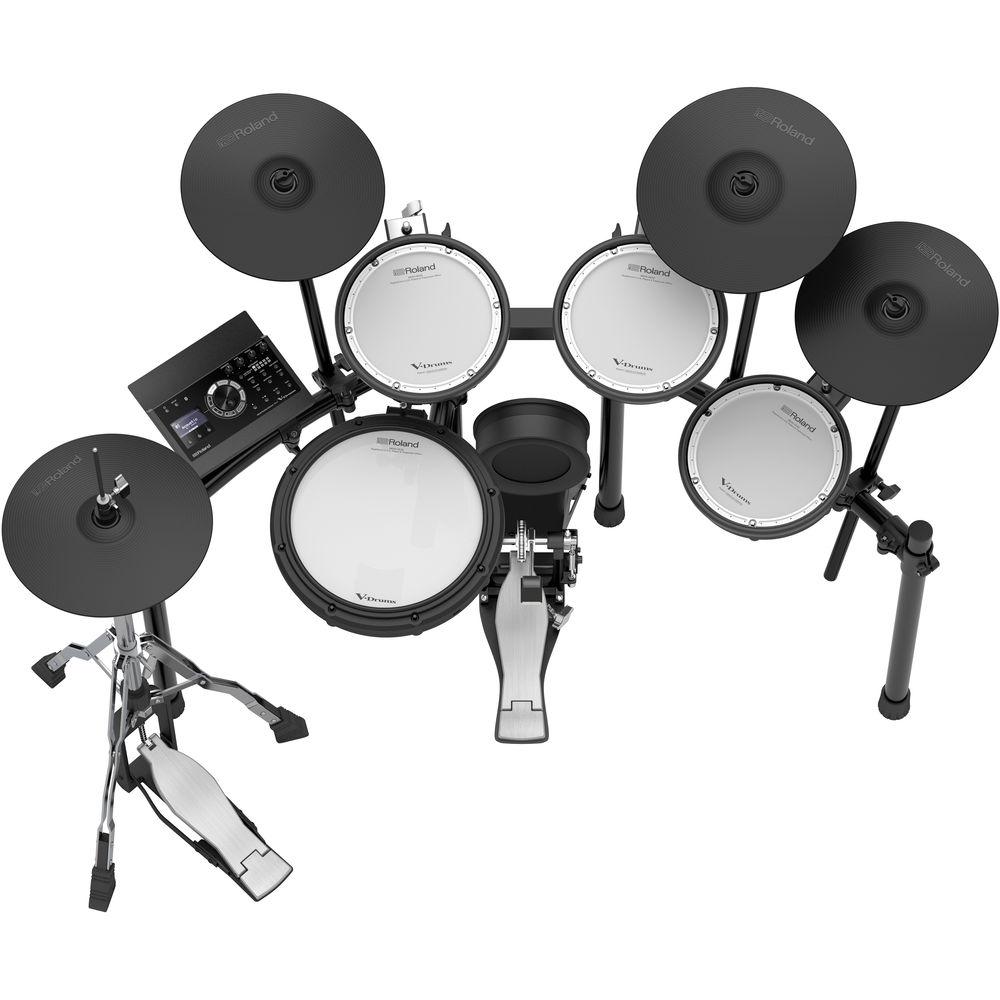

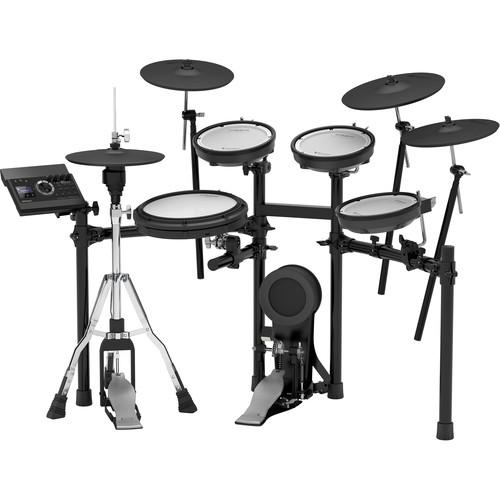

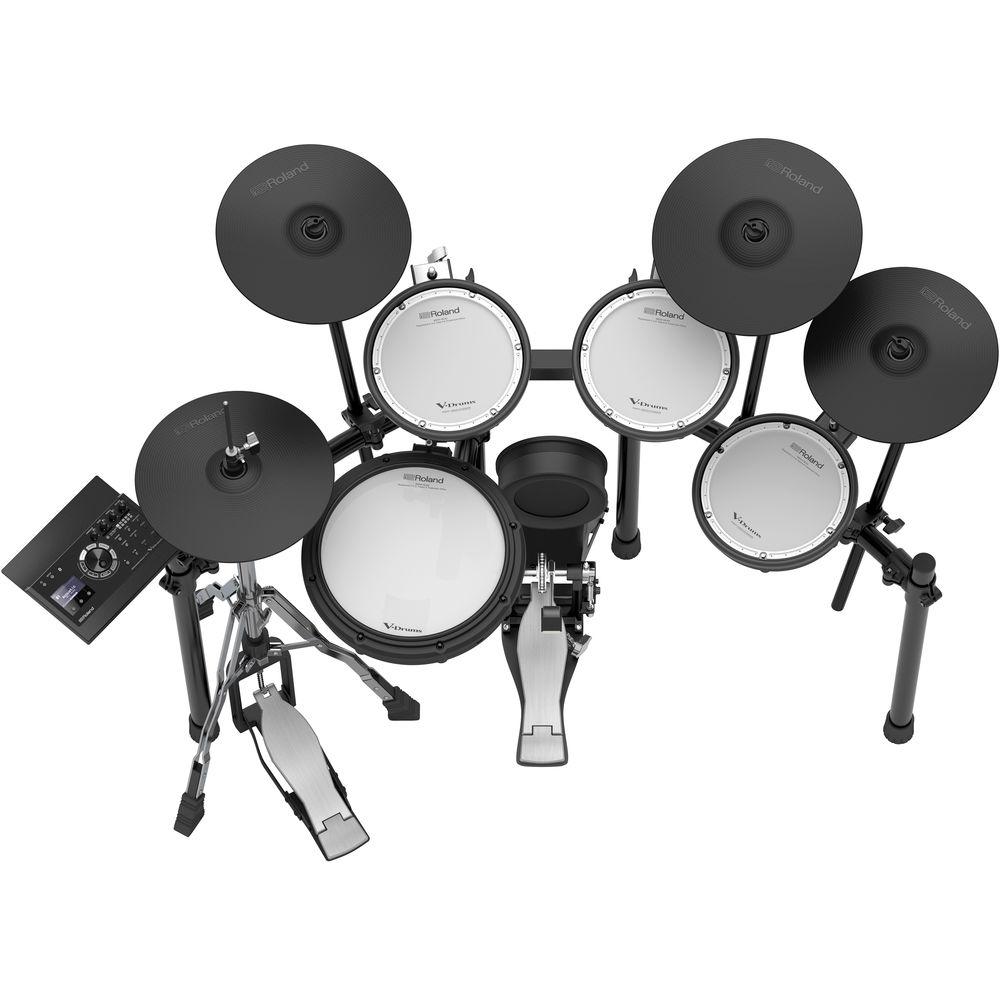

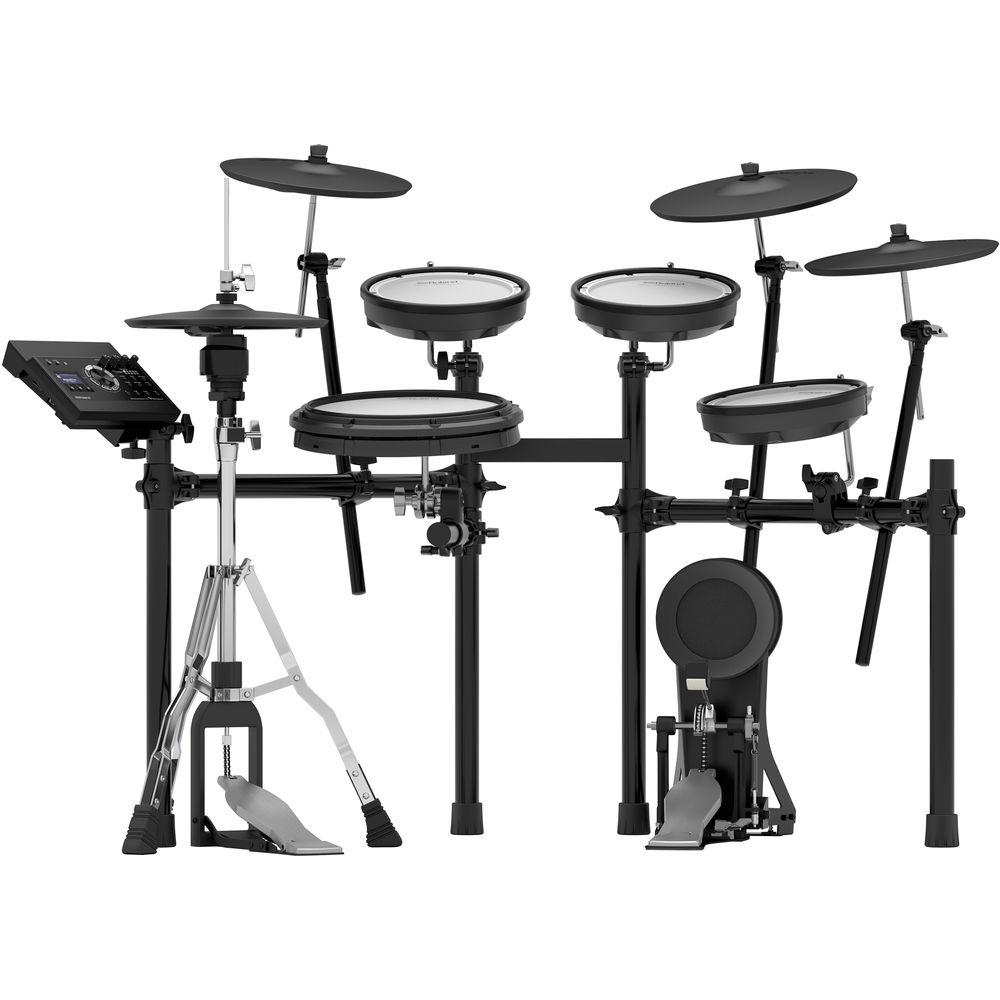

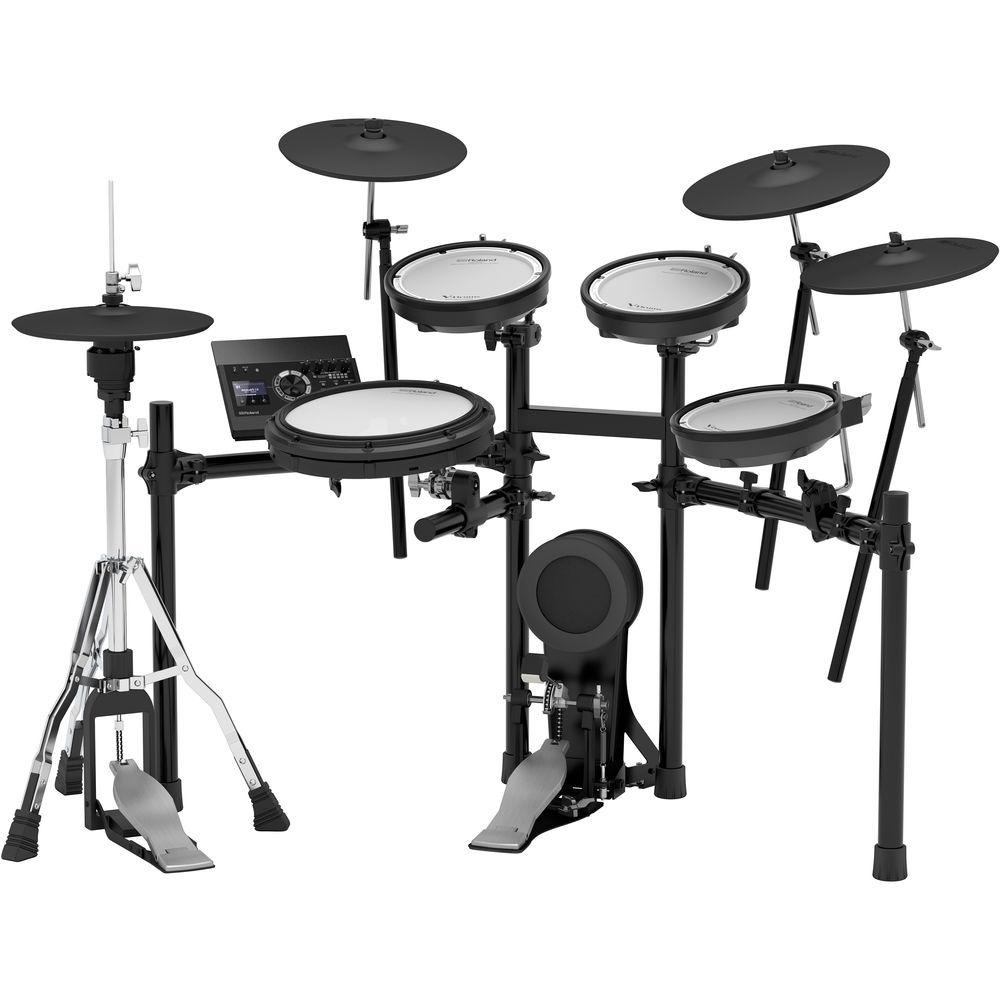

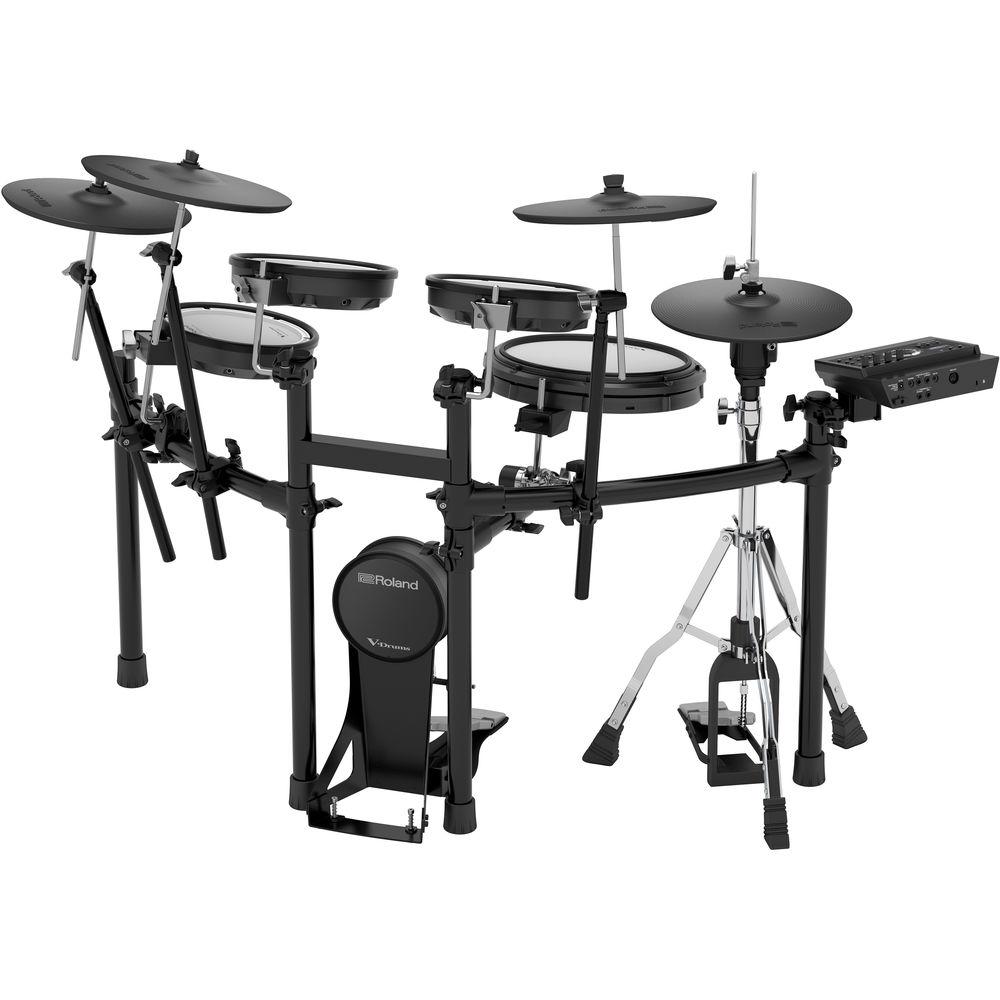

Product description Roland Announces V-Drums TD-17 Series for Practice and Performance Read More The TD-17 KVX-S V-Drums Electronic Drum Kit from Roland is an addition to the V-Drums series of electronic drums built with training tools that are designed to push you further. It includes: 1 x TD-17 sound module with Bluetooth, 1 x PDX-12 snare, 3 x PDX-8 tom V-pads, 1 x VH-10 hi-hat, 2 x CY-12 crash cymbals, 1 x CY-13R ride cymbal, 1 x KD-10 kick pad, and an MDS-COM drum rack stand. Combining Roland's TD50-class sound engine with updated pads, the electronic drum kit can be used to mirror the physical movement, stick coordination, and hand/foot control that is like playing an acoustic drum set.An array of built-in coaching functions will track your technique, measure your progress, and increase your motivation to becoming a better drummer. In addition, if you regularly play acoustic drums, you shouldn't have to change your playing style to use an electronic drum kit and the TD-17 KV-S V-Drums allow you to use the same playing techniques you'd use on an acoustic kit.Other features include: a sound module mount, AC adaptor, a special connection cable, and a drum key. Wirelessly stream your favorite songs from your smartphone into the sound module via Bluetooth and play along with your favorite band, or rehearse the tunes you'll be playing on stage. You can even record your performance and then listen back and decide where you need to improve, hearing the performance back in your headphones. Becoming a better drummer is still hard work, but the TD-17 KVX-S can help you get there. - Develop stick-control and correct playing technique with the large 12-inch double-mesh snare
- VH-10 hi-hat cymbal with natural motion and open/close detection helps you learn hi-hat control
- Natural, rich, and dynamic drum sounds, inherited from the flagship TD-50 sound engine
- Learn expressive foot control and pedal technique with the KD-10 kick pad
- Two crash cymbals and expansion possibilities support your individual playing style and performance
- Improve your sense of time with Time Check and Quiet Count as part of the Coach Mode
- Warm-up menu provides a basic daily exercise routine to help your playing progress
- Enjoy playing along with your favorite tunes by streaming audio from your smartphone to the TD-17 via Bluetooth
- 50 premium preset drum kits let you choose a kit that matches the tune or style you're playing
- Adjust the ambience of each kit to match the venues where you're performing
- Customize the preset drum kits to match your preferred drum sound
- Import your own samples for a drum sound that matches the original recording
- Watch video lessons on your smartphone and play along, while the audio comes through the headphones
- Develop your playing and timing with free to download Melodics for V-Drums software on Windows or Mac
UPC: 761294221389 In the Box Roland TD-17KVX-S V-Drums Electronic Drum Kit TD-17 Drum Sound Module with Bluetooth ROPDX12 V-Pad 3 x PDX-8 - Dual-Trigger 10" Mesh V-Pad VH-10 Hi-Hat 2 x CY-12C V-Cymbal Crash CY-13R V-Cymbal Ride KD-10 V-Kick Pad MDS-COM Drum Stand Sound Module Mount AC Adaptor Connection Cables Drum Key Knob Bolt for PDX-12 Absorption Plate (for VH-10) Lockable Tie (for VH-10) Limited 1-Year Warranty Limited 90-Day Warranty on Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland TD-17KVX-S V-Drums Electronic Drum Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland TD-17KVX-S Specs | | | Drum Kits | 100
Presets: 50 | | Instruments | 310 | | User Sample | Internal Memory Size: 32 MB / 100 user samples (includes preloaded factory samples
Total Sound Length: 295 seconds in mono, 148 seconds in stereo | | File Format | WAV 44.1 kHz, 16/24-bit | | Effect Type | Ambience: 25 types
Multi-effect: 30 types
Pad EQ: Can be assigned to each pad | | Master Effects | Bass (EQ), treble (EQ) | | Bluetooth Version | Standard: 4.2
Profiles: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method) | | Song Player (SD Card) | File Formats: WAV (44.1 kHz, 16/24-bit) and MP3 | | Recorder | Realtime
Maximum Time With SD Card: 60 minutes
Maximum Time Without SD Card (Temporary Recording): 3 minutes | | Trigger Inputs | DB-25 Type: Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, and Hi-Hat Control
Extra Trigger Input Jacks: 2 x stereo 1/4 / 6.3 mm phone type (AUX, Crash2) | | Audio Output Jacks | Stereo 1/4" / 6.3 mm phone type (L/Mono, R) | | Phones | 1/4" / 6.3 mm phone type | | Mix In | Stereo 1/8 / 3.5 mm miniature phone type | | Built-In Card Slot | SDHC SD | | MIDI Connectors | 5-Pin Din Output
USB | | USB Interface | Hi-speed (MIDI, Audio) | | Display | 128 x 64 backlit LCD | | Power Supply | AC Adaptor (DC 9V) | | Current Draw | 490 mA | | Dimensions (W x D x H) | 8.8 x 7.7 x 2.6" / 22.3 x 19.6 x 6.5 cm | | Weight | 2.0 lb / 0.9 kg excluding AC adaptor | | | | Drum Sound Module | TD-17 with Bluetooth | | V-Pad (Snare) | PDX-12 | | Pad (Tom1, Tom2, Tom3) | 3 x PDX-8 | | Hi-Hat Controller | VH-10 | | V-Cymbal | 2 x CY-12 crash
1 x CY-13R ride | | Kick Pad | KD-10 | | Stand | MDS-COM | | Dimensions (W x D x H) | 51.2 x 43.3 x 47.2" / 130 x 110 x 120 cm | | Weight | 48.3 lb / 21.9 kg | | | | Package Weight | 74.5 lb | | Box Dimensions (LxWxH) | 33.4 x 32.1 x 18.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
