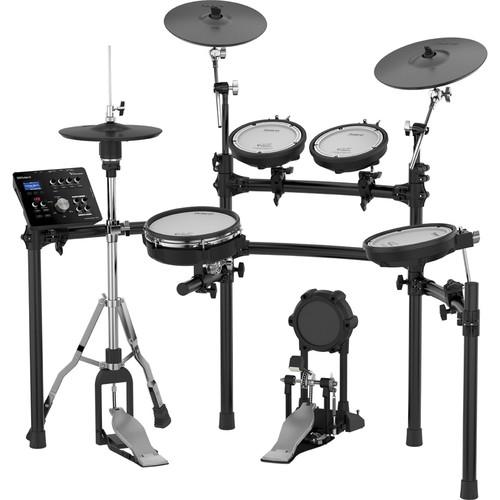

Roland TD-25K V-Drums 8-Piece Electronic Drumset

User Manual for Roland TD-25K V-Drums 8-Piece Electronic Drumset with Drum Module

• Product category: Electronic Drums Roland
• Brand: Roland
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Roland Electronic Drums

Product description

• TD-25 V-Drums Sound Module Giving you 36 different drum kits in addition to a variety of reverbs and multi-effects, the TD-25 V-Drums Sound Module from Roland is based on the sound engine from their flagship TD-30 module and geared towards easily customizable sounds and play-ability. It features both USB and 5-pin DIN MIDI output, allowing you to record your MIDI performance to your DAW of choice. An additional USB port lets you connect a flash drive to upload songs to jam along with, or record live performances to.
  General Features
  • • SuperNATURAL sound engine based on the flagship TD-30
    • Sound quality and expressiveness equivalent to the top-of-the-line V-Drums
    • Simple, logical interface for easily swapping and customizing each drum and cymbal in a kit
    • Enhance drum sounds with reverb, multi-effects, and EQ
    • Play along with WAV/MP3 songs and capture drum performances as audio tracks to a USB memory stick
    • Build drumming skills with the onboard Coach functions
    • Quick-access metronome with dedicated screen, on/off button, and tempo knob
    • USB host port for audio/MIDI communication with a computer
    • Supports positional sensing on the snare when used with compatible Roland drum pads such as the PD-128S/128, PD-125XS/125X, and many others
    • Compatible with the VH-11 V-Hi-Hat for realistic pedal action and bow/edge sounds
    Sound & Expressiveness
    • The TD-25 offers a natural drumming experience, thanks to Roland's SuperNATURAL technology with Behavior Modeling inherited from the flagship TD-30. The TD-25's sounds are designed to respond naturally and organically to your playing, just like acoustic drums. With it you can play a variety of techniques, from rim shots, rolls, flams, and ghost notes on the snare to crash hits and sustained cymbal swells. To further extend the natural playing feel, the TD-25 provides positional snare sensing with compatible Roland drum pads and also supports the VH-11 V-Hi-Hat for hi-hat playing techniques.
    Call Up Kits and Start Playing
    • The TD-25 lets you enjoy playing great sounds for many types of music right away. Designed to be easy to grab while holding sticks, the large center dial allows you to quickly select kits based on music styles, such as standard, rock, jazz, electronic, and others. After you've selected a style, press the dial to toggle between different kit variations.
    Customizable Kits
    • The TD-25 allows you to edit sounds to suit your playing touch or a specific style of music. Just hit a pad to call up the sound assigned to it, and then use the panel knobs to select instruments and tweak tuning, muffling, and levels. Shortcuts speed up tom editing, allowing you to assign sounds and change the muffling and tuning for all the toms at once. Your changes are saved automatically as you edit, eliminating the need to fuss with extra steps. If you don't like your most recent tweaks, you can easily undo them and return to where the kit was when you first selected it.
    Play Along with Recorded Tracks
    • Want a little jamming music to play along with? Just load up a USB memory stick with favorite WAV/MP3 songs and play along. In addition to normal playback, you can loop sections you'd like to work on, or slow the playback speed to more easily learn fast fills and articulations. Alternately, you can plug a smartphone into the audio input and drum with songs from your music library or the web. It's also possible to record your drumming performances (along with music playback) as audio files to a USB memory stick, offering a means to evaluate your playing and/or share your drumming. The sound module is equipped with a USB host port as well, providing a connection for recording audio and MIDI data directly into DAW software.
  • PDX-100 V-Pad 10" The PDX-100 V-Pad from Roland is a 10" mesh head designed as a tom pad for the TD-30K electronic drum set. It features dual triggers on the head and rim for enhanced dynamics and rim-shot depth. The two-way mount holder enables vertical or horizontal mounting on a Roland MDS series stand or available pipe tom stand.
    • Mesh head V-Pad for toms designed for the TD-30K electronic drum set
    • Features dual triggers on the head and rim for enhanced dynamics and rim-shot depth
    • Sensors detect the slightest nuances of your performance and transmit precise performance data
    • Two-way mount enables vertical or horizontal mounting options on Roland MDS series stands
    • Mesh heads and rubber coated rims are acoustically quiet for private practice
    UPC: 761294501948
  • PDX-6 Dual-Trigger Mesh V-Pad The PDX-6 from Roland is a high-quality V-Pad designed for use as a Tom Pad with an electronic drum kit. The pad has a durable mesh construction and features a dual-triggering system that lets you trigger the 8" rim and 6.5" head separately for realistic playing.
    • Durable mesh construction
    • Ideal for use as a Tom Pad
    • The 8" rim and 6.5" head can be triggered separately for realistic playing
    UPC: 761294410288
  • PDX-8 - Dual-Trigger 10" Mesh V-Pad The PDX-8 from Roland is a high-quality mesh V-Pad, great for use as a snare. The PDX-8 uses dual-trigger technology for separate head and rim triggering. The 10" rim provides comfortable and quiet rimshots for a realistic performance.
    • Durable mesh V-Pad, great for use as a snare
    • Dual-triggering technology for separate rim and head triggering for realistic playing
    • Large 10" rim for comfortable and quiet rimshots
    UPC: 761294089484
  • VH-11 V-Hi-Hat The Roland VH-11 V-Hi-Hat consists of a fixed base and a floating top cymbal pad with the playing feel of a two-piece high-hat. This floating design means that fewer moving components are involved, which results in a quieter performance.

    Easy to transport and set up, this high-hat mounts easily on conventional acoustic high-hat stands. The dual triggers (one on the bell, one on the edge) yield an exceptionally realistic sound.
    Quiet Performance
    • This high-hat consists of a fixed bottom cymbal and a floating top cymbal pad. Fewer moving parts results in a quieter performance.
    Realistic Sound and Play
    • The VH-11's dual triggers yield a life-like sound, and the floating-top design makes sure it feels as real as it sounds.
    Convenient
    • Easy to transport and set up, this high-hat mounts easily on conventional acoustic high-hat stands.
    Compatible With:
    • Roland TD-20, TD-12 and can be used with TD-10 w/TDW-1, TD-8, and TD-6.
    UPC: 761294087947
  • CY-12C V-Cymbal Crash The Roland CY-12C V-Cymbal Crash is 12" (305mm) in diameter, features 2 zones at the bow and edge, and is intended for use with the Roland V-series electronic drum sets. The cymbal mounts to the optional MDY series mount. UPC: 761294500644
  • CY-13R V-Cymbal Ride The Roland CY-13R V-Cymbal Ride is 13" (331mm) in diameter, features 3 zones at the bow, bell and edge, and is intended for use with the Roland V-series electronic drum sets. The cymbal mounts to the optional MDY series mount. UPC: 761294500651
  • KD-9 Kick Pad The Roland KD-9 Kick Pad is designed to provide a great feel, even when using a double pedal (pedals not included). The pad features a cloth-designed drum head for dynamic response and realistic feel. The KD-9 is built tough and easy to set up. UPC: 761294500668
  In the Box Bundle Items TD-25 V-Drums Sound Module xreztvdqzstvasww
  • AC Adapter
  • Connection Cable
  • 2 x Wing Bolts (M5 x 10)
  • Sound Module Mounting Plate
  • Limited 1-Year Warranty on Parts
  • Limited 90-Day Warranty on Labor
  PDX-100 V-Pad 10"
  • Connection Cable
  • Drum Key
  2 x PDX-6 Dual-Trigger Mesh V-Pad
  • 1-Year Limited Warranty
  PDX-8 - Dual-Trigger 10" Mesh V-Pad
  • 1-Year Limited Warranty
  VH-11 V-Hi-Hat
  • Clutch
  • Tuning Key
  • Cable Tie
  • Owner's Manual
  • 1-Year Parts, 90-Day Labor Warranty
  CY-12C V-Cymbal Crash xreztvdqzstvasww
  • Owner's Manual
  • Wing Nut
  • Felt Washer
  • Stopper
  • Connection Cable
  • Cable Tie
  • 1 Year Warranty
  CY-13R V-Cymbal Ride
  • Owner's Manual
  • Wing Nut
  • Felt Washer
  • Stopper
  • 2 x Connection Cable
  • Cable Tie
  • 1 Year Warranty
  KD-9 Kick Pad
  • Owner's Manual
  • Connection Cable
  • 1 Year Warranty

Also Includes

• MDS-9V Drum Stand for V-Tour Series V-Drums
• Drum Key
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TD-25 V-Drums Sound Module

  Drum Kits	36
  Effect Types	Reverb: 8 types Multi-Effects: 21 types Equalizer (Tone Control)
  Recording	Internal, USB Flash Memory File Format Audio file: WAV/MP3
  Display	64 x 128 dots graphic type LCD (backlit LCD)
  Connectors	Trigger Input Connector: DB-25 (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control) Extra Trigger Input Jacks: Stereo 1/4" / 6.3 mm phone type Crash 2, AUX Master Output Jacks (L/MONO, R): 1/4" / 6.3 mm phone type Phones Jack: Stereo 1/4" / 6.3 mm phone type Audio Input Jack: Stereo 1/8" / 3.5 mm miniature phone type MIDI Out Connector: 5-pin DIN USB Computer Port: USB type B USB Memory Port: USB type A Interface USB-MIDI, USB-Audio, USB Flash Memory
  Output Impedance	1 kOhm
  Power Supply	AC adapter (DC 9 V)
  Current Draw	500 mA
  Dimensions (W x D x H)	9.4 x 7.1 x 3.4" / 238 x 180 x 86 mm
  Weight	2.2 lb / 1 kg

• PDX-100 V-Pad 10"

  Size	10" (254mm)
  Triggers	Two: head and rim
  Acceptable Rod Diameters	0.35 x 0.51" (9 to 13mm)
  Usable Pipe Size	0.86" (22.2mm)
  Mounting	Dual Mount: Vertical Rods in Roland's MDS Series Horizontal Pipe Systems on Commercially Available Tom Stands
  Dimensions	12.20 x 12.79 x 3.54" (310 x 325 x 90mm)
  Weight	4 lb (1.8 kg)

  Box Dimensions (LxWxH)	13.9 x 13.3 x 5.3"

• PDX-6 Dual-Trigger Mesh V-Pad

  Box Dimensions (LxWxH)	14.0 x 12.5 x 5.0"

• PDX-8 - Dual-Trigger 10" Mesh V-Pad

  Box Dimensions (LxWxH)	15.0 x 13.5 x 4.9"

• VH-11 V-Hi-Hat

  Type	High-hat trigger
  Trigger Pads	2 (Bow/Edge)
  Materials	Not Specified by Manufacturer
  Outputs	1/4" female
  Dimensions	12.38 x 12.38 x 4.13" (314 x 314 x 103mm)
  Weight	3 lbs, 5 oz (1.5 kg)

  Box Dimensions (LxWxH)	16.8 x 13.0 x 6.6"

• CY-12C V-Cymbal Crash

  Connectors	Bow & Edge Output Jacks
  Dimensions (WxDxH)	12-1/16 x 12-1/6 x 1-13/16" (305 x 305 x 45mm)
  Weight	2 lb 2 oz (940g)

  Box Dimensions (LxWxH)	14.3 x 14.1 x 3.9"

• CY-13R V-Cymbal Ride

  Connectors	Bow, Bell & Edge Output Jacks
  Dimensions (WxDxH)	13-1/16 x 13-1/6 x 1-15/16" (331 x 331 x 48mm)
  Weight	2 lb 7 oz (1.1kg)

  Box Dimensions (LxWxH)	14.3 x 14.2 x 3.9"

• KD-9 Kick Pad

  Dimensions (WxDxH)	8-5/8 x 8 x 17-1/4" (219 x 203 x 438mm)
  Weight	6 lb 3 oz (2.8kg)

  Box Dimensions (LxWxH)	21.1 x 11.4 x 10.4"
