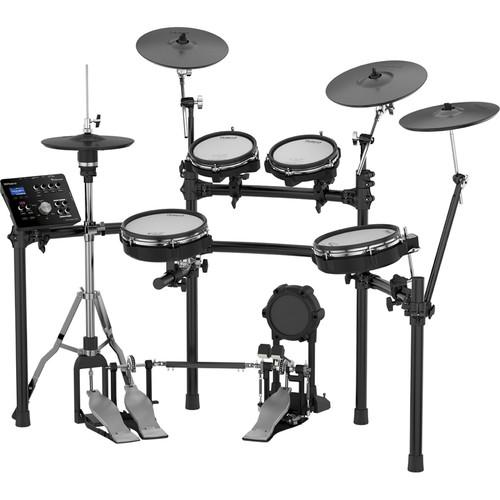

User Manual for Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit with Drum Module Click to enlarge the picture
Contents of the user manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
|
User manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description Giving home and studio electronic drummers access to the sound engine from their flagship TD-30 V-Drums, the TD-25KV V-Drums 10-Piece Electronic Drum Kit with Drum Module from Roland employs a streamlined interface that allows for swapping each drum and cymbal in your kit. The kit itself consists of a TD-25 drum module, a PDX-100 10" snare pad, 2 PD85 8" tom pads, a 10" PDX-100 tom pad, a VH-11 hi-hat pad, 2 CY-12C crash cymbal pads, a CY-13R ride cymbal pad, and a KD-9 kick pad. The system can be mounted on the included MDS-9V drum stand.
The snare and tom pads all feature mesh heads for realistic playing, while the 2 cymbal pads have a variety of features including edge/bow sensors, and a natural swinging motion. The hi-hat pad mounts on a standard hi-hat stand (not included). The TD-25 drum module allows you to play along with tracks on a USB stick or your smartphone, while a USB port allows you to record audio or MIDI data to your DAW. - TD-25 V-Drums Sound Module Giving you 36 different drum kits in addition to a variety of reverbs and multi-effects, the TD-25 V-Drums Sound Module from Roland is based on the sound engine from their flagship TD-30 module and geared towards easily customizable sounds and play-ability. It features both USB and 5-pin DIN MIDI output, allowing you to record your MIDI performance to your DAW of choice. An additional USB port lets you connect a flash drive to upload songs to jam along with, or record live performances to.
- General Features
-
- SuperNATURAL sound engine based on the flagship TD-30
- Sound quality and expressiveness equivalent to the top-of-the-line V-Drums
- Simple, logical interface for easily swapping and customizing each drum and cymbal in a kit
- Enhance drum sounds with reverb, multi-effects, and EQ
- Play along with WAV/MP3 songs and capture drum performances as audio tracks to a USB memory stick
- Build drumming skills with the onboard Coach functions
- Quick-access metronome with dedicated screen, on/off button, and tempo knob
- USB host port for audio/MIDI communication with a computer
- Supports positional sensing on the snare when used with compatible Roland drum pads such as the PD-128S/128, PD-125XS/125X, and many others
- Compatible with the VH-11 V-Hi-Hat for realistic pedal action and bow/edge sounds
- Sound & Expressiveness
- The TD-25 offers a natural drumming experience, thanks to Roland's SuperNATURAL technology with Behavior Modeling inherited from the flagship TD-30. The TD-25's sounds are designed to respond naturally and organically to your playing, just like acoustic drums. With it you can play a variety of techniques, from rim shots, rolls, flams, and ghost notes on the snare to crash hits and sustained cymbal swells. To further extend the natural playing feel, the TD-25 provides positional snare sensing with compatible Roland drum pads and also supports the VH-11 V-Hi-Hat for hi-hat playing techniques.
- Call Up Kits and Start Playing
- The TD-25 lets you enjoy playing great sounds for many types of music right away. Designed to be easy to grab while holding sticks, the large center dial allows you to quickly select kits based on music styles, such as standard, rock, jazz, electronic, and others. After you've selected a style, press the dial to toggle between different kit variations.
- Customizable Kits
- The TD-25 allows you to edit sounds to suit your playing touch or a specific style of music. Just hit a pad to call up the sound assigned to it, and then use the panel knobs to select instruments and tweak tuning, muffling, and levels. Shortcuts speed up tom editing, allowing you to assign sounds and change the muffling and tuning for all the toms at once. Your changes are saved automatically as you edit, eliminating the need to fuss with extra steps. If you don't like your most recent tweaks, you can easily undo them and return to where the kit was when you first selected it.
- Play Along with Recorded Tracks
- Want a little jamming music to play along with? Just load up a USB memory stick with favorite WAV/MP3 songs and play along. In addition to normal playback, you can loop sections you'd like to work on, or slow the playback speed to more easily learn fast fills and articulations. Alternately, you can plug a smartphone into the audio input and drum with songs from your music library or the web. It's also possible to record your drumming performances (along with music playback) as audio files to a USB memory stick, offering a means to evaluate your playing and/or share your drumming. The sound module is equipped with a USB host port as well, providing a connection for recording audio and MIDI data directly into DAW software.
- PDX-100 V-Pad 10" The PDX-100 V-Pad from Roland is a 10" mesh head designed as a tom pad for the TD-30K electronic drum set. It features dual triggers on the head and rim for enhanced dynamics and rim-shot depth. The two-way mount holder enables vertical or horizontal mounting on a Roland MDS series stand or available pipe tom stand.
- Mesh head V-Pad for toms designed for the TD-30K electronic drum set
- Features dual triggers on the head and rim for enhanced dynamics and rim-shot depth
- Sensors detect the slightest nuances of your performance and transmit precise performance data
- Two-way mount enables vertical or horizontal mounting options on Roland MDS series stands
- Mesh heads and rubber coated rims are acoustically quiet for private practice
UPC: 761294501948 - PD-85 - Dual-Zone 8" V-Pad for TD-Series Modules (Black) The PD-85 from Roland is a high-quality drum pad designed for use with all TD-series sound modules. It uses dual-triggering technology, which provides accurate and consistent sensing between the rim and the head. Great for use as a tom drum, the PD-85 is ruggedly built for a long life of drumming.
- Dual-triggering technology for consistent, accurate sensing between the rim and the head
- Large 8" size, great for use as a tom drum
- Sound changes depending on the strength of the stroke; great for rimshots
- Rugged, durable construction
- Compatible with all TD-series sound modules
UPC: 761294088036 - PDX-8 - Dual-Trigger 10" Mesh V-Pad The PDX-8 from Roland is a high-quality mesh V-Pad, great for use as a snare. The PDX-8 uses dual-trigger technology for separate head and rim triggering. The 10" rim provides comfortable and quiet rimshots for a realistic performance.
- Durable mesh V-Pad, great for use as a snare
- Dual-triggering technology for separate rim and head triggering for realistic playing
- Large 10" rim for comfortable and quiet rimshots
UPC: 761294089484 - VH-11 V-Hi-Hat The Roland VH-11 V-Hi-Hat consists of a fixed base and a floating top cymbal pad with the playing feel of a two-piece high-hat. This floating design means that fewer moving components are involved, which results in a quieter performance.
Easy to transport and set up, this high-hat mounts easily on conventional acoustic high-hat stands. The dual triggers (one on the bell, one on the edge) yield an exceptionally realistic sound. - Quiet Performance
- This high-hat consists of a fixed bottom cymbal and a floating top cymbal pad. Fewer moving parts results in a quieter performance.
- Realistic Sound and Play
- The VH-11's dual triggers yield a life-like sound, and the floating-top design makes sure it feels as real as it sounds.
- Convenient
- Easy to transport and set up, this high-hat mounts easily on conventional acoustic high-hat stands.
- Compatible With:
- Roland TD-20, TD-12 and can be used with TD-10 w/TDW-1, TD-8, and TD-6.
UPC: 761294087947 - CY-12C V-Cymbal Crash The Roland CY-12C V-Cymbal Crash is 12" (305mm) in diameter, features 2 zones at the bow and edge, and is intended for use with the Roland V-series electronic drum sets. The cymbal mounts to the optional MDY series mount. UPC: 761294500644
- CY-13R V-Cymbal Ride The Roland CY-13R V-Cymbal Ride is 13" (331mm) in diameter, features 3 zones at the bow, bell and edge, and is intended for use with the Roland V-series electronic drum sets. The cymbal mounts to the optional MDY series mount. UPC: 761294500651
- KD-9 Kick Pad The Roland KD-9 Kick Pad is designed to provide a great feel, even when using a double pedal (pedals not included). The pad features a cloth-designed drum head for dynamic response and realistic feel. The KD-9 is built tough and easy to set up. UPC: 761294500668
In the Box Bundle Items TD-25 V-Drums Sound Module czvfqvycrdtxzeuutryutazccvwcwwtb - Sound Module Mounting Plate
- Limited 1-Year Warranty on Parts
- Limited 90-Day Warranty on Labor
2 x PDX-100 V-Pad 10" 2 x PD-85 - Dual-Zone 8" V-Pad for TD-Series Modules (Black) PDX-8 - Dual-Trigger 10" Mesh V-Pad VH-11 V-Hi-Hat - 1-Year Parts, 90-Day Labor Warranty
2 x CY-12C V-Cymbal Crash CY-13R V-Cymbal Ride KD-9 Kick Pad
Also Includes - MDS-9V Drum Stand for V-Tour Series V-Drums
- Drum Key
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland TD-25KV V-Drums 10-Piece Electronic Drum Kit with Drum Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TD-25 V-Drums Sound Module
| Drum Kits | 36 | | Effect Types | Reverb: 8 types
Multi-Effects: 21 types
Equalizer (Tone Control) | | Recording | Internal, USB Flash Memory
File Format Audio file: WAV/MP3 | | Display | 64 x 128 dots graphic type LCD (backlit LCD) | | Connectors | Trigger Input Connector: DB-25 (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control)
Extra Trigger Input Jacks: Stereo 1/4" / 6.3 mm phone type
Crash 2, AUX
Master Output Jacks (L/MONO, R): 1/4" / 6.3 mm phone type
Phones Jack: Stereo 1/4" / 6.3 mm phone type
Audio Input Jack: Stereo 1/8" / 3.5 mm miniature phone type
MIDI Out Connector: 5-pin DIN
USB Computer Port: USB type B
USB Memory Port: USB type A
Interface USB-MIDI, USB-Audio, USB Flash Memory | | Output Impedance | 1 kOhm | | Power Supply | AC adapter (DC 9 V) | | Current Draw | 500 mA | | Dimensions (W x D x H) | 9.4 x 7.1 x 3.4" / 238 x 180 x 86 mm | | Weight | 2.2 lb / 1 kg | - PDX-100 V-Pad 10"
| Size | 10" (254mm) | | Triggers | Two: head and rim | | Acceptable Rod Diameters | 0.35 x 0.51" (9 to 13mm) | | Usable Pipe Size | 0.86" (22.2mm) | | Mounting | Dual Mount:
Vertical Rods in Roland's MDS Series
Horizontal Pipe Systems on Commercially Available Tom Stands | | Dimensions | 12.20 x 12.79 x 3.54" (310 x 325 x 90mm) | | Weight | 4 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 13.9 x 13.3 x 5.3" | - PD-85 - Dual-Zone 8" V-Pad for TD-Series Modules (Black)
| | | Box Dimensions (LxWxH) | 14.75 x 13.0 x 7.8" | - PDX-8 - Dual-Trigger 10" Mesh V-Pad
| | | Box Dimensions (LxWxH) | 15.0 x 13.5 x 4.9" | - VH-11 V-Hi-Hat
| Type | High-hat trigger | | Trigger Pads | 2 (Bow/Edge) | | Materials | Not Specified by Manufacturer | | Outputs | 1/4" female | | Dimensions | 12.38 x 12.38 x 4.13" (314 x 314 x 103mm) | | Weight | 3 lbs, 5 oz (1.5 kg) | | | | Box Dimensions (LxWxH) | 16.8 x 13.0 x 6.6" | - CY-12C V-Cymbal Crash
| Connectors | Bow & Edge Output Jacks | | Dimensions (WxDxH) | 12-1/16 x 12-1/6 x 1-13/16" (305 x 305 x 45mm) | | Weight | 2 lb 2 oz (940g) | | | | Box Dimensions (LxWxH) | 14.3 x 14.1 x 3.9" | - CY-13R V-Cymbal Ride
| Connectors | Bow, Bell & Edge Output Jacks | | Dimensions (WxDxH) | 13-1/16 x 13-1/6 x 1-15/16" (331 x 331 x 48mm) | | Weight | 2 lb 7 oz (1.1kg) | | | | Box Dimensions (LxWxH) | 14.3 x 14.2 x 3.9" | - KD-9 Kick Pad
| Dimensions (WxDxH) | 8-5/8 x 8 x 17-1/4" (219 x 203 x 438mm) | | Weight | 6 lb 3 oz (2.8kg) | | | | Box Dimensions (LxWxH) | 21.1 x 11.4 x 10.4" |
