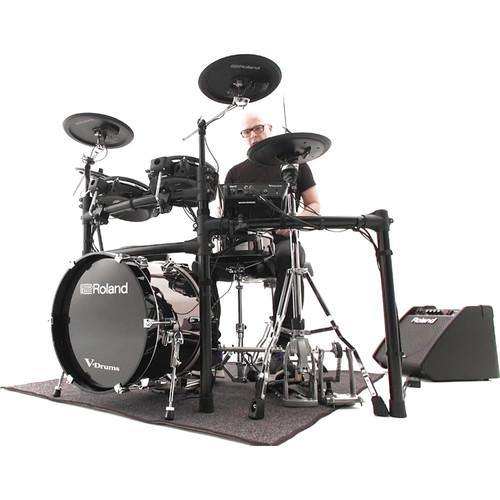

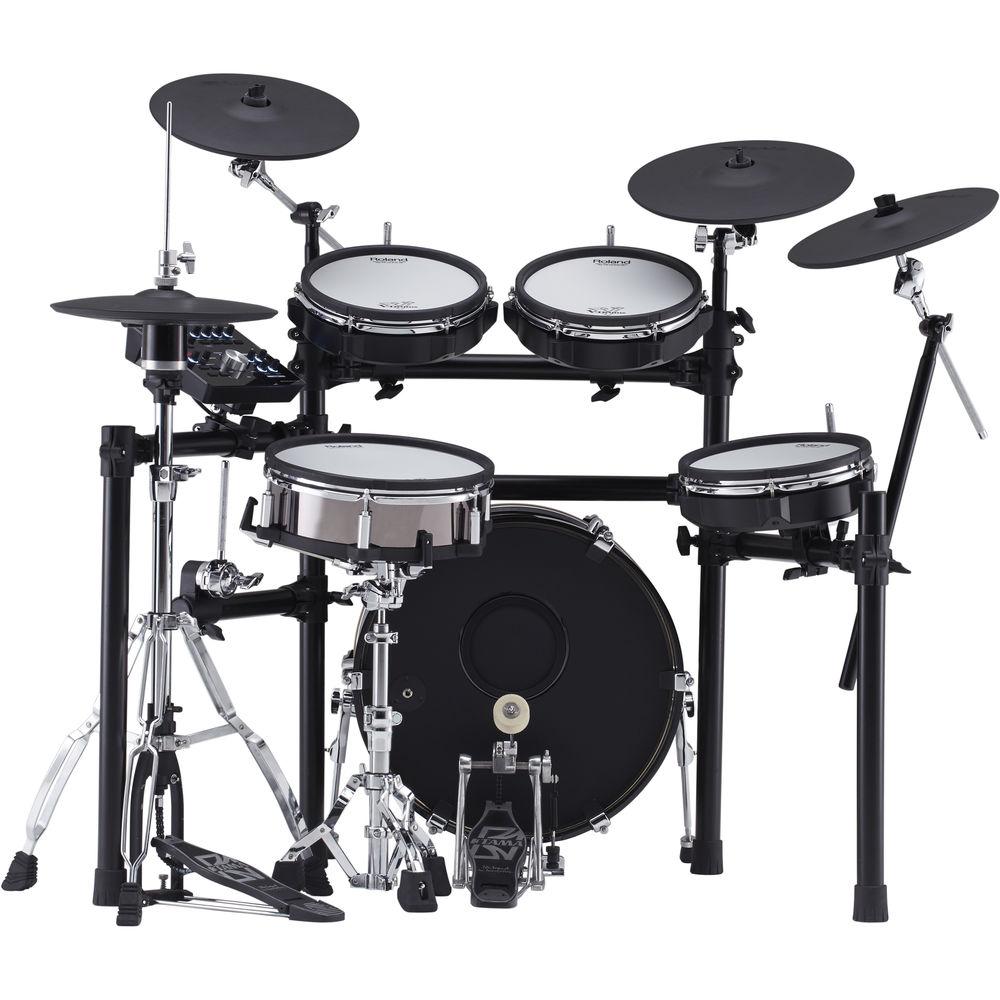

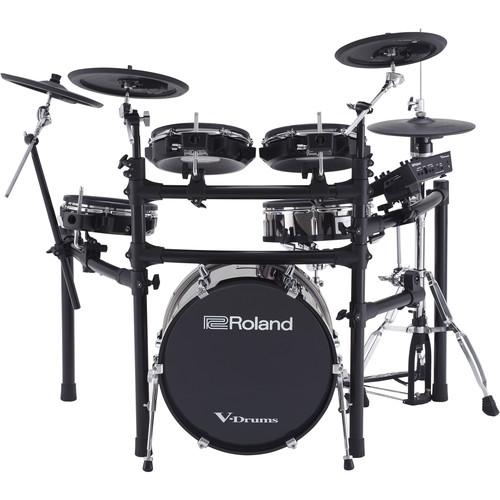

Roland TD-25KVX V-Drums Electronic Drum Kit

User Manual for Roland TD-25KVX V-Drums Electronic Drum Kit

• Product category: Electronic Drums Roland
• Brand: Roland
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Roland Electronic Drums

Product description

• TD-25 V-Drums Sound Module Giving you 36 different drum kits in addition to a variety of reverbs and multi-effects, the TD-25 V-Drums Sound Module from Roland is based on the sound engine from their flagship TD-30 module and geared towards easily customizable sounds and play-ability. It features both USB and 5-pin DIN MIDI output, allowing you to record your MIDI performance to your DAW of choice. An additional USB port lets you connect a flash drive to upload songs to jam along with, or record live performances to.
  General Features
  • • SuperNATURAL sound engine based on the flagship TD-30
    • Sound quality and expressiveness equivalent to the top-of-the-line V-Drums
    • Simple, logical interface for easily swapping and customizing each drum and cymbal in a kit
    • Enhance drum sounds with reverb, multi-effects, and EQ
    • Play along with WAV/MP3 songs and capture drum performances as audio tracks to a USB memory stick
    • Build drumming skills with the onboard Coach functions
    • Quick-access metronome with dedicated screen, on/off button, and tempo knob
    • USB host port for audio/MIDI communication with a computer
    • Supports positional sensing on the snare when used with compatible Roland drum pads such as the PD-128S/128, PD-125XS/125X, and many others
    • Compatible with the VH-11 V-Hi-Hat for realistic pedal action and bow/edge sounds
    Sound & Expressiveness
    • The TD-25 offers a natural drumming experience, thanks to Roland's SuperNATURAL technology with Behavior Modeling inherited from the flagship TD-30. The TD-25's sounds are designed to respond naturally and organically to your playing, just like acoustic drums. With it you can play a variety of techniques, from rim shots, rolls, flams, and ghost notes on the snare to crash hits and sustained cymbal swells. To further extend the natural playing feel, the TD-25 provides positional snare sensing with compatible Roland drum pads and also supports the VH-11 V-Hi-Hat for hi-hat playing techniques.
    Call Up Kits and Start Playing
    • The TD-25 lets you enjoy playing great sounds for many types of music right away. Designed to be easy to grab while holding sticks, the large center dial allows you to quickly select kits based on music styles, such as standard, rock, jazz, electronic, and others. After you've selected a style, press the dial to toggle between different kit variations.
    Customizable Kits
    • The TD-25 allows you to edit sounds to suit your playing touch or a specific style of music. Just hit a pad to call up the sound assigned to it, and then use the panel knobs to select instruments and tweak tuning, muffling, and levels. Shortcuts speed up tom editing, allowing you to assign sounds and change the muffling and tuning for all the toms at once. Your changes are saved automatically as you edit, eliminating the need to fuss with extra steps. If you don't like your most recent tweaks, you can easily undo them and return to where the kit was when you first selected it.
    Play Along with Recorded Tracks
    • Want a little jamming music to play along with? Just load up a USB memory stick with favorite WAV/MP3 songs and play along. In addition to normal playback, you can loop sections you'd like to work on, or slow the playback speed to more easily learn fast fills and articulations. Alternately, you can plug a smartphone into the audio input and drum with songs from your music library or the web. It's also possible to record your drumming performances (along with music playback) as audio files to a USB memory stick, offering a means to evaluate your playing and/or share your drumming. The sound module is equipped with a USB host port as well, providing a connection for recording audio and MIDI data directly into DAW software.
  • PD-128S V-Pad Snare (Black Chrome) The PD-128S V-Pad from Roland is a 12" mesh head designed as a snare pad the V-Drums TD-30KV electronic drum set. It features an advanced rim sensor for enhanced dynamics and rim-shot depth plus an exchangeable black-chrome shell wrap. When used with the TD-9, TD-12 or TD-20 sound module, both sensors fire simultaneously for a more accurate representation of the interaction between the head, rim and strike of your sticks. The PD-128S is designed to mount safely and securely to most any snare stand providing proper support and precise positioning. The outer shell features an attractive synthetic material with an authentic brushed-metal appearance. However, its look can be easily changed with optional blue or red brushed-metal wraps (available separately).
    • Advanced V-Pad sensor construction captures impact strength, stick position and stroke interval
    • Sensors detect the slightest nuances of your performance and transmit precise performance data
    • The radial sensor-frame detects hits near the hoop and interacts with the center sensor
    • The sensor precisely senses your performance information during rim shots and cross-sticking
    • Mesh heads and rubber coated rims are acoustically quiet for private practice
    • Customize your look with exchangeable covers in metallic red or blue (sold separately)
    • The lugs float independently from the shell, so the covers can be easily changed
    UPC: 761294500965
  • KD-180 V-Drums 18" Bass Drum The Roland KD-180 is a V-Drums 18" bass drum designed to deliver the look and playability of an acoustic kick for drummers at rehearsal, in the studio, or onstage. It features an 18 x 12" 7-ply birch shell with custom chrome shell fittings and pre-installed kick trigger electronics. With accurate triggering and a natural playing feel, it is optimal in electronic kits and alongside acoustic drums. Its 1/4" trigger output allows standardized connectivity with most drum modules and brains. The KD-180 works with single and double kick pedals (available separately).
    • 18" 7-ply birch acoustic bass drum shell with custom chrome shell fittings
    • Advanced kick trigger electronics in the bass drum shell
    • Natural, responsive playing feel imparted by Roland's air-damper mechanics, which work alongside the acoustic shell to "move air"
    • Stable and accurate triggering for single- and double-pedal work (kick pedals available separately)
    • Compatible with many V-Drums rack stands and can be used alongside acoustic drum stands and hardware
    UPC: 761294512197
  • PDX-100 V-Pad 10" The PDX-100 V-Pad from Roland is a 10" mesh head designed as a tom pad for the TD-30K electronic drum set. It features dual triggers on the head and rim for enhanced dynamics and rim-shot depth. The two-way mount holder enables vertical or horizontal mounting on a Roland MDS series stand or available pipe tom stand.
    • Mesh head V-Pad for toms designed for the TD-30K electronic drum set
    • Features dual triggers on the head and rim for enhanced dynamics and rim-shot depth
    • Sensors detect the slightest nuances of your performance and transmit precise performance data
    • Two-way mount enables vertical or horizontal mounting options on Roland MDS series stands
    • Mesh heads and rubber coated rims are acoustically quiet for private practice
    UPC: 761294501948
  • VH-11 V-Hi-Hat The Roland VH-11 V-Hi-Hat consists of a fixed base and a floating top cymbal pad with the playing feel of a two-piece high-hat. This floating design means that fewer moving components are involved, which results in a quieter performance.

    Easy to transport and set up, this high-hat mounts easily on conventional acoustic high-hat stands. The dual triggers (one on the bell, one on the edge) yield an exceptionally realistic sound.
    Quiet Performance
    • This high-hat consists of a fixed bottom cymbal and a floating top cymbal pad. Fewer moving parts results in a quieter performance.
    Realistic Sound and Play
    • The VH-11's dual triggers yield a life-like sound, and the floating-top design makes sure it feels as real as it sounds.
    Convenient
    • Easy to transport and set up, this high-hat mounts easily on conventional acoustic high-hat stands.
    Compatible With:
    • Roland TD-20, TD-12 and can be used with TD-10 w/TDW-1, TD-8, and TD-6.
    UPC: 761294087947
  • CY-12C V-Cymbal Crash The Roland CY-12C V-Cymbal Crash is 12" (305mm) in diameter, features 2 zones at the bow and edge, and is intended for use with the Roland V-series electronic drum sets. The cymbal mounts to the optional MDY series mount. UPC: 761294500644
  • CY-13R V-Cymbal Ride The Roland CY-13R V-Cymbal Ride is 13" (331mm) in diameter, features 3 zones at the bow, bell and edge, and is intended for use with the Roland V-series electronic drum sets. The cymbal mounts to the optional MDY series mount. UPC: 761294500651
  In the Box Bundle Items TD-25 V-Drums Sound Module dwvvasysxecestcfyawqbe
  • AC Adapter
  • Connection Cable
  • 2 x Wing Bolts (M5 x 10)
  • Sound Module Mounting Plate
  • Limited 1-Year Warranty on Parts
  • Limited 90-Day Warranty on Labor
  PD-128S V-Pad Snare (Black Chrome) dwvvasysxecestcfyawqbe
  • Connection Cable
  • Drum Key
  KD-180 V-Drums 18" Bass Drum
  • Drum Key
  • Connection Cable
  • Limited 1-Year Warranty on Parts for Main Bass Drum
  • Limited 90-Day Warranty on Parts for Bass Drum Fittings
  • Limited 90-Day Warranty on Labor
  3 x PDX-100 V-Pad 10" dwvvasysxecestcfyawqbe
  • Connection Cable
  • Drum Key
  VH-11 V-Hi-Hat
  • Clutch
  • Tuning Key
  • Cable Tie
  • Owner's Manual
  • 1-Year Parts, 90-Day Labor Warranty
  2 x CY-12C V-Cymbal Crash dwvvasysxecestcfyawqbe
  • Owner's Manual
  • Wing Nut
  • Felt Washer
  • Stopper
  • Connection Cable
  • Cable Tie
  • 1 Year Warranty
  CY-13R V-Cymbal Ride
  • Owner's Manual
  • Wing Nut
  • Felt Washer
  • Stopper
  • 2 x Connection Cable
  • Cable Tie
  • 1 Year Warranty

Also Includes

• MDS-9SC Drum Stand

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TD-25 V-Drums Sound Module

  Drum Kits	36
  Effect Types	Reverb: 8 types Multi-Effects: 21 types Equalizer (Tone Control)
  Recording	Internal, USB Flash Memory File Format Audio file: WAV/MP3
  Display	64 x 128 dots graphic type LCD (backlit LCD)
  Connectors	Trigger Input Connector: DB-25 (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control) Extra Trigger Input Jacks: Stereo 1/4" / 6.3 mm phone type Crash 2, AUX Master Output Jacks (L/MONO, R): 1/4" / 6.3 mm phone type Phones Jack: Stereo 1/4" / 6.3 mm phone type Audio Input Jack: Stereo 1/8" / 3.5 mm miniature phone type MIDI Out Connector: 5-pin DIN USB Computer Port: USB type B USB Memory Port: USB type A Interface USB-MIDI, USB-Audio, USB Flash Memory
  Output Impedance	1 kOhm
  Power Supply	AC adapter (DC 9 V)
  Current Draw	500 mA
  Dimensions (W x D x H)	9.4 x 7.1 x 3.4" / 238 x 180 x 86 mm
  Weight	2.2 lb / 1 kg

• PD-128S V-Pad Snare (Black Chrome)

  Size	12" (30.48 cm)
  Triggers	Two: head and rim
  Color	Black Chrome Optional Shell Wrap Kits Available Separately: Blue Brushed Metal: CV-20KX-BU Red Brushed Metal: CV-20KX-RD
  Mounting	Snare stand
  Dimensions	14.09 x 12.67 x 4.60" (35.8 x 32.2 x 11.7 cm)
  Weight	6.61 lb (3.0 kg)

  Box Dimensions (LxWxH)	15.2 x 15.1 x 6.0"

• KD-180 V-Drums 18" Bass Drum

  Type	Bass drum
  Trigger Pads	1 (head)
  Materials	7-ply birch shell
  Outputs	1 x 1/4" / 3.5 mm trigger output
  Dimensions (W x D x H)	Drum: 22.8 x 17.8 x 22.1" / 580 x 453 x 562 mm Shell: 18 x 12 x 18" / 457 x 305 x 457 mm
  Weight	20.5 lb / 9.3 kg

• PDX-100 V-Pad 10"

  Size	10" (254mm)
  Triggers	Two: head and rim
  Acceptable Rod Diameters	0.35 x 0.51" (9 to 13mm)
  Usable Pipe Size	0.86" (22.2mm)
  Mounting	Dual Mount: Vertical Rods in Roland's MDS Series Horizontal Pipe Systems on Commercially Available Tom Stands
  Dimensions	12.20 x 12.79 x 3.54" (310 x 325 x 90mm)
  Weight	4 lb (1.8 kg)

  Box Dimensions (LxWxH)	13.9 x 13.3 x 5.3"

• VH-11 V-Hi-Hat

  Type	High-hat trigger
  Trigger Pads	2 (Bow/Edge)
  Materials	Not Specified by Manufacturer
  Outputs	1/4" female
  Dimensions	12.38 x 12.38 x 4.13" (314 x 314 x 103mm)
  Weight	3 lbs, 5 oz (1.5 kg)

  Box Dimensions (LxWxH)	16.8 x 13.0 x 6.6"

• CY-12C V-Cymbal Crash

  Connectors	Bow & Edge Output Jacks
  Dimensions (WxDxH)	12-1/16 x 12-1/6 x 1-13/16" (305 x 305 x 45mm)
  Weight	2 lb 2 oz (940g)

  Box Dimensions (LxWxH)	14.3 x 14.1 x 3.9"

• CY-13R V-Cymbal Ride

  Connectors	Bow, Bell & Edge Output Jacks
  Dimensions (WxDxH)	13-1/16 x 13-1/6 x 1-15/16" (331 x 331 x 48mm)
  Weight	2 lb 7 oz (1.1kg)

  Box Dimensions (LxWxH)	14.3 x 14.2 x 3.9"
