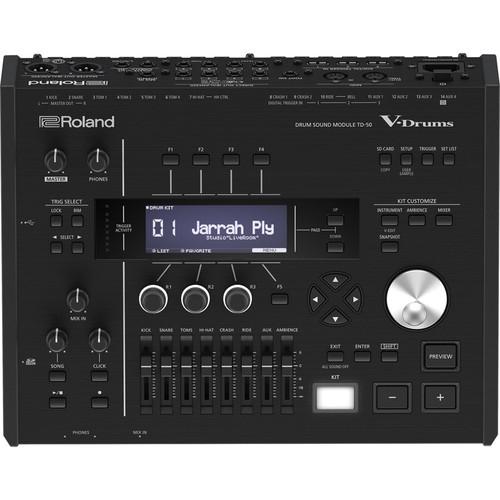

Product description The TD-50 V-Drums Sound Module from Roland is an expressive drum sound module for pro performance and studio sessions. It can be used when paired with drum pads (sold separately) for top-flight live performance, intense practice sessions, and eclectic studio work.Featuring an advanced processor and Prismatic Sound Modeling, the TD-50 delivers over 400-plus dynamic and expressive instrument sounds. In addition to the traditional analog trigger inputs, the module is built with digital trigger inputs for high-speed communication with multi-element sensor systems like the PD-140DS snare and the CY-18DR ride pads.Furthermore, deep editing features and flexible connectivity put you in charge with this sound module. It allows you to play WAV samples via an SD card, or have USB 10-channel audio out for multitrack recording through a single USB cable. With its attractive sound quality, quick responsiveness, and connectivity and expression, the TD-50 is on its way to being a professional standard in electronic drum sound modules. - Dynamic Prismatic Sound Modeling
- The TD-50 is a powerful new drum sound module whose original Prismatic Sound Modeling technology means that every element of your playing style is caught and conveyed in precise detail. It gives you lifelike, resonant, and expressive sounds via an electronic kit
- Play with Your Own WAV Files and Record Easily to a DAW
- Using the module's SD card slot, it's easy to trigger your own WAV files using any of the TD-50KV's drum pads (sold separately), and you can loop or layer them alongside the internal sounds while controlling volume and tone via the TD-50's front panel. Simply connect the TD-50 module to a computer via USB for multitrack recording direct to your favorite DAW. Up to 10 channels can be recorded separately, then easily edited for tone color, and more
- Practice Features to Develop Your Technique
- Whether you lock down your timing with the Quiet Count function or play along to backing tracks via the SD card slot, it's easy to get inspired, even when you're practicing alone
- Customize Your Sound for Live Sessions and Studio Work
- This module also supports deep sound customization, including basic adjustment of heads and shells, layering of internal and user samples, and adjustment of overhead mics and ambience. A compressor and three-band EQ can be controlled for each pad individually, while three independent multi-effect sections let you treat drums with 30 effect types such as delay, flanger, saturator, and many others. The two-band multi-compressor and four-band equalizer on the output let you change the overall dynamics and tonal balance, depending on whether you're in the studio or on the stage
- Balanced Connections to a PA
- The TD-50 is a V-Drums module that features an XLR stereo master out and eight TRS direct outs, allowing for a balanced connection to a PA system
- Record Drum Performances
- The TD-50 also includes a unique, easy-to-use audio-recording function—simply hit the record button and start playing to capture your performance. If you're playing to a click or backing track, there's an option to record just the drums, or to record them with the click or track included. Once captured, your recordings can be easily exported for upload and editing in your DAW
UPC: 761294508688 In the Box Roland TD-50 V-Drums Sound Module AC Power Supply Power Cord Limited 1-Year Warranty for Parts, 90 Days for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland TD-50 V-Drums Sound Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland TD-50 Specs | Drum Kits | 100 | | Instruments | More than 400 | | Effect Types | Pad Compressor: Each pad
Pad Equalizer: Each pad
Room Type: 25 types
Reverb Type: 5 types
Stereo Enhancer
Multi-Effects: 3 systems, 30 types
Master compressor
Master equalizer | | User Sample Import | Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24-bit) | | Media Player Support | SD Card: Audio file WAV (44.1 kHz, 16/24-bit), MP3 formats | | Recorder | Recording Method: Real time
Maximum Note Storage: Approx. 40,000 notes
Export File Format: WAV (44.1 kHz, 16-bit), SMF | | Display | Graphic LCD 256 x 80 dots

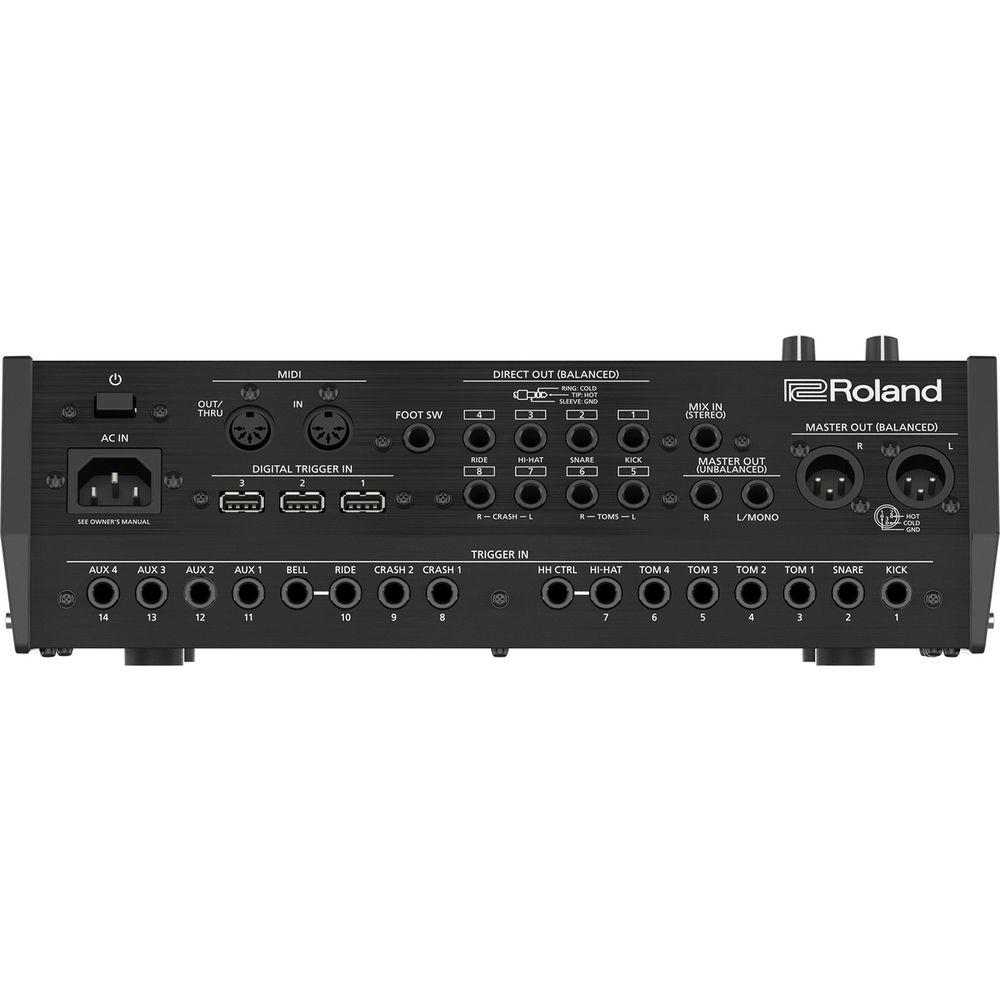

Trigger activity indicator (LED) | | Faders | 8 (Kick, Snare, Toms, Hi-Hat, Crash, Ride, Aux, and Ambience) | | External Memory | SD card (SDHC supported) | | Connectors | 14 x Trigger In Jack: 1/4-inch TRS phone type (exclusion use with digital pad)
3 x Digital Trigger In Port: USB Type-A
2 x Master Out (unbalanced) 1/4" (6.3 mm) L/Mono, R
2 x Master Out (balanced) XLR (L, R)
8 x Direct Out (balanced) 1/4" (6.3 mm) TRS

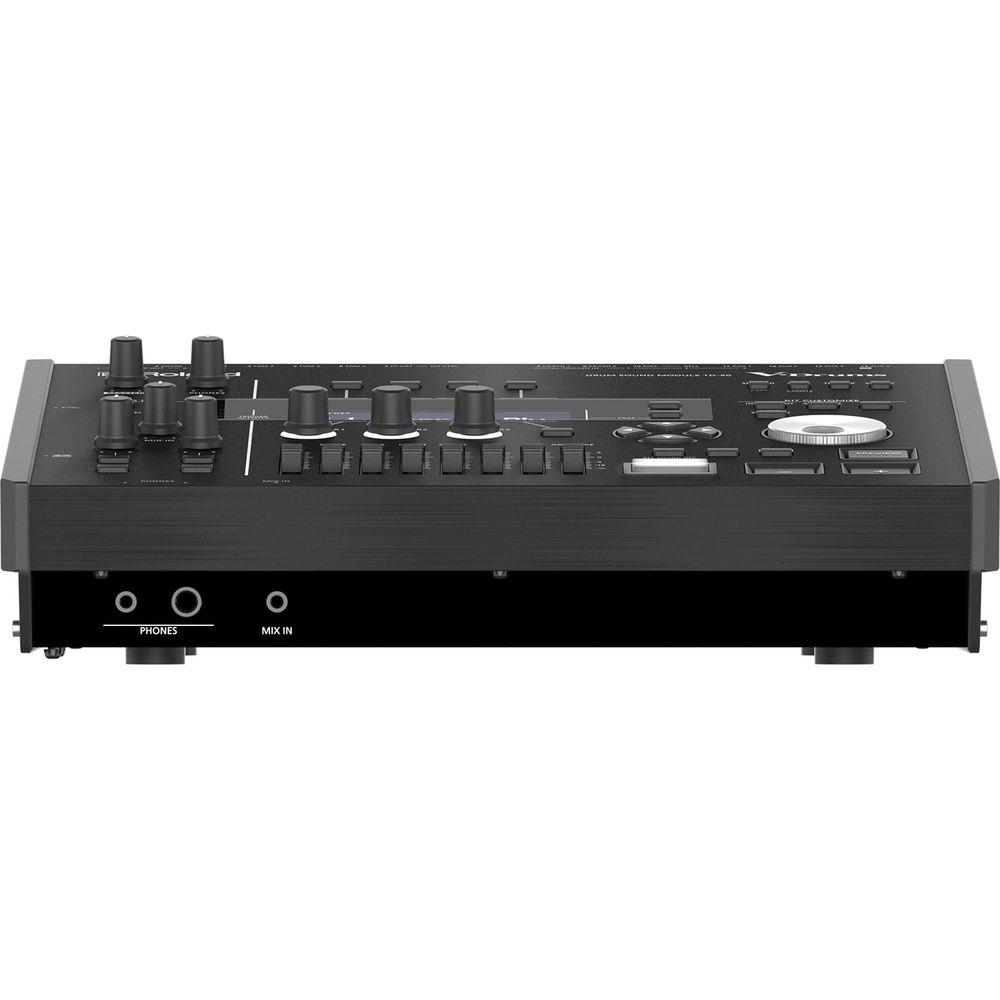

2 x Stereo Jack: 1/4" (6.3 mm), 1/8" (3.5 mm) stereo mini-jack
2 x Mix In: Stereo 1/4" (6.3 mm), stereo 1/8" (3.5 mm) mini-jack
MIDI (In, Out/Thru) connectors

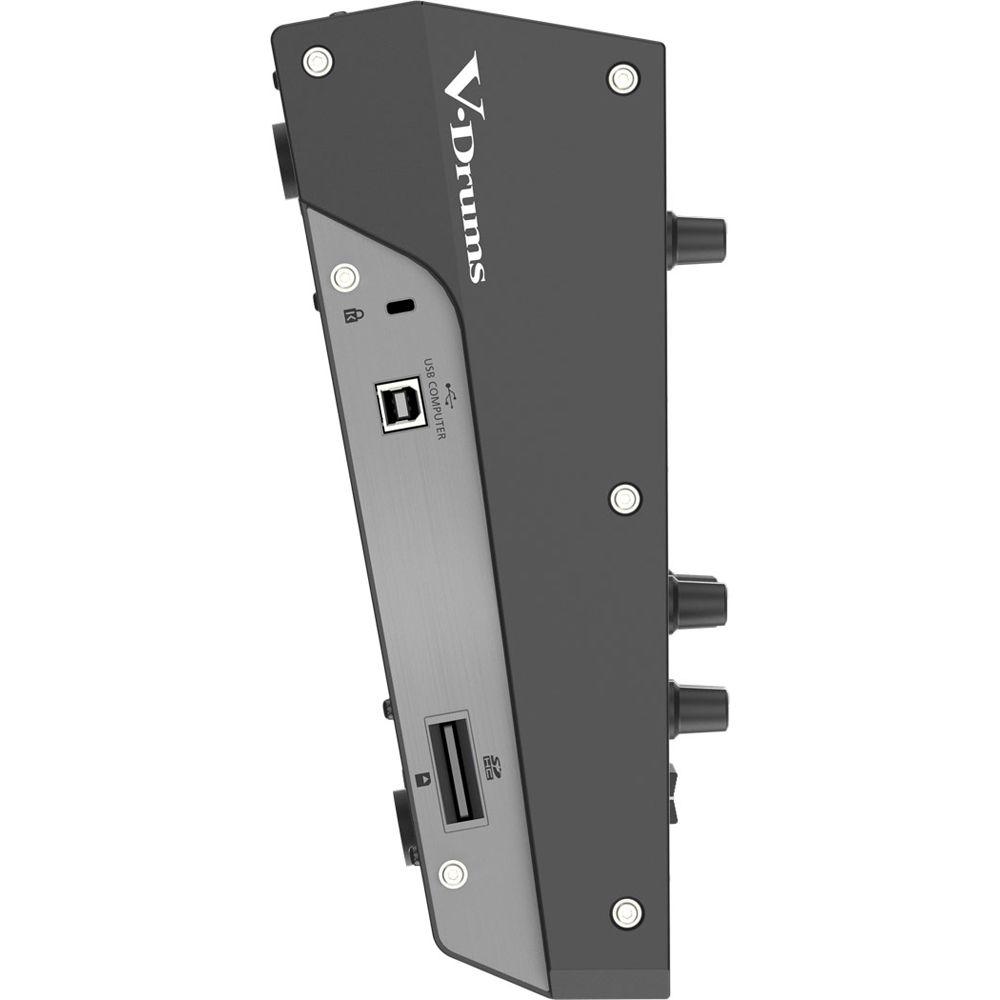

USB computer port: USB Type-B (USB Hi-Speed Audio/Midi)
Footswitch jack: 1/4" (6.3 mm) TRS phone jack
AC in Jack | | USB Playback Formats | Record/Playback Channels: Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling rate converter): 96, 48 kHz
Record: 10 channels
Playback: 4 channels | | Power Supply | AC 117 V, AC 220 V, AC 230 V, AC 240 V | | Power Consumption | 30 W | | Dimensions (W x D x H) | 13 x 10 x 4.6" (330 x 255 x 118 mm) | | Weight | 7.3 lb (3.3 kg) | | | | Package Weight | 12.4 lb | | Box Dimensions (LxWxH) | 16.3 x 14.1 x 8.2" |
