Product description

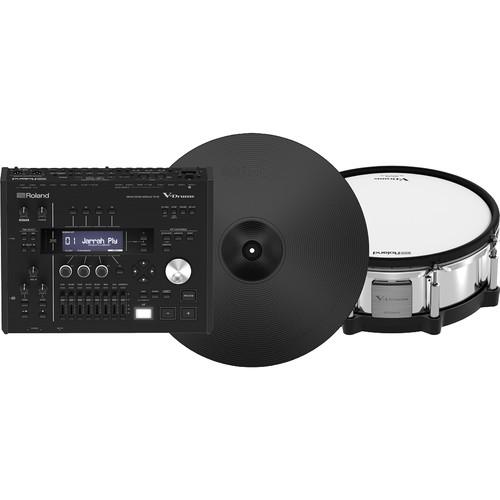

• TD-50 V-Drums Sound Module The TD-50 V-Drums Sound Module from Roland is an expressive drum sound module for pro performance and studio sessions. It can be used when paired with drum pads (sold separately) for top-flight live performance, intense practice sessions, and eclectic studio work.Featuring an advanced processor and Prismatic Sound Modeling, the TD-50 delivers over 400-plus dynamic and expressive instrument sounds. In addition to the traditional analog trigger inputs, the module is built with digital trigger inputs for high-speed communication with multi-element sensor systems like the PD-140DS snare and the CY-18DR ride pads.Furthermore, deep editing features and flexible connectivity put you in charge with this sound module. It allows you to play WAV samples via an SD card, or have USB 10-channel audio out for multitrack recording through a single USB cable. With its attractive sound quality, quick responsiveness, and connectivity and expression, the TD-50 is on its way to being a professional standard in electronic drum sound modules.
  Dynamic Prismatic Sound Modeling
  • The TD-50 is a powerful new drum sound module whose original Prismatic Sound Modeling technology means that every element of your playing style is caught and conveyed in precise detail. It gives you lifelike, resonant, and expressive sounds via an electronic kit
  Play with Your Own WAV Files and Record Easily to a DAW
  • Using the module's SD card slot, it's easy to trigger your own WAV files using any of the TD-50KV's drum pads (sold separately), and you can loop or layer them alongside the internal sounds while controlling volume and tone via the TD-50's front panel. Simply connect the TD-50 module to a computer via USB for multitrack recording direct to your favorite DAW. Up to 10 channels can be recorded separately, then easily edited for tone color, and more
  Practice Features to Develop Your Technique
  • Whether you lock down your timing with the Quiet Count function or play along to backing tracks via the SD card slot, it's easy to get inspired, even when you're practicing alone
  Customize Your Sound for Live Sessions and Studio Work
  • This module also supports deep sound customization, including basic adjustment of heads and shells, layering of internal and user samples, and adjustment of overhead mics and ambience. A compressor and three-band EQ can be controlled for each pad individually, while three independent multi-effect sections let you treat drums with 30 effect types such as delay, flanger, saturator, and many others. The two-band multi-compressor and four-band equalizer on the output let you change the overall dynamics and tonal balance, depending on whether you're in the studio or on the stage
  Balanced Connections to a PA
  • The TD-50 is a V-Drums module that features an XLR stereo master out and eight TRS direct outs, allowing for a balanced connection to a PA system
  Record Drum Performances
  • The TD-50 also includes a unique, easy-to-use audio-recording function—simply hit the record button and start playing to capture your performance. If you're playing to a click or backing track, there's an option to record just the drums, or to record them with the click or track included. Once captured, your recordings can be easily exported for upload and editing in your DAW
  UPC: 761294508688
• PD-140DS V-Pad Digital Snare The PD-140DS V-Pad Digital Snare from Roland is a 14" mesh head designed as a snare pad for the V-Drums TD-50 electronic drum set. It features a high-resolution multi-sensor system that responds accurately and naturally to your drumming techniques and nuances with acoustic-like snare drum playability. With the highly developed multi-sensor system, the resolution for detecting the striking position on the head as well as the playing dynamics are vastly improved. A cross-stick can be executed using traditional hand technique without the need to adjust any module functions.
  • • High-resolution triggering designed to connect digitally to the TD-50 drum sound module, providing realistic snare sound and accurate positional detection
    • Natural cross-stick playability using a traditional cross-stick hand technique
    • Comfortable playing feel and natural response with a 3-layer mesh head
    • Standard 14” diameter snare drum size for professional playability and acoustic-like performance

  UPC: 761294508718
• CY-18DR V-Cymbal Digital Ride The CY-18DR V-Cymbal Digital Ride from Roland is a multi-element sensor designed to produce a natural cymbal sound for the TD-50 drum sound module. The sensor enables the cymbal sounds to change naturally in different positions on the cymbal, from edge to bow to bell, which allows ride-cymbal play to be faithfully reproduced. Whether you're playing legato cymbal swells, soft strokes on the bell, or strong crash accents on the edge, the V-cymbal captures each playing technique accurately. In addition, you can choke the cymbal with your hand and can softly mute the bow of the cymbal with a simple touch of a finger.
  • High-resolution sound triggering designed for the Flagship Roland TD-50 drum sound module
  • Recreates the subtle and smooth change of sound nuances from the bow to the bell area, as well as strong crash strokes on the edge of the cymbal
  • The wide range of the touch-sensor allows for cymbal-muting with a simple fingertip touch
  UPC: 761294508725

• AC Power Supply

• Power Cord

• Limited 1-Year Warranty for Parts, 90 Days for Labor

• Connection Cable

• Drum Key

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TD-50 V-Drums Sound Module

  Drum Kits	100
  Instruments	More than 400
  Effect Types	Pad Compressor: Each pad Pad Equalizer: Each pad Room Type: 25 types Reverb Type: 5 types Stereo Enhancer Multi-Effects: 3 systems, 30 types Master compressor Master equalizer
  User Sample Import	Number of User Sample: Maximum 500 (includes factory preloaded user samples) Sound Length (total): 24 minutes in mono, 12 minutes in stereo File formats that can be loaded: WAV (44.1 kHz, 16/24-bit)
  Media Player Support	SD Card: Audio file WAV (44.1 kHz, 16/24-bit), MP3 formats
  Recorder	Recording Method: Real time Maximum Note Storage: Approx. 40,000 notes Export File Format: WAV (44.1 kHz, 16-bit), SMF
  Display	Graphic LCD 256 x 80 dots Trigger activity indicator (LED)
  Faders	8 (Kick, Snare, Toms, Hi-Hat, Crash, Ride, Aux, and Ambience)
  External Memory	SD card (SDHC supported)
  Connectors	14 x Trigger In Jack: 1/4-inch TRS phone type (exclusion use with digital pad) 3 x Digital Trigger In Port: USB Type-A 2 x Master Out (unbalanced) 1/4" (6.3 mm) L/Mono, R 2 x Master Out (balanced) XLR (L, R) 8 x Direct Out (balanced) 1/4" (6.3 mm) TRS 2 x Stereo Jack: 1/4" (6.3 mm), 1/8" (3.5 mm) stereo mini-jack 2 x Mix In: Stereo 1/4" (6.3 mm), stereo 1/8" (3.5 mm) mini-jack MIDI (In, Out/Thru) connectors USB computer port: USB Type-B (USB Hi-Speed Audio/Midi) Footswitch jack: 1/4" (6.3 mm) TRS phone jack AC in Jack
  USB Playback Formats	Record/Playback Channels: Sampling Rate (Original): 44.1 kHz Sampling Rate (with Sampling rate converter): 96, 48 kHz Record: 10 channels Playback: 4 channels
  Power Supply	AC 117 V, AC 220 V, AC 230 V, AC 240 V
  Power Consumption	30 W
  Dimensions (W x D x H)	13 x 10 x 4.6" (330 x 255 x 118 mm)
  Weight	7.3 lb (3.3 kg)

  Box Dimensions (LxWxH)	16.3 x 14.1 x 8.2"

• PD-140DS V-Pad Digital Snare

  Size	Pad Size: 14" Shell Depth: 4.3"
  Tension Control	Tension Rods: 8
  Mounting	Snare stand
  Head	3-ply mesh head (floating mid-layer structure)
  Triggering	Available playing methods (triggers) Head shot (high-resolution positional detection, wide dynamic range) Rim shot (depth detection, wide dynamic range) Cross stick (automatic switching) Brush sweep
  Sensor Input	Multi-element sensor system Head sensor 3 x Position sensors Rim sensor 3 x Cross-stick sensors Built-in sensing processor
  Cover	Supported Covering Size (W x L): 3.9 x 41.7" / 98.0 x 1,060.0 mm Thickness: 0.04" / 1.00 mm
  Connector	Digital Trigger Out Plug (compatible with Roland drum sound module equipped with Digital Trigger In port)
  Power	Power Supply: Supplied from Digital Trigger In port (DC 5 V) Current Draw: 90 mA
  Dimensions	15 x 15 x 6.3" (38 x 38 x 16 cm)
  Weight	10.8 lb (4.9 kg)

  Box Dimensions (LxWxH)	18.7 x 18.3 x 9.5"

• CY-18DR V-Cymbal Digital Ride

  Box Dimensions (LxWxH)	22.598 x 22.362 x 5.591"
