User Manual for Roland TM-1 Trigger Module Click to enlarge the picture
Contents of the user manual for the Roland TM-1 Trigger Module
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
 |
User manual for the Roland TM-1 Trigger Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description - Roland TM-1 Trigger Module Main Trailer

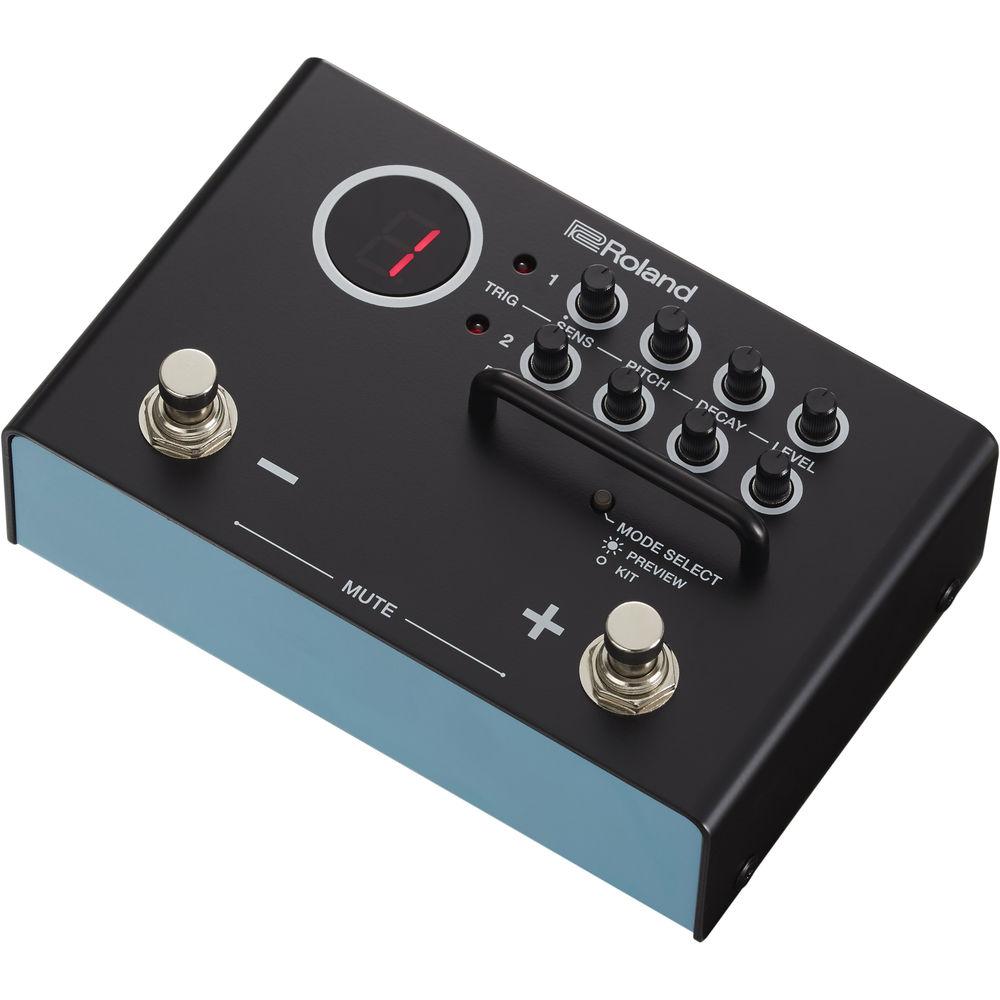

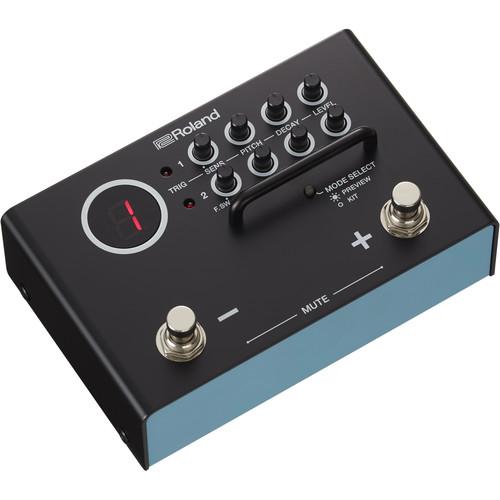

The TM-1 Trigger Module from Roland is a portable lightweight trigger module that makes it easy to add more sounds to your acoustic drum kit. It can be used to add onboard kick, snare, tom, cymbal, and percussion samples to your own samples and loops during live stage, theater, or studio performances. In addition, the TM-1 allows you to connect any compatible Roland trigger pad (sold separately) and directly play the sounds you need or mount an RT-series trigger to one of your acoustic drums and play with your preferred sample layered on top in perfect sync, with no lag at all.Furthermore, getting your own custom sounds into the TM-1 is simple, thanks to the free editor app for Mac/Windows and iOS/Android devices. Connect the TM-1 to your device, open the app, import samples from your library, and tweak the settings as needed. The TM-1 runs on either batteries or an AC adapter (sold separately) and can be easily controlled with the two built-in foot switches that trigger the samples. Every working drummer can benefit from a hybrid setup these days, and the TM-1 is a good place to start. - The Simple Solution to Bring Hybrid Power to Your Acoustic Kit

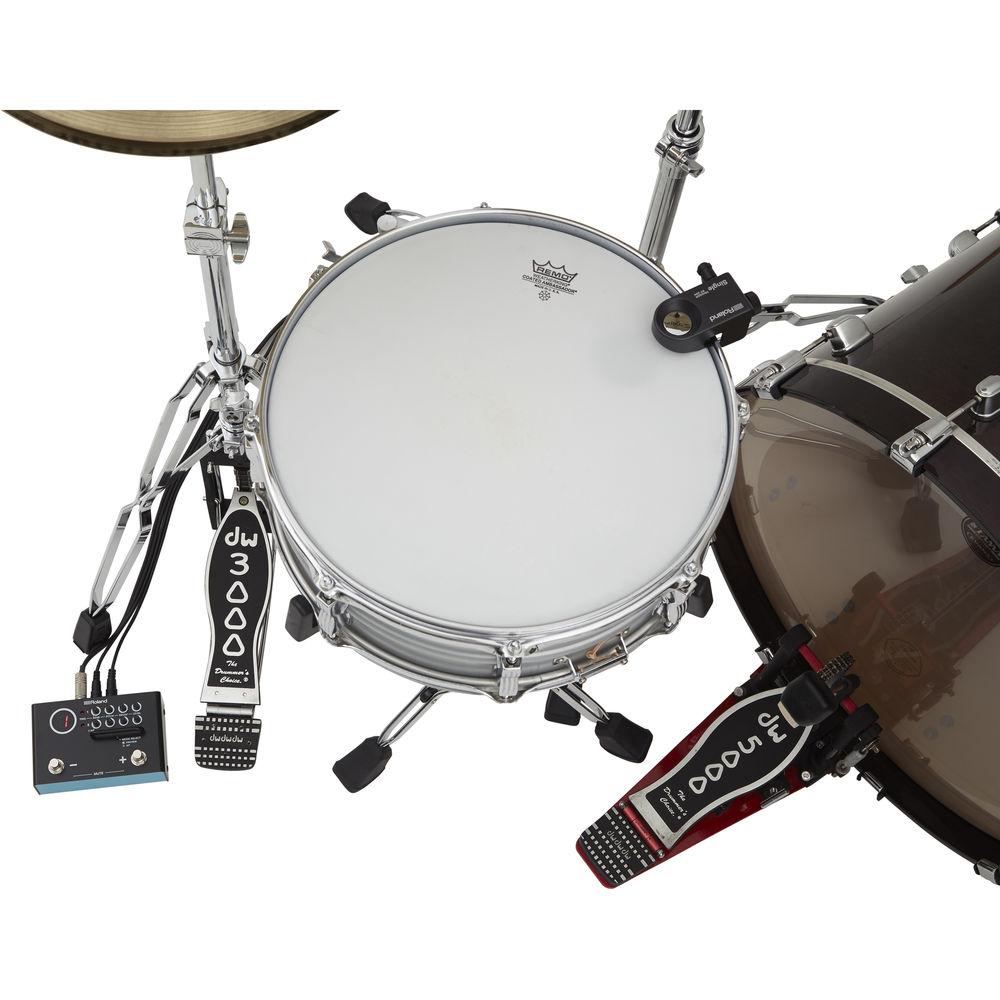

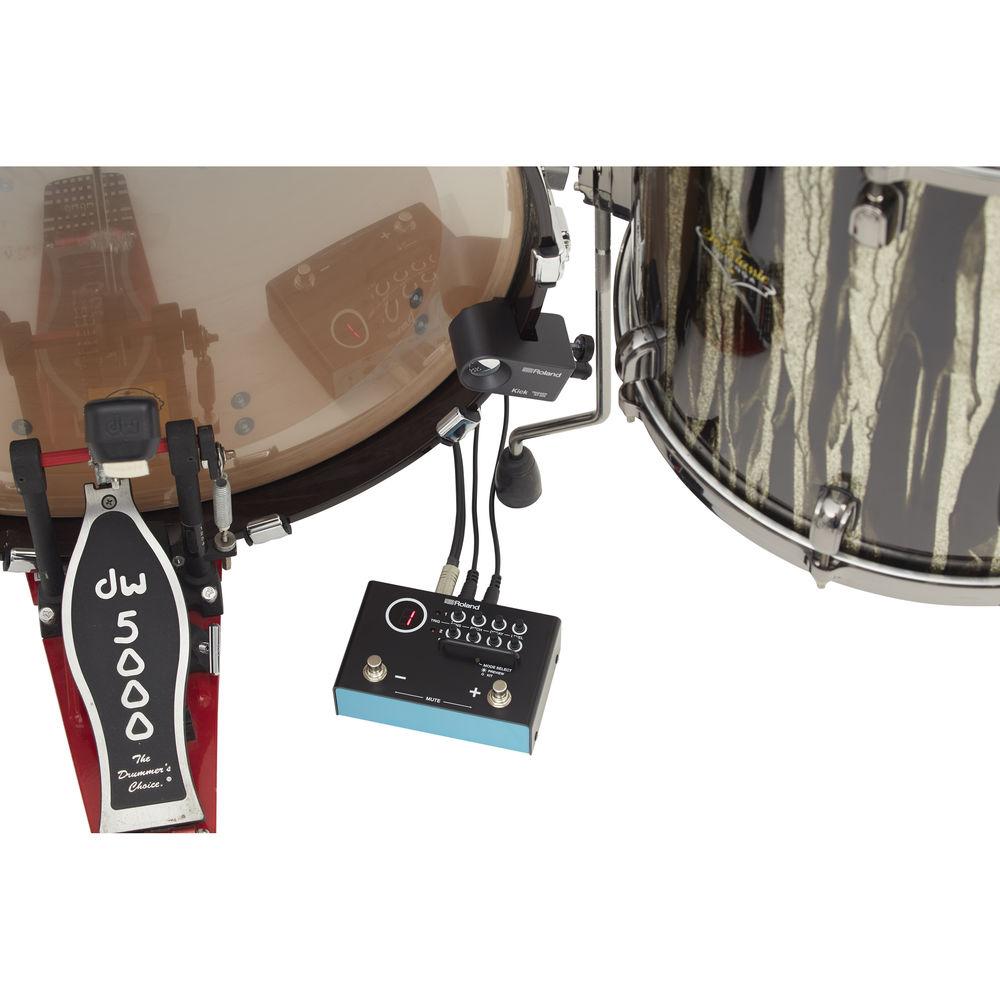

- Just mount one or more Roland trigger devices (sold separately) within your setup, connect them to the TM-1, and access any sound you need. With dedicated controls for sensitivity, pitch, and more, there's no technical knowledge required for operation. Simply turn the knobs until the sound is right to you and start playing.
- Editor App for Sample Import and Quick-Sound Creation
- With the TM-1 Editor, you're able to access all the module's internal sounds, import your own original samples, assign sounds to each trigger pad, and quickly customize them however you like. Samples up to six-seconds long can be imported from your computer, tablet, smartphone, or even cloud storage. Also, you don't have to take your laptop to the gig to change up sounds at the last second. Just use your smartphone.
- Cover Any Gig with 15 Ready-to-Play Kits
- Out of the box, the TM-1 has 15 ready-to-go kits with two instruments in each. The free editor app unlocks access to a library of over 150 additional sounds, including kick, snare, and other drums, and even synth loops. And with the ability to add your own sounds via the editor as well, the sonic possibilities are virtually endless. Whatever you want to achieve, changing your kit's sound during the set has never been easier.
- Ultra-Portable and Built for the Road
- The TM-1's compact size lets you take it wherever you want, and the stompbox-style design fits easily alongside your other floor-mounted gear. Support for battery operation eliminates the hassle of finding AC power when you need to set up in a hurry or perform outdoors. The TM-1 is lightweight enough to throw into a bag or instrument case, and robust enough to travel thanks to its metal-body construction and rugged footswitches.
- Trigger-to-MIDI Conversion for Your Computer
- Whether you're producing at home, working in the studio, or performing live, you sometimes need to send a MIDI signal when you hit a pad. The TM-1 performs this trigger-to-MIDI conversion simply by connecting it to a computer via USB, allowing you to trigger sounds in drum samplers and plug-in instruments, record MIDI tracks in a DAW, or control clips and other functions in performance software like Ableton Live.
UPC: 761294513491 In the Box Roland TM-1 Trigger Module 9V Battery USB Type-B Cable Limited 1-Year Warranty for Parts, 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland TM-1 Trigger Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland TM-1 Specs | Kits | 15 | | Preloaded Sounds | 30 | | User Sample | Number of User Sample: 30
Sound Length: Approx. 6 second/Sample | | Data Format | Mac OSX: WAV, AIFF, MP3, AAC, Apple Lossless
Windows: WAV (44.1 kHz, 16/24 bits)
iOS: WAV, AIFF, MP3, AAC, Apple Lossless
Android: WAV (44.1 kHz, 16 bits), MP3

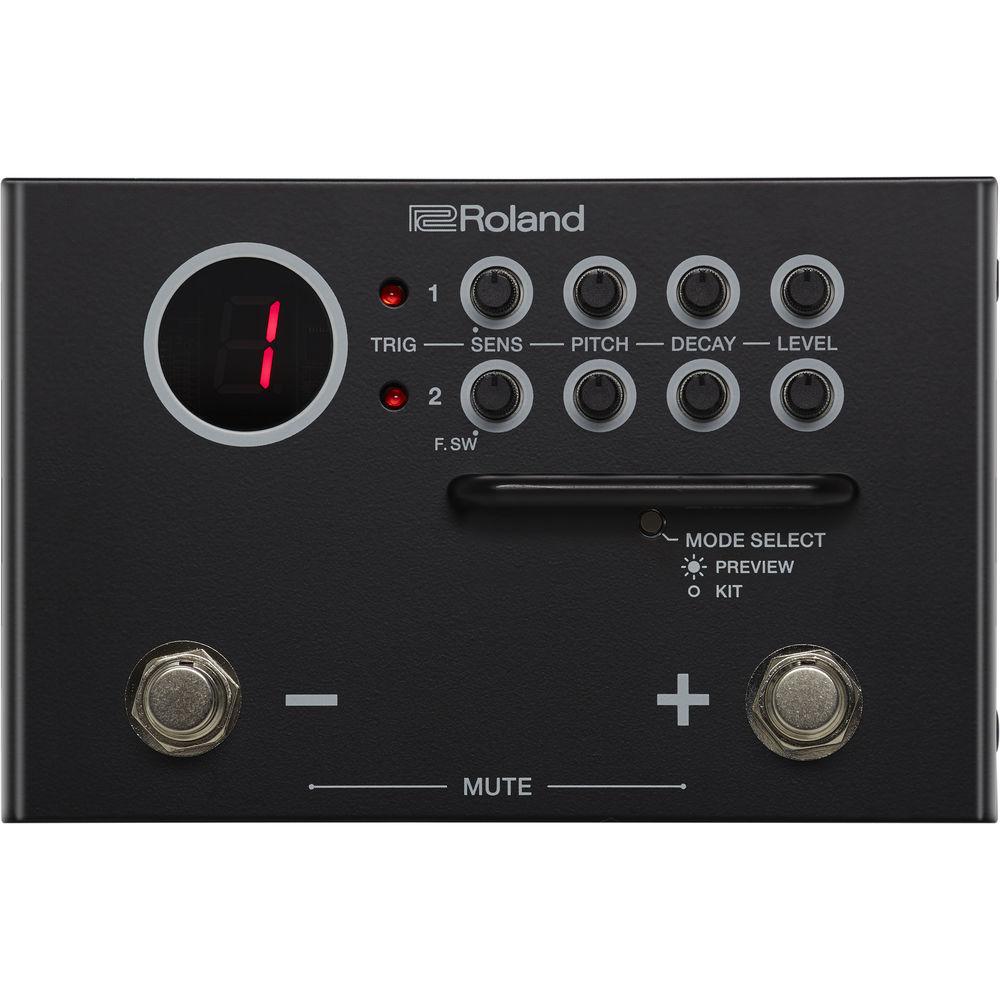

TM-1 Editor app is required. | | Display | 7 Segments, 1 Character (LED) | | Controls | Sens Knob (Trig 1, Trig 2)
Pitch Knob (Trig 1, Trig 2)
Decay Knob (Trig 1, Trig 2)
Level Knob (Trig 1, Trig 2)
Mode Select Button
Mute Switch
Kit Shift Switch

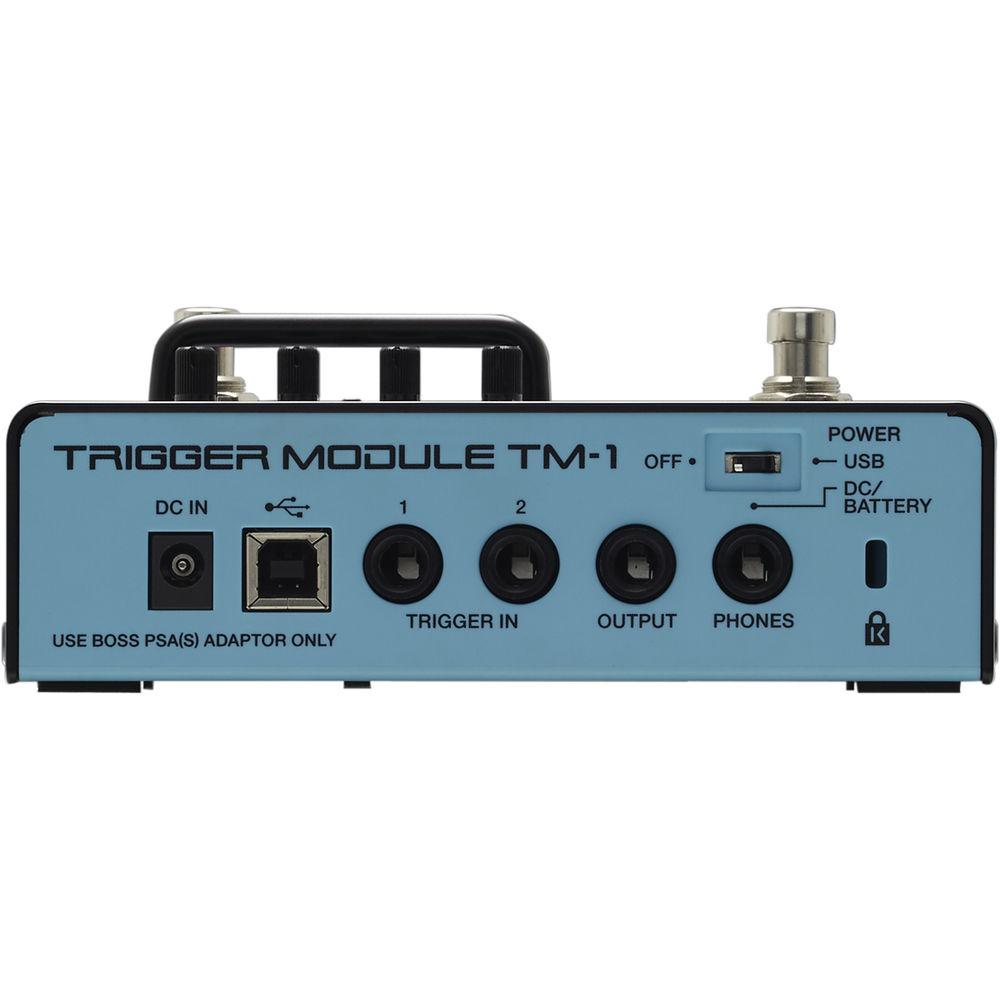

Power Switch | | Indicator | Trigger Indicator (Trig 1, Trig 2) | | Connectors | Trigger In Jack: 1/4" / 6.3 mm Phone Type, Mono
Output Jack: Stereo 1/4" / 6.3 mm Phone Type
(When Setting the Output Setting to the Mix, the Mixed Sound of Trigger 1 and 2 is Output in Mono)
(When Setting the Output Setting to the Individual, Each Trigger is Output Separately to Left and Right: Trig 1: L-Side, Trig 2: R-Side)
Phones Jack: Stereo 1/4' / 6.3 mm Phone Type
USB Port: USB Type-B
DC In Jack | | USB | MIDI | | Power Supply | Alkaline Battery (9 V, 6LR61)
AC Adaptor (DC 9 V, Sold Separately)
Supplied from the Computer via USB Port | | Current Draw | 100 mA (DC IN)
250 mA (USB)
Expected Battery Life Under Continuous Use: Approx. 3 Hours
It Depends on the Batteries' Specification, Capacity, and Conditions of Use | | Dimensions (W x D x H) | 5.9 x 3.7 x 2.4" / 15.0 x 9.5 x 6.0 cm | | Weight | 19.4 oz / 550.0 g (Including Batteries) | | | | Package Weight | 1.87 lb | | Box Dimensions (LxWxH) | 17.0 x 8.5 x 5.9" |
