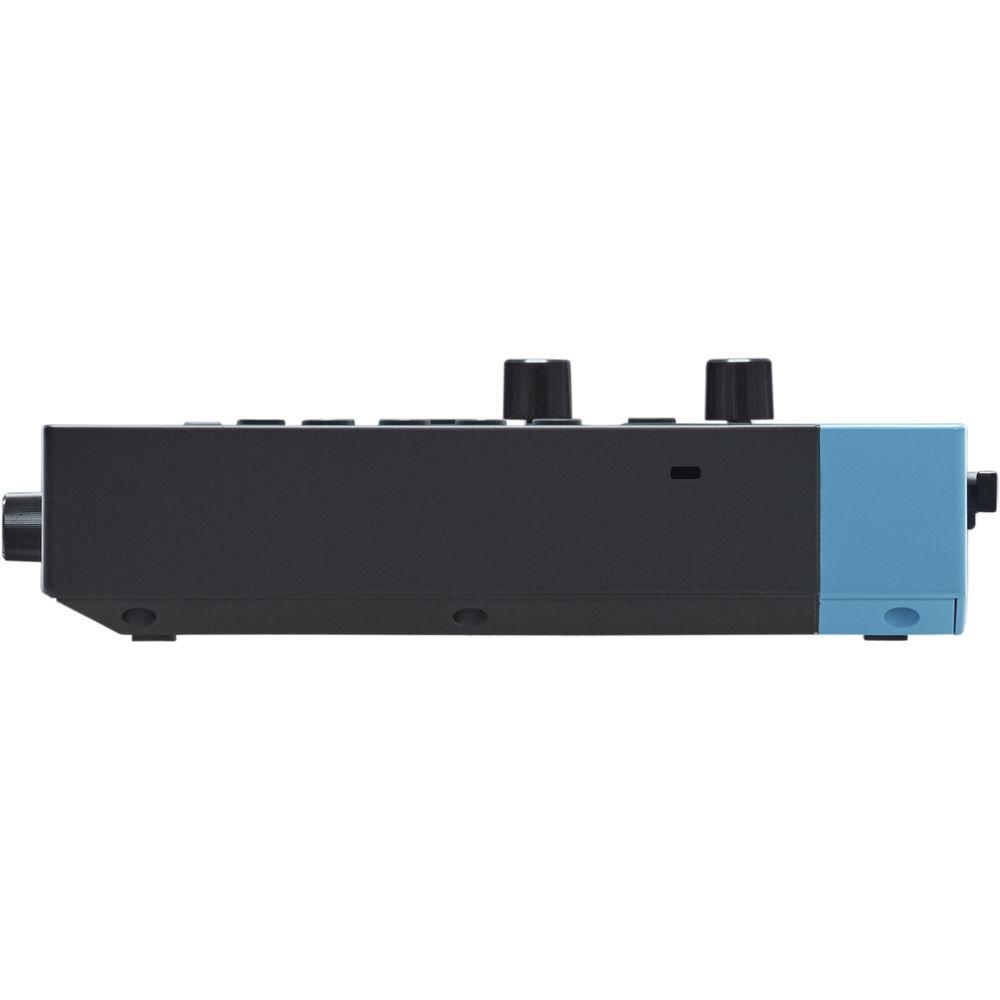

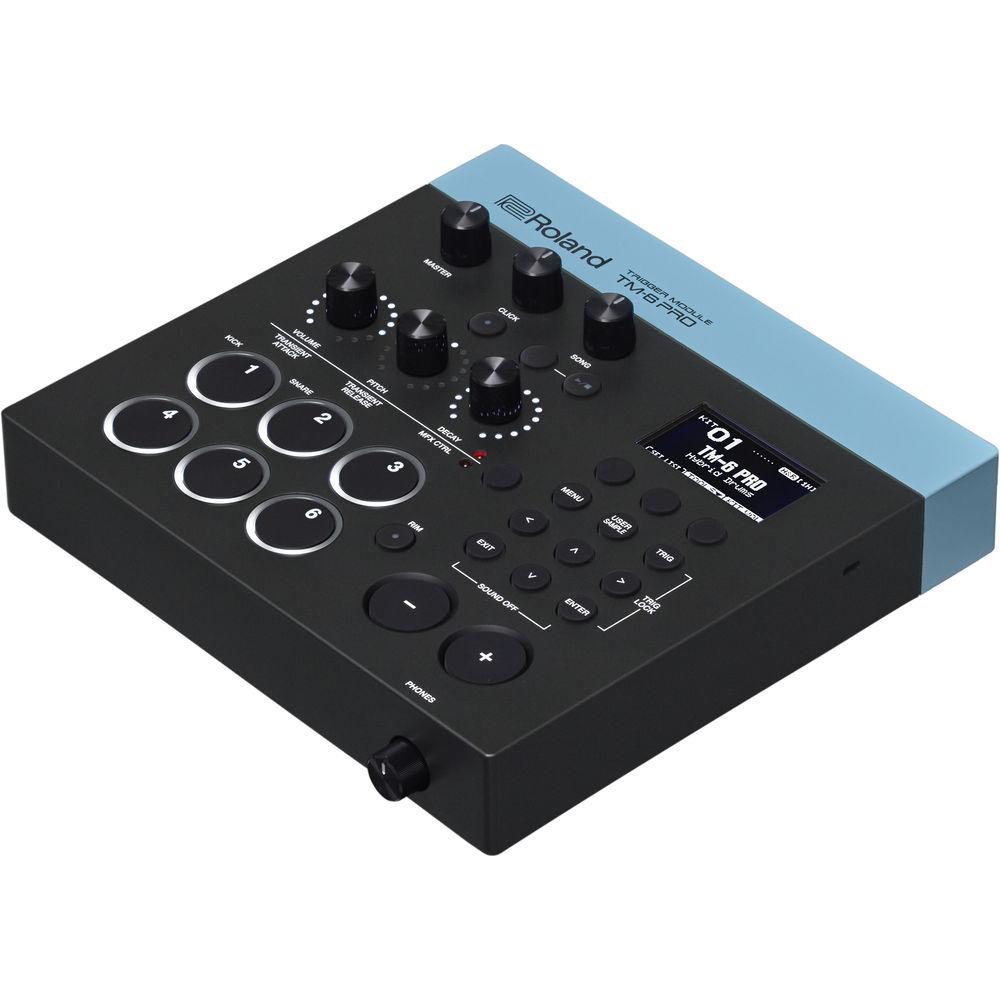

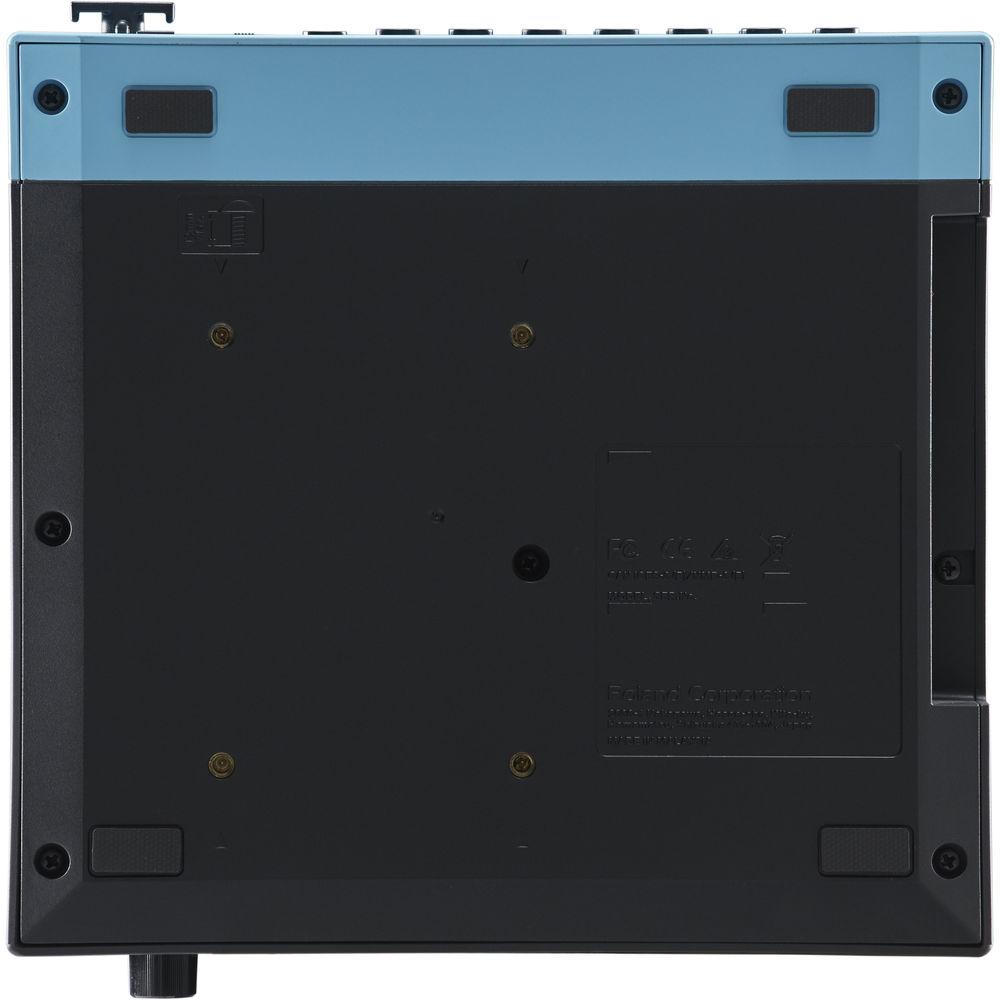

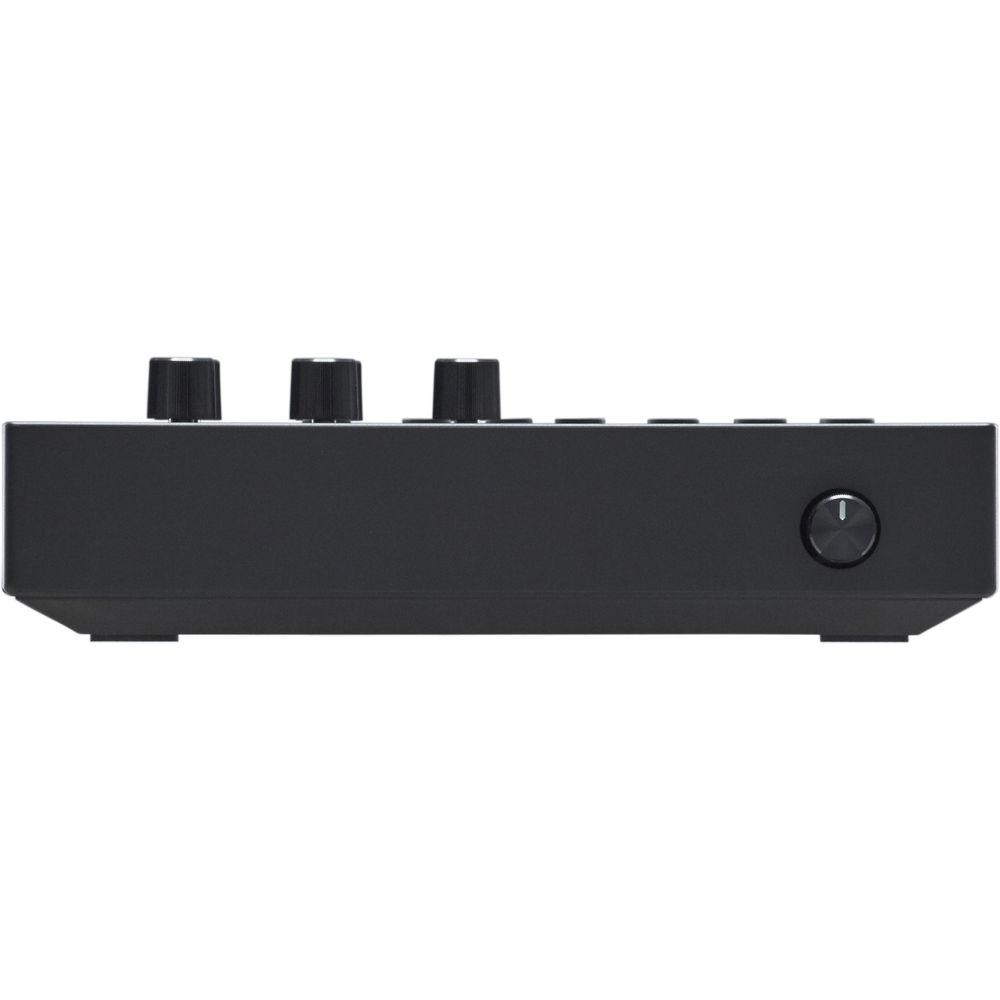

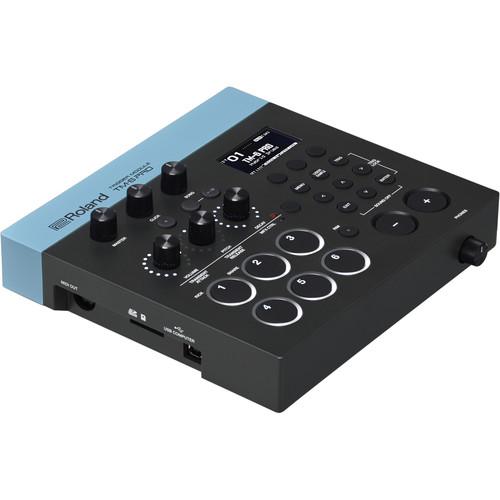

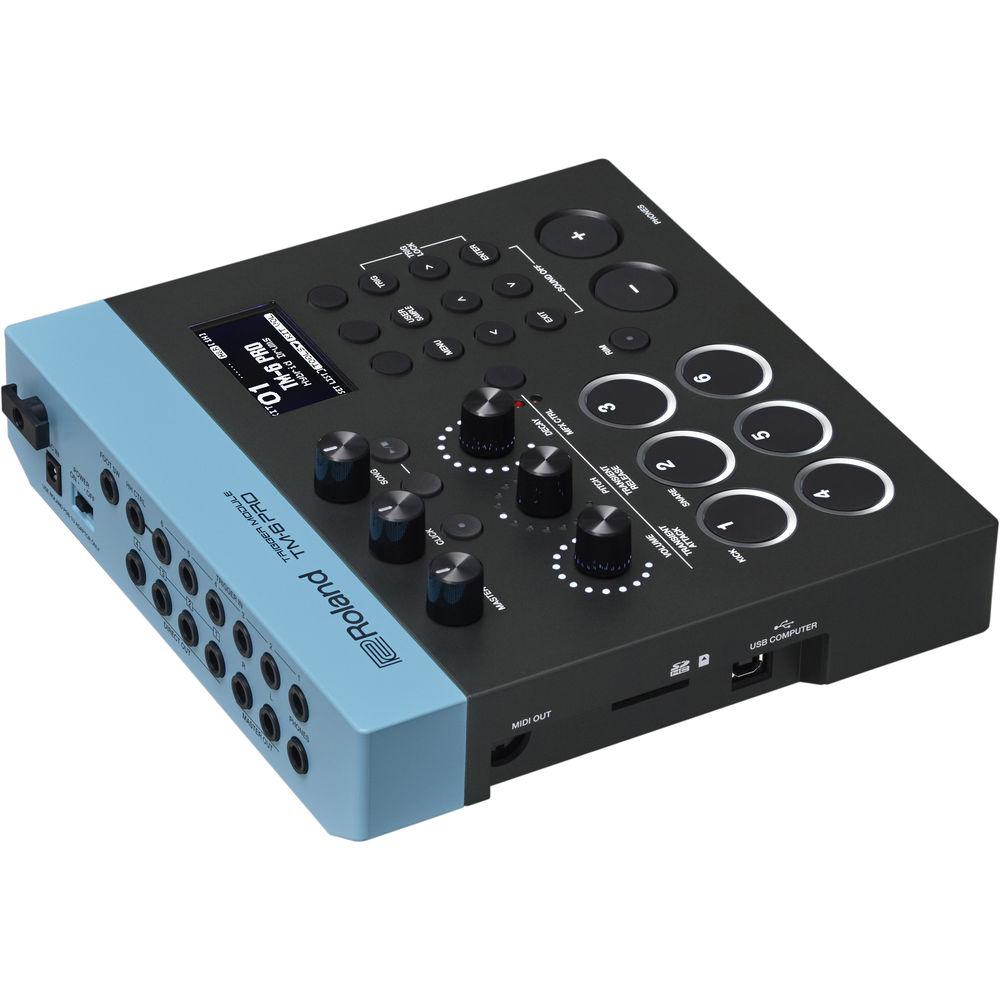

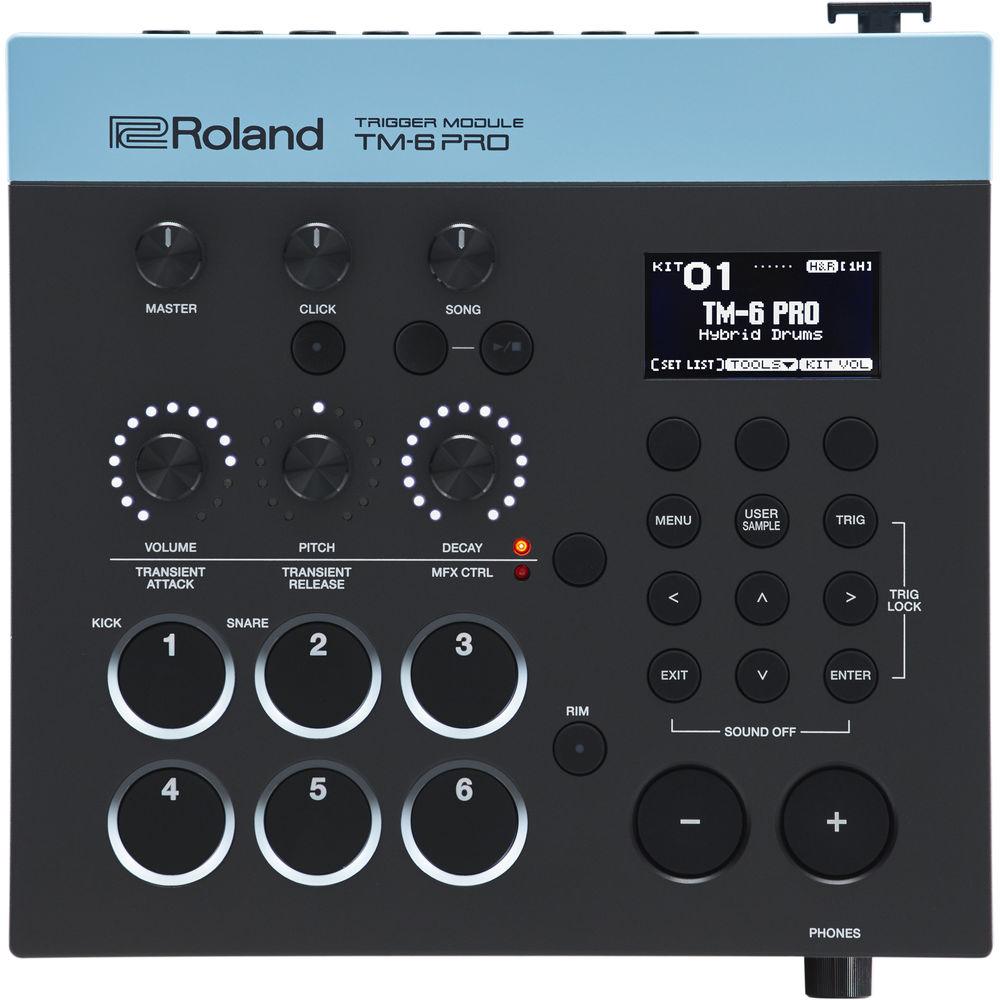

User Manual for Roland TM-6 Pro Drum Trigger Module Click to enlarge the picture
Contents of the user manual for the Roland TM-6 Pro Drum Trigger Module
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
 |
User manual for the Roland TM-6 Pro Drum Trigger Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The TM-6 Pro Drum Trigger Module from Roland features 500 one-shot sampled sounds, 268 V-Drums sounds, and 80 ready-to-use drum kits for live stage, theater, and recording applications. Drummers can be presented with unknown material with moments to spare or asked to replicate the drum sound from a studio recording; when you add the Roland TM-6 Pro to your favorite acoustic drum kit, the trigger module gives you instant and reliable access to a vast library of drum sounds, on any stage you play.Original trigger samples can be imported from an SD card. Six trigger inputs are available, and with the optional Y-cable, you can connect up to 12 triggers or pads, while a layer function is available to customize sounds. Built with three sound modify knobs for intuitive control of volume, pitch, decay, or other effects including MFX and Transient, the drum trigger module's high-speed trigger response faithfully follows your drumming,LED indicators shows the status of the triggers, even with the lights down, and the TM-6 Pro Drum Trigger Module works as a trigger to MIDI converter with audio interface. An AC adapter is also included. - Pre-loaded with 500 one-shot sampled sounds, including tones recorded at world-class studios
- 268 V-Drums sounds onboard for expressive drum performance
- 80 ready-to-use drum kits featuring high-quality preloaded sounds
- Original user samples can be imported from SD card to accurately reproduce studio tones onstage
- Six trigger inputs available for connecting up to 12* triggers or pads
(* Requires optional Y-cable) - Layer function to customize sounds
- Three sound modify knobs for intuitive control of volume, pitch, decay or other effects including MFX and Transient
- Transient effect to control attack and release of drum sounds
- Independent EQ, Transient effect, compressor and MFX for each trigger, plus master comp and master EQ
- High-speed trigger response faithfully follows your drumming
- Backing track audio data can be played directly from SD memory
- Independent volume control for song, click, and headphones
- LED indicators shows status of the triggers, even with the lights down
- Works as a trigger to MIDI converter with audio interface (8 in / 8 out)
UPC: 761294511831 In the Box Roland TM-6 Pro Drum Trigger Module AC Adapter 4 x Screws for Mounting Plate Limited 1-Year Warranty for Parts Limited 90-Day Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland TM-6 Pro Drum Trigger Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland TM-6PRO Specs | Drum Kits | 100 | | Instruments | Preset Instruments: 268
Factory Preloaded Samples: 500 | | User Sample Import | Number of User Samples: Maximum 1000 (includes factory preloaded 500 user samples)
Sound Length Total: 48 minutes in mono, 24 minutes in stereo
File Formats: WAV (44.1 kHz, 16/24-bits) | | Effect Types | Pad Equalizer: Each pad (head/rim independently)
Pad Transient: Each pad (head/rim collectively)
Pad Compressor: Each pad (head/rim collectively)
Pad Multi-Effects: 30 types, each pad (head/rim collectively)
Reverb: 5 types
Master compressor
Master equalizer | | Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3*

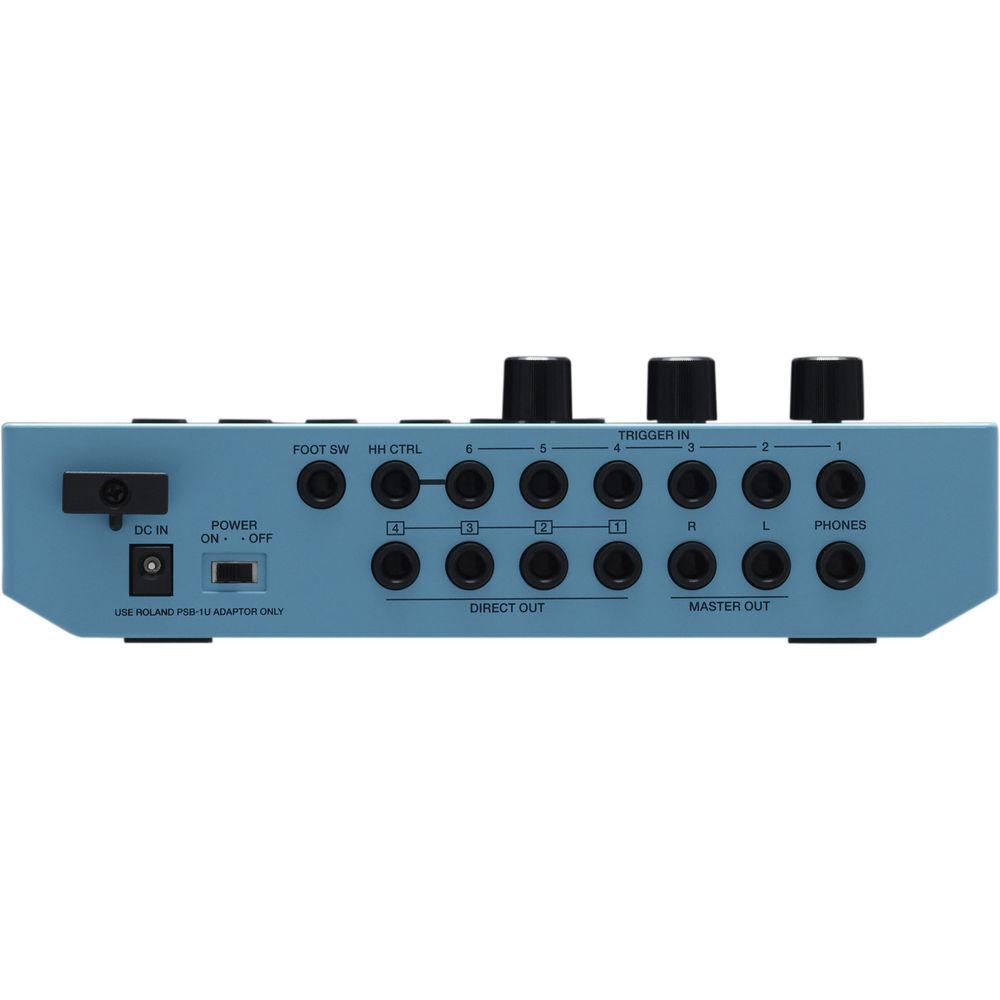

*Audio files must be saved on an SD card. | | Display | Graphic LCD 128 x 64 dots | | Connectors | Trigger In Jack: 6 x 1/4" / 6.3 mm TRS phone type
Phones Jack: Stereo 1/4" / 6.3 mm phone type
Master Out Jacks (L, R): 1/4" / 6.3 mm phone type
Direct Out Jack: 4 x 1/4" / 6.3 mm phone type
HH CTRL Jack: 1/4" / 6.3 mm phone type
Foot SW Jack: 1/4" / 6.3 mm TRS phone type

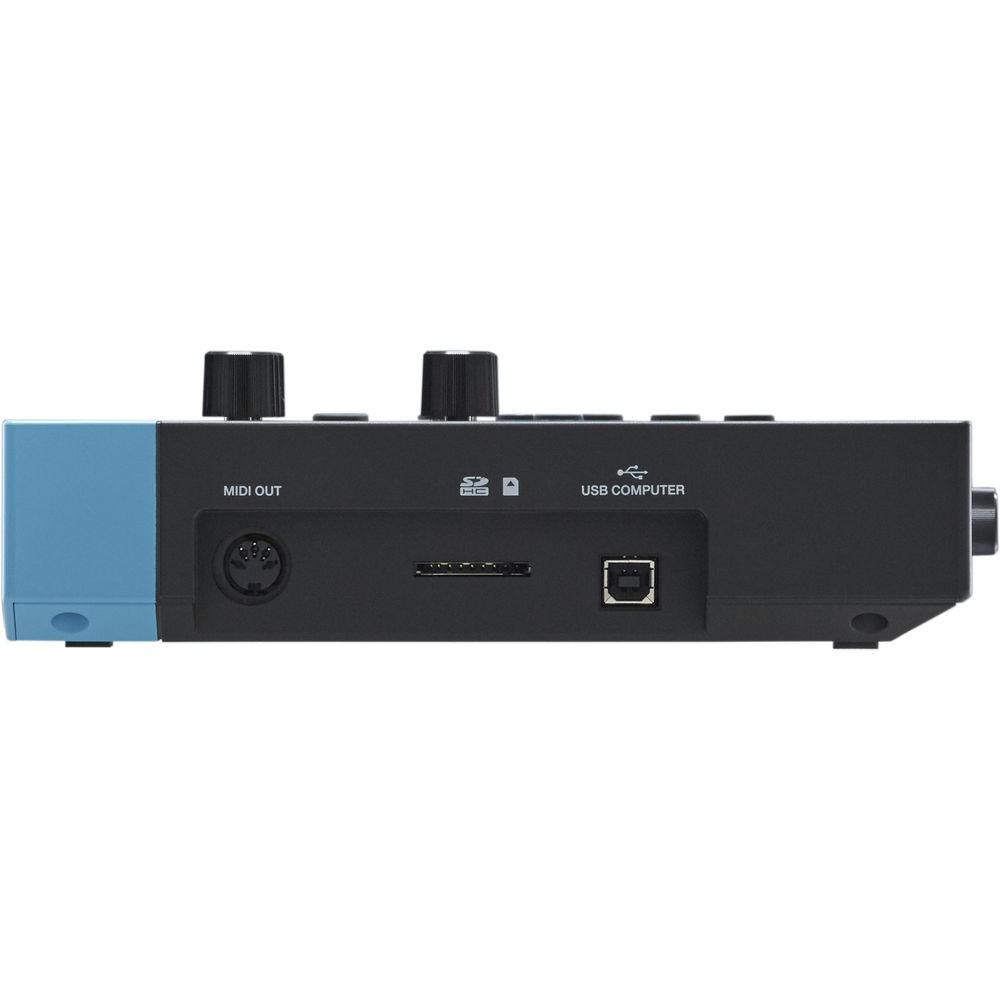

MIDI out connector
USB Computer Port: USB B type (USB hi-speed audio/MIDI)
DC in jack | | USB Record/Playback Channels | Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling Rate Converter): 48 kHz, 96 kHz
Record: 8 channels
Playback: 8 channels | | Power Supply | AC adaptor (9 VDC) | | Current Draw | 453 mA | | Dimensions (W x D x H) | 9.0 x 9.2 x 2.6" / 22.8 x 23.3 x 6.6 cm | | Weight | 2.2 lb / 1.0 kg | | | | Package Weight | 5.345 lb | | Box Dimensions (LxWxH) | 12.9 x 12.6 x 6.05" |
