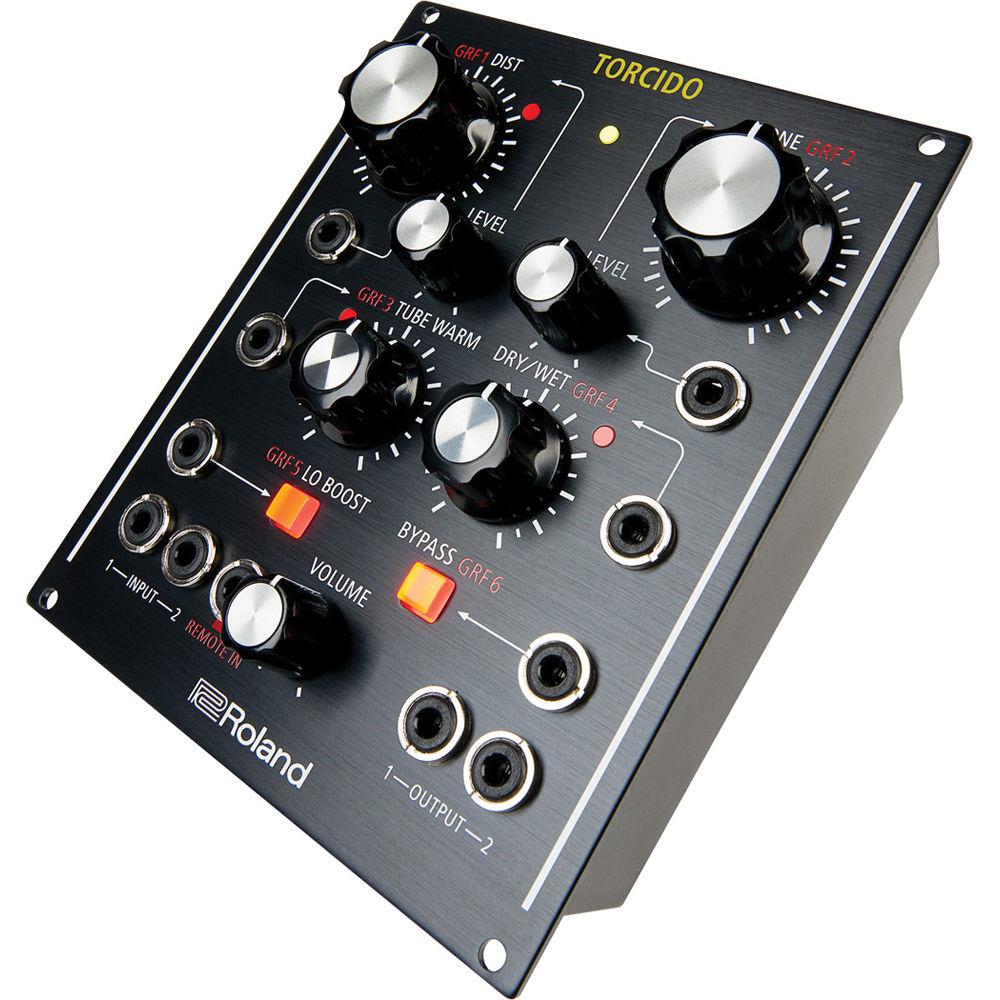

Product description TORCIDO from Roland is a modular distortion effects processor designed for modular synth users, keyboard players, guitarists, DJs, and musicians looking to expand their sound. The effect produces a range of tones from gentle, warm overdrive to heavy distortion.
TORCIDO can be used as a tabletop unit or as a 21 HP Eurorack module with an array of CV/Gate inputs. The unit is controlled by six high-resolution 24-bit knobs, which offer an ultra-smooth resolution of 16 million steps. Additionally, the 1/8" patch cable inputs can independently control the distortion amount, tone, tube warmth, wet/dry signal, low-end boost and signal bypass. The TORCIDO also offers 15 virtual submodules that allow the unit to be re-programmed via a Mac, PC, iOS, or Android application.
Two inputs and two outputs make TORCIDO a stereo-capable, 24-bit/96 kHz audio interface for Eurorack systems and AIRA Link USB compatibility gives it single-cable, plug-and-play connectivity with the optional MX-1 Mix Performer. The TORCIDO ships with an AC adapter, Eurorack power cable, and Eurorack installation screws. -
- Classic Roland distortion sound
- CV/Gate parameter control including distortion amount, tone, and tube warmth
- Tabletop unit or 21 HP Eurorack module using AC adaptor or Eurorack power
- 24-bit knobs with over 16 million steps of resolution
- Re-programmable via Mac, PC, iOS, Android application
- 15 patchable submodules (expandable with free updates):
- LFO
- ADSR
- Noise
- Sample & Hold
- Ring Mod
- Filter 6 dB
- Filter 12 dB
- Tone
- Amp
- Mixer
- Stereo Mixer
- Curve Conv
- Gate Divider
- Trig to CV Delay Time
- MIDI Clock to Gate
- 2 inputs and 2 outputs with dual-mono or stereo capability
- AIRA Link compatible
- 24bit/96kHz audio interface
- Carefully crafted in Japan
UPC: 761294506998 In the Box Roland TORCIDO Modular Distortion - Tabletop / Eurorack Module Effects Unit AC Adapter Eurorack Power Cable Eurorack Installation Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland TORCIDO Modular Distortion - Tabletop Eurorack Module Effects Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

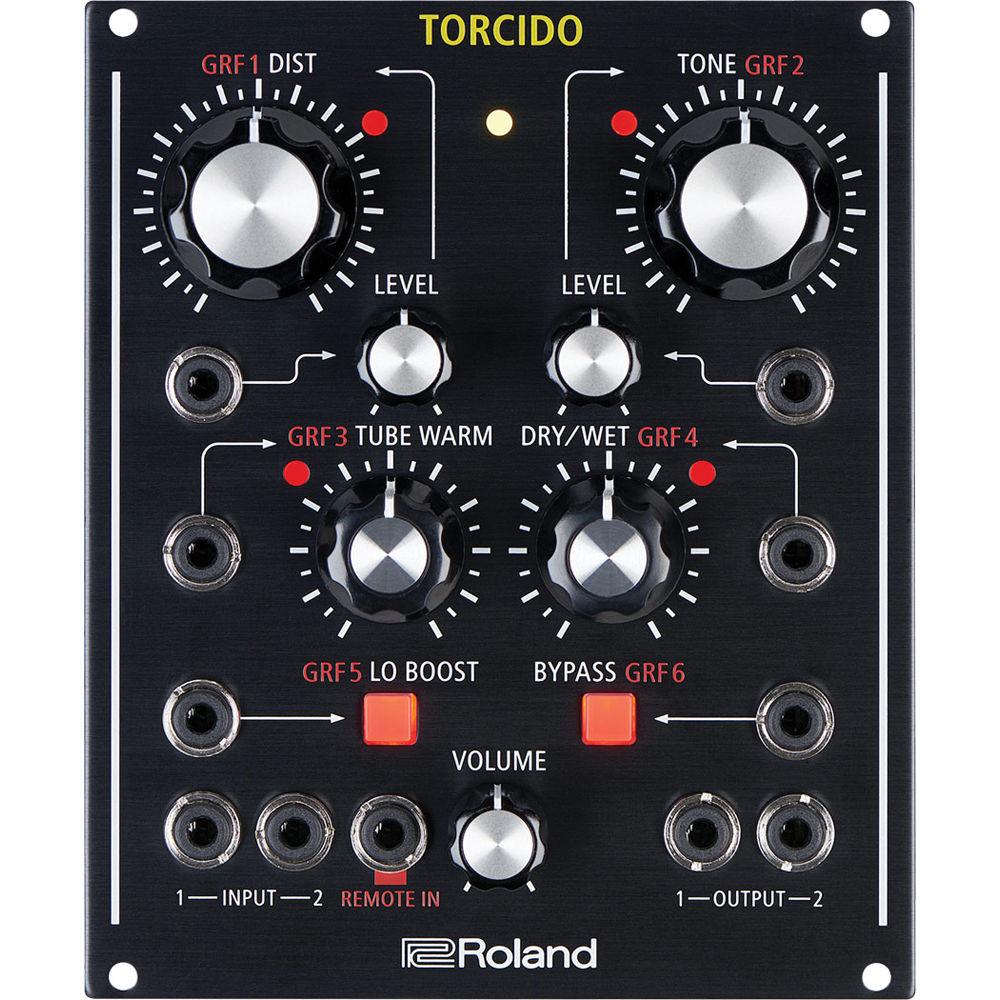

Technical parametersRoland TORCIDO Specs | CV Input Level | -10 to +10 V | | Gate Input Level | +3 V | | Controls | GRF 1 knob (Dist)
GRF 2 knob (Tone)
GRF 3 knob (Tube Warmth)
GRF 4 knob (Dry/Wet)
GRF 5 button (Lo Boost)
GRF 6 button (Bypass)
Volume knob | | Indicators | Center Indicator | | Connectors | Input 1/2: 2 x 1/8" / 3.5 mm
Remote In: 1 x 1/8" / 3.5 mm
Output 1/2: 2 x 1/8" / 3.5 mm
GFR 1-6: 6 x 1/8" / 3.5 mm

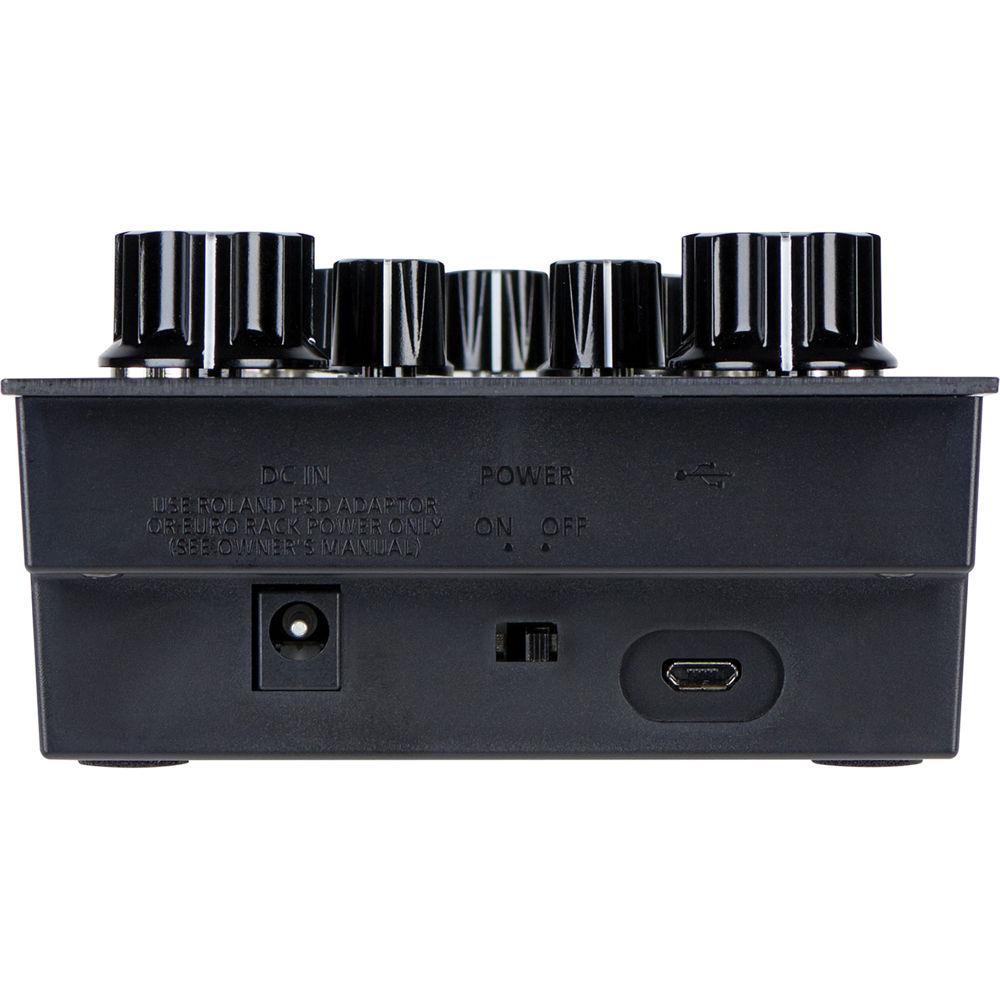

USB Port: Micro-B type (Audio/MIDI)
DC In jack | | Power Supply | AC adapter or Eurorack power | | Current Draw | 950 mA (AC adaptor)
450 mA (Eurorack power) | | Dimensions (W x D x H) | 4.2 x 5.1 x 2.3" / 106.6 x 128.4 x 58.3 mm | | Weight | 11.3 oz / 320.0 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 7.0 x 6.2 x 6.2" |
