User Manual for Roland V-02HD PAC1 Video Mixer Bundle Click to enlarge the picture
Contents of the user manual for the Roland V-02HD PAC1 Video Mixer Bundle
- Product category: Production Switchers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Production Switchers
 |
User manual for the Roland V-02HD PAC1 Video Mixer Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description Hands-Free Switching with the 2-Channel Roland V-02HD Read More - Roland V-02HD Multi-Format Video Mixer

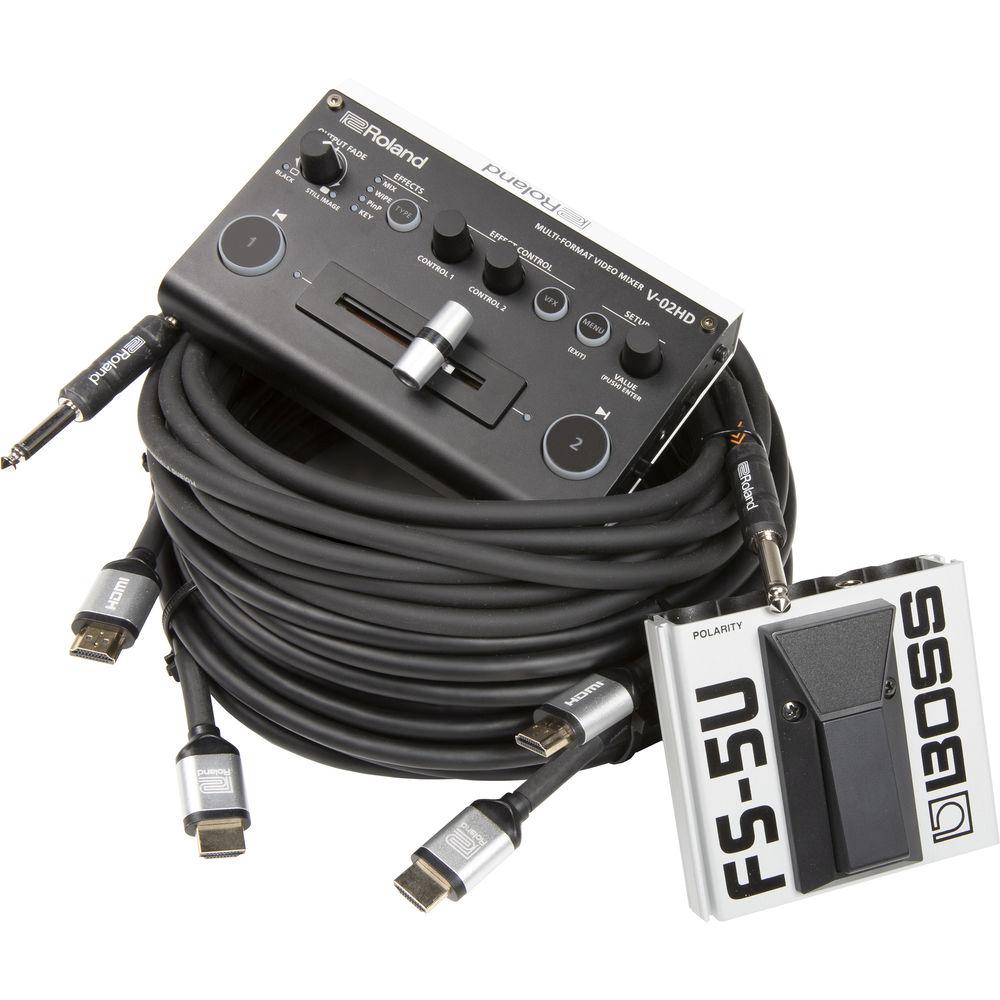

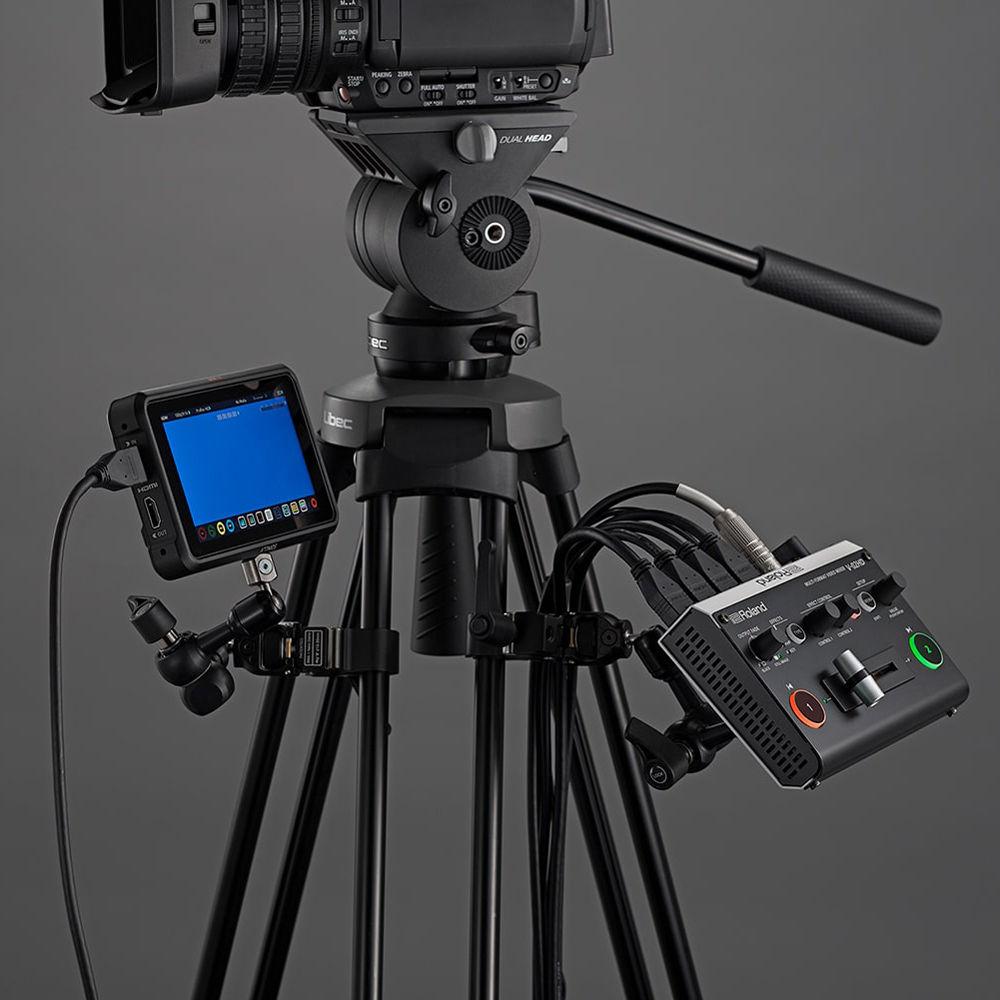

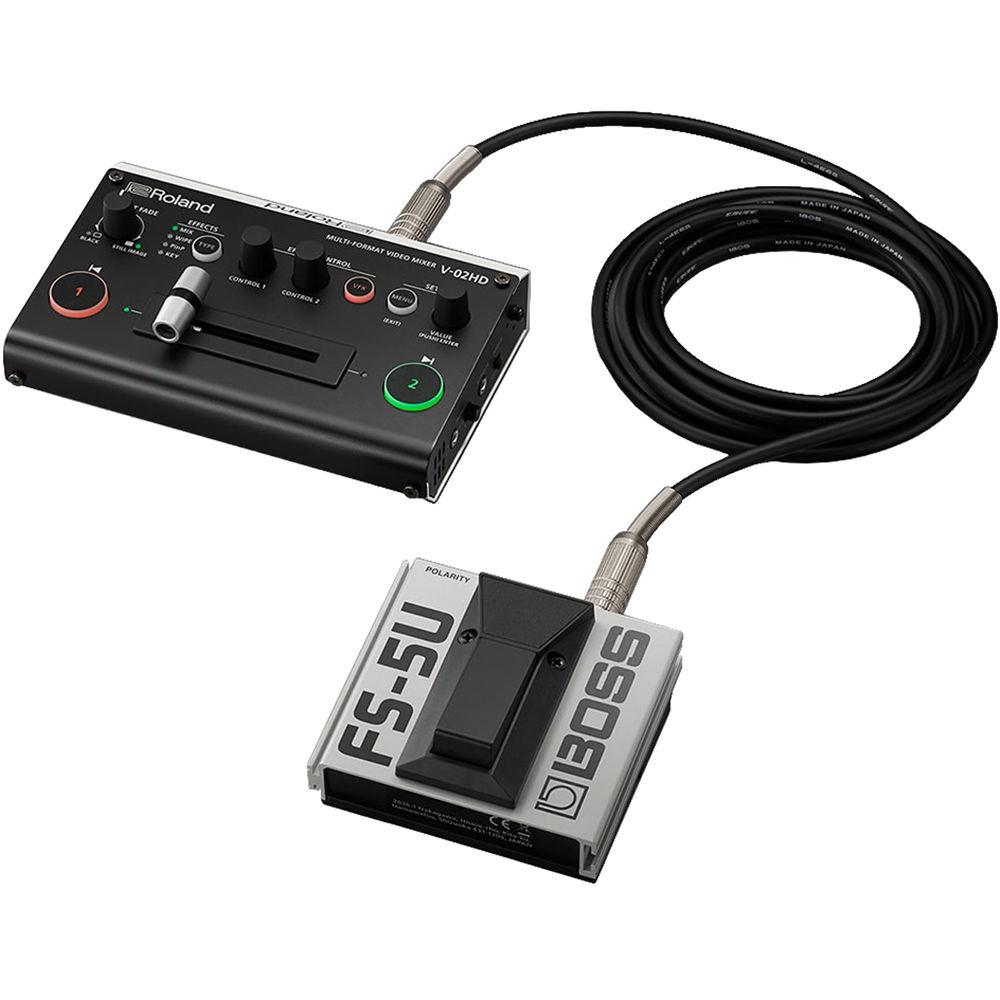

This Roland V-02HD PAC1 Video Mixer Bundle is assembled to provide you with a portable micro switcher, a BOSS momentary unlatching footswitch pedal, one phono cable, and two HDMI cables. The V-02HD micro switcher handles HD footage and is small enough to fit in your gear bag. It can be mounted onto a standard tripod, so it doesn't require a rack arrangement to use it on location. Its small size and lightweight design make it well suited for use on mobile video productions. Switching is accomplished on the unit or by the included foot pedal and Phono cable.

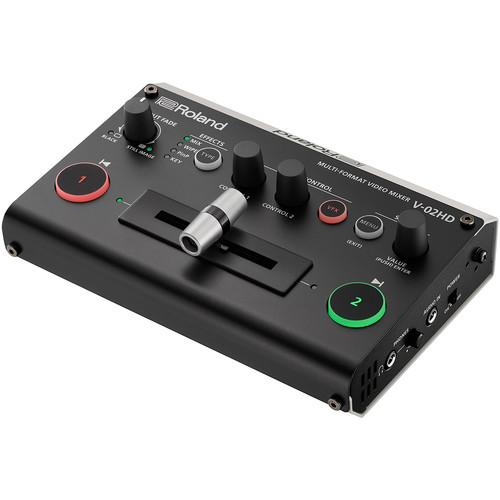

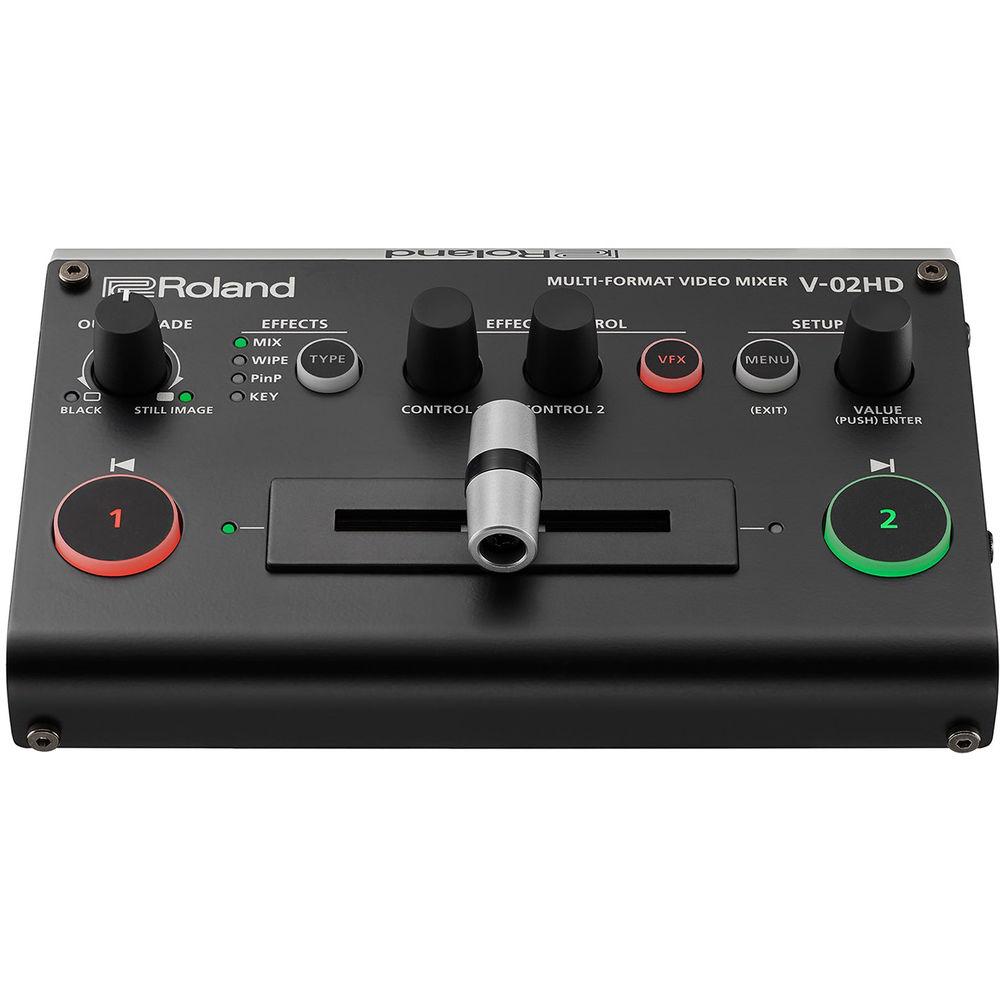

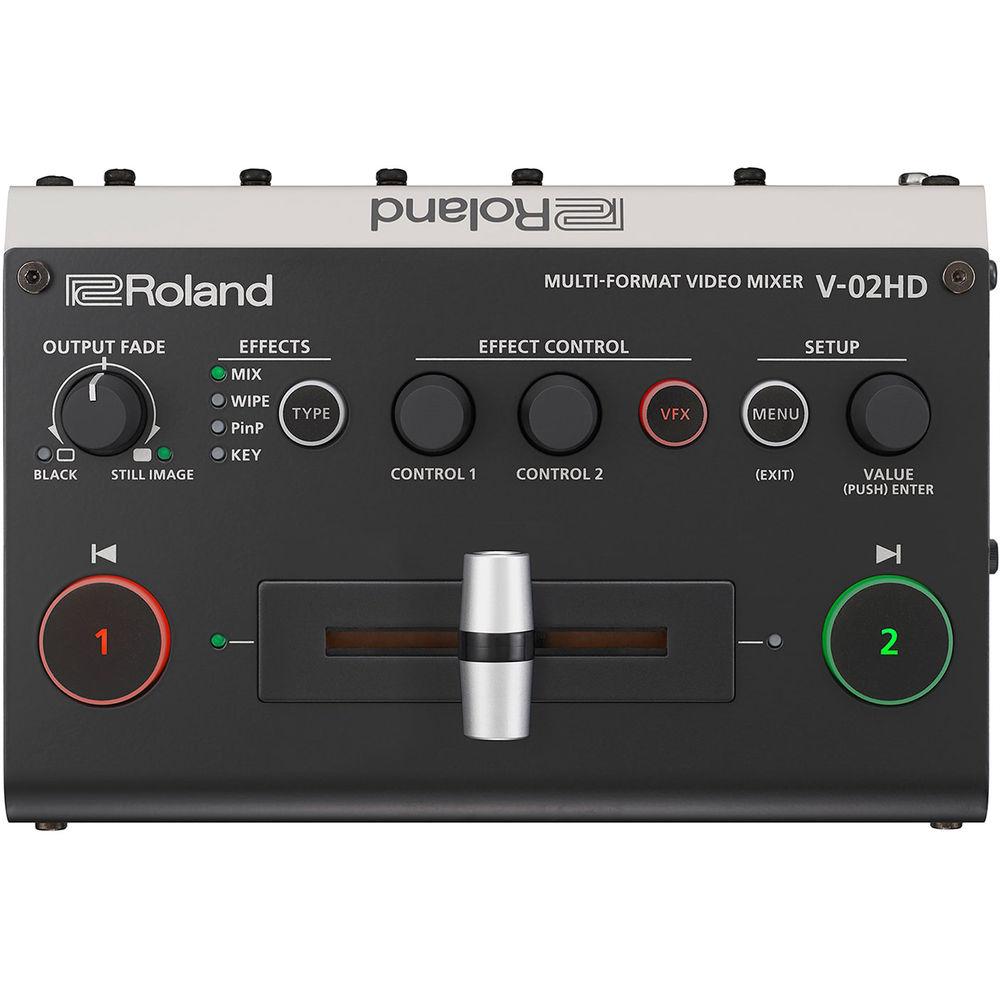

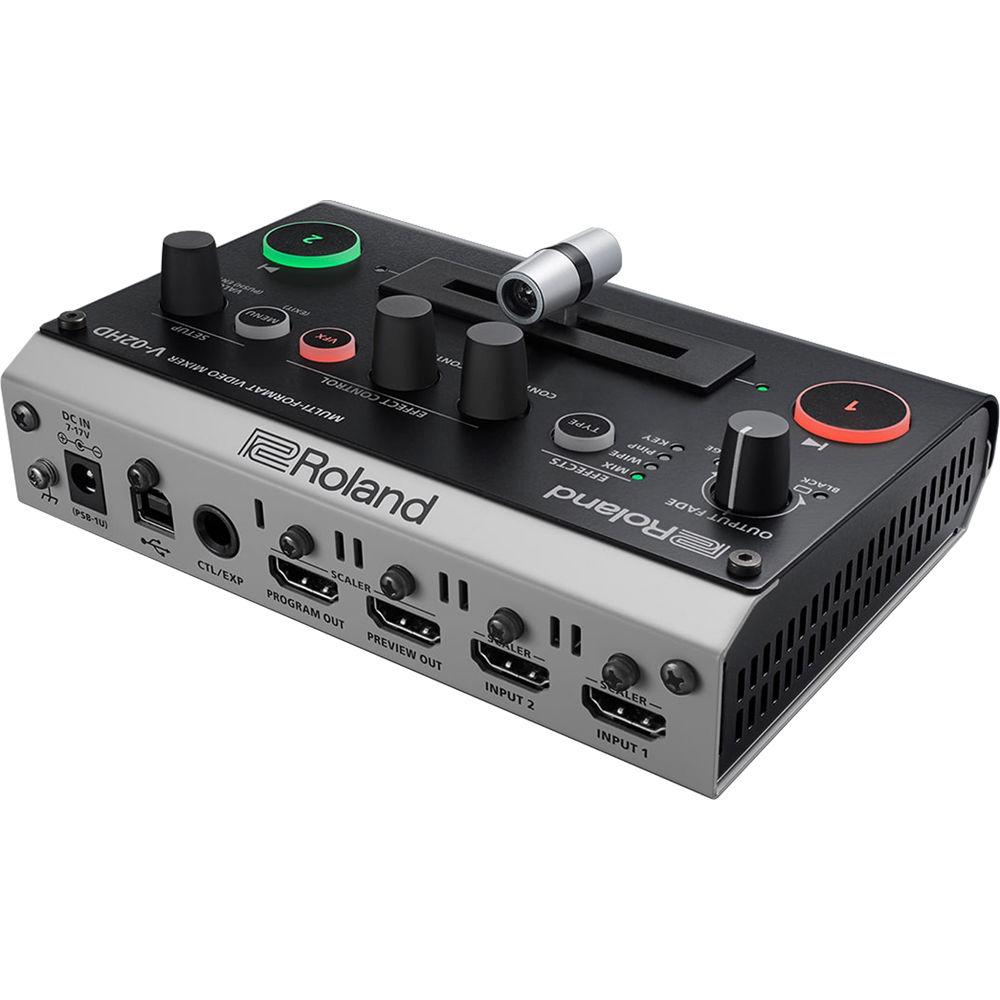

Although small-in-size, the V-02HD is loaded with features. The inputs and both the program and preview outputs feature discrete scalers. The V-02HD seamlessly switches between two HDMI sources and features a T-bar for smooth transitions, a graphics select knob, effects select, effects control, and a menu button. The switcher powers from an included AC power supply. Switcher Features - The V-02HD is a single unit that incorporates a simple switcher, high-quality scaler, input expander, audio solution, and inline video effects/compositor.
- The V-02HD takes the HDMI output from two cameras and seamlessly switches to a connected recorder or live streaming encoder. You can switch between cameras using the dedicated controls or the included footswitch.

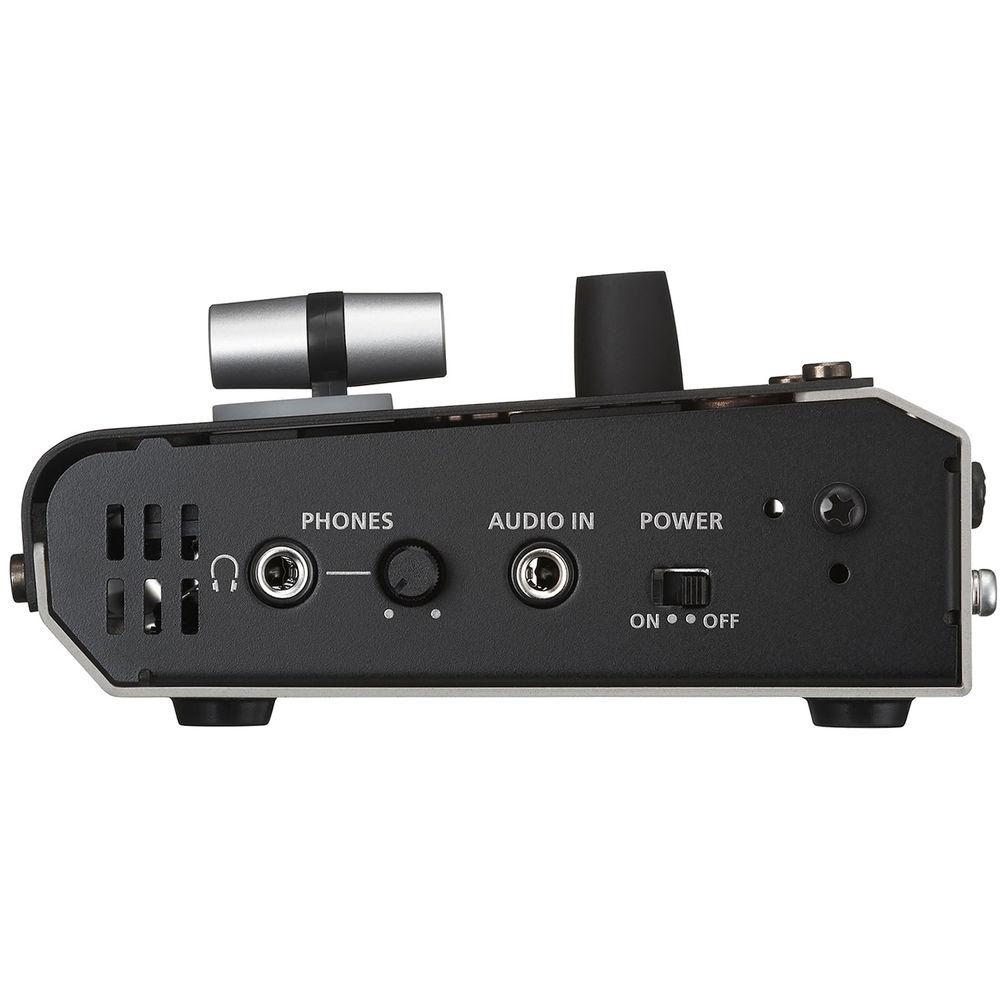

- Audio from both cameras and external sources can be mixed together within the V-02HD and monitored through a dedicated headphone output.
- The switched output is embedded in real time and output over HDMI for reliable recording or live streaming.
- A preview output enables you to view the menu without the overlay appearing on the program output.
- The switcher operates with 10-bit 4:4:4 processing.
- Integrated scalers enable the mixing of different formats, such as HD to SD and computer resolutions.
- You can embed and de-embed audio, both analog and digital.
- The V-02HD has built-in three-band EQ and dynamics.
Effects - Video
- Transition: Cut, mix (dissolve), wipe (9 types)
- Composition: PiP (square, circle, diamond), key (luminance key, chroma key)
- Visual effects (14 types): mosaic, wave, RGB replace, colorpass, negative, colorize, posterize, silhouette, emboss, findedge, monocolor, hue offset, saturation offset, value offset
- Others: Flip horizontal, flip vertical, still image capture, still image playback, output fade (audio/video: white or black), test pattern output
Audio- Delay
- High-pass filter
- Compressor
- Noise gate
- Equalizer
- Multi-band compressor
- Limiter
- Test tone output
- Other Functions
-
- Preset memory (8 types)
- Panel lock function
- EDID emulator
- Auto scan
- Auto input detect
Footswitch - This is a momentary unlatching footswitch/pedal that works with either electronic keyboards as a sustain pedal, or for quickly engaging and disengaging effects processors. The pedal is only active for the duration of time that it is depressed, and an example of its creative application would be the emphatic punctuation of specific musical phrases during an instrumental solo, with a dramatic delay, or reverb effect setting.
UPC: 761294222720 In the Box Roland V-02HD PAC1 Video Mixer Bundle V-02HD Mixer AC Adapter Power Cord Cord Hook FS-5U - Footswitch - Unlatch 2 x HDMI Cable (16') Phono Cable Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland V-02HD PAC1 Video Mixer Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Roland V-02HD PAC1 Video Mixer Bundle can be downloaded in PDF format at the link stated below.
Technical parametersRoland V-02HD Specs | | | Video Processing | 4:4:4 (YPbPr), 10-bit | | Connectors | Input

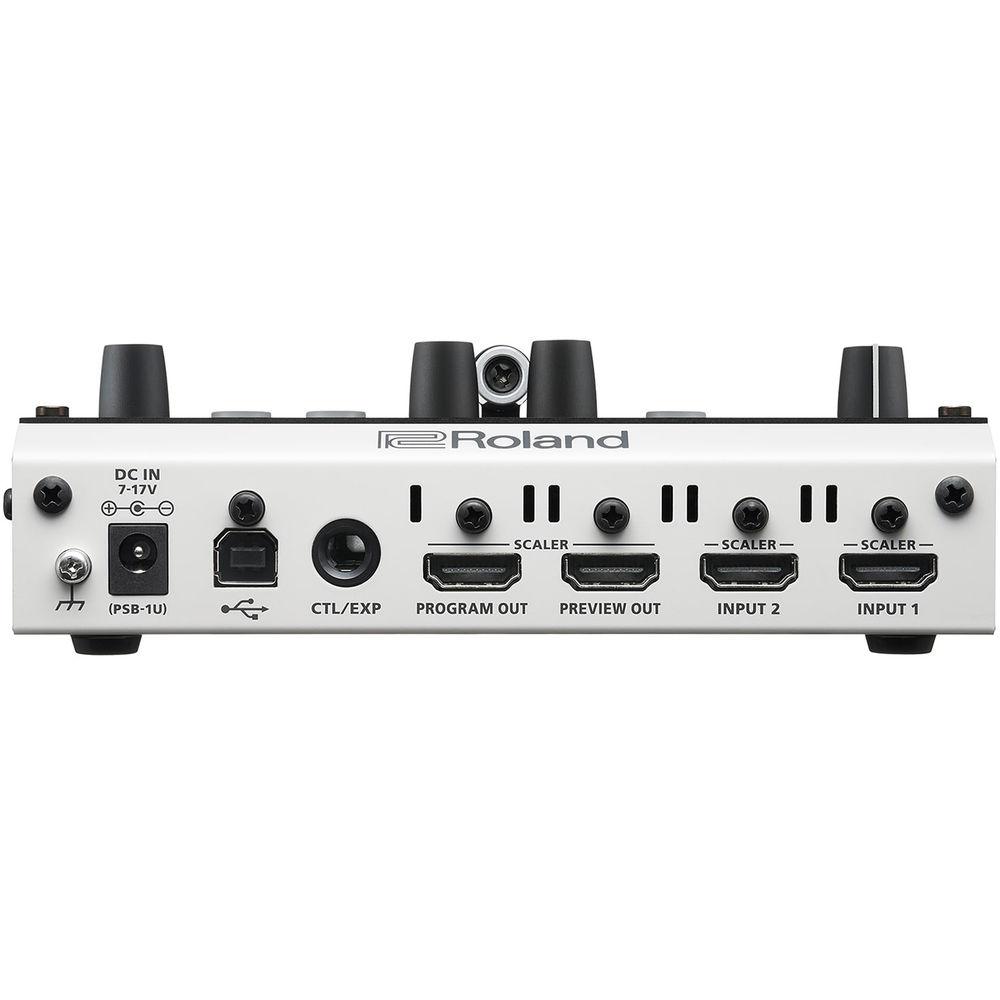

2 x HDMI type A
Output
Program: 1 x HDMI type A
Preview: 1 x HDMI type A | | Broadcast System | NTSC
PAL | | Input Formats | Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576i/p: 50
480i/p: 59.94
Computer (60 Hz)
WUXGA (1920 x 1200)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
FWXGA (1366 x 768)
WXGA (1280 x 800)
XGA (1024 x 768)
SVGA (800 x 600)
VGA (640 x 480)
- The refresh rate is the maximum value of each resolution
- Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11
- 1920 x 1200/60 Hz: Reduced blanking | | Output Formats | Video
1920 x 1080p: 59.94/50
1920 x 1080i: 59.94/50
1280 x 720p: 59.94/50
576p: 50
480p: 59.94
Computer (60 Hz)
WUXGA (1920 x 1200)
UXGA (1600 x 1200)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
FWXGA (1366 x 768)
WXGA (1280 x 800)
XGA (1024 x 768)
SVGA (800 x 600)
- Conforms to VESA DMT Version 1.0 Revision 11
- Output refresh rates of 800 x 600 to 1400 x 1050 are 75 Hz when unit's frame rate setting is 50 Hz
- 1920 x 1200/60 Hz: Reduced blanking | | | | Audio Processing | Sampling Rate: 24-bit, 48 kHz | | Audio Formats | Linear PCM, 24-bit, 48 kHz, 2-ch | | Connectors | Input
2 x HDMI type A (shared with video)
1 x 3.5 mm stereo mini
Output
Program: 1 x HDMI type A (shared with video)
Preview: 1 x HDMI type A (shared with video)
1 x 3.5 mm stereo mini | | Other Specs | Input Level
-10 dBu (+8 dBu max)
Output Level
Phones: 92 mW + 92 mW (32 Ohms)
Input Impedance
45 kOhms
Output Impedance
Phones: 10 Ohms | | | | Mounting | Tripod: 1/4"-20 threaded mounting hole
Desktop: 4 x Rubber feet | | Interface | USB Memory: USB Type-B (for backup from PC)
CTL/EXP: 1/4" TRS phone type | | Power | Supply: AC adapter
Current Draw: 1.1 A
Power Consumption: 10 W | | Operating Temperature | 32 to 104°F / 0 to 140°C | | Dimensions | 6.30 x 4.25 x 2.01" / 16 x 10.8 x 5.1 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 15.1 x 11.7 x 7.6" |
