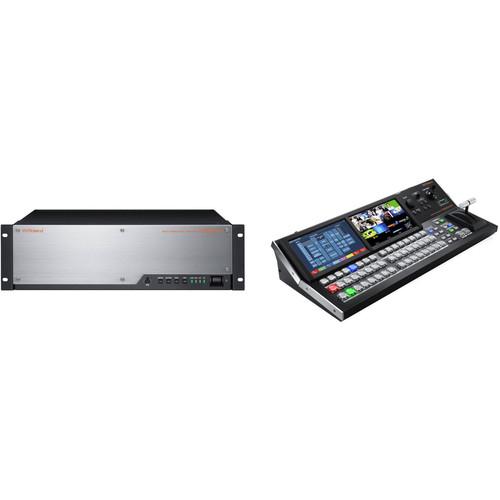

User Manual for Roland V-1200HD-SYS Video Switcher & Control Surface Bundle Click to enlarge the picture
Contents of the user manual for the Roland V-1200HD-SYS Video Switcher & Control
- Product category: Production Switchers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Production Switchers
|
User manual for the Roland V-1200HD-SYS Video Switcher & Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description This Roland V-1200HD-SYS Bundle combines the V-1200HD Multi-Format Video Switcher with its corresponding V-1200HDR Control Surface. These two components provide a versatile HDMI/SDI switching solution for studio or location use. - Roland V-1200HD Multi-Format Video Switcher With dual mix effects buses, Roland's V-1200HD Multi-Format Video Switcher is versatile, space efficient, and can handle 10 HD video streams in 4:2:2 or 4:4:4 color space. Whether implemented in a video studio or a live event venue, the V-1200HD can handle video and computer sources, and route them accordingly. Embedded as well as external audio can be routed through the switcher, and the V-1200HD will accept up to 92 inputs and outputs. I/O can be expanded through dual expansion slots. Aside from routing video and audio signals, the V-1200HD can remote control up to 7 cameras, and can itself be remote controlled through V-1200HD Remote Control Software.
- For Broadcast Studios
- A wide variety of video effects enhances broadcast studio productions. Composition with freely selectable priority can be accomplished using the four scaler-equipped keyers. The system also features high-end Chroma Key, as well as the External Key essential for title compositing. In addition to PGM and PVW output, two AUX buses are usable for output when in the 1 M/E mode.
- For Live Performance Production
- Multiple M/E choices allow for a diverse range of video production applications in one switcher. The V-1200HD is ideal as a main switcher for concert recording and for a live feed. Through a variety of multi-view functions, even a large number of sources can be checked at a glance. The M/E configuration can be varied as desired to meet the needs of the production. Control up to four remote cameras, ensures creative productions even with limited camera operators.
- For Live Events
- Equipped with HDMI input and output with multi-format support. Freely mix computer and video sources and output to a wide range of displays and devices. Along with ten SD/HD-SDI inputs, the V-1200HD features four HDMI inputs. Six SD/HD-SDI and two HDMI outputs are also provided. Among these, the two HDMI inputs and outputs offer multi-format support. Computer sources with varying resolutions and frame rates are supported without a need for video converters. The signal is passed directly to the 4:4:4 process, so it can be output, unchanged, at the same high resolution. What's more, using a separately available XI expansion card with a built-in scaler makes it possible to mix digital and analog inputs and outputs.
- For Performance Halls
- The V-1200HD supports a large range of control as a video/audio hub. The full-featured routing functionality enables conversion and distribution of a high number of video sources in a variety of formats. The V-1200HD can also be controlled with remote operation as a video/audio source hub from a variety of control terminals and programs. In addition to just simple video switching, the system also offers functions available only on production switchers, such as distributing PinP video to various locations.
Flexible Mix Effects Bus (M/E) Modes - 2 M/E Mode
- This provides a standard 2 M/E operation style. Two keyers can be used with each M/E. Keyer priority can also be assigned and changed. Not only is re-entry of the video source from M/E 1 to M/E 2 possible, but so is reverse re-entry from M/E 2 to M/E 1. Each of the two M/Es can be output independently allowing for applications such as simultaneous transmission of captions in two different languages.
- 1.5 M/E Mode
- This is the highest-performance operation style, capable of using PGM/PST rows as the final stage in addition to 1 M/E. All four keyers can be used in 1 M/E. You can freely change the priority of each keyer, and even copy keyers. This mode enables complex mixing operations such as a video source plus 4-layers of composition and transition functions to another single video source.
- 1 M/E Mode
- This is a simple operation style using 1 M/E + 4 keys. In addition to using PGM/PST rows on the main line, you can use two AUX buses. This mode allows discrete video feeds to be switched and routed to additional outputs making the V-1200HD the ideal primary switcher for a number of broadcast and live performance applications.
Features - 4:4:4 Multi-Format Processor
- There are two scalers between the 4:2:2 engine and the 4:4:4 engine, and two scalers between HDMI IN 3 and 4 and the 4:4:4 engine. These enable switching, self key composition, and matrix output. When using HDMI direct in and out, all processing is done in a 4:4:4 10-bit color space that supports RGB and computer signals.
General Features - 10 SDI and 4 HDMI inputs, and 6 SDI and 2 HDMI outputs
- 4:2:2/4:4:4 hybrid engine
- The 4:4:4/10-bit multi-format processor supports live presentation, split-screen, and matrix output.
- Up to 92 Inputs/Outputs with 16-channel audio mixer
- Control of up to 7 remote cameras
- All switcher functions can be operated from a computer using remote control software
- Input/output expandable via expansion slots
UPC: 761294504246 - Roland V-1200HDR Control Surface for the V-1200HD Video Switcher Control all the advanced functionality of your V-1200HD switcher with the Roland V-1200HDR Control Surface. Enclosed in a sleek, modern chassis, the V-1200HDR provides a professional physical control surface for the V-1200HD with dual LCD touchscreens for monitoring and control, a large T-bar for effects and transitions, customization and operation of the mix effects buses, HDMI video outs, and a plethora of buttons for source switching.
- Dual Touch Monitors
- Dual touch monitors let you display different GUIs on the left and right. Incoming video signals from the HDMI connectors on the rear panel can also be displayed.
- 16 Cross Points
- This broad range of cross-point switches affords a commanding view of 16 sources at one time. This is also switchable to either PGM/PST or flip/flop according to operator preference.
- Positioner Joystick Control
- Controls the PTZ parameters on up to 7 connected remote cameras.
- Redundant Power
- In addition to an AC adapter, the unit can be powered by 12V battery. Connecting both at the same time provides redundant power.
UPC: 761294506233 In the Box - V-1200HD Multi-Format Video Switcher vzbzaueezdwwesuduaufau
- Power Cord
- Rubber Feet
- Limited 1-Year Warranty
- V-1200HDR Control Surface for the V-1200HD Video Switcher
Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland V-1200HD-SYS Video Switcher & Control Surface Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Roland V-1200HD Multi-Format Video Switcher
| | | Processing | 4:4:4 (YPbPr/RGB), 10-bit
4:2:2 (YPbPr), 10-bit | | Input Connectors | 10 x BNC 3G/HD/SD-SDI, conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
4 x HDMI type A (HDCP and multi-format supported on HDMI inputs 3 and 4) | | Output Connectors | 6 x BNC 3G/HD/SD-SDI, conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
4 x HDMI type A (HDCP supported on HDMI outputs 1 and 2, HDCP not required on multi-view output 1, HDCP required on multi-view output 2) | | Formats | SDI:
1080p59.94/50, 1080i59.94/50, 720p59.94/50, 526i50, 480i59.94 (Conforms to SMPTE 274M, SMPTE 296M, ITU-R BT.601-5)
HDMI:
Video: 1080p59.94/50, 1080i59.94/50, 720p59.94/50, 526p50, 526i50, 480p59.94, 480i59.94 (Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11
VESA:
1920x1200@60/75, 1920x1080@60, 1600x1200@60, 1400x1050@60, 1280x1024@60/75, 1366x768@60/75, 1280x800@60/75, 1280x7020@60/75, 1024x768@60/75 (Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11) | | Effects | 4:2:2 Processing:
M/E: 1 M/E, 1.5 M/E, 2 M/E (9 patterns)
Transitions: Mix, NAM , FAM , Cut, Wipe (PGM/PST only)
Composition (Keyer): 4 channels (PinP, Chroma Key, Luminance Key, External Key supported)
AUX: 2x
Others: Output Fade, Freeze, Output Capture, Composition Edit, SDI Output Patchbay
4:4:4 Processing:
M/E: 1 M/E, Matrix, Scaler
Inputs: 4 (2x 4:2:2 Processing outputs, HDMI input 3, HDMI input 4)
Transitions: Mix, Cut
Keyer: Luminance Key (1 PinP, Luminance Key)
Others: HDCP Supported, Output Fade, Output Cropping, Signal Generator | | Still Image | Still Image Inputs: 2x
Internal Memory: 16, Maximum 1920x1080 pixels
Formats:
Windows Bitmap File (.bmp) 24-bit per pixel, uncompressed
Portable Network Graphic File (.png) Alpha channel Supported | | Multiviewer | MULTI-VIEW 1 (4:2:2 Processing): 16/10 screens, Label, Tally
MULTI-VIEW 2 (4:4:4 Processing): 4 screens, Label, Tally, OSD Setup Menu | | | | Processing | Sampling Rate: 24-bit, 48 kHz | | Input Connectors | 4 x BNC, 3G/HD/SD-SDI (Embedded audio on inputs 7-10)
4 x HDMI
Stereo XLR switchable to 4-channel AES/EBU
Stereo TRS | | Output Connectors | 4 x BNC, 3G/HD/SD-SDI (Embedded audio on inputs 7-10)
2 x HDMI
Stereo XLR switchable to 4-channel AES/EBU
Stereo TRS | | Input Level and Impedance | +4 dBu (Maximum: +22 dBu, 15 kOhms) | | Output Level and Impedance | +4 dBu (Maximum: +22 dBu, 600 Ohms) | | Formats | SDI: Linear PCM, 24-bit, 48 kHz, 16 ch (Conforms to SMPTE 299M)
HDMI: Linear PCM, 24-bit, 48 kHz, 2 ch
AES/EBU: Linear PCM, 24-bit, 48 kHz, 4 ch | | Effects | Patchbay: 92 inputs x 92 outputs
Delay: 16 ch
Mixer: 16 ch
Channel Effects: 3-Band EQ, Delay Master Effects: Mastering, 3-Band EQ, Reverb | | | | Expansion Slot | 2 x Slot (The video a maximum of 2 inputs and 2 outputs and the audio a maximum of 16 inputs and 16 outputs over both slots.) | | Reference | Input: 1 x BNC (Black Burst (Sync to frames), Bi-Level, Tri-Level)
Output/Through: 1 x BNC (Black Burst) | | External Connectors | RS-232: 1 x D-Sub 9-pin male for remote control
RS-422: 1 x D-Sub 9-pin female for VISCA control
TALLY/GPIO: 1 x DB25 female (Input: 8, Output: 16)
LAN: 1 x RJ45 100Base-TX (Connect to V-1200HDR or Computer (V-1200HD RCS))
USB: A-type (USB memory) | | Memory | 8: Last memory function | | Function Buttons | 32: 16 buttons in 2 banks | | Remote Camera | Control via RS-422: 1x D-Sub 9-pin
Protocol: VISCA | | Remote Controller | V-1200HDR Control Surface Option
V-1200HD RCS (Windows 7 or later / Mac OSX) | | Power Supply | 117/220/230/240 VAC, 50/60 Hz
24 VDC, 10 A (via 4-pin XLR)
Redundant 240W power supply | | Operation Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 16.9 x 14.1 x 5.2" / 430 x 357 x 133 mm
3 RU | | Weight | 20 lb / 9 kg | | | | Box Dimensions (LxWxH) | 23.05 x 20.0 x 8.05" | - Roland V-1200HDR Control Surface for the V-1200HD Video Switcher
| Display | 2x 7" color LCD touchscreen | | Video Input | 2x HDMI (HDCP supported) | | Video Output | 1x HDMI | | Other I/O | 1x USB: type A
1x USB: type B
1x LAN: RJ4-5 100Base-TX
1x 1/4" stereo phone jack 2x 85 mW, 35 ohm | | Power Supply | 12 VDC via AC adapter
9-16 VDC via 4-pin XLR
Requires: 12V @ 2.5 A | | Operating Temperature | 32 to 104°F / 0 to 40 °C | | Dimensions | 20.2 x 9.3 x 4.1" / 514 x 237 x 105 mm | | Weight | 9.5 lb / 4.3 kg | | | | Box Dimensions (LxWxH) | 25.0 x 13.8 x 8.5" |
