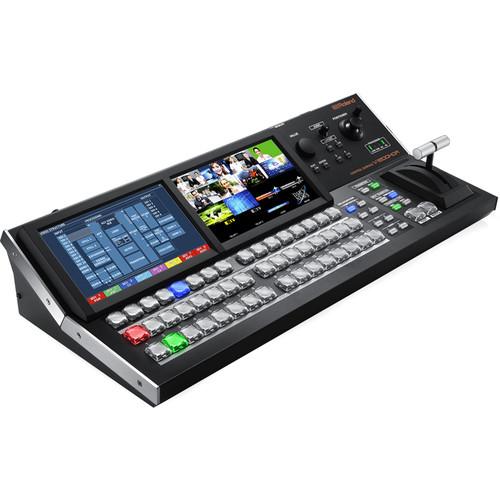

User Manual for Roland V-1200HDR Control Surface for the V-1200HD Video Switcher Click to enlarge the picture
Contents of the user manual for the Roland V-1200HDR Control Surface for the
- Product category: Switcher Accessories Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Switcher Accessories
|
User manual for the Roland V-1200HDR Control Surface for the contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description Control all the advanced functionality of your V-1200HD switcher with the Roland V-1200HDR Control Surface. Enclosed in a sleek, modern chassis, the V-1200HDR provides a professional physical control surface for the V-1200HD with dual LCD touchscreens for monitoring and control, a large T-bar for effects and transitions, customization and operation of the mix effects buses, HDMI video outs, and a plethora of buttons for source switching. - Dual Touch Monitors
- Dual touch monitors let you display different GUIs on the left and right. Incoming video signals from the HDMI connectors on the rear panel can also be displayed.
- 16 Cross Points
- This broad range of cross-point switches affords a commanding view of 16 sources at one time. This is also switchable to either PGM/PST or flip/flop according to operator preference.
- Positioner Joystick Control
- Controls the PTZ parameters on up to 7 connected remote cameras.
- Redundant Power
- In addition to an AC adapter, the unit can be powered by 12V battery. Connecting both at the same time provides redundant power.
UPC: 761294506233 In the Box Roland V-1200HDR Control Surface for the V-1200HD Video Switcher AC Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland V-1200HDR Control Surface for the V-1200HD Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland V-1200HDR Specs | Display | 2x 7" color LCD touchscreen | | Video Input | 2x HDMI (HDCP supported) | | Video Output | 1x HDMI | | Other I/O | 1x USB: type A
1x USB: type B
1x LAN: RJ4-5 100Base-TX
1x 1/4" stereo phone jack 2x 85 mW, 35 ohm | | Power Supply | 12 VDC via AC adapter
9-16 VDC via 4-pin XLR
Requires: 12V @ 2.5 A | | Operating Temperature | 32 to 104°F / 0 to 40 °C | | Dimensions | 20.2 x 9.3 x 4.1" / 514 x 237 x 105 mm | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 14.85 lb | | Box Dimensions (LxWxH) | 25.0 x 13.8 x 8.5" |
