Product description

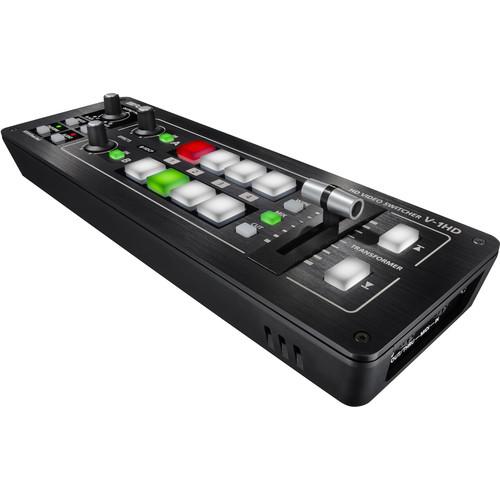

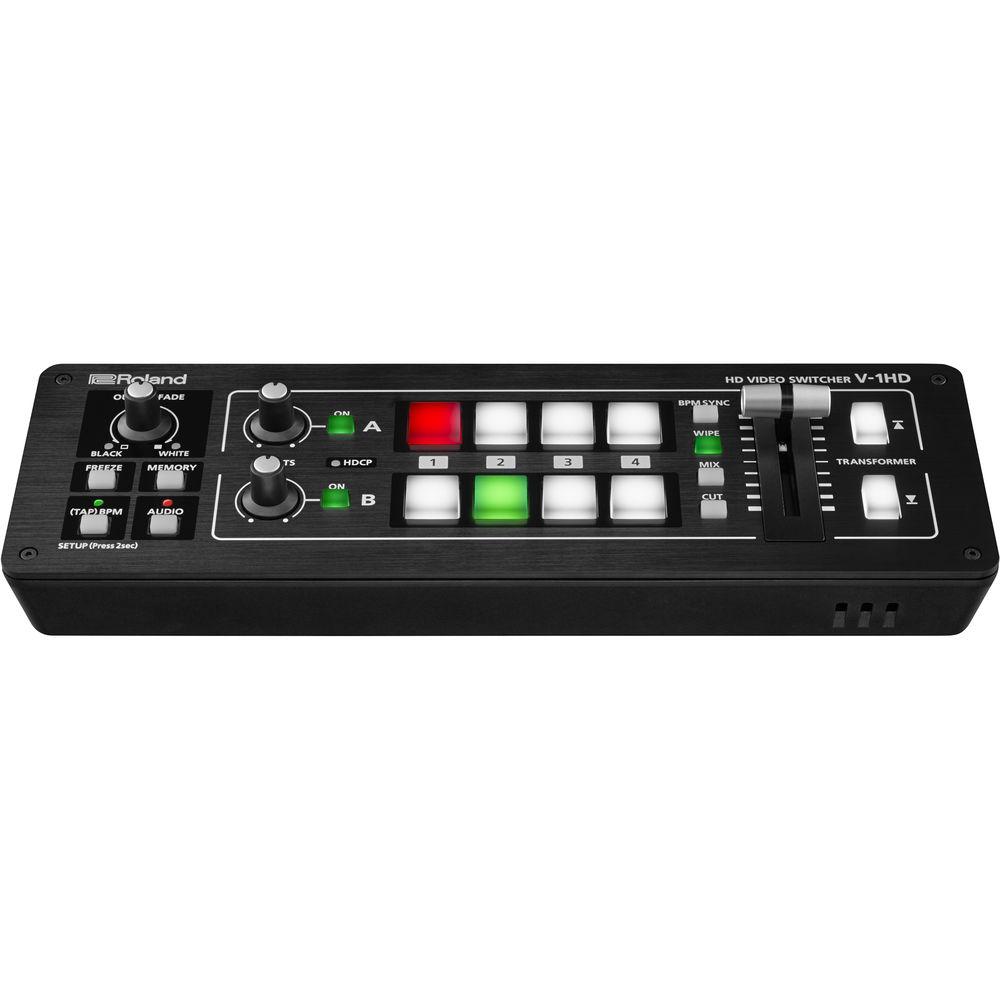

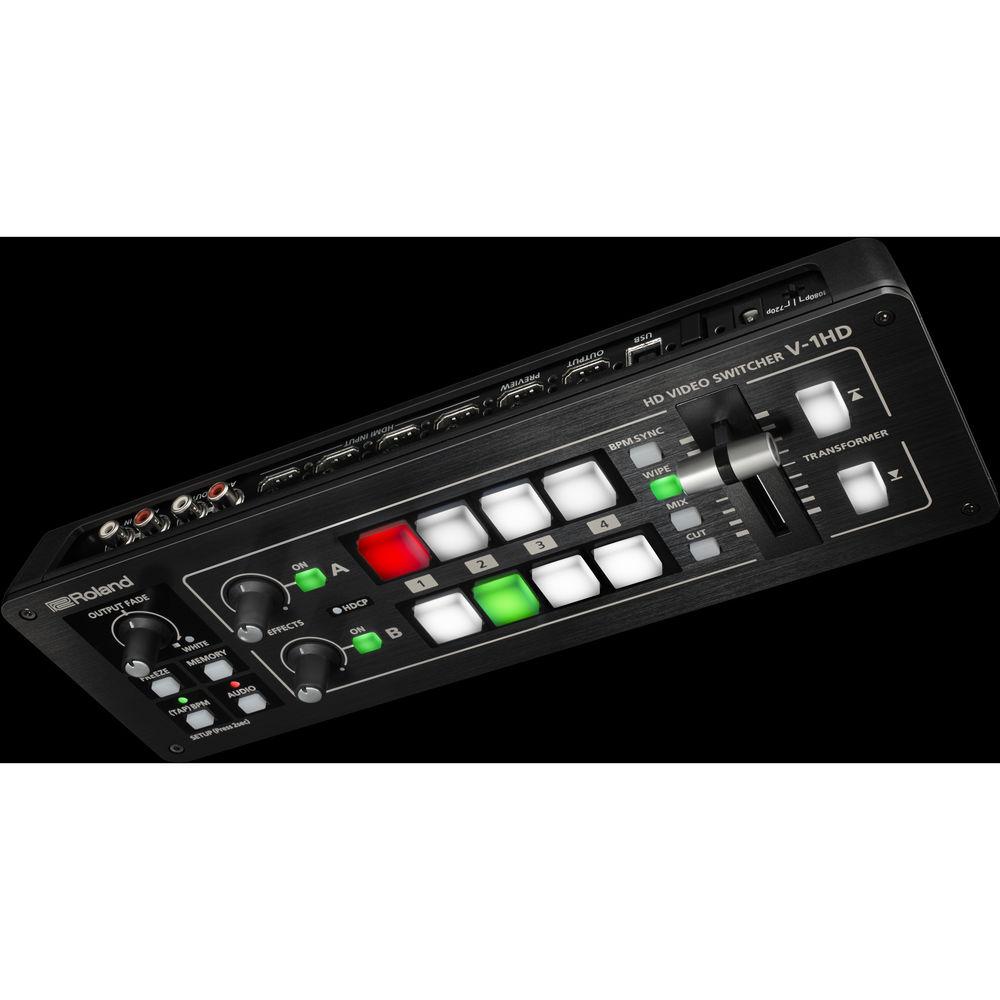

HD Switcher
• This portable HD switcher supports four inputs of HD video, allowing you to select 1080i, 1080p, or 720p as your input source. Each input incorporates a frame buffer/TBC that allows you to use non-genlocked cameras, as well as play-out devices as video sources. You select the broadcast system (59.94/50 Hz) within the menu. The format selector switch is a global switch that affects the input and output format. However, with the switch in either of the 1080 options, the V-1HD enables input of both 1080i and 1080p signals.

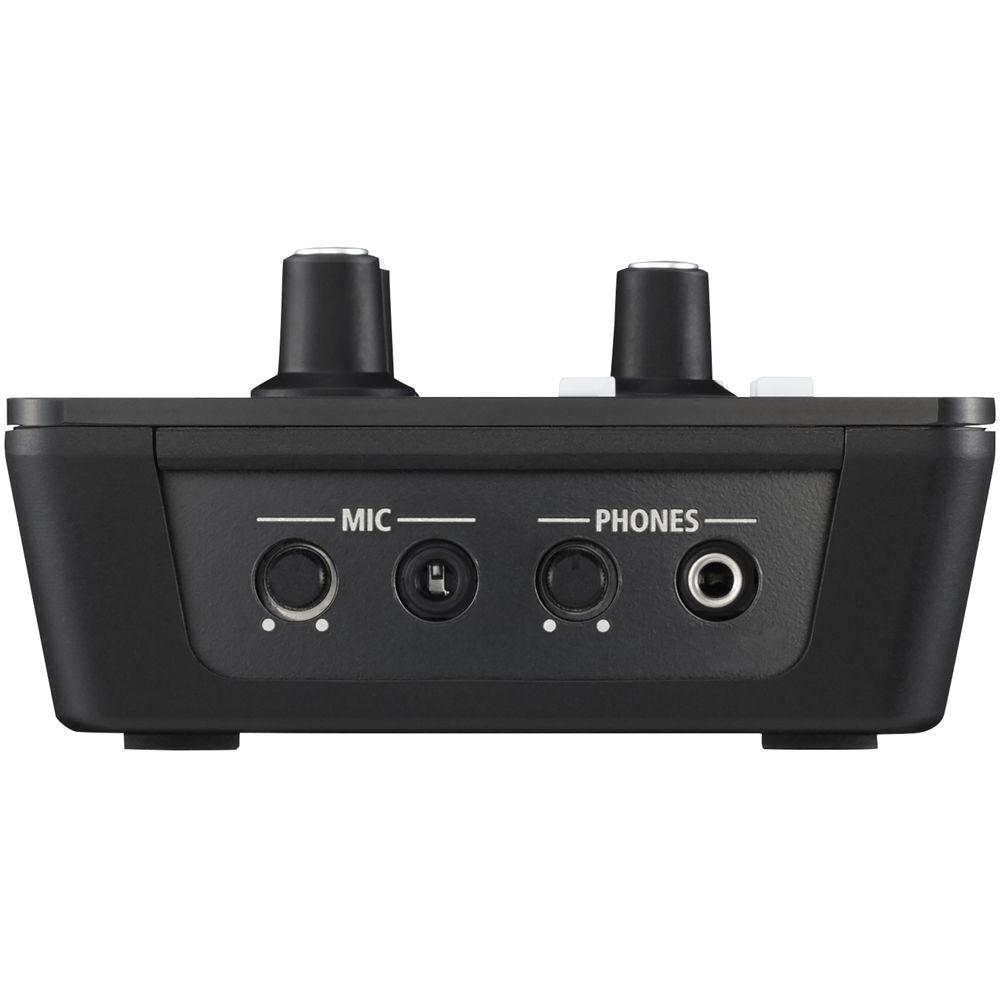

Audio Mixer
• The built-in 12-channel audio mixer allows you to de-embed audio from the HDMI stream, mix, and re-embed the audio into your output stream. The audio mixer is accessed by a connected PC running the available software.

Output Modes

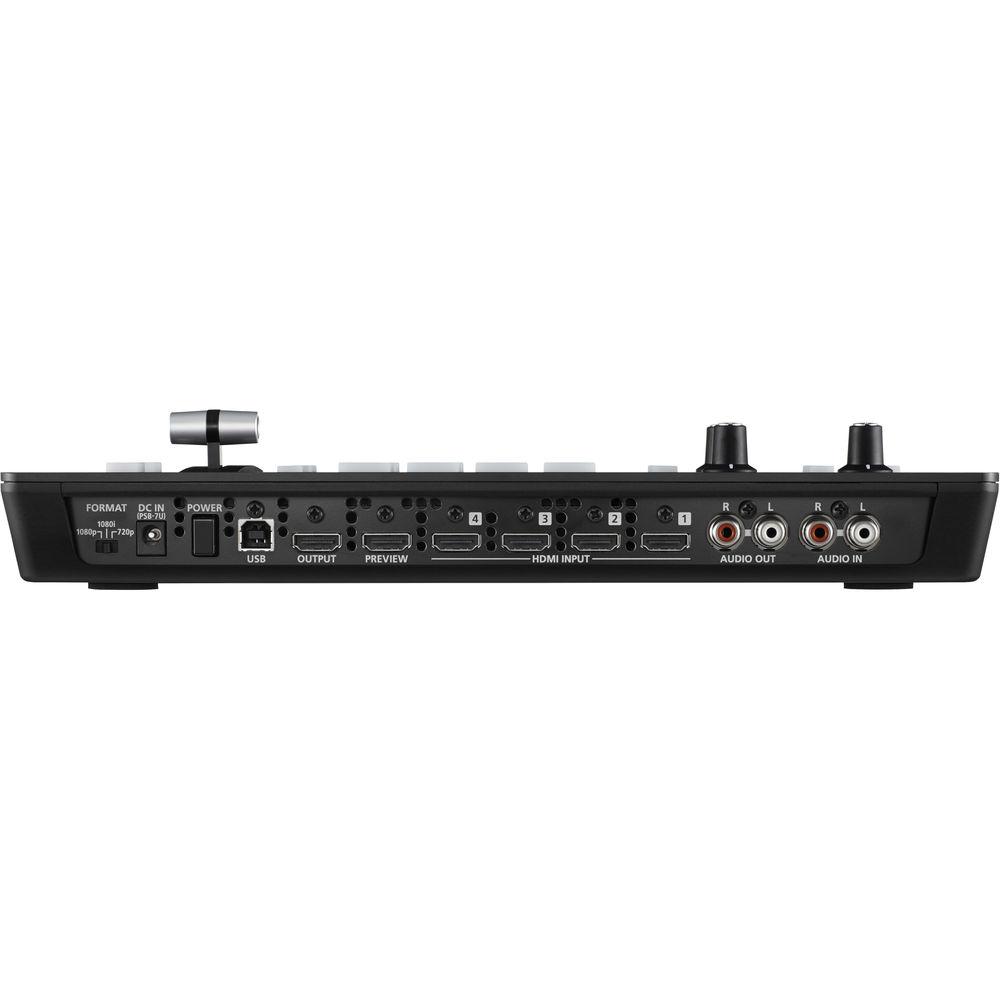

• The V-1HD features two HDMI outputs—one output always shows your switched program output, while the other (preview) can be switched between program output and multiview of your four sources.

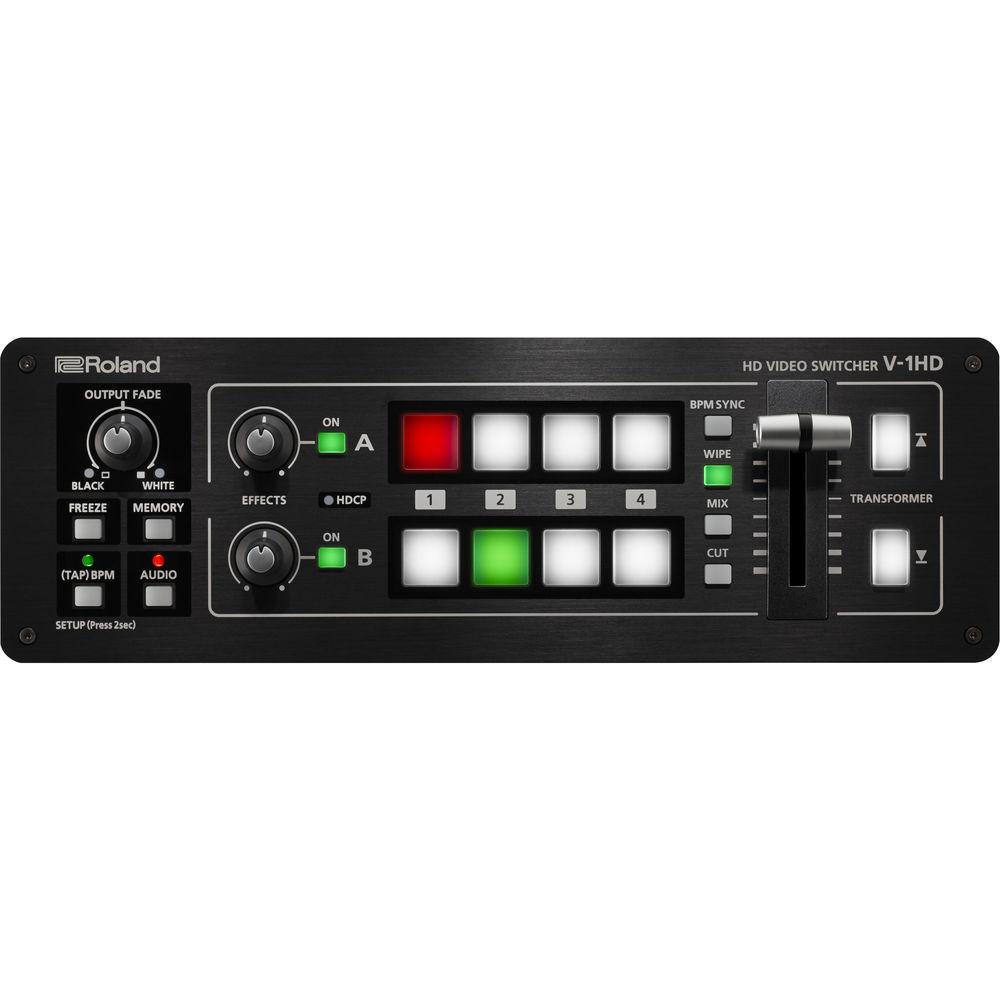

Control Buttons
• The soft rubber backlit buttons allow you to easily see the condition of your switcher, even in dim lighting conditions.
  • Red: Indicates the current source being output
  • Green: Indicates the video source that will be output on the next transition

Transitions
• There are three buttons for applying transition effects: Cut, Mix (4 types), and Wipe (30 types).

Beat-per-Minute Sync
• By using the T-fader bar and the BP-Sync button, you can deliver visuals synced to a music performance.

Memory
• The Memory button allows you to save or recall up to eight presets, and the Freeze button can temporarily pause the incoming video.

Transformer Buttons
• These buttons can be used to switch your video instantly or for applying effects.

Transitions
• The T-bar lets you control the speed of your selected transitions.

Keying
• The keying functionality permits picture-in-picture as well as green screen keying and graphics keying.

Output Fade
• You can select to fade your output video to either black or white.

Effects
• • Picture-in-picture and split screen functions
  • Supports chroma and luminance key
  • Two separate bus effects knobs allow you to apply affects independently to each bus
  • Nine types of filter effects are available including silhouette, colorpass, negative, and findedge

Audio Effects
• • EQ
  • Delay
  • Compressor
  • HPF
  • Gate
  • Reverb
  • Mastering effect

Control

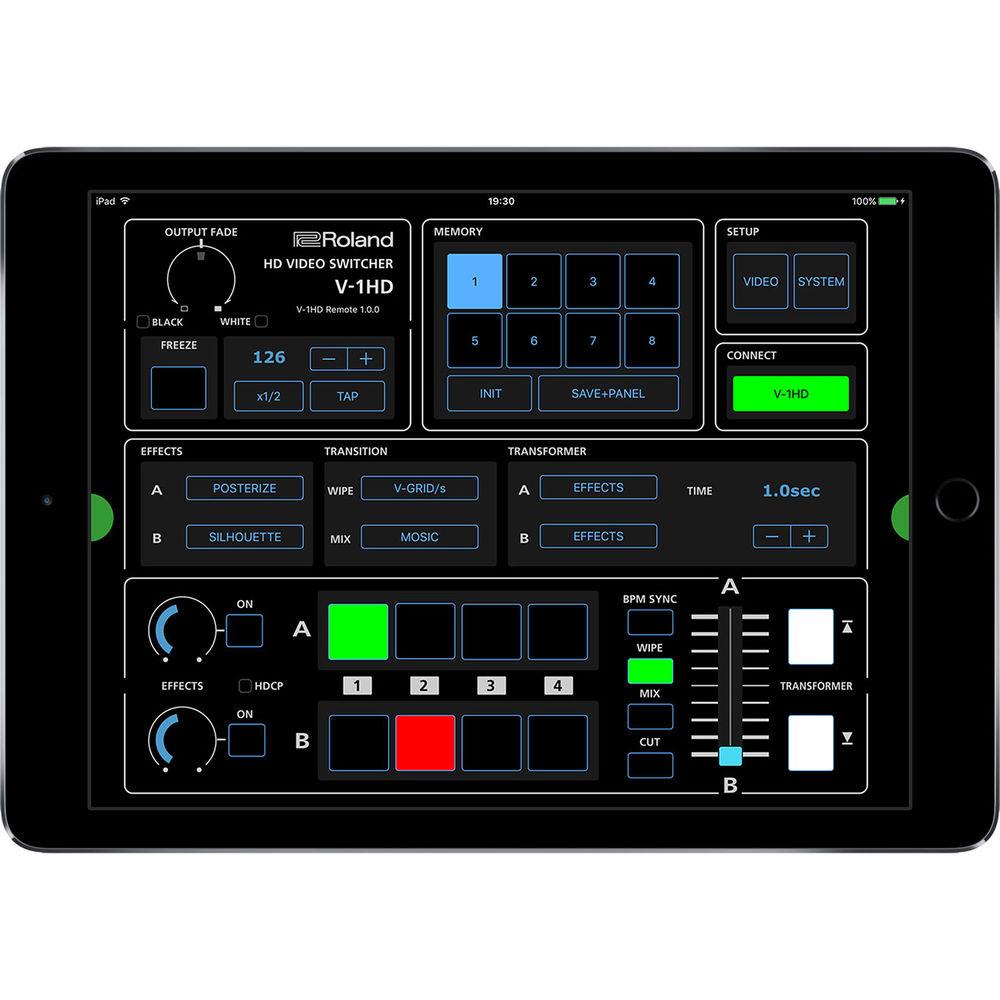

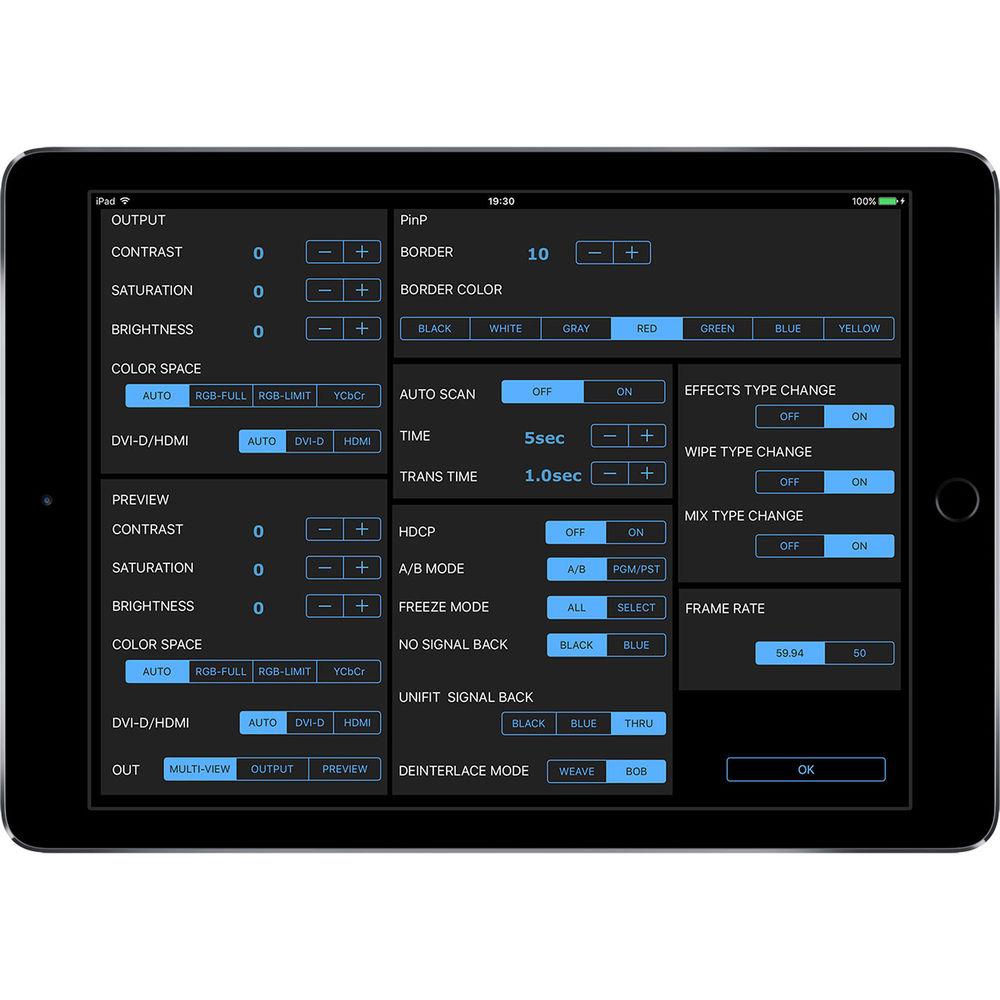

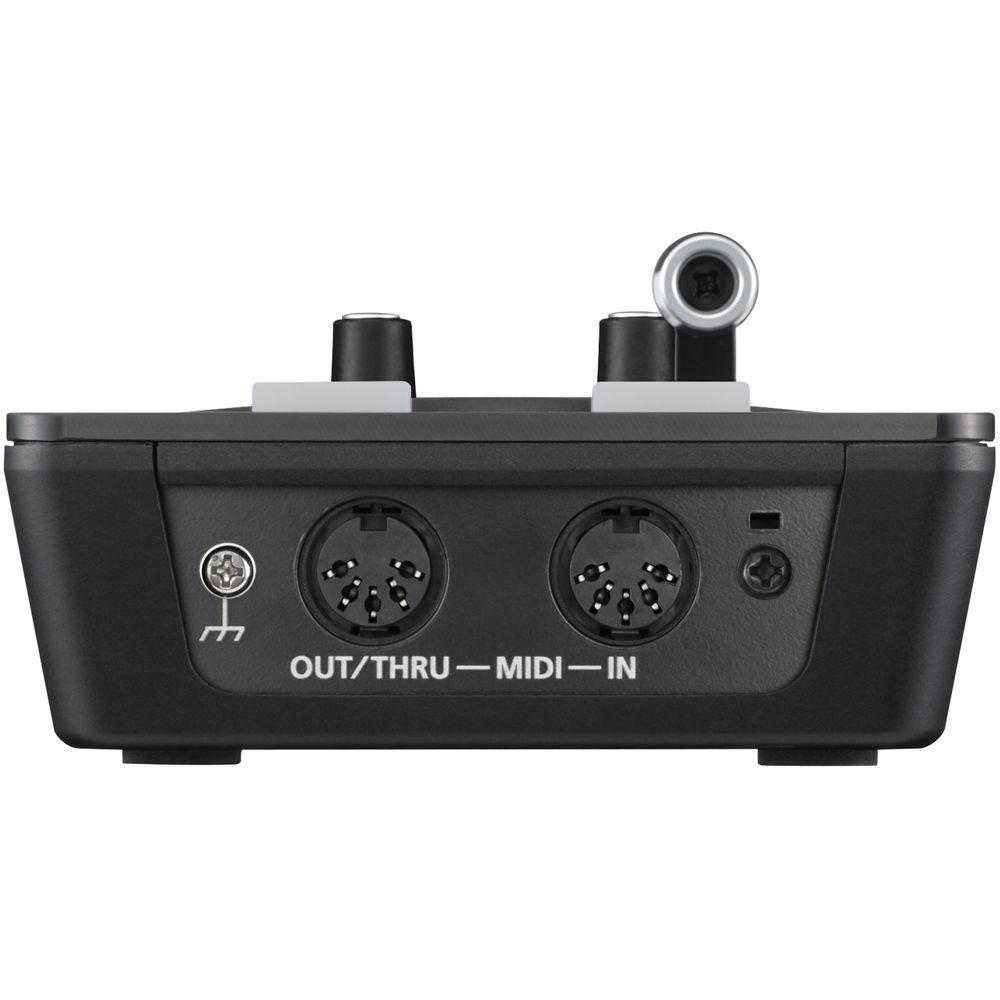

• Remote control is possible with the V-1HD RCS dedicated computer software for Mac OS X and Windows, or the V-1HD Remote iPad app connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio, or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. Please use the Lightning to USB Camera Adapter to connect an iPad to the V-1HD.

HDCP
• HDCP compliance can be enabled within the menu.
