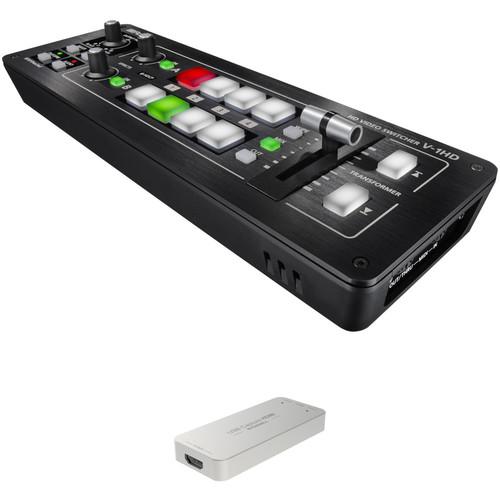

Roland V-1HD-W Web Streaming Bundle

User Manual for Roland V-1HD-W Web Streaming Bundle

• Product category: Production Switchers Roland
• Brand: Roland
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Roland Production Switchers

Product description

• Roland V-1HD Portable 4 x HDMI Input Switcher Roland's V-1HD 4 x HDMI Input Switcher is a portable solution for HD video production that accommodates up to four HD inputs. The inputs each have a frame buffer/TBC so you don't need to genlock your input sources together. You can control the switcher manually by using the built-in controls, or connect it to a computer or iPad running optional software for electronic control. Select your working resolution and switch between your four input sources. Built into the switcher is a 12-channel audio mixer which can de-embed and embed audio signals from HDMI.

  The integrated T-fader allows you to manually control the speed of transitions, or you can use the take button to actuate your selected transition. The unit features a program and multiview preview output, as well as an analog audio input and output. Though small in size, it allows you to perform picture-in-picture, green screen, and other keying effects, while a transform control enables advanced video effects on your footage.
  HD Switcher
  • This portable HD switcher supports four inputs of HD video, allowing you to select 1080i, 1080p, or 720p as your input source. Each input incorporates a frame buffer/TBC that allows you to use non-genlocked cameras, as well as play-out devices as video sources. You select the broadcast system (59.94/50 Hz) within the menu. The format selector switch is a global switch that affects the input and output format. However, with the switch in either of the 1080 options, the V-1HD enables input of both 1080i and 1080p signals.
  Audio Mixer
  • The built-in 12-channel audio mixer allows you to de-embed audio from the HDMI stream, mix, and re-embed the audio into your output stream. The audio mixer is accessed by a connected PC running the available software.
  Output Modes
  • The V-1HD features two HDMI outputs—one output always shows your switched program output, while the other (preview) can be switched between program output and multiview of your four sources.
  Control Buttons
  • The soft rubber backlit buttons allow you to easily see the condition of your switcher, even in dim lighting conditions.
    • Red: Indicates the current source being output
    • Green: Indicates the video source that will be output on the next transition
  Transitions
  • There are three buttons for applying transition effects: Cut, Mix (4 types), and Wipe (30 types).
  Beat-per-Minute Sync
  • By using the T-fader bar and the BP-Sync button, you can deliver visuals synced to a music performance.
  Memory
  • The Memory button allows you to save or recall up to eight presets, and the Freeze button can temporarily pause the incoming video.
  Transformer Buttons
  • These buttons can be used to switch your video instantly or for applying effects.
  Transitions
  • The T-bar lets you control the speed of your selected transitions.
  Keying
  • The keying functionality permits picture-in-picture as well as green screen keying and graphics keying.
  Output Fade
  • You can select to fade your output video to either black or white.
  Effects
  • • Picture-in-picture and split screen functions
    • Supports chroma and luminance key
    • Two separate bus effects knobs allow you to apply affects independently to each bus
    • Nine types of filter effects are available including silhouette, colorpass, negative, and findedge
  Audio Effects
  • • EQ
    • Delay
    • Compressor
    • HPF
    • Gate
    • Reverb
    • Mastering effect
  Control
  • Remote control is possible with the V-1HD RCS dedicated computer software for Mac OS X and Windows, or the V-1HD Remote iPad app connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio, or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. Please use the Lightning to USB Camera Adapter to connect an iPad to the V-1HD.
  HDCP
  • HDCP compliance can be enabled within the menu.
  UPC: 761294507209
• Magewell USB Capture HDMI Gen 2 Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions of up to 1920 x 1200 at 60p. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up or down-covert the input signal to the set resolution. It can also perform frame-rate conversion and de-interlacing in real-time with its own hardware, taking the processing load off of your computer's CPU. Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.
  • No drivers needed for Windows, Mac, or Linux
  • Automatically determines input video format and converts it to the specified output size and frame rate
  • Automatically converts input audio formats to 48 KHz PCM stereo audio
  • 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied

• V-1HD Portable 4 x HDMI Input Switcher ufxcqwadewesfsvdcdudxawd
• AC Adapter/Power Cord
• Cord Hook
• Limited 1-Year Warranty

• Magewell - USB Capture HDMI Gen 2

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Roland V-1HD Portable 4 x HDMI Input Switcher

  Video Processing	4:2:2 (YPbPr), 8-bit
  Input / Output	Input 4 x HDMI type A 1 x L/R pair RCA (audio) 1 x 3.5 mm stereo mini jack, mic (plug-in power supported) Output 2 x HDMI (preview, program output) 1 x L/R RCA (audio) 1 x 3.5 mm stereo mini jack
  Video Format	Input 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94 Output 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94
  Audio Processing	48 kHz 24-bit Max Audio Delay: 500 ms (each channel)
  Input Level	Audio: -10 dBu (maximum: +8 dBu) MIC: -41 to -31 dBu (maximum: -1 dBu)
  Input Impedance	Audio: 15 kOhms MIC: 10 kOhms
  Output Level	Audio: -10 dBu (maximum: +8 dBu) Headphones: 72 mW + 72 mW (32 Ohms)
  Output Impedance	Audio: 1 kOhms Headphones: 10 Ohms
  Interface - Connectors	1 x MIDI input 1 x MIDI output/through 1 x USB B (remote control from PC)
  Power	Current Draw: 1.5 A Power Consumption: 18 W
  Dimensions	12.3 x 4.0 x 2.3" / 31.3 x 10.2 x 5.9 cm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	16.3 x 9.5 x 5.2"

• Magewell USB Capture HDMI Gen 2

  Host Interface	USB 3.0, 300-350MB/s throughput USB 2.0 40MB/s throughput
  HDMI Input	HDMI 1.4a standard, and support up to 1080p/60Hz 8-bit, (RGB, YUV)
  Output Resolutions	Resolutions: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 / 1280×720 / 1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200 / 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540 / 1024×576 Frame-rate: 25/29.97/30/50/59.94/60 fps
  Sampling Rate	HDMI: 165 MHz
  USB Standard	Meets the standards of UVC (USB video class) and UAC（USB audio class）
  Color Space	YUY2, RGB24 Hardware adjustable
  Scaling	Hardware based
  Image Adjustment	Brightness, contrast, hue, saturation
  Operating System	Windows 7 (x86 and x64 version) Windows Server 2008 R2 Windows 8 Windows 8.1 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above)
  Software Compatibility	Windows Media Encoder (Windows) Adobe Flash Media Live Encoder(Windows, OS X) Real Producer Plus(Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X) Wirecast (Windows, OS X)
  APIs	DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux)
  Onboard Memory	64MB DDR2, 16 bits at 300 MHz
  Upgradeable Firmware	Yes
  Power Consumption	<= 2.5W
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 158°F / -20 to 70°C
  Relative Humidity	5 - 90%
  Dimensions	3.3 x 1.7 x 0.5" / 84 x 43 x 13 mm
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	7.3 x 4.2 x 0.9"
