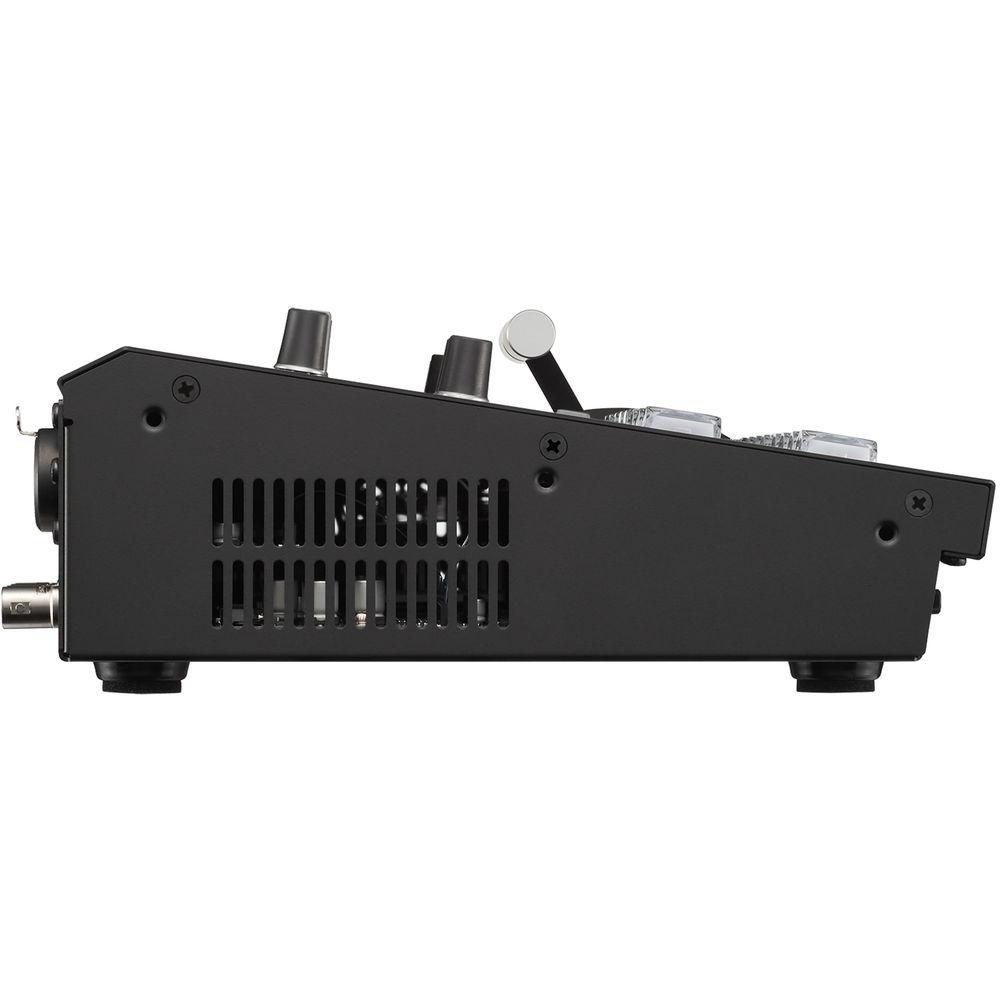

User Manual for Roland V-60HD Multi-Format HD Video Switcher Click to enlarge the picture
Contents of the user manual for the Roland V-60HD Multi-Format HD Video Switcher
- Product category: Production Switchers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Production Switchers
 |
User manual for the Roland V-60HD Multi-Format HD Video Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

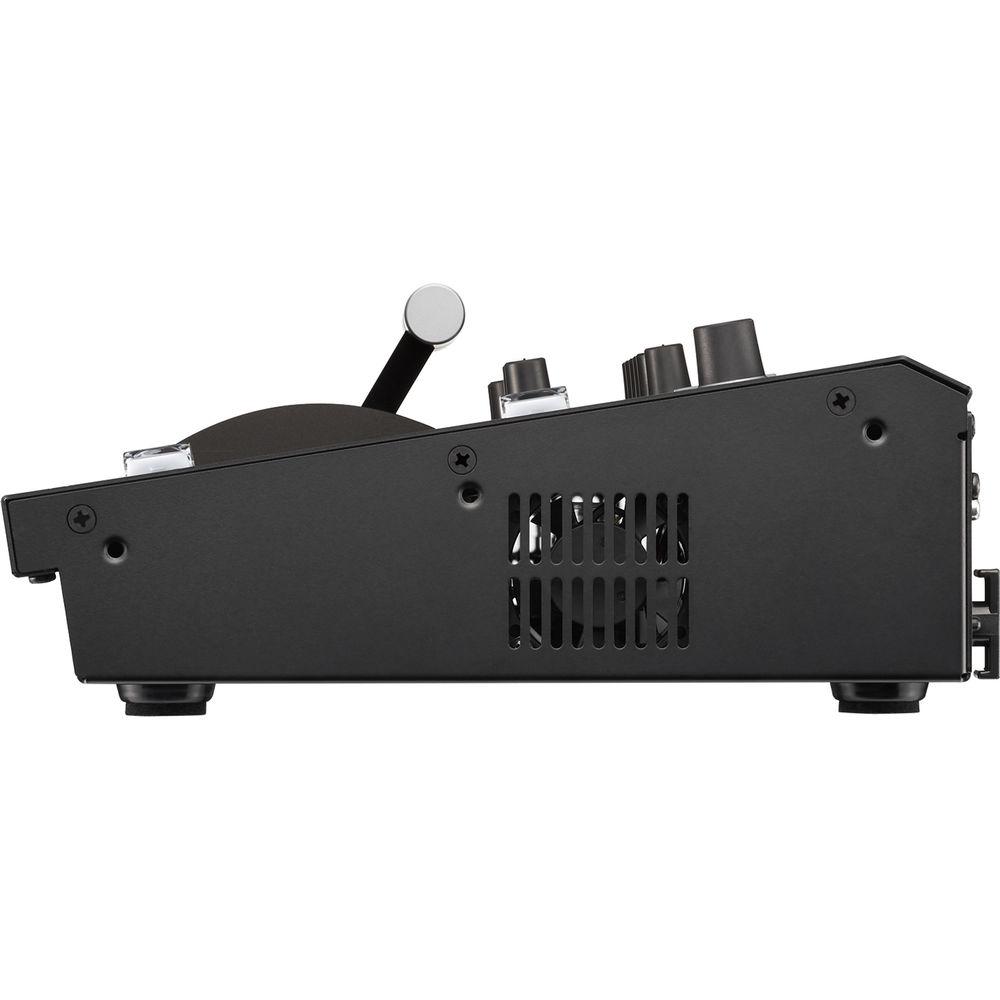

Product description The Roland V-60HD Multi-Format HD Video Switcher is a true multi-format video switcher, meaning it doesn't require input sources to be matched to output resolutions. Suitable for a variety of live venues, including but not limited to corporate, education, house of worship, and theater. The V-60HD enables live switching of HD and computer video formats without requiring external scan converters. It supports up to eight inputs with four SDI, two HDMI, plus two still image files. The HDMI inputs support video and computer resolutions, allowing you mix video and computer graphic formats. Two SDI and two HDMI-assignable outputs support program, preview, and auxiliary busses, allowing you to easily send discreet outputs to separate displays. The HDMI multiview output enables viewing your eight inputs, as well as program and preview, on a single monitor with audio level display.

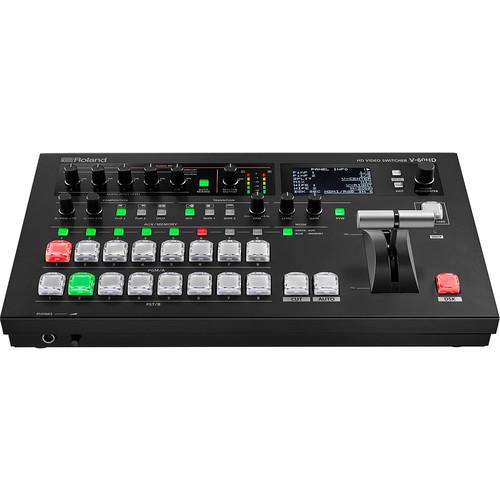

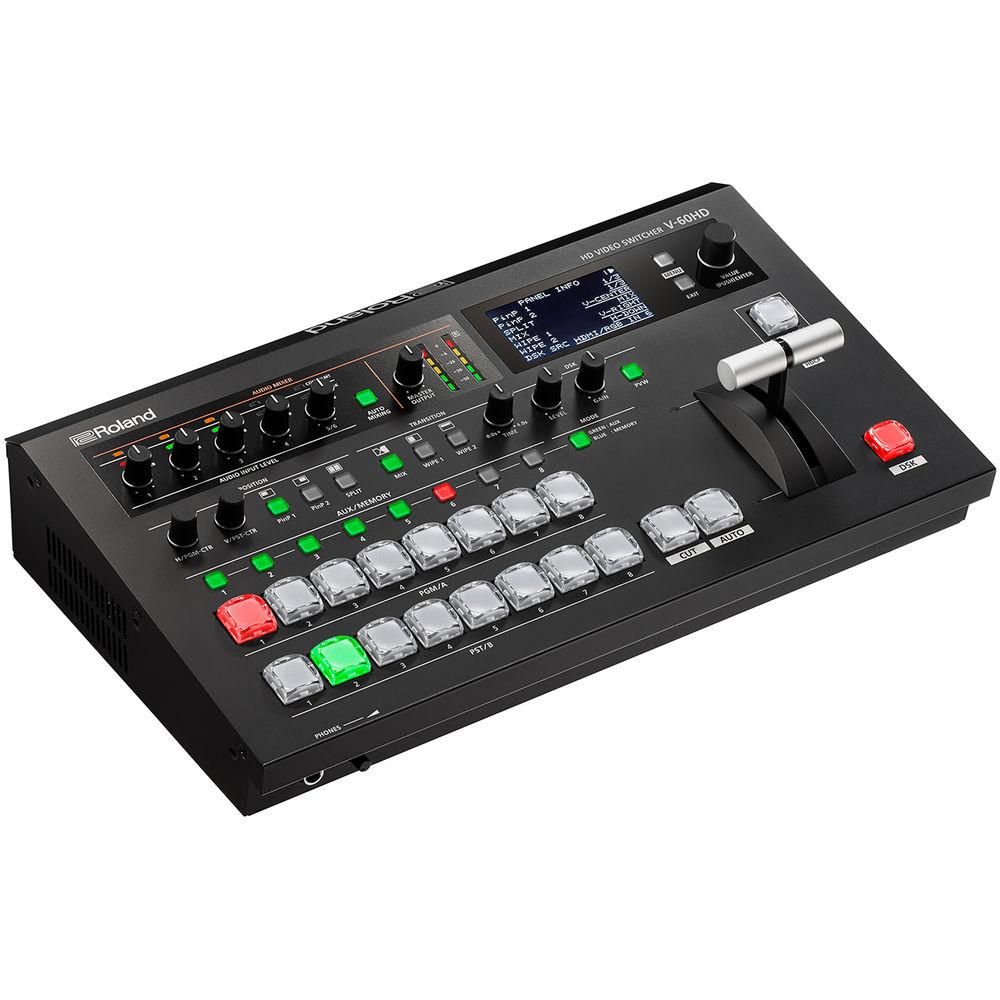

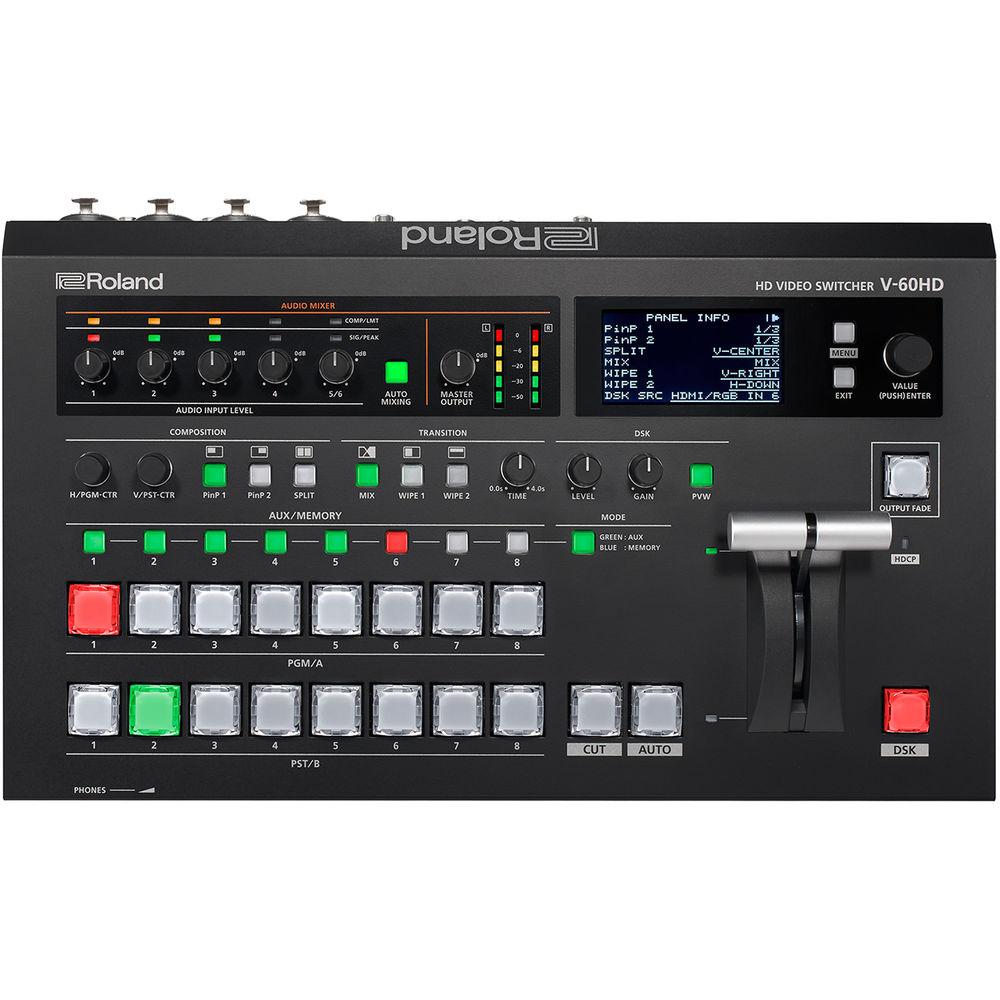

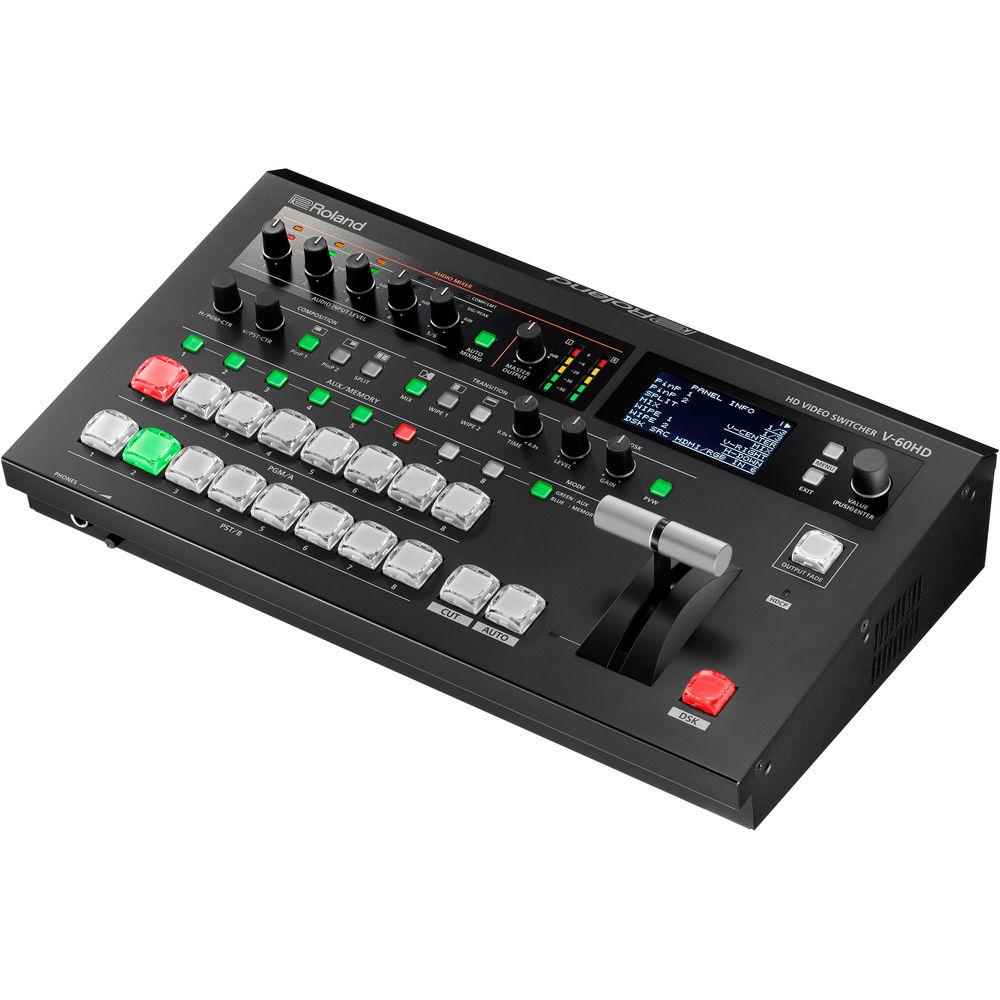

The panel incorporates illuminated buttons that follow red/green PGM/PST color schemes, and a T-bar for manual control of transitions. A built-in 3" LCD screen provides menu access for adjusting the switcher's parameters. Signal processing is 4:2:2 at 8-bits. Effects include a downstream keyer with quick edit knobs for key level and gain control. An 18-channel mixer supports inputs from four XLR/1/4" phone combo jacks (supporting phantom power), as well RCA jacks in addition to six channels of audio de-embedded from the incoming video. It features a built-in tally system with GPI in the connector, and supports both RS-232 and Ethernet for control. - Live Event and Streaming
- The V-60HD combines the best of live event production and streaming, including SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet, and other video sources. The switcher incorporates XLR and RCA analog inputs, as well as de-embedded audio from digital SDI or HDMI sources. A variety of video connections with a Program and Aux bus makes the V-60HD well suited for a variety of live event production and streaming applications.
- Live Production
-
- The V-60HD is portable and small enough to be used in locations that vary in size, from an intimate office to exterior meeting locations.
- The four SDI inputs and two HDMI inputs enable switching camera and computer sources at the same time for dynamic presentations.
- The deinterlacer built into the SDI inputs allows you to mix and match 1080i and 1080p SDI sources and multiple cameras without external converters.

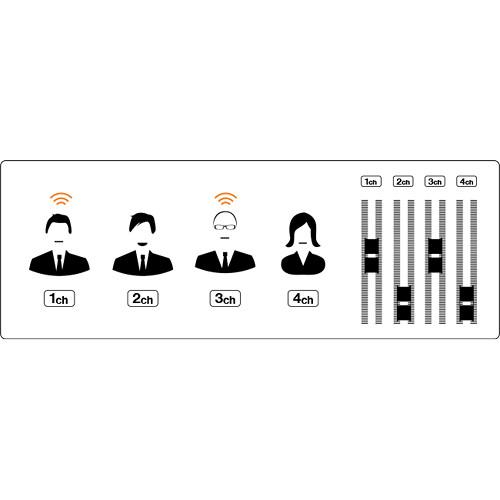

- Using the V-60HD's auto-mixing function enables automatic balancing of audio levels from multiple microphones and video sources, freeing up the operator to focus on switching the video for the event.
- Multi-destination outputs include Program, Preview, and AUX buses, making it easy to send the main output to the primary screen, stream live, and send notes to a presenter's monitor.
- Audio auto-mixing automatically adjusts audio levels, ensuring even levels for the room mix, presenter, the live stream, or in-room speakers.
- The multichannel audio embed function can be used to record eight discreet audio channels to an SDI video recorder, allowing you to fix audio issues or separate multi-language audio sources later in post. The V-60HD's user interface is easy for novices and can be controlled remotely through the LAN port using Roland's Remote-Control Software for PC or Mac. For fixed installations, the V-60HD functions can be remotely controlled through the RS-232 port.

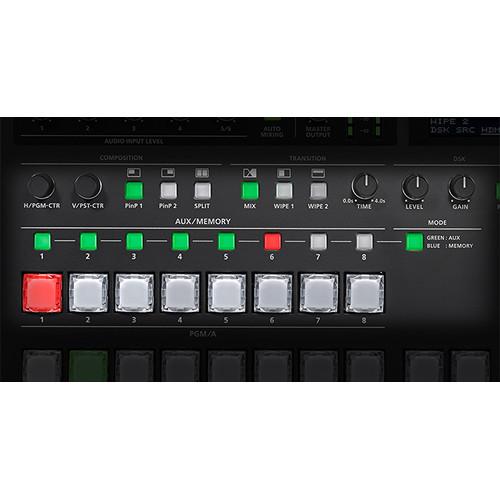

- Professional User Interface
- The switcher features:
- Professional broadcast cross-point buttons with PGM/PST LED color indicators.
- A rugged T-bar; DSK quick-edit knobs for key level and gain.
- Two dedicated PiP and Split buttons with knobs for center framing of Split and PiP placement.
- You can change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob.
- A 3" front-panel LCD display with quick-access menu navigation allows you to adjust switcher parameters.
- AUX Bus
- A dedicated AUX bus can be assigned to any of the four discreet SDI or HDMI outputs, providing seamless switching from the eight-input channels (four SDI, two HDMI, or one RGB and two still images).

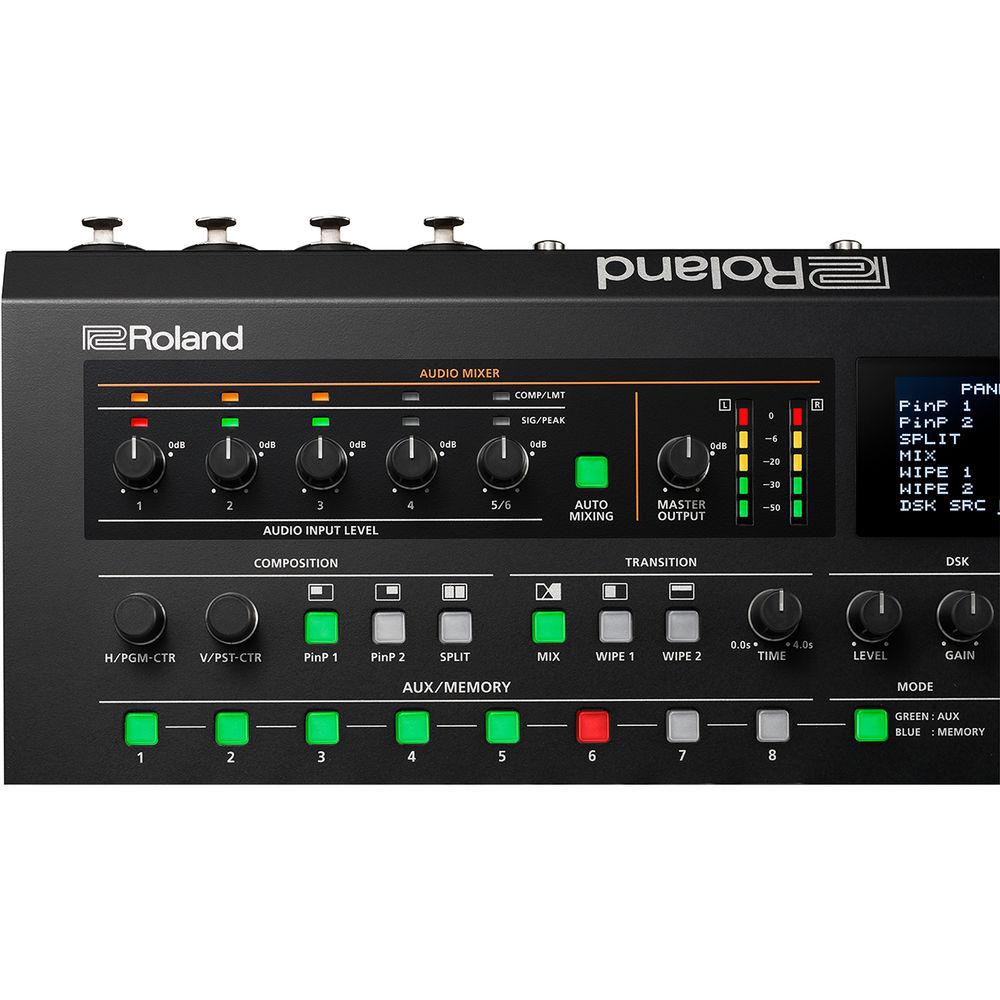

- Audio Mixing
- The V-60HD utilizes preamp as well as dynamic effects that include a high-pass filter, gate, compressor, three-band EQ, delay, and ability to select audio-follows-video channel so audio passes through when a specific video source is selected. Dynamics can be adjusted from the onscreen menu or accessed through the Remote-Control Software for Windows or Mac.
- Multichannel Audio Embedding
- Assign up to eight analog audio inputs to a separate audio embed channel on SDI 1 and 2 outputs to ensure a separate mix pre-effect (dry) or post effect (wet) for correcting audio problems after the live event. This feature is additionally useful during multi-language events for recording the voice-over or language translation on its own audio channel to a separate master.
- Smart Tally
- Roland's proprietary wireless tally system uses a wireless LAN router connected to the V-60HD to send tally information to iOS or Android devices on the network.
- Resolutions up to 1080p
- The inputs and outputs support resolutions up to 1080p59.94 (1080p50 for PAL) or 1920 x 1200 computer resolution.
- Effects
-
- Downstream keyer composites logos and text into output video
- Mix, Cut, and Wipe (30 patterns)
- Picture-in-Picture
- Flip horizontal
- Output fade
- Still image capture
- Still image playback
- Test pattern output
UPC: 761294511602 In the Box Roland V-60HD Multi-Format HD Video Switcher Power Supply Limited 1-Year Warranty User Manual PDF 16.4mbzdzcfaqbsxfrwdvrfxtyxs Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland V-60HD Multi-Format HD Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

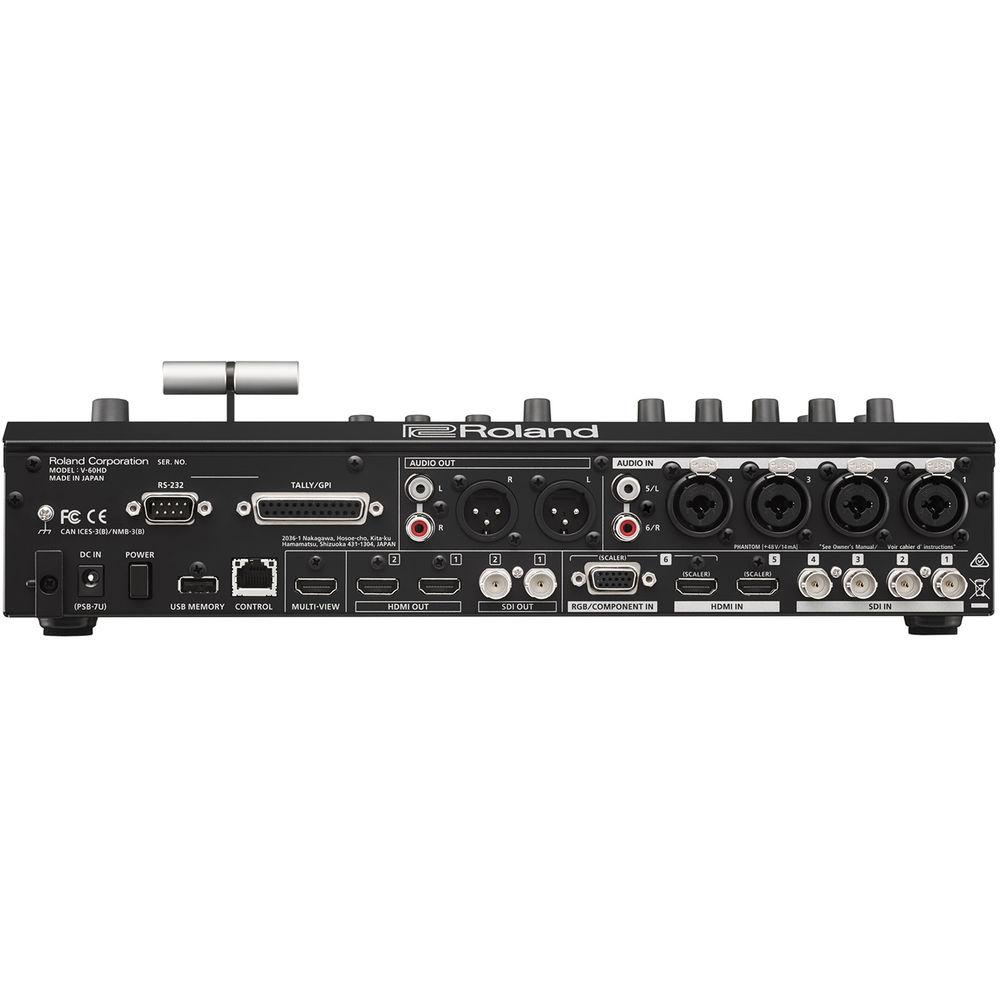

Technical parametersRoland V-60HD Specs | | | Video Processing | YPbPr: 4:2:2, 8-bit | | Inputs | 4 x SDI, BNC (inputs 1 to 4)
2 x HDMI type A (inputs 5 to 6)
1 x HD-15 VGA, RGB/component (shared with HDMI input 6) | | Outputs | 2 x SDI, BNC
2 x HDMI type A
1 x HDMI type A, multiview | | Input Format Support | SDI In
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50
Inputs 1–4 conform to SMPTE 296M & 274M
HDMI/RGB/Component In
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50
480i/p: 59.94
576i/p: 50
WUXGA 1920 x 1200: 60 Hz
UXGA 1600 x 1200: 60 Hz
SXGA+ 1400 x 1050: 60 Hz
FWXGA 1366 x 768: 60 Hz
SXGA 1280 x 1024: 60 Hz
WXGA 1280 x 768: 60 Hz
XGA 1024 x 768: 60 Hz
SVGA 800 x 600: 60 Hz
VGA 640 x 480: 60 Hz
Note: Interlaced input signal is converted to progressive by internal processing. The video signal frame rate can be selected at the System Menu (59.94 or 50). | | Still Image | Windows Bitmap (.bmp)
Maximum: 1920 x 1080 pixels, 24-bit color, uncompressed
Maximum of 2 files in the internal memory | | Output Format Support | SDI
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50
HDMI
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50
HDMI Multiview
1080p: 59.94/50 | | Video Effects | Transition
Cut
Mix
Wipe (30 types)
Composition
PiP (square, circle, heart, diamond)
Split (4 types)
DSK (luminance key, chroma key)
Others
Horizontal flip
Output fade
Still image capture
Still image playback
Test pattern output | | | | Audio Processing | Sampling Rate: 24-bit, 48 kHz | | Audio Formats | SDI In: Linear PCM, 24-bit, 48 kHz, 2-Ch
SDI Out: Linear PCM, 24-bit, 48 kHz, 8-Ch
HDMI In/Out: Linear PCM: 24-bit, 48 kHz, 2-Ch | | Input Connectors | Digital
4 x SDI, BNC
2 x HDMI type A
Analog
4 x XLR/1/4" TRS phone combo (supports phantom power)
2 x RCA phono type | | Phantom Power | +48 VDC
1 mAh | | Input Level | Audio In 1 to 4
-60 to +4 dBu (Maximum: +22 dBu)
Audio In 5 to 6
-10 dBu (Maximum: +8 dBu) | | Input Impedance | Audio In 1 to 4
10 kOhms (Head Amp Gain: 0 to 23 dB)
5 kOhms (Head Amp Gain: 24 to +64 dBu)
Audio In 5 to 6
15 kOhms | | Output Connectors | Digital
2 x SDI, BNC (shared with video)
2 x HDMI type A (shared with video)
1 x HDMI type A, multiview (shared with video)
Analog
2 x 3-pin XLR (L/R pair)
2 x RCA phono type (L/R pair)
1 x 1/4" stereo headphone | | Output Level | Audio Out (XLR): +4 dBu (Maximum: +22 dBu)
Audio Out (RCA): -10 dBu (Maximum: +8 dBu)
Phones: 92 mW + 92 mW (32 Ohms) | | Output Impedance | Audio Out (XLR): 600 Ohms
Audio Out (RCA): 1 kOhms
Phones: 10 Ohms | | Audio Effects | Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter | | | | Interface | USB Type-A (for USB memory)
Tally/GPI: DB-25, female (Tally: 12 / GPI: 8)
RS-232: DB-9 male (for remote control)
LAN: RJ45 100BASE-TX (for remote control) | | Functions | Memory (8 types)
Panel lock
EDID emulator | | Display | Graphic LCD: 128 x 64 dots | | Power | AC power adapter | | Power Consumption | 12 VDC
37 W
3.1 A | | Operation Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 14.0 x 8.7 x 3.8" / 35.6 x 22.1 x 9.6 cm | | Weight | 6.6 lb / 3 kg | | | | Package Weight | 9.25 lb | | Box Dimensions (LxWxH) | 18.5 x 12.5 x 7.4" |
