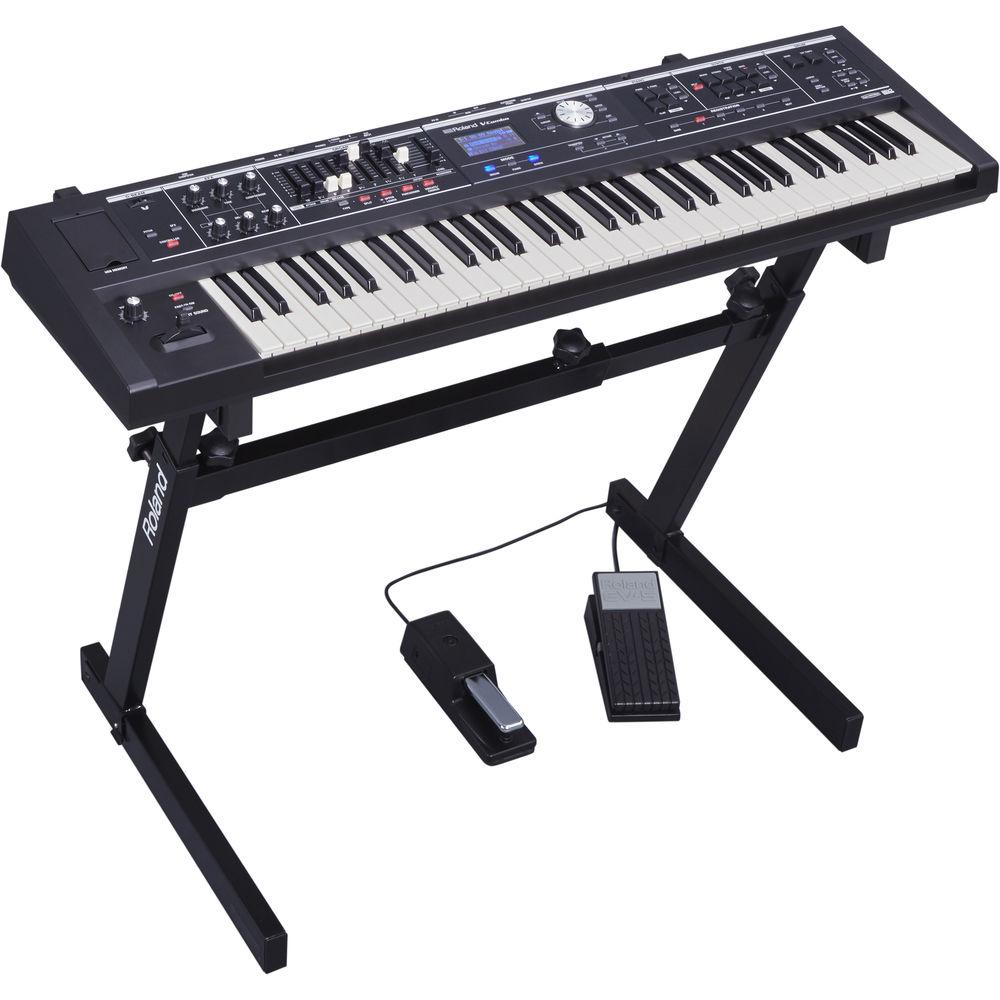

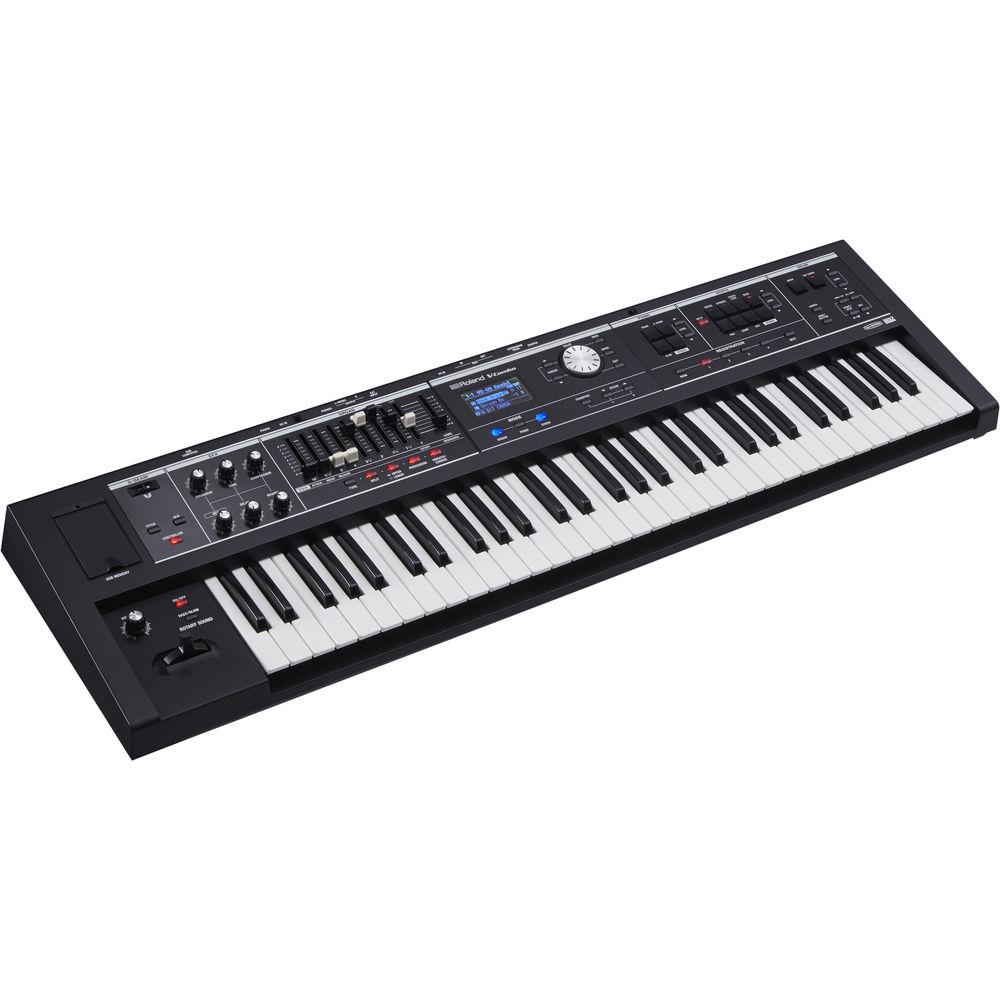

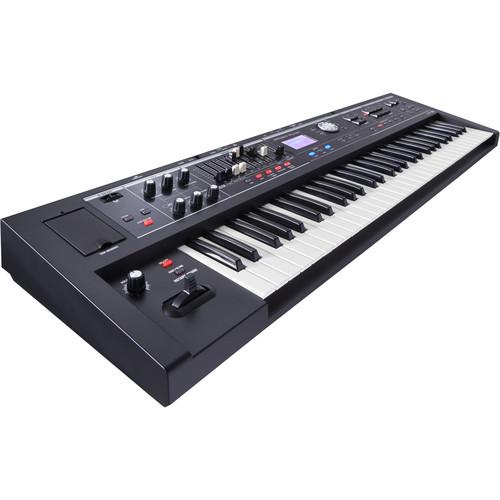

User Manual for Roland V-Combo VR-09B 61-Key Live Performance Keyboard Click to enlarge the picture
Contents of the user manual for the Roland V-Combo VR-09B 61-Key Live Performance
- Product category: Stage Pianos & Organs Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Stage Pianos & Organs
 |
User manual for the Roland V-Combo VR-09B 61-Key Live Performance contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The V-Combo VR-09B 61-Key Live Performance Keyboard from Roland is a 61-key music workstation designed for use by the gigging musician, both live and in the studio. The dedicated organ, acoustic/electric piano, and synth engines are organized in three sections on the front panel. The VR-09-B includes all these sounds and weighs just 12.1 lb, making it easy to carry and set up. It has seven simultaneous effects that include rotary, delay, reverb, tone, overdrive, compressor, and MFX.
The Virtual Tone Wheel Organ engine emulates the sound-generating process of a real tone wheel organ, while nine harmonic bars provide hands-on tone control. The VR-09B's three genre-oriented types make it simple to call up the right rotary tone for any style, from gospel and pop to jazz and rock. You can also deepen the sound further with the Twin Rotary effect, add some grit with tube-style overdrive, or call up the ring modulator for a more aggressive sound.
You can expand your sound collection with free downloads from Roland's Axial Sound Library Site. Roland Wireless Connect enables wireless communication between the VR-09B keyboard and an iPad; alternately, you can link them to each other with a standard USB cable using the appropriate adapter for your specific iPad model. - Seven simultaneous effects with dedicated real-time controls
- Hands-on sliders, knobs, and buttons for easy access
- Support for battery operation
- Dedicated knobs tweak multiple parameters for powerful sound shaping

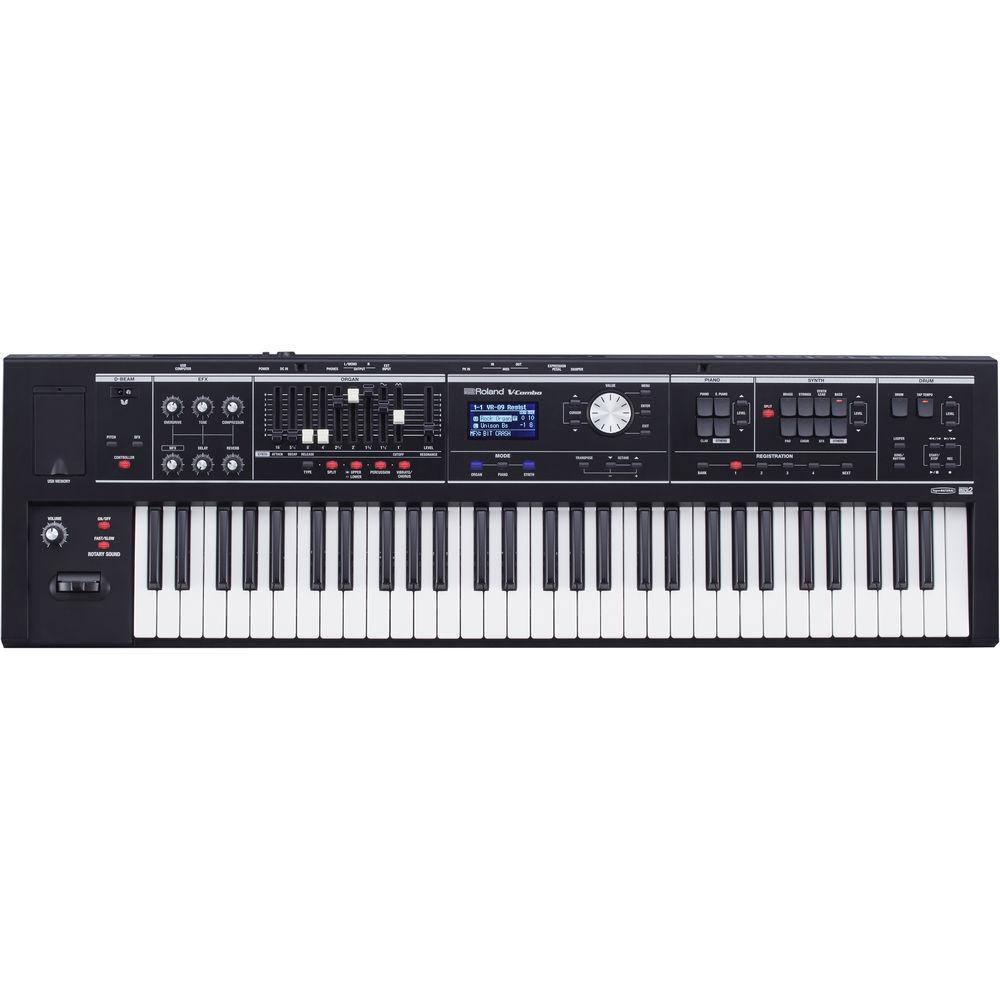

- Front-panel layout features an LCD screen and dedicated organ, piano, and synth sound sections
- 88-note stereo multi-sampling
- Classic electric piano types along with complementary vintage effects such as phaser, tremolo, touch wah, and tape delay
- Control panel with matte finish
- Weighs 12.1 lb and runs on AC or battery power
- Virtual Tone Wheel Organ reproduces vintage organ sounds
- Three onboard rotary effects, including a rock rotary type
- Rhythm patterns, metronome, looper, USB audio recording/playback
- Selection of SuperNATURAL synth tones
- Expand the onboard sound library with free downloads from Roland's Axial website
UPC: 761294511381 In the Box Roland V-Combo VR-09B 61-Key Live Performance Keyboard AC Adapter Power Cord USB Memory Protector Limited 1-Year Warranty on Parts Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland V-Combo VR-09B 61-Key Live Performance Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland V-Combo VR-09 Specs | | | Keyboard Type | 61 keys (with velocity) | | Modes |
Whole dual (volume balance adjustable)
Split (split point, volume balance adjustable)
2-manual/3-manual mode (when using sold separately MIDI keyboard) | | | | Sound Generator | Virtual tone wheel organ
SuperNATURAL synth
PCM synth GM2 compatible sounds are included | | Polyphony | Maximum: 128 voices | | Parts | Organ (3 parts)
Piano (2 parts)
Synthesizer (2 parts)
Drum (1 part)
GM2 (16 parts) | | Sounds | 245 | | Registrations | 100 (4 x 25 banks) | | Effects | 7 Systems Always On/Global Control:
Overdrive: 1 type
Tone Compressor: 2 types
Multi-Effects: 20 types
Delay: 6 types
Reverb: 6 types
Rotary: 3 types | | Audio File Player | Playable File Format:
SMF File: Format 0, 1
Audio File: WAV, AIFF, MP3
Recording Format:
SMF File: Format 0
Audio File: WAV (44.1 kHz, 16-bit linear, stereo) | | | | Recording Time | 20 seconds (stereo) | | Patterns | 52 x Rhythm Patterns | | Controller | 1 x virtual tone wheel organ
10 x harmonic bar
1 x synthesizer controller (5 x slider)
1 x D-BEAM controller
1 x pitch bend/modulation lever

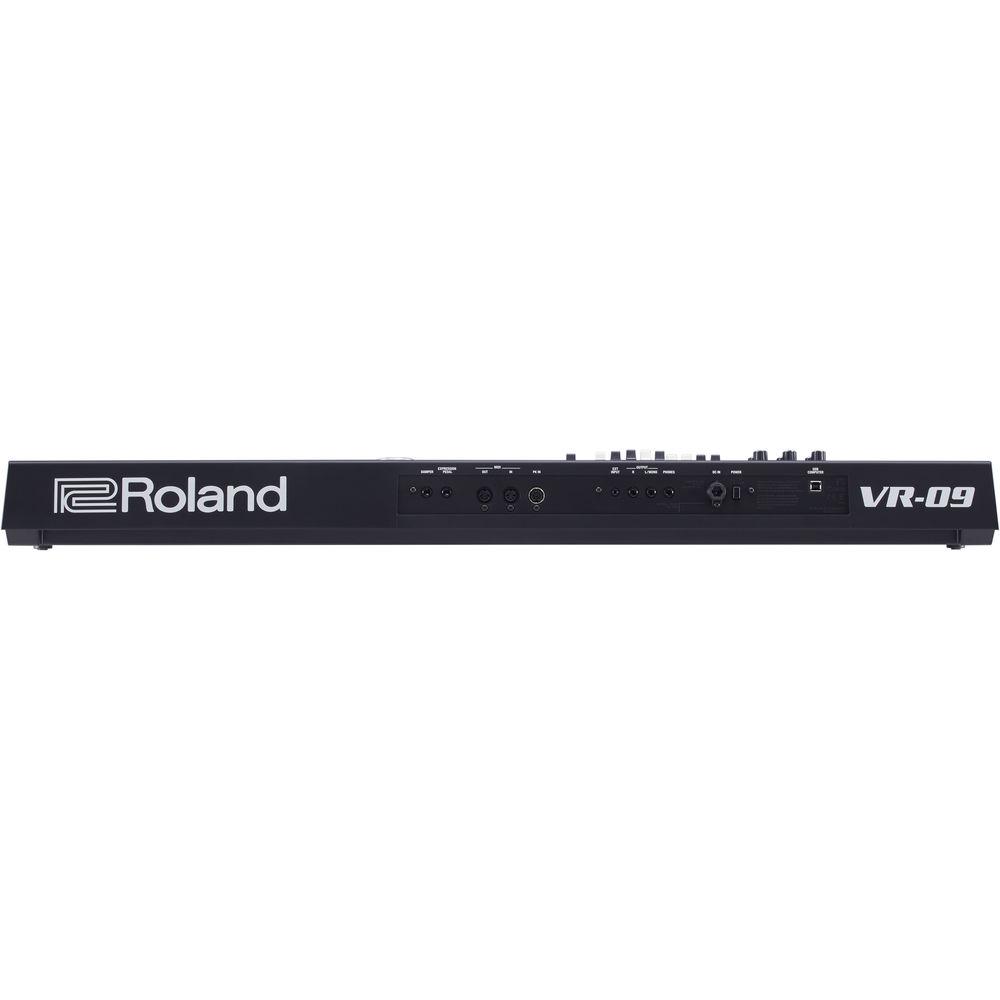

6 x effects knob (global control) | | Display | Graphic LCD: 128 x 64 dots | | External Memory | USB flash memory | | Connectors | 2 x 1/4" (6.35 mm) TS output jacks
1 x 1/8" (3.5 mm) stereo output jack
1 x 1/4" (6.35 mm) TRS headphone jack
1 x 1/4" (6.35 mm) TRS Damper pedal input
1 x 1/4" (6.35 mm) TRS Expression pedal input
1 x 5-pin DIN MIDI input
1 x 5-pin DIN MIDI output
1 x 8-pin DIN PK input
1 x USB Type-B
1 x USB Type-A
1 x DC input | | Current Draw | 650 mA | | Power Supply | 8x rechargeable NiMH AA batteries (not included)
AC adapter | | Battery Life | Approximately 5 hours (approximately 3 hours with USB flash drive connected) | | Dimensions | 39.7 x 11.8 x 4.8" (100.8 x 30.0 x 10.6 cm) | | Weight | Excluding AC Adapter: 12.1 lb (5.5 kg) | | | | Package Weight | 18.1 lb | | Box Dimensions (LxWxH) | 47.0 x 47.0 x 16.0" |
