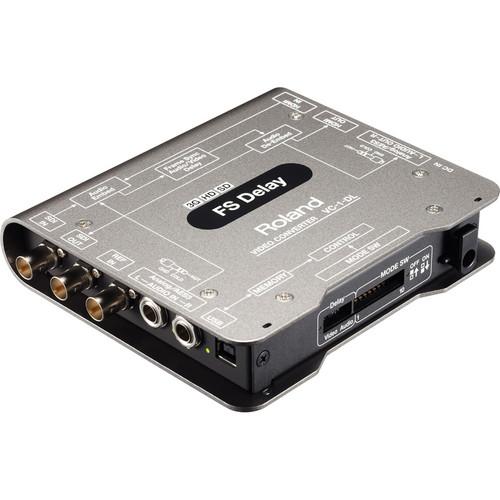

Product description The VC-1-DL Bi-Directional SDI/HDMI Video Converter with Delay and Frame Sync from Roland provides high picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors that are sometimes found with other video converters. The VC-1-DL also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1-DL also supports both level A and B 3G-SDI, thereby enabling you to connect a variety of high quality SDI sources.The VC-1-DL is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supported, thereby ensuring that high-quality audio signals can be maintained through the signal flow. - Commitment to Picture Quality
- The VC-1-DL faithfully converts the original source with no change in color or brightness. It supports super-blacks and super-whites, and converts video from cameras and other source devices with all the originality intact.
- Faithful Reproduction of Video Characteristics
- The VC-1-DL reproduces the video characteristics of the original source with no interlace artifacts, pixel shifting, or other conversion problems or signal errors. Jitter and return loss are at high levels as well.
- Support for 1080p 3G-SDI
- Video signals beyond 1080i can be input and output. The VC-1-DL supports both level A and level B 3G-SDI, thereby letting you connect a wide variety of 3G-SDI equipment. The 1080i, 720p, and SD signals are automatically accommodated on connection.
- Support for Workflow Combining Audio and Video

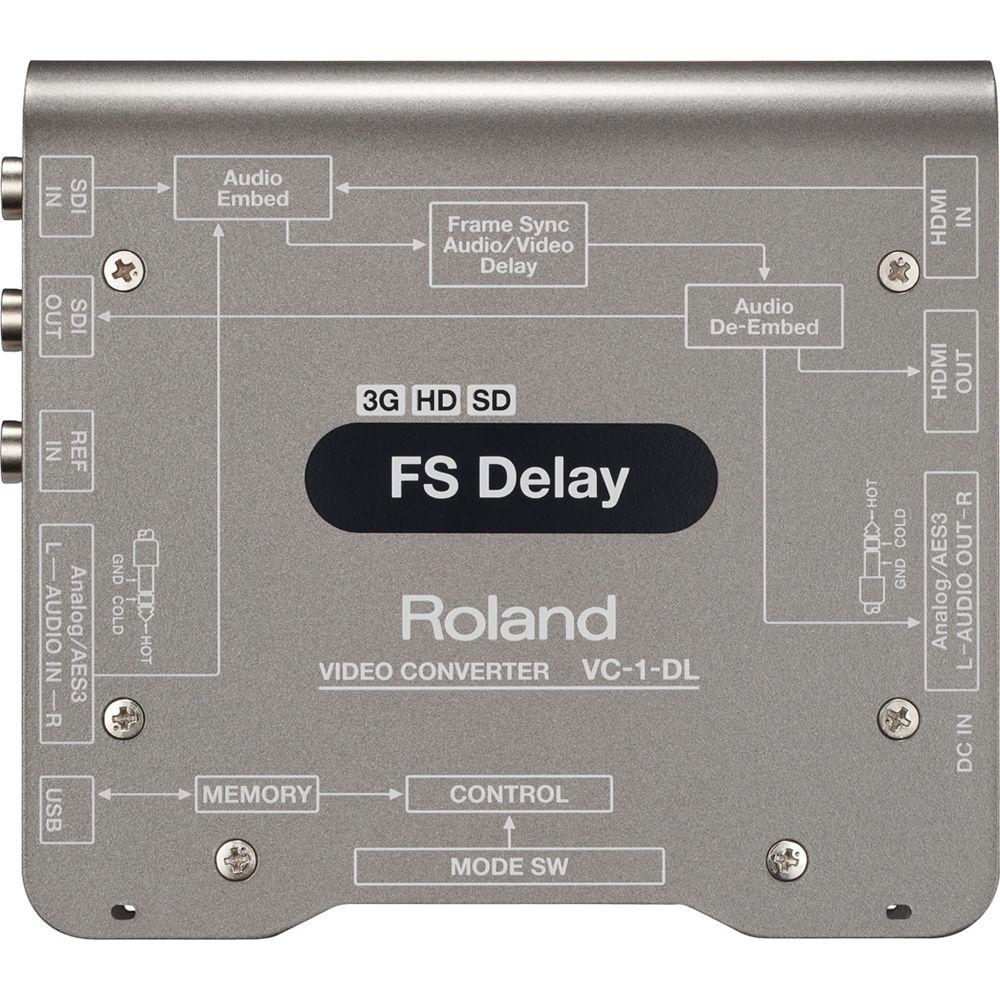

- Audio embedding and de-embedding features are provided (channel-selectable) in the VC-1-DL. The audio embedding feature lets you place audio signals from a different source into the video output. For example, when converting an SDI signal to HDMI, you can use the audio embedding feature to output high-quality audio from any of the SDI audio channels. Digital (AES/EBU) input and output are also supported, letting you exchange sound between professional audio equipment with no degradation in signal. Analog input and output is supported as well, making it possible to both monitor and input audio to/from a wide variety of equipment such as an audio console.
- Support for HDCP HDMI Signals
- The VC-1-DL can take HDCP-applied HDMI input signals, apply frame synchronization or delay, and produce HDCP-applied HDMI output. This allows the VC-1-DL to be used in any HDCP-based system with no worries. 1
Please Note: HDCP-applied HDMI signals cannot be converted to SDI and recorded to HDMI recorders and editors. close - On-Board Re-Clocker
- The VC-1-DL features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. This makes it possible to receive camera-relay video while maintaining a high image quality.
- Rugged, High Quality Smart Design

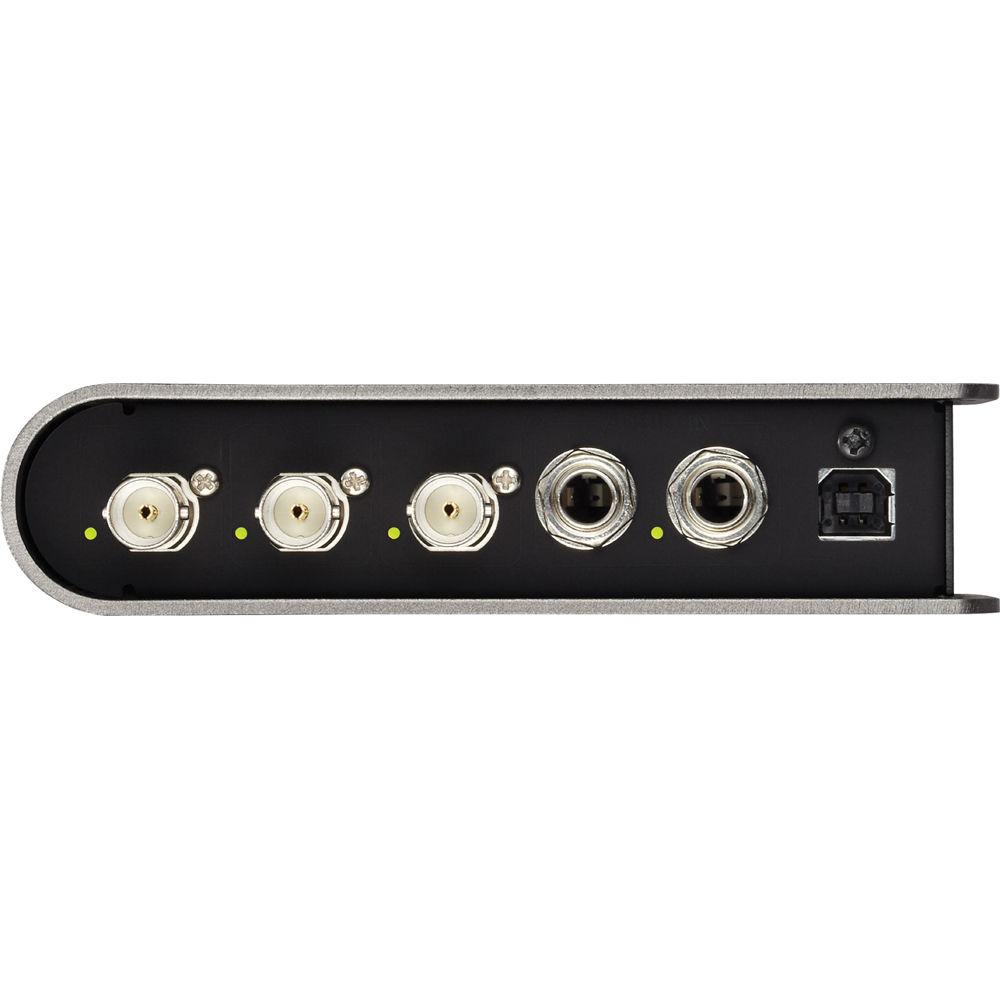

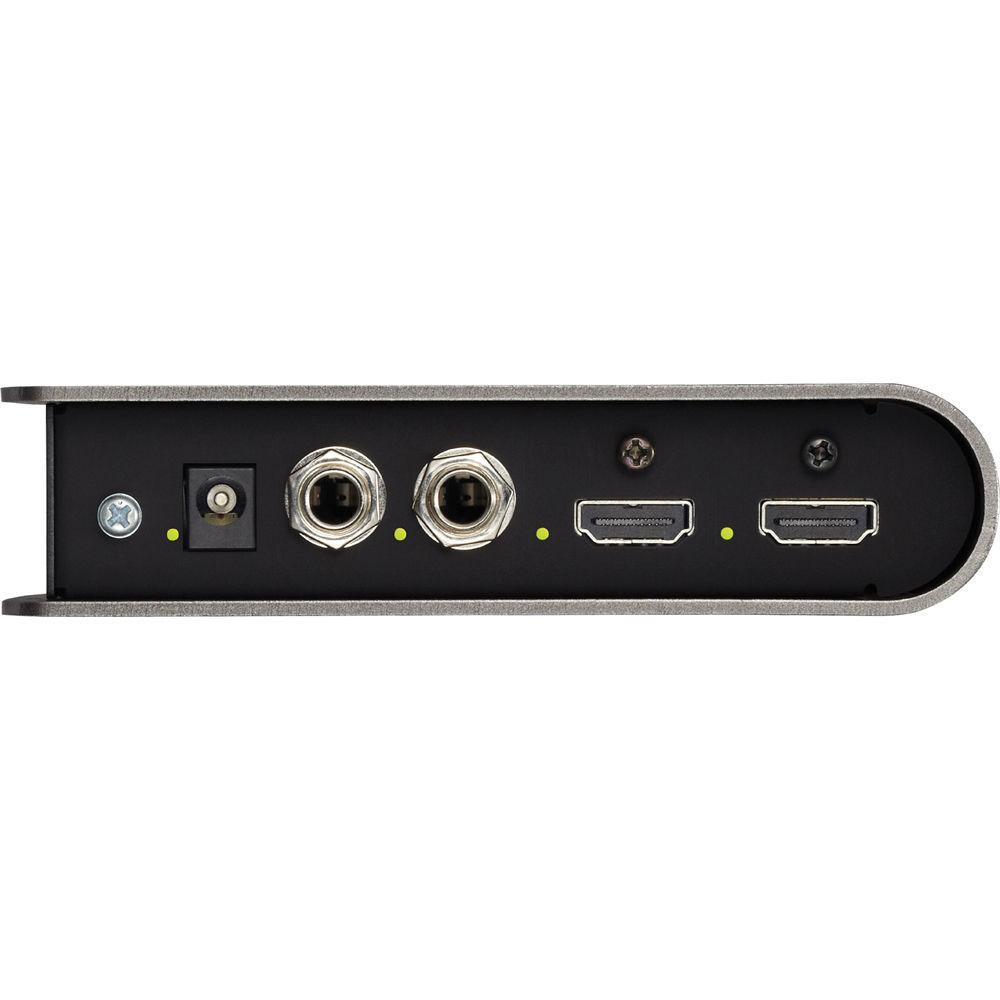

- The exterior plating is aluminum at 2mm thickness. The connectors laid out inside the exterior plates are fastened to the chassis with nuts and bolts. This makes for a heavy-duty specification that can keep the connectors from coming loose even with frequent cable changes, as well as withstanding impact and drops. Every connector has an LED input indicator enabling you to confirm the status of signal transmission at a glance. The series is built for high reliability that includes accurate operation even over long periods of continuous use, thanks to a design featuring heat-radiating efficiency. Cutaway areas in the exterior plate enable you to fasten the unit to tripods or the like using hook & loop fastener or elastic ties. This makes for convenient placement and setup even during live on-site use.
- Easy Configuration with DIP Switches or Dedicated PC/Mac Software App

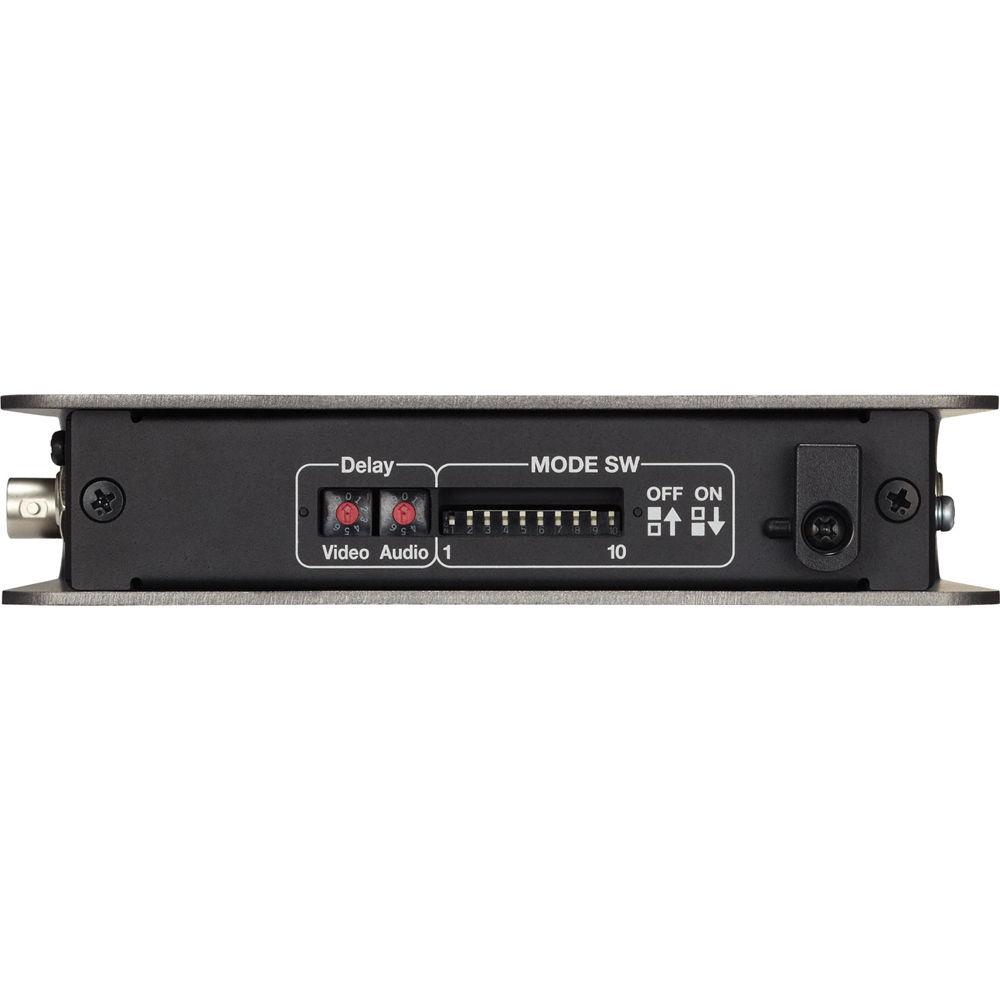

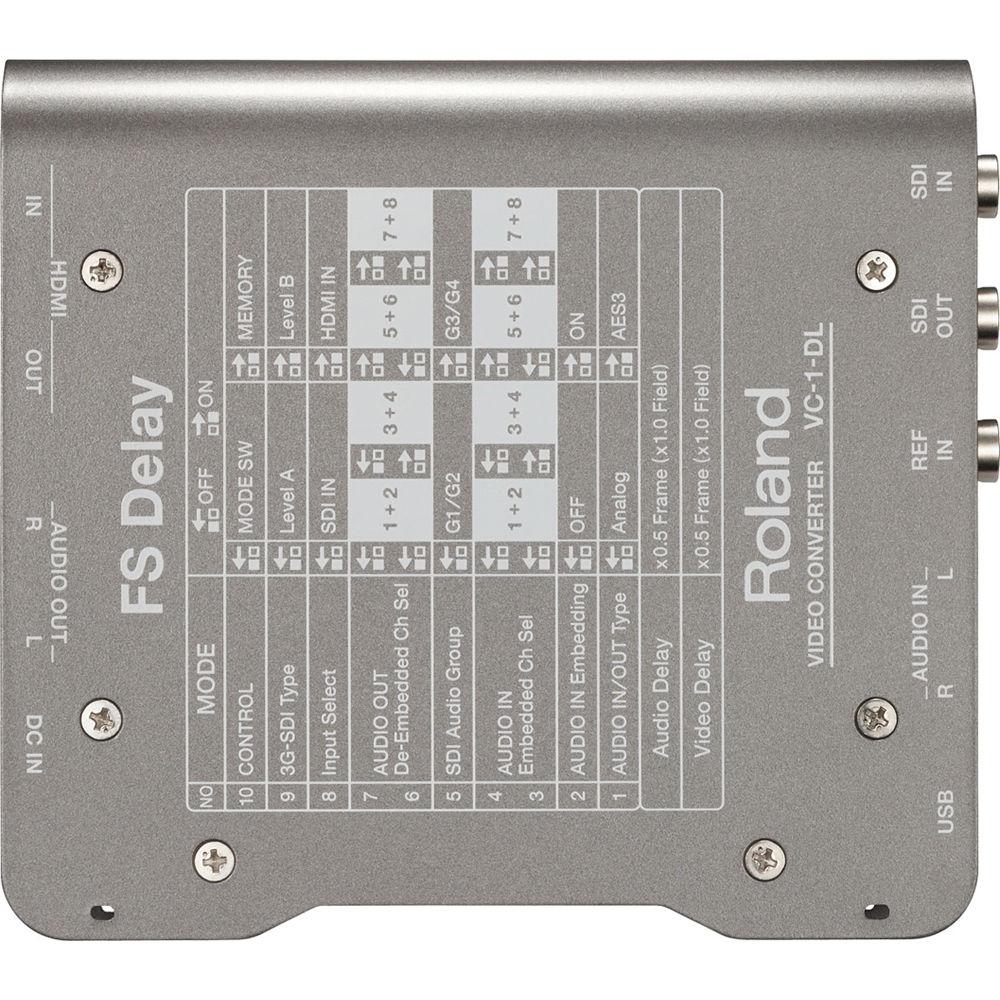

- DIP switches make it simple to accommodate on-site requirements. Change the conversion direction or other settings by simply sliding a DIP switch on the side of the unit. Delay Dials (VC-1-DL only) set the amount of delay for video and audio. Independently set the amount of delay for video and audio in a range of 0 to 9 fields (0 to 4.5 frames). Connection to a computer via the USB cable unlocks greater versatility with advanced settings, including a memory location to lock in a favorite configuration. Control and configure multiple VC-1 units at the same time using a USB hub.
UPC: 761294503614 In the Box Roland VC-1-DL Bi-Directional SDI/HDMI Video Converter with Delay and Frame Sync AC Adapter Power Cord 4 x Rubber Foot Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland VC-1-DL Bi-Directional SDI HDMI Video Converter with Delay and Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland VC-1 Specs | Input | SDI Connector: 1 x BNC type
HDMI Connector: 1 x Type A (19 pins)
Analog Audio Connector: 1/4" TRS phone type (balanced) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector)
Reference Connector: 1 x BNC type
Reference Signal Format: Black Burst, Bi-level, Tri-level
Reference Impedance: 75 Ω | | Processing | Video delay (0 to 4.5 frames)
Audio delay (0 to 4.5 frames)
Audio embedding
Audio de-embedding | | Output | SDI Connector: 1 x BNC type
HDMI Connector: 1 x Type A (19 pins)
Analog Audio Connector: 1/4" TRS phone type (balanced) x 1 pair (L/R)
Digital Audio Connector: 1/4" TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector) | | Input Format | SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5)
Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel | | Output Format | SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280 x 720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720 x 487/59.94i, 720 x 576/50i (Conforms to ITU-R BT.601-5)
SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 1 x 16 channel (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format: 1920 x 1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280 x 720/60p/59.94p/50p/30p/29.97p/25p, 720 x 480/59.94i, 720 x 576/50i (Conforms to CEA-861-D)
HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 1 x 8 channel | | Level | Analog Audio Input: 4 dBu
Analog Audio Maximum Input: 24 dBu
Analog Audio Output: 4 dBu | | Impedance | Analog Audio Input: 110 Ω
Analog Audio Output: 600 Ω
Digital Audio Output: 110 Ω | | Signal Format | Digital Audio Output: AES3, 16/24 bits, 32/48 kHz, 2 channel | | USB | 1 x USB Type B (Hi-Speed USB) | | Power Supply | 9 VDC | | Power Consumption | 8 W | | Operation Temperature | 32 to 104˚F (0 to 40˚C) | | Dimensions (W x D x H) | 5.93 x 5.12 x 1.18" (15.06 x 13.00 x 2.99 cm) | | Weight | 1.10 lb (0.50 kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.1 x 10.2 x 2.7" |
