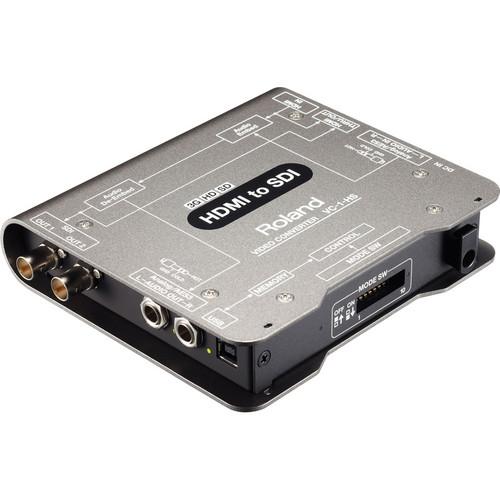

User Manual for Roland VC-1-HS HDMI to SDI Video Converter Click to enlarge the picture
Contents of the user manual for the Roland VC-1-HS HDMI to SDI Video
- Product category: Signal Converters Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Signal Converters
 |
User manual for the Roland VC-1-HS HDMI to SDI Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

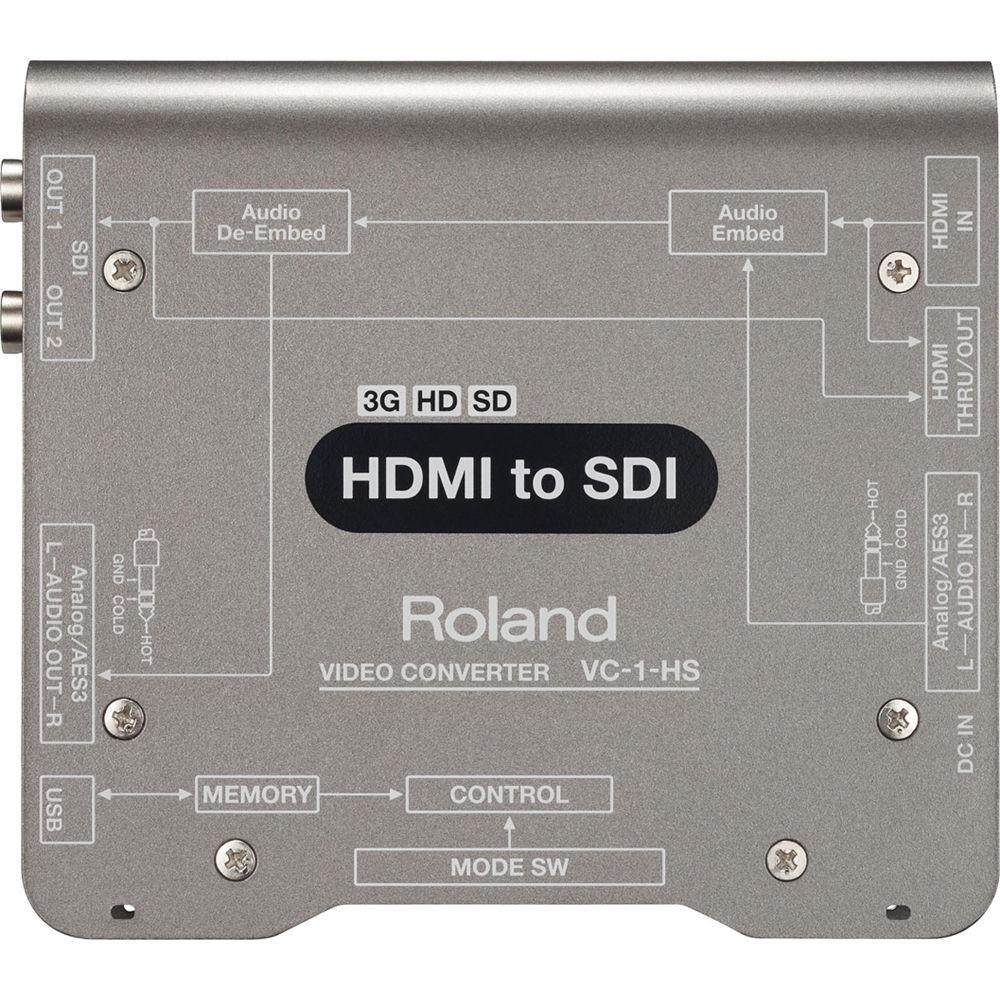

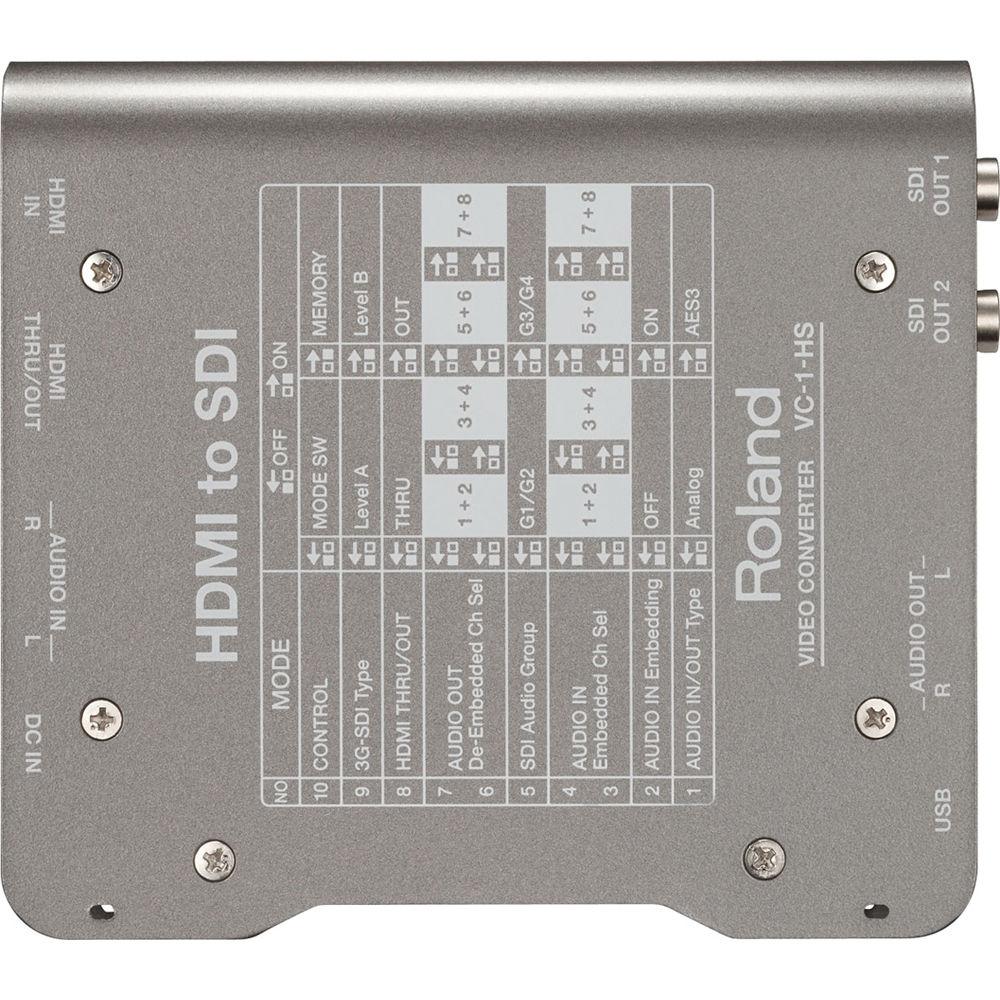

Product description The Roland VC-1-HS HDMI to SDI Video Converter allows HDMI video sources to be incorporated into an SDI workflow, and can also serve and an audio embedder and de-embedder. The internal processing has been designed to faithfully preserve the incoming HDMI signal and frame rate without introducing interlacing artifacts, signal errors, or reducing the dynamic range of the image.

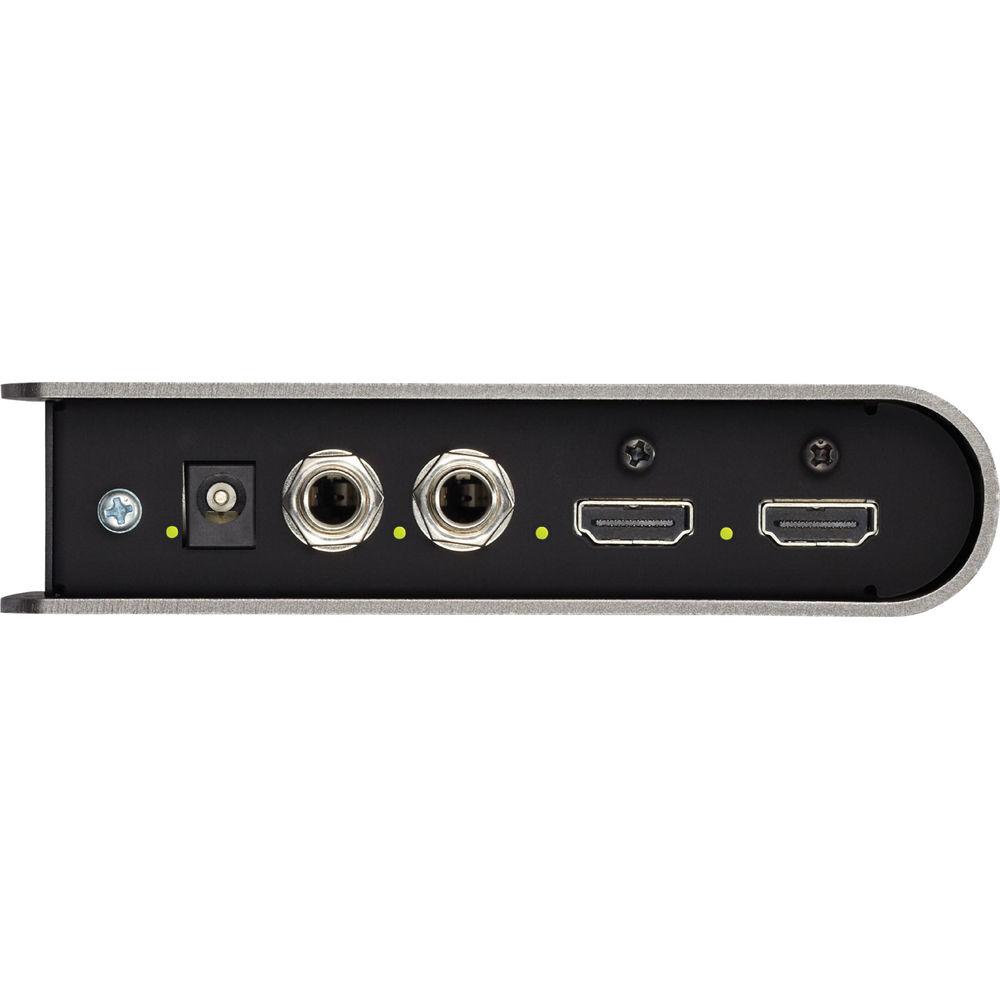

The VC-1-HS features an HDMI and an SDI output that supports 3G-SDI, HD-SDI, and SD-SDI. A hybrid balanced stereo analog and AES/EBU digital audio input allows additional audio sources to be embedded in the SDI stream along with any HDMI audio. For local monitoring there is an HDMI loop-out that can be used with standard, consumer-grade HDMI displays and will incorporate any audio that has been embedded within the unit. A hybrid analog/digital audio output separates the HDMI and embedded audio and can be used for local monitoring incase audio output is unavailable from the display. - Audio Embedding and De-Embedding
- Two 1/4" TRS inputs forming a L/R stereo pair allow a balanced analog or AES/EBU digital audio signal (using only the "R" input) to be embedded in the SDI stream, along with any existing HDMI audio. Once imbedded, the audio is passed to the HDMI loop-out as well as the SDI signal. In addition, all embedded audio can be output through two more 1/4" TRS jacks either as stereo analog or AES/EBU digital (through the "R" output). This feature means the VC-1-SH can serve as a standalone audio embedded/de-embedder not just a video converter
- 3G-SDI Level A and Level B Support
- Part of the SMPTE 424M specification, Level A transports up to 60 progressive frames while Level B implements a multiplexing scheme that combines two stream of 50 or 60 Hz interlaced video. Support for both variants helps ensure this device will be widely compatible with 3G-SDI video equipment
- HDCP Support (HDMI Output Only)
- The VC-1-HS can pass an HDCP-encrypted video source, such as a Blu-ray DVD player, through to the HDMI loop-out. However, HDCP-protected content will not be allowed to pass to the SDI outputs. In this case, the device will only function as an audio embedder/de-embedder
- Mac and Windows Configurable

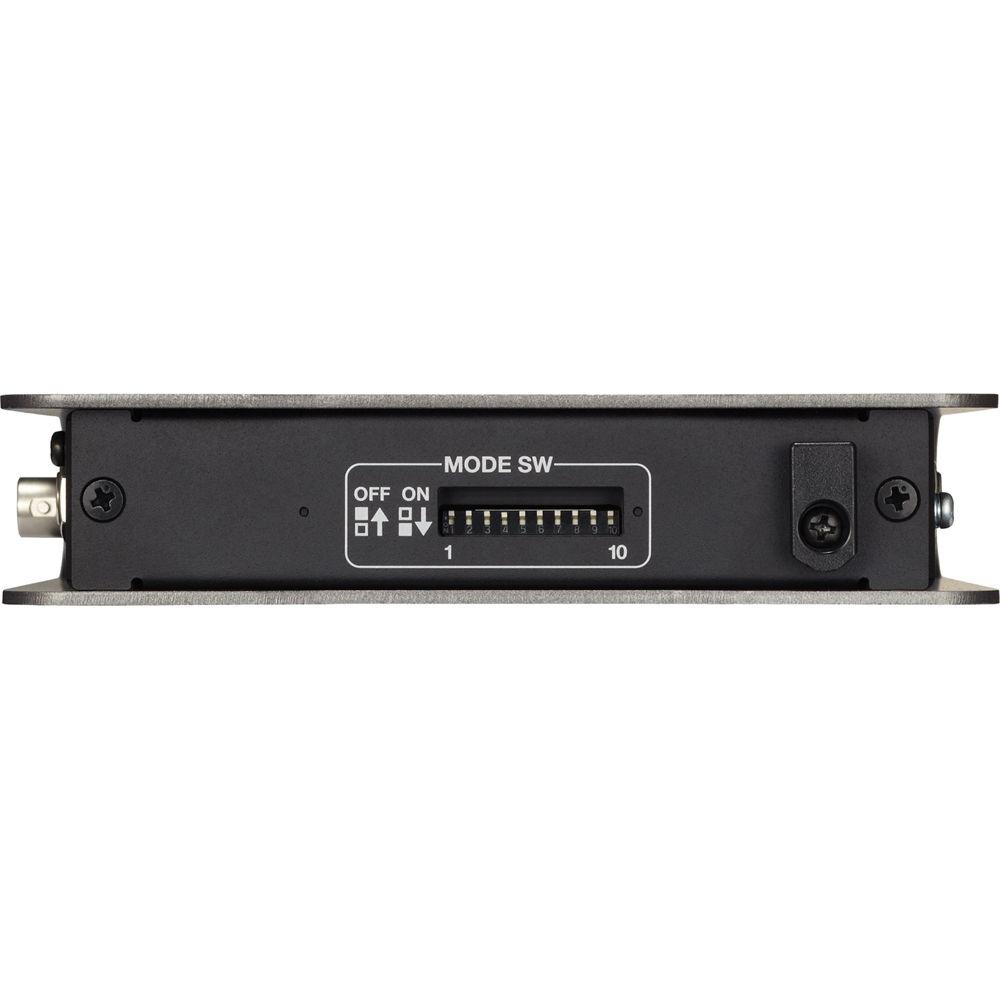

- Using the VC-1 RCS control application, available for free download from Roland, you can configure the VC-1-HS with more refined parameters than are available on the unit itself
UPC: 761294503607 In the Box Roland VC-1-HS HDMI to SDI Video Converter AC Adapter Power Cord 4 x Rubber Foot Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland VC-1-HS HDMI to SDI Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

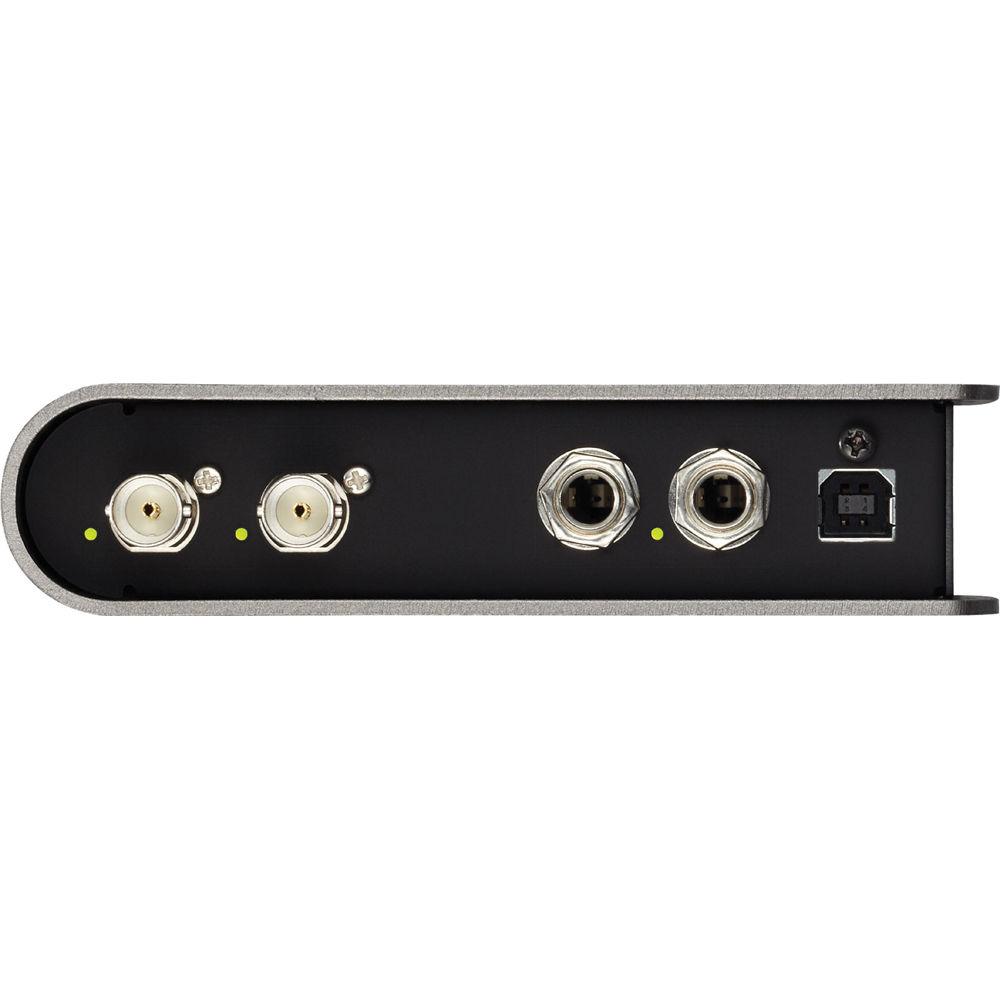

Technical parametersRoland VC-1 Specs | Inputs | 1 x HDMI
2 x Analog audio on balanced 1/4" TRS female - L/R stereo pair
1 x Digital audio on balanced 1/4" TRS female - shares input with "R" channel analog input | | Output | 1 x 3G-SDI on BNC female
1 x HDMI loop-out
2 x Analog audio on balanced 1/4" TRS female - L/R stereo pair
1 x AES/EBU digital audio on balanced 1/4" TRS female - shares input with "R" channel analog input | | SDI Standards | SMPTE 424M (Level A and B), 425M-AB, 299M, 296M, 292M, 274M, 272M-C, 259M-C; ITU-R BT.601-5 | | HDCP Support | HDCP-protected sources will pass to HDMI output only; SDI output will be disabled | | Audio Formats | SDI: Linear PCM; 24-bit, 48 kHz, 16 channels
HDMI: Linear PCM; 24-bit, 48 kHz, 8 channels AES/EBU: 110 ohm; AES3; 16 or 24-bit, 32 or 48 kHz, 2 channels
Analog Input: 110 ohm; +4 to +24 dBu
Analog Output: 600 ohm; +4 dBu | | Supported Resolutions | 1920 x 1080: 60p, 59.94p, 50p, 30p/29.97p, 25p, 24p, 23.98p, 60i, 59.94i, 50i
1280 x 720: 60p, 59.94p, 50p, 30p, 29.97p, 25p
720 x 576: 50i
720 x 480: 59.94i | | USB | 1 x USB 2.0 type B | | Power Requirements | 9 VDC | | Power Consumption | 8 W | | Operation Temperature | 32 to 104˚F / 0 to 40˚C | | Dimensions (W x D x H) | 5.9 x 5.1 x 1.2" / 15 x 13 x 3 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.3 x 10.4 x 2.7" |
